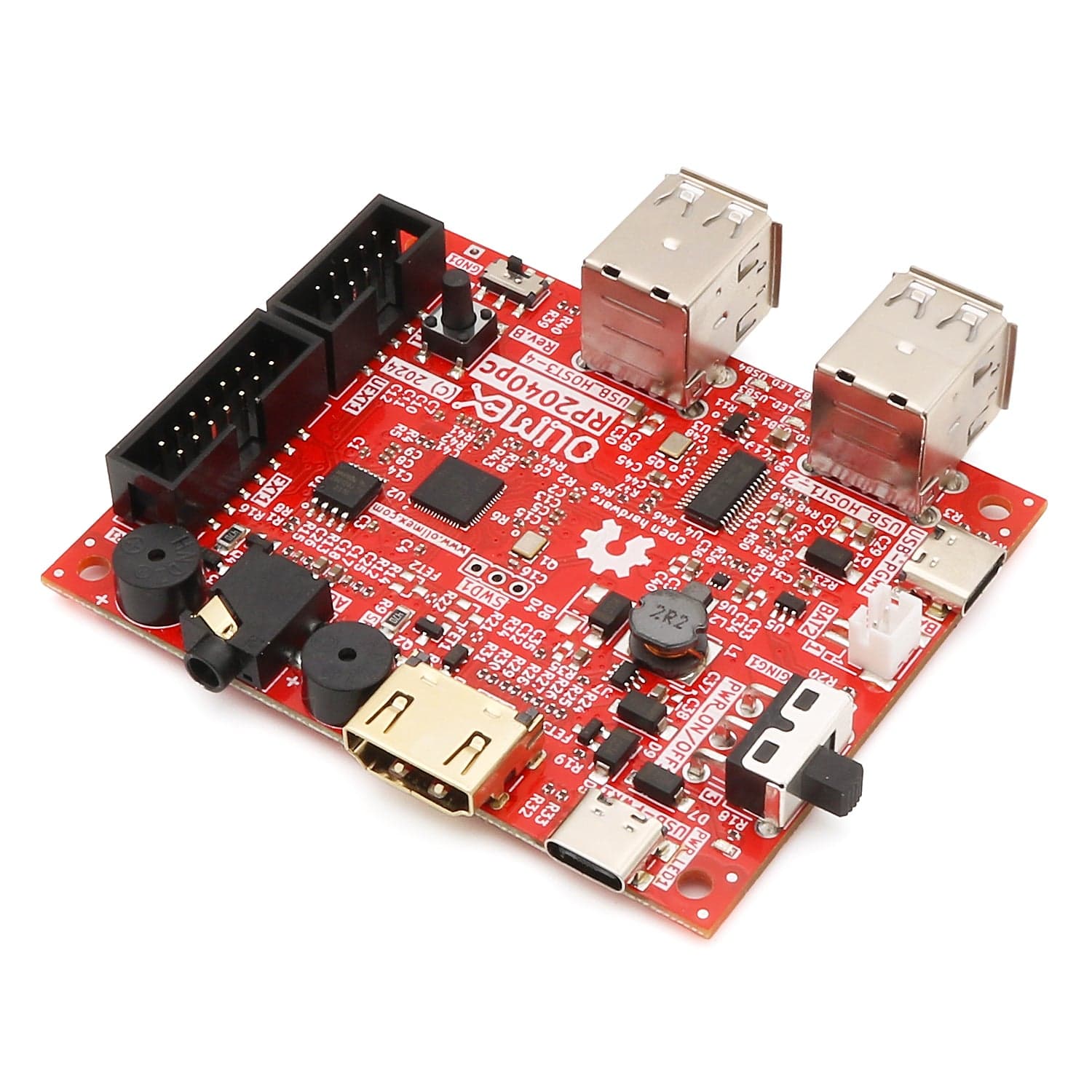

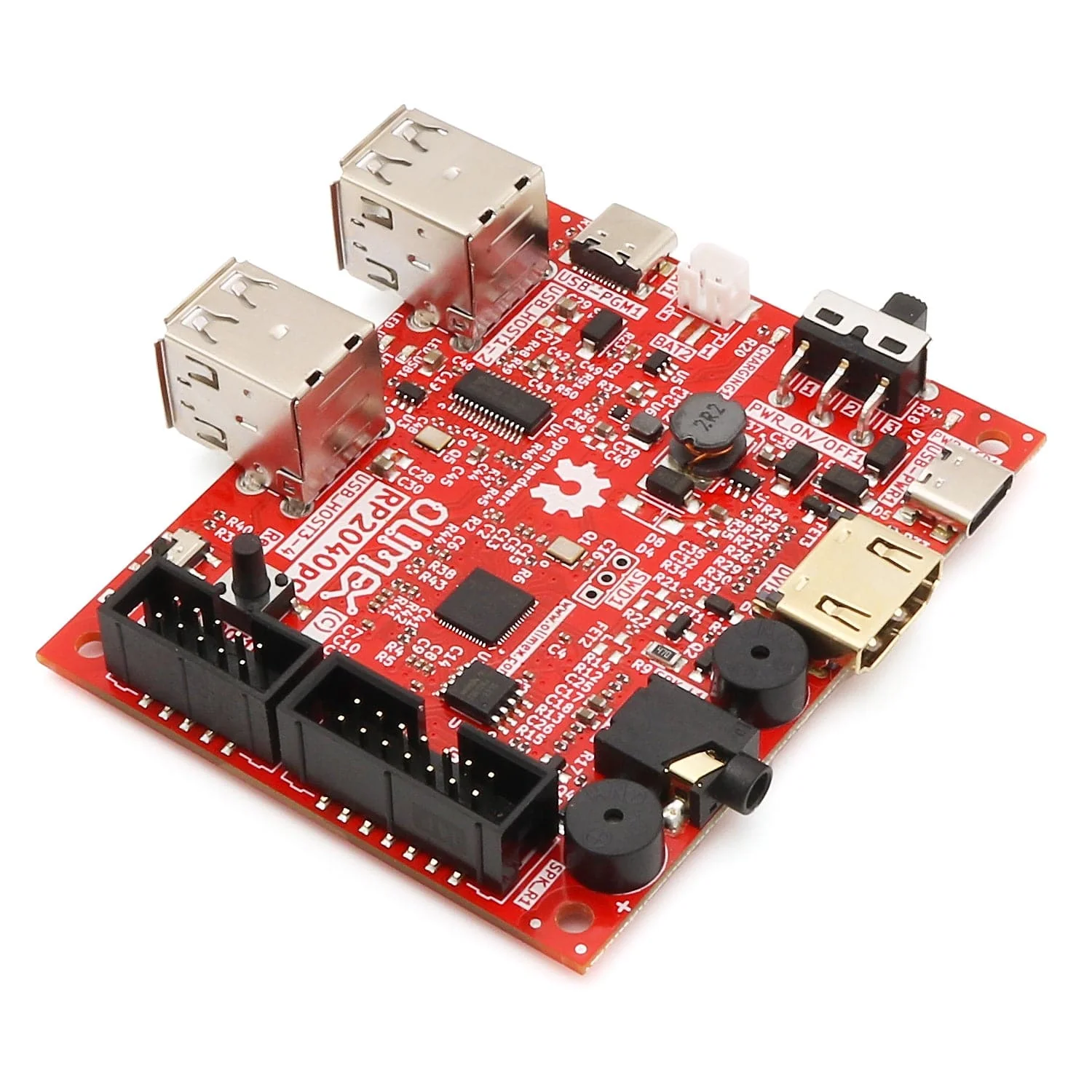

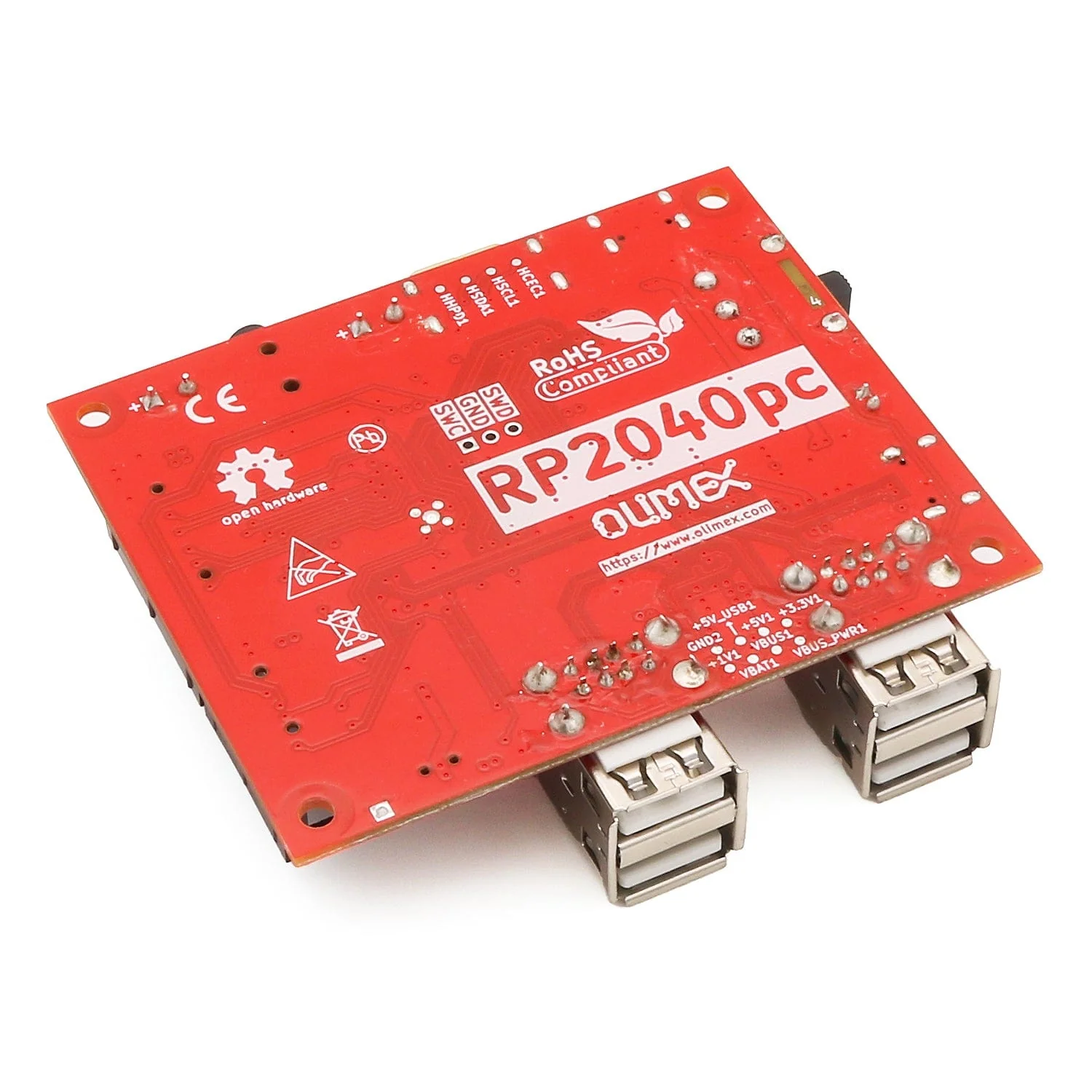

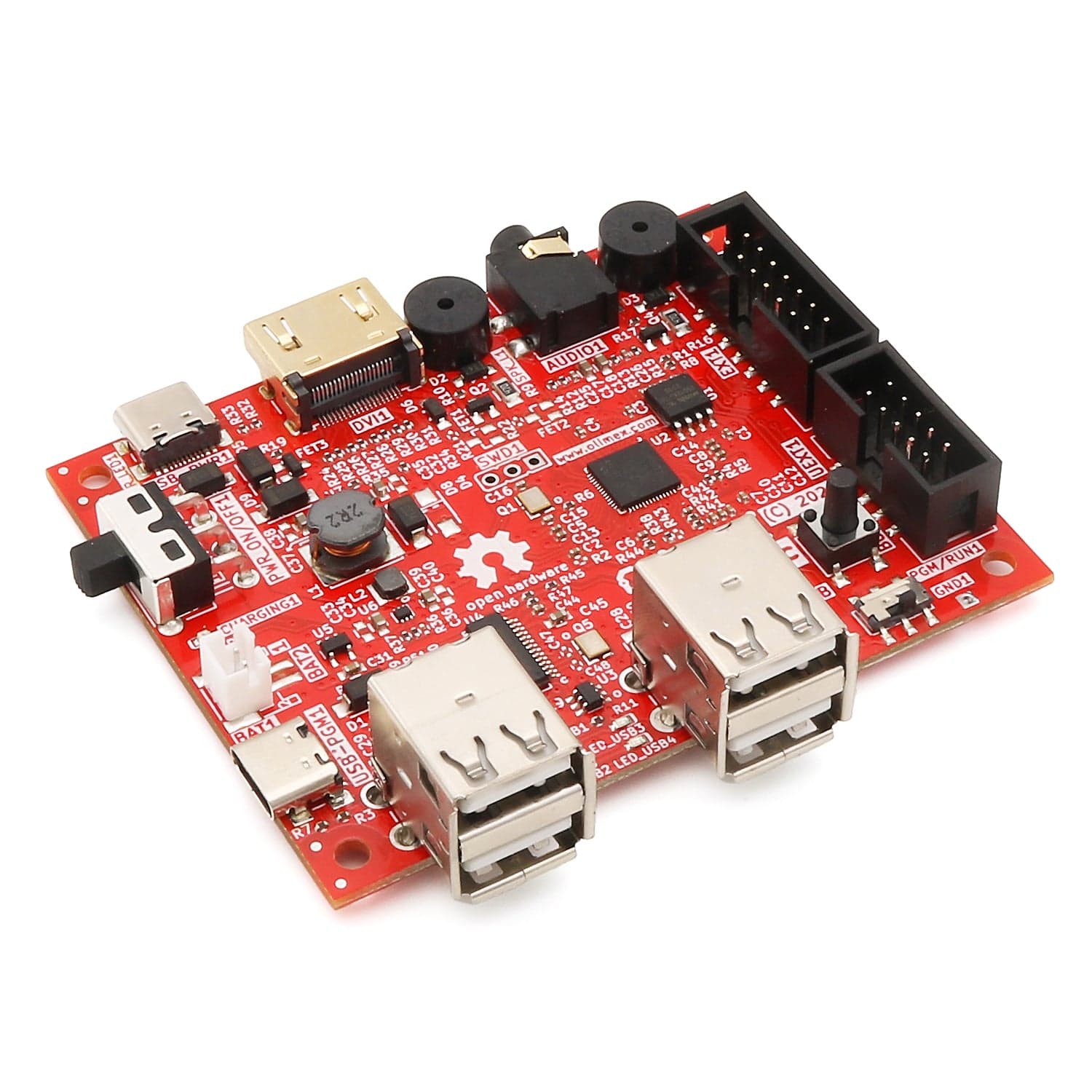

Olimex RP2040PC

The Olimex RP2040PC is an all-in-one computer powered by a Raspberry Pi RP2040 dual-core Cortex-M0 microcontroller, with 4x USB2.0 hosts, stereo audio, DVI/HDMI output, LiPo battery charger, USB-C power input and UEXT connector.

With the Reload Emulator it can emulate Apple ][+ (Apple II Plus), Apple //e (Apple IIe) and Oric Atmos 8-bit old computers, and play thousands of Total Replay games on it!

The USB host supports USB Flash drives, USB Gamepads (USB-GAMEPAD emulates Apple Joystick) and USB Keyboards.

Features

• RP2040 Dual-core Cortex-M0 processor
• 16MB SPI Flash
• DVI/HDMI output
• 4x USB hosts
• Stereo Audio buzzer
• Audio 3.5mm connector for external audio amplifier
• USB-C connector for power supply
• USB-C connector for programming
• UEXT connector
• Power switch
• Programming/Execution switch
• RP2040 programming bootloader button
• Four mounting holes 3.3mm diameter (M3)
• LiPo battery charger
• Dimensions 80x65mm

Resources

Documentation

• RP2040 user manual
• RP2040PC EU declaration of conformity
• RP2040PC UKCA declaration of conformity

Hardware

• RP2040PC schematic in PDF format
• RP2040PC KiCAD source files

Software

• Reload emulator for Apple ][, Apple][e, Oric Atmos
• Pre-compiled images on ftp

Package Contents

• 1x Olimex RP2040PC board
