M5Stack ATOM Lite ESP32

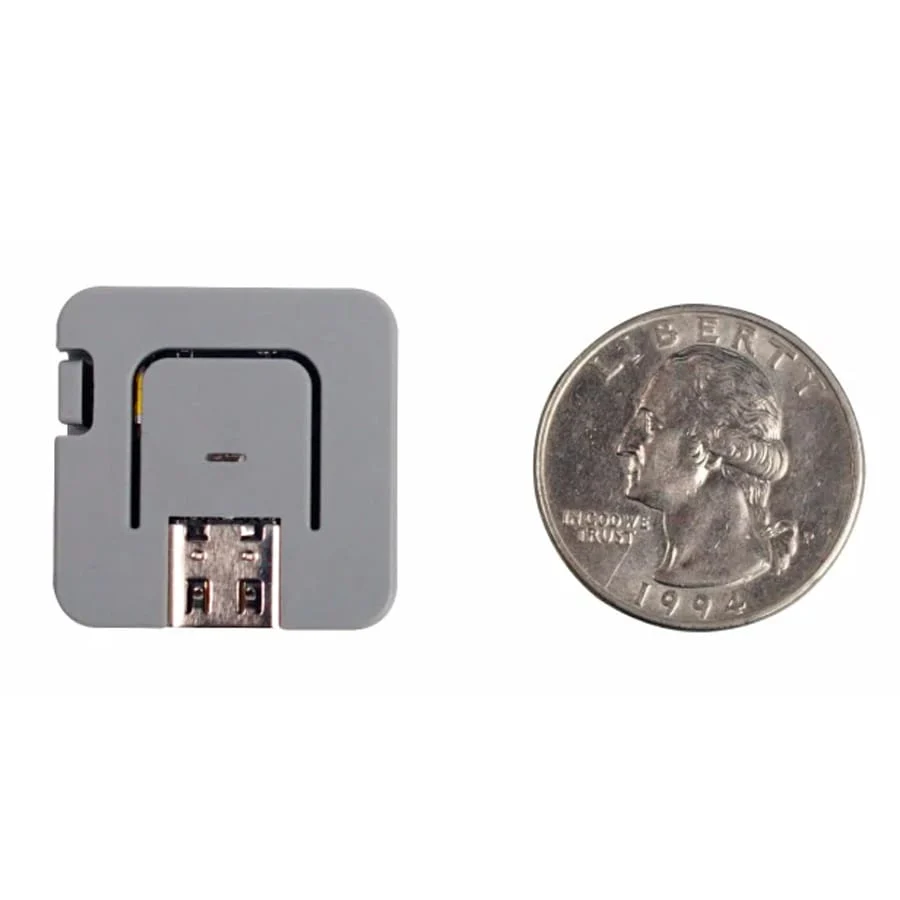

The M5Stack ATOM Lite ESP32 IoT development kit is ideal for making embedded smart home devices and smart toys. At only 24 x 24mm, it's great for fitting into projects where space is at a premium. Popular as a Bluetooth proxy for Home Assistant!
There are a wide range of ATOM bases and add-ons to use with the ATOM Lite./.
For more information and for help getting started, click here
Features
- ESP32-PICO chip
- Onboard wifi and Bluetooth
- 4MB of integrated SPI flash memory
- RGB LED
- Programmable button
- Built-in Infra-red LED
- Six GPIO connectors for attaching to external sensors
- PH2.0 interface
- On-board USB-C interface for programming
- Program Platform: Arduino / UIFlow
Specifications
| Resources | Parameter |
|---|---|
| ESP32 | 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi, dual mode Bluetooth |
| Flash | 4MB |
| Power Input | 5V @ 500mA |
| Port | TypeC x 1, GROVE (I2C+I/0+UART) x1 |

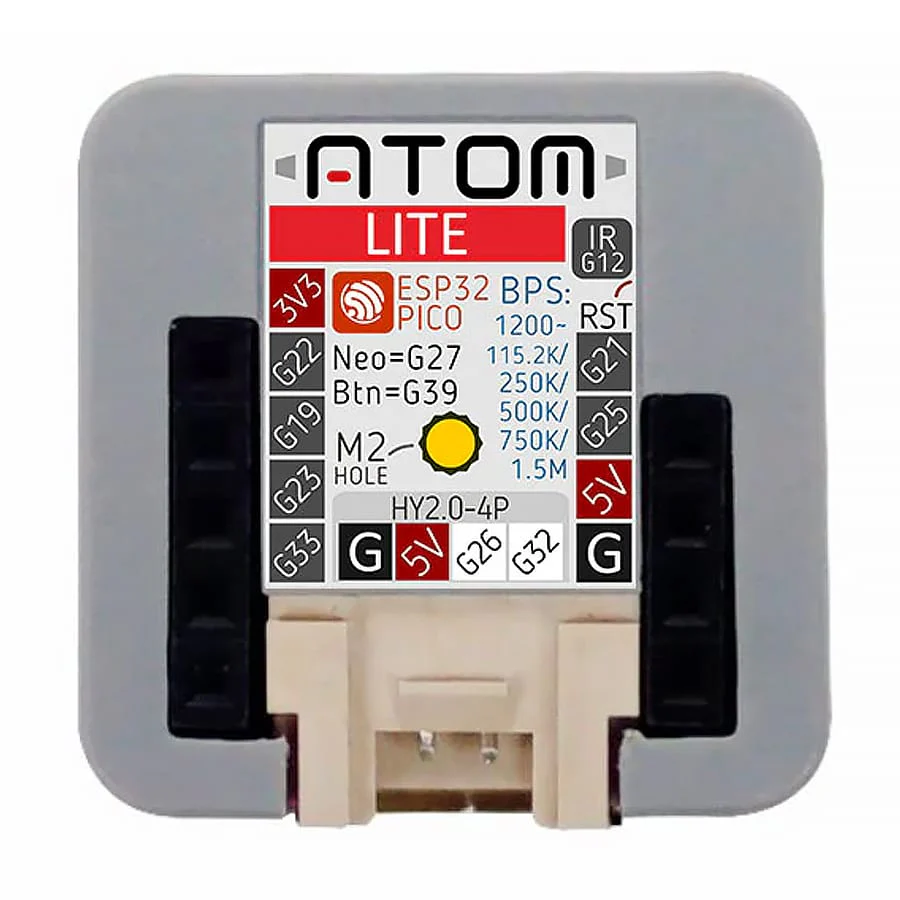

| PIN Port | G19, G21, G22, G23, G25, G33 |
| RGB LED | WS2812B x 1 |
| IR | Infrared transmission |
| Button | Custom button x1 |
| Antenna | 2.4G 3D Antenna |
| Operating Temperature | 32°F to 104°F ( 0°C to 40°C ) |

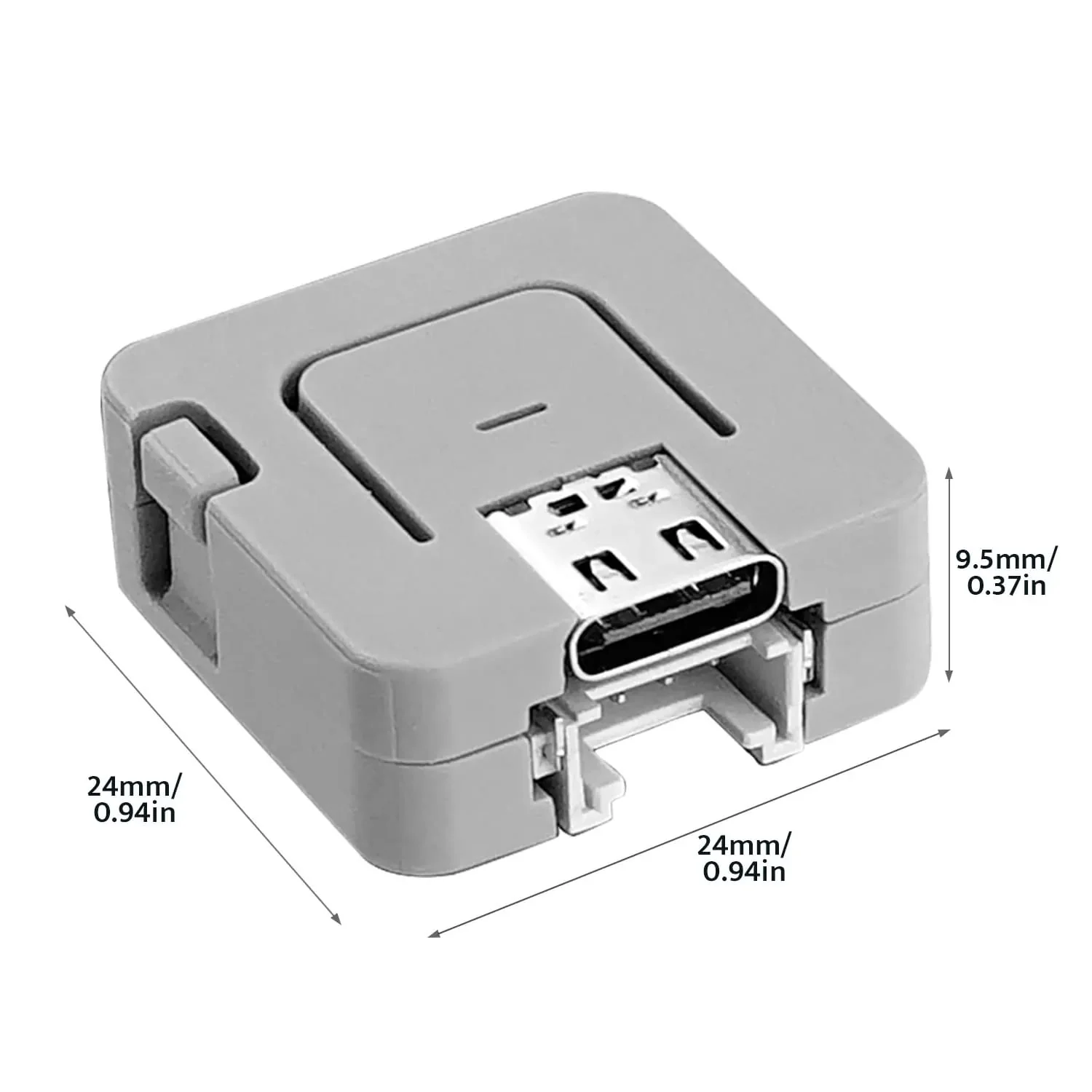

| Size | 24 x 24 x 10 mm |
| Weight | 12g |
| Case Material | Plastic ( PC ) |
