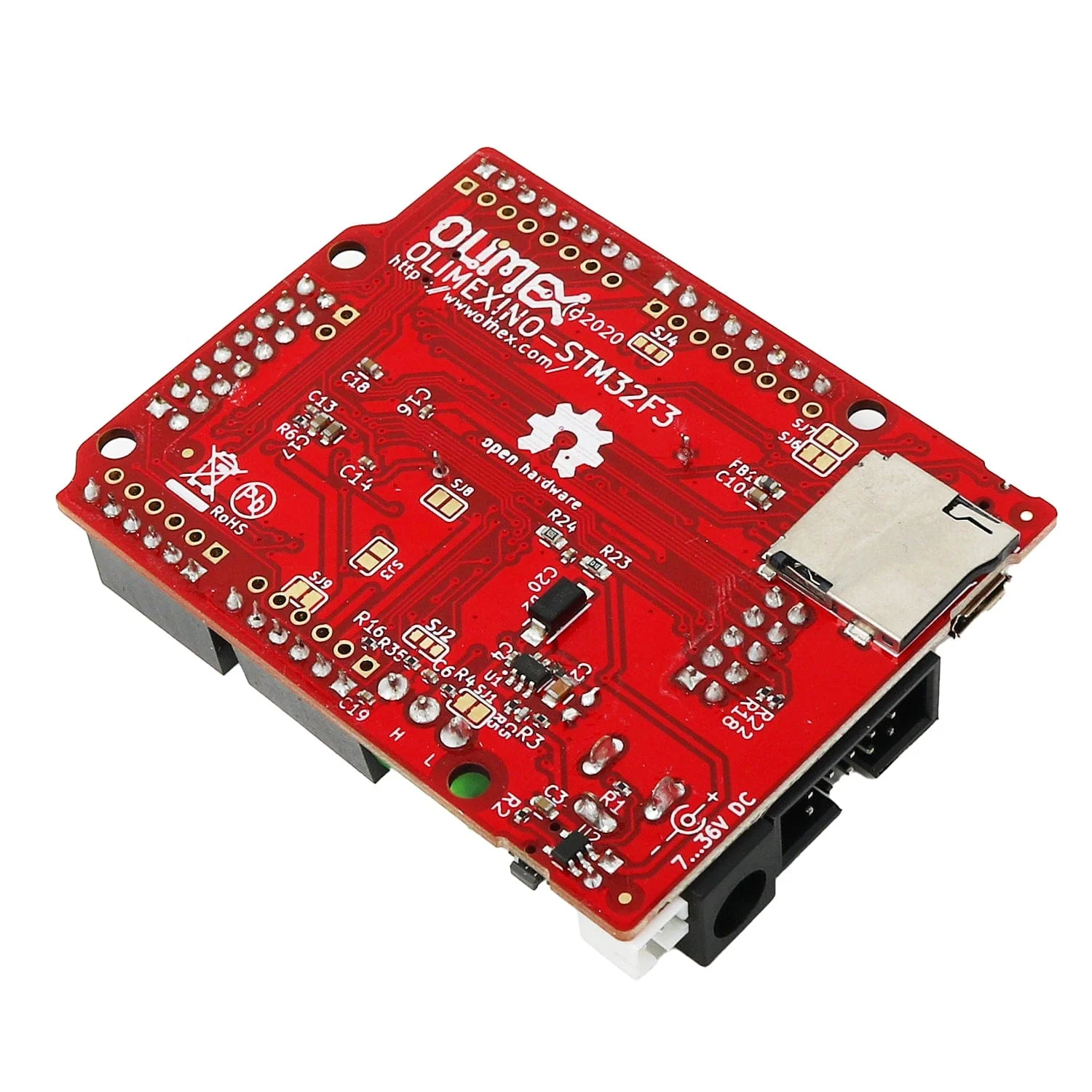

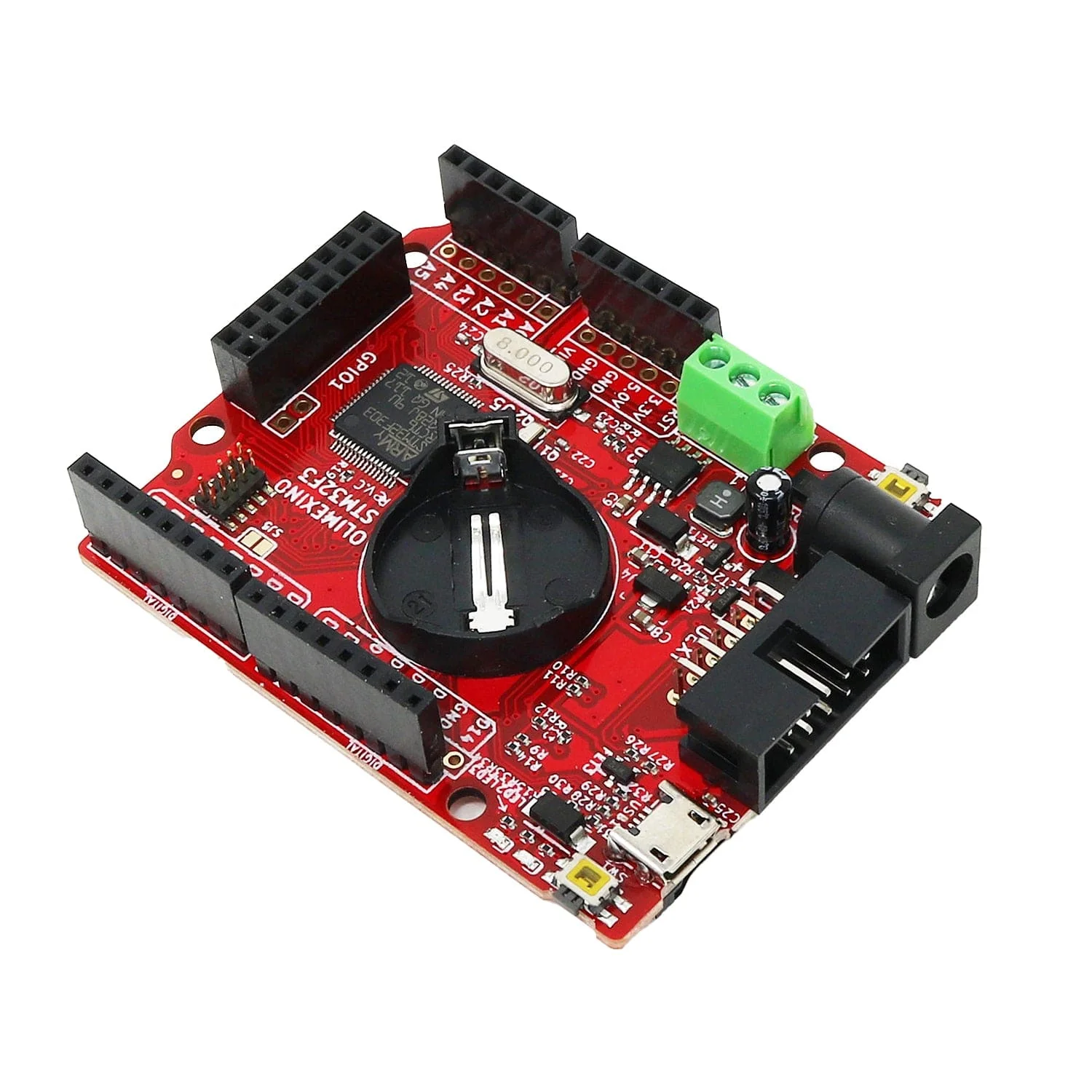

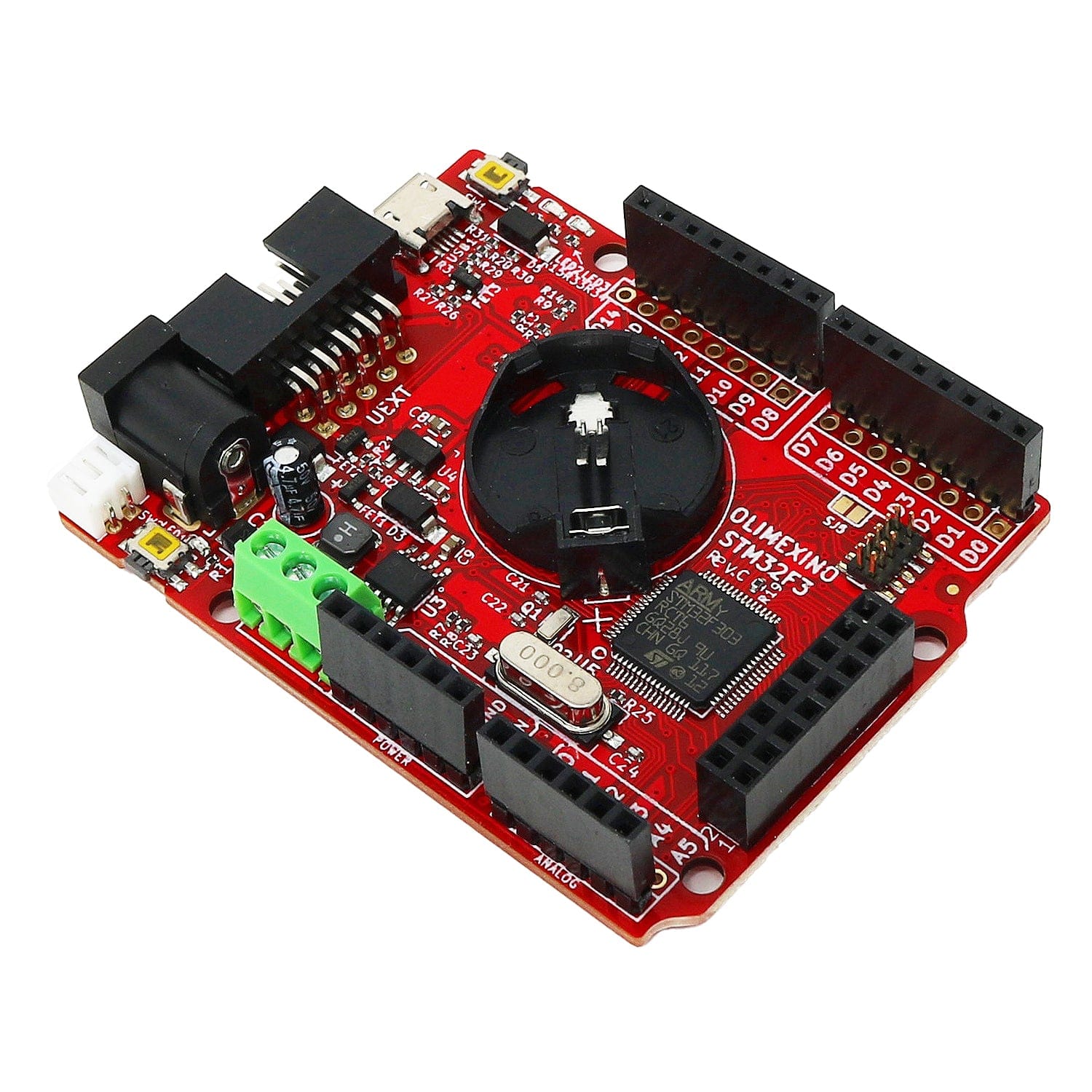

Olimex OLIMEXINO-STM32F3 Development Board

The Olimex OLIMEXINO-STM32F3 is a highly reliable, industrial-grade Arduino IDE-programmable Cortex-M3 board. The STM32F3 series can have both USB and CAN working at the same time, something which was not possible in the F1 series.

This Arduino-format board includes a power jack (4.2-40V) and micro-USB port for wired power sources, and a LiPo battery connector and charging circuit for battery power. The board also includes a Real-time Clock (RTC) supported by a CR2032 battery holder (battery not included).

Add the microSD slot, onboard CAN interface and driver, Arduino-format headers, JTAG connector and other helpful features - you've got yourself an industrial workhorse!

Features

• STM32F303RCT6 256KB Flash 40KB RAM
• Industrial grade (-40+85)°C operating temperature
• Micro USB connector for powering and programming
• Power jack for external power supply (4.2-40)V DC
• Li-Po battery charger and connector
• RTC battery with CR2032 holder
• Micro SD card port
• CAN interface and driver
• Arduino headers
• UEXT connector
• Bootloader button
• Reset button
• JTAG connector
• Dimensions: (68 x 53) mm

Resources

Documents

• STM32F3 user manual
• GD32F3 user manual
• European Declaration of Conformity
• STM32F3 UKCA Declaration of Conformity

Hardware

• Schematic
• GitHub

Software

• Arduino examples: Analog, GPIO, CAN, I2C, SPI, UART, LCD3310 demo codes
• Arduino example with MOD-LCD2.8RTP

Package Contents

• 1x OLIMEXINO-STM32F3 Development Board

CR2032 battery and LiPo not included
