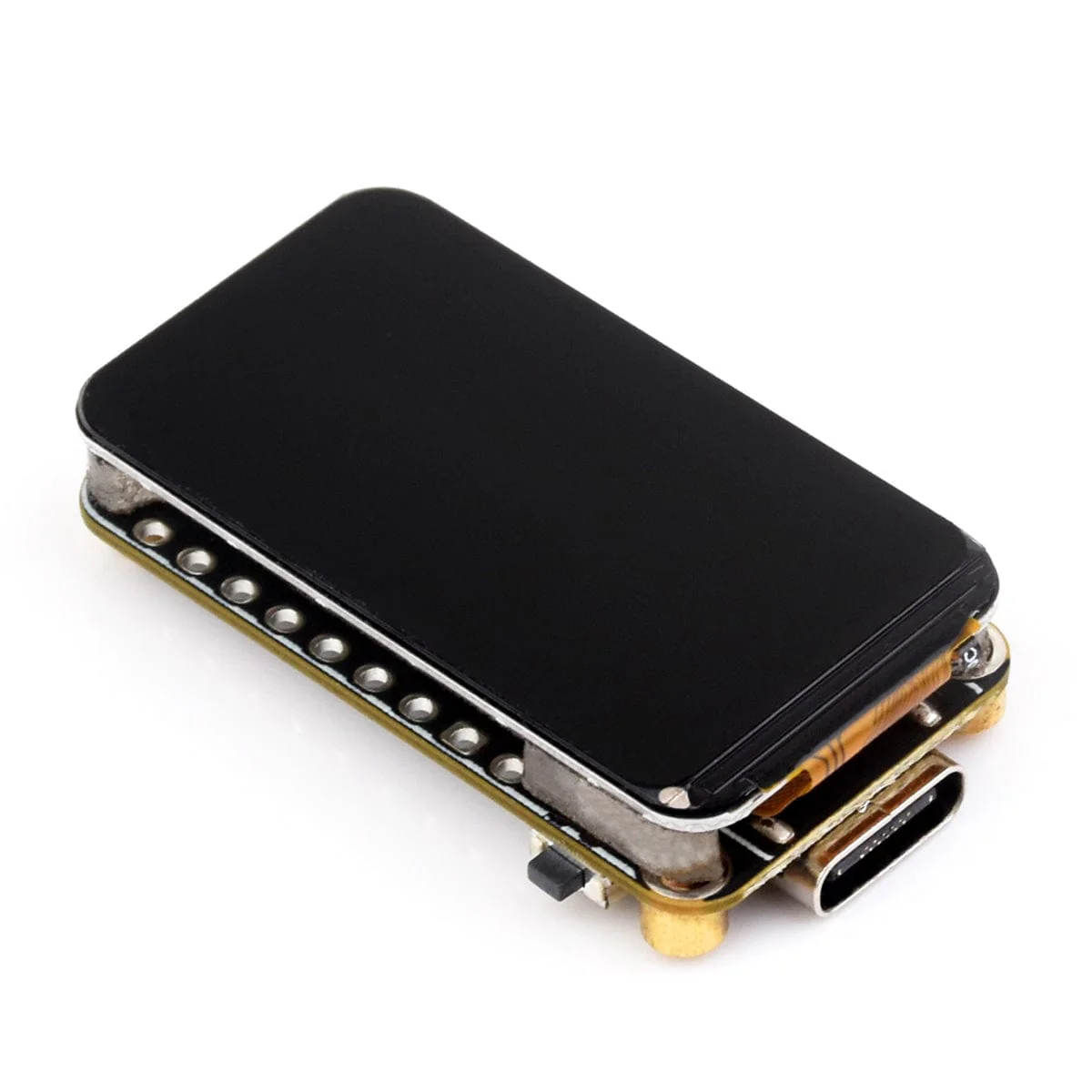

ESP32-C6 Development Board with 1.47" LCD Display (172 x 320)

This ESP32-C6 board from Waveshare supports 2.4GHz Wi-Fi 6 and Bluetooth BLE 5 for wireless communication and includes 4MB of Flash memory. The 1.47" LCD screen, with a resolution of 172 x 320 and 262K colours, provides clear, colourful and vibrant visuals, making it ideal for running GUI programs like LVGL.

This board features a high-power 32-bit RISC-V processor with a clock speed of up to 160 MHz, with a low-power 32-bit RISC-V processor running at 20 MHz for energy-efficient tasks. It includes 320KB ROM, 512KB of high-performance SRAM, and 16KB of low-power SRAM.

There's a good number of GPIO pins available, and a USB-C port provides input for power/programming. The SD card slot provides an additional option for storage.

Available with or with loose (unsoldered) headers, or with headers pre-soldered. Select an option before adding to cart.

Features

• Equipped with a high-performance 32-bit RISC-V processor with a clock speed of up to 160 MHz and a low-power 32-bit RISC-V processor with a clock speed of up to 20MHz
• Supports 2.4GHz Wi-Fi 6 (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
• Built-in 320KB ROM, 512KB of HP SRAM, 16KB LP SRAM and 4MB Flash memory

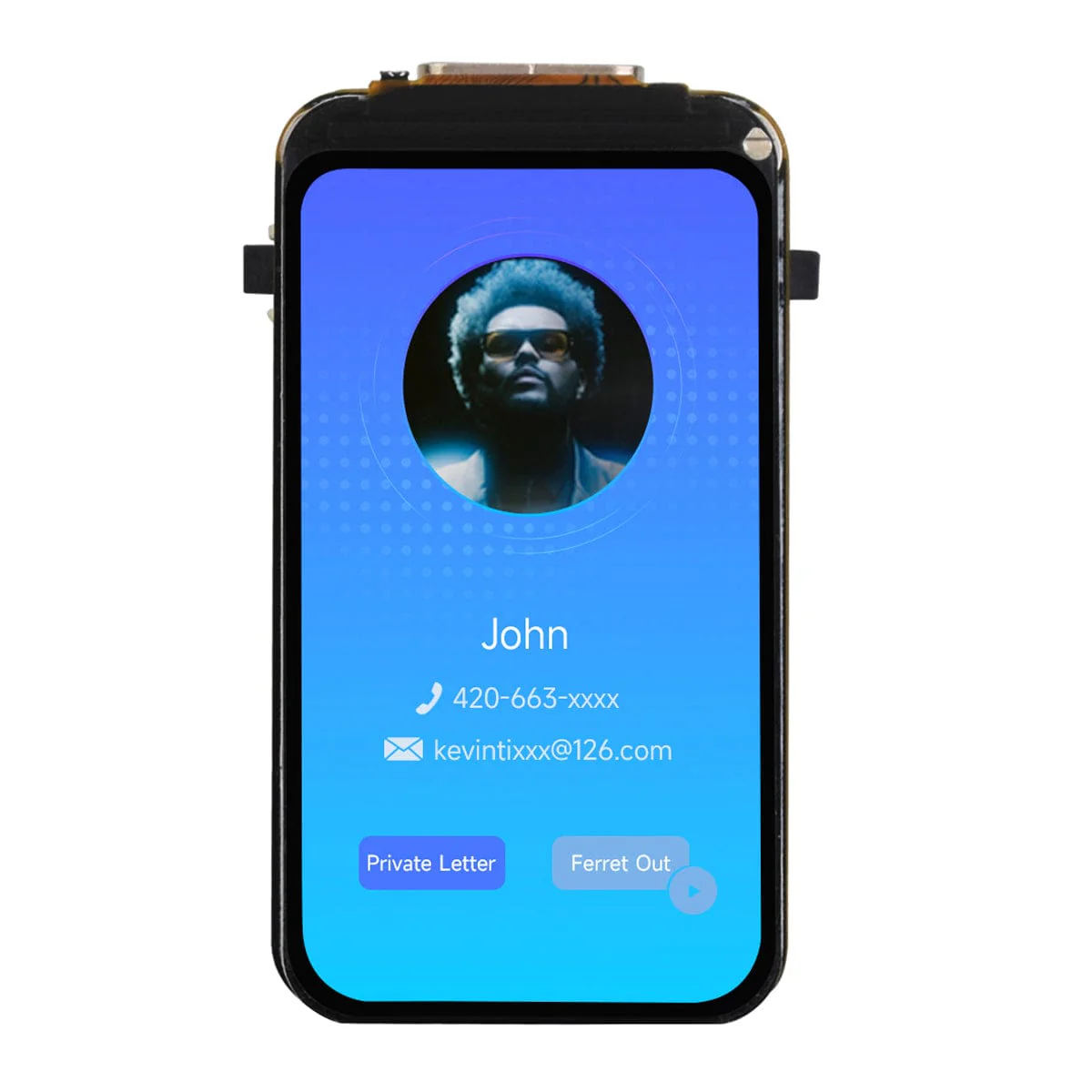

• 1.47" LCD display, 172 x 320 resolution, 262K color
• Multiple IO interfaces
• USB-C port
• SD card slot for external storage
• Accurate control such as flexible clock and multiple power modes
• Built-in RGB LED with clear acrylic sandwich panel for a cool lighting effect

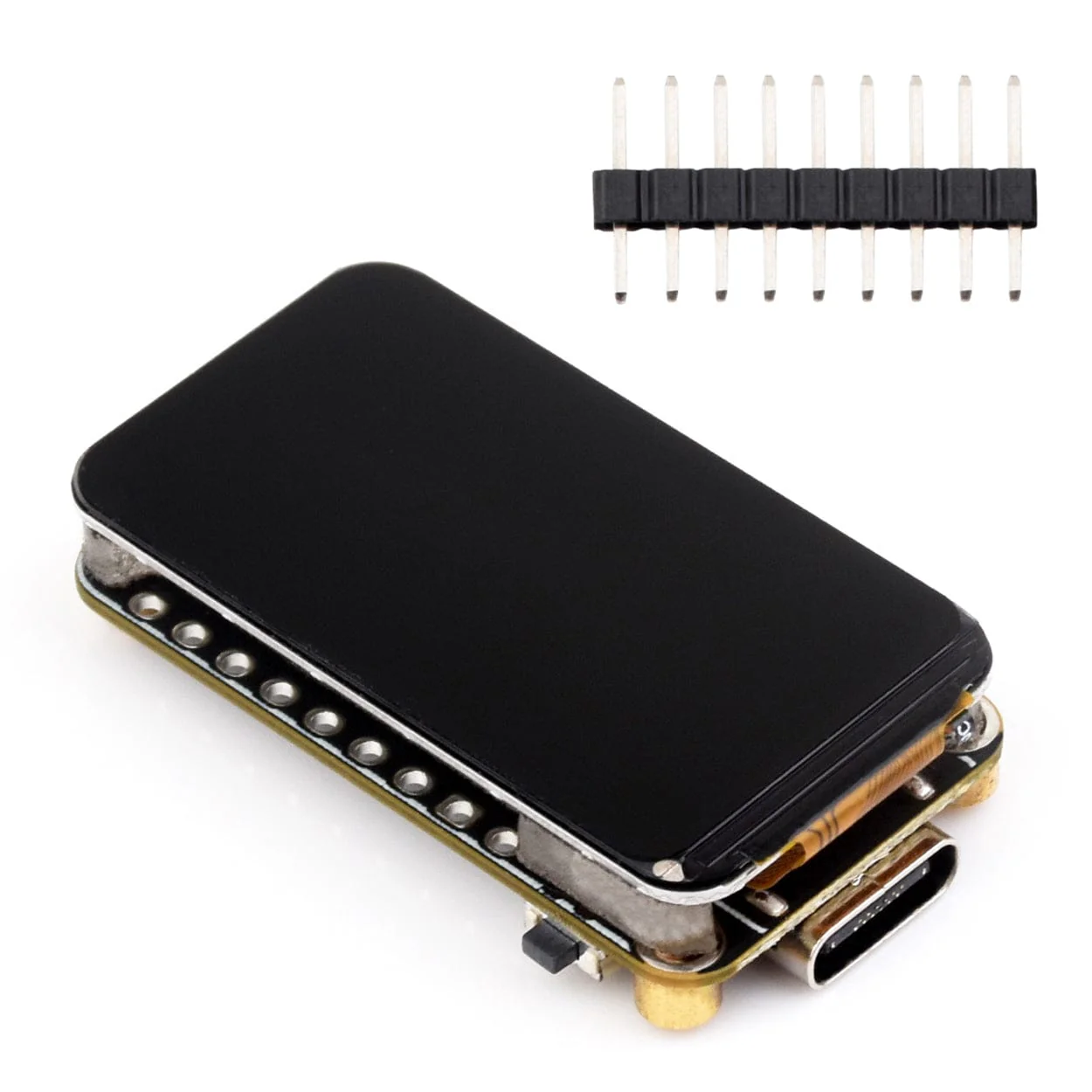

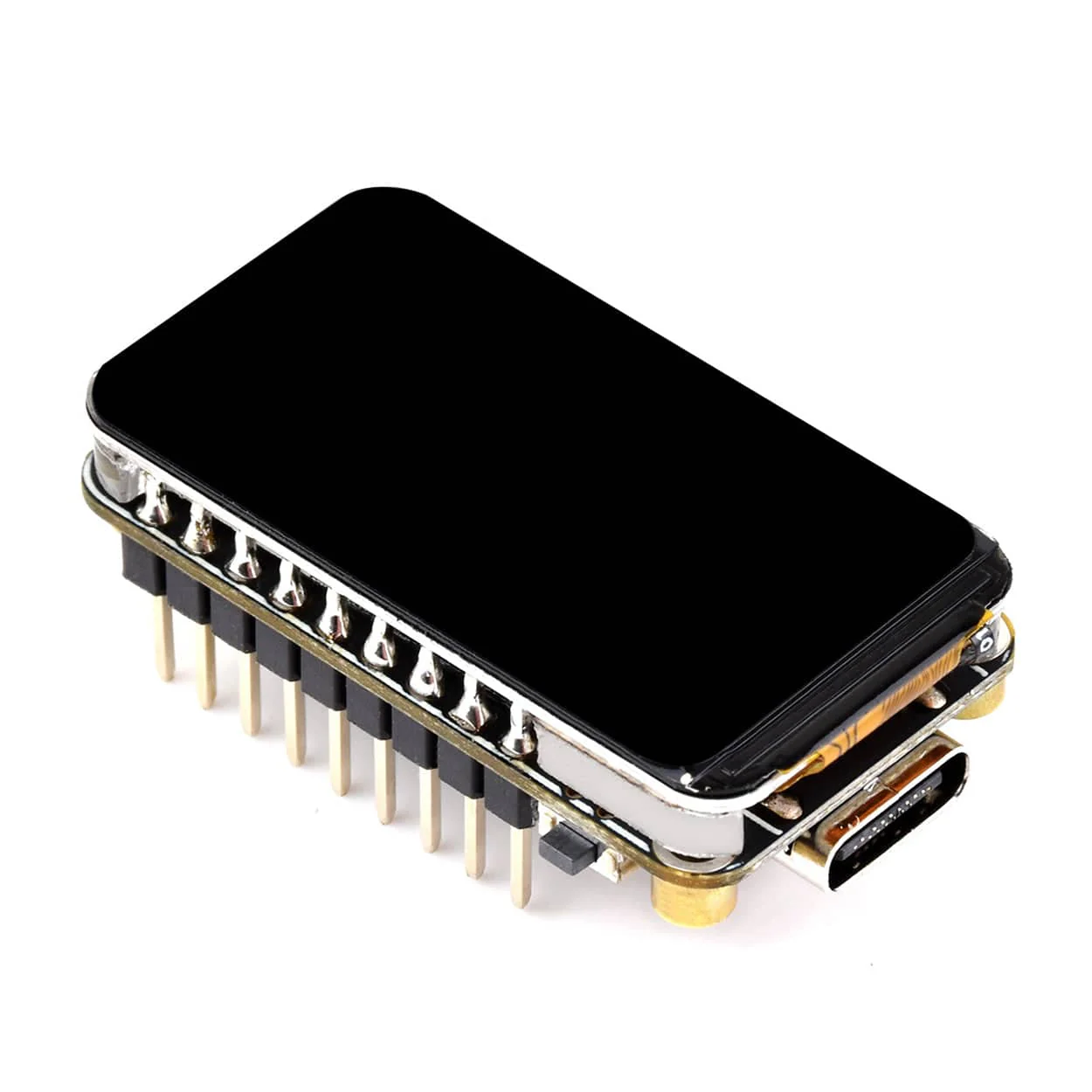

• Headers available loose in the bag (unsoldered) or pre-soldered to the board

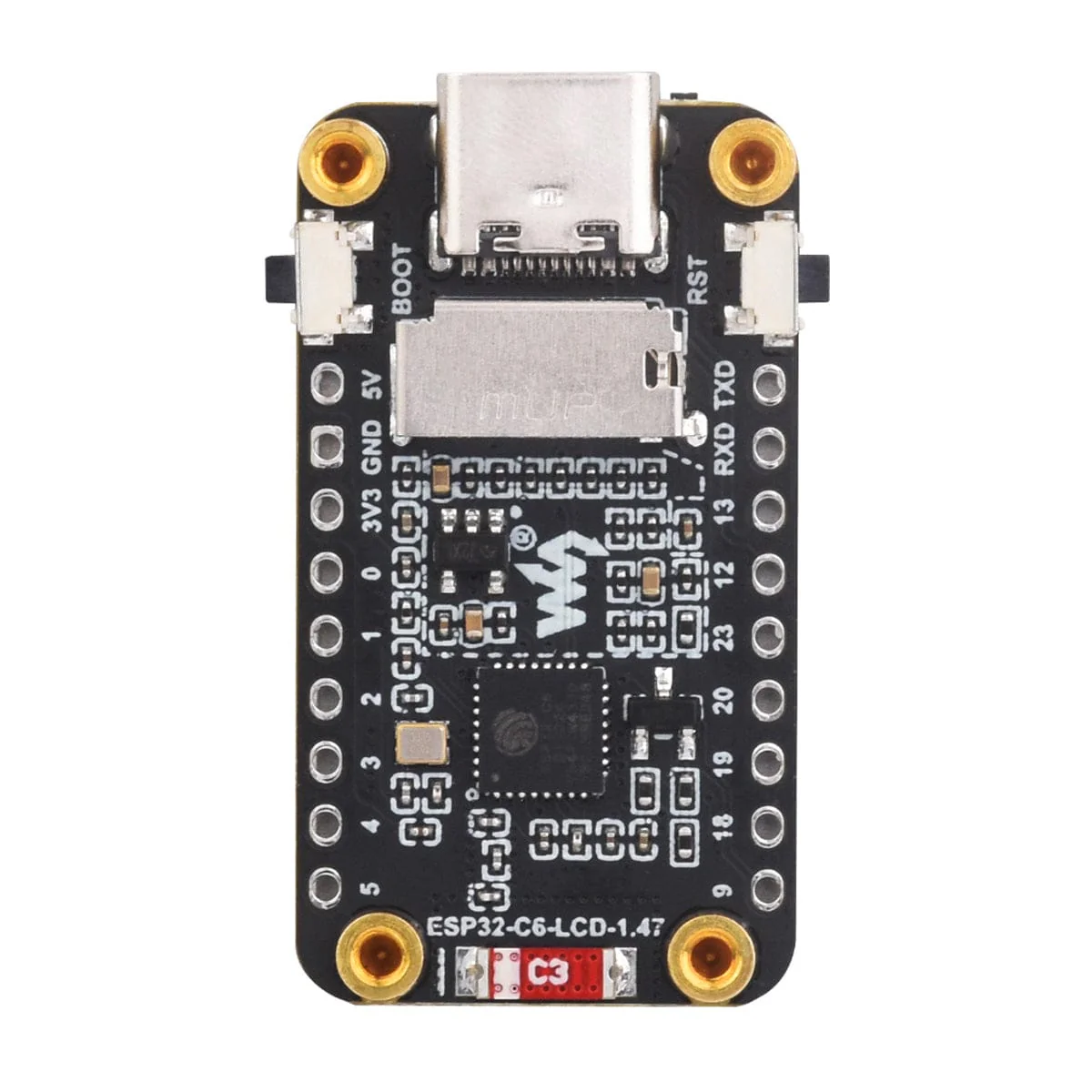

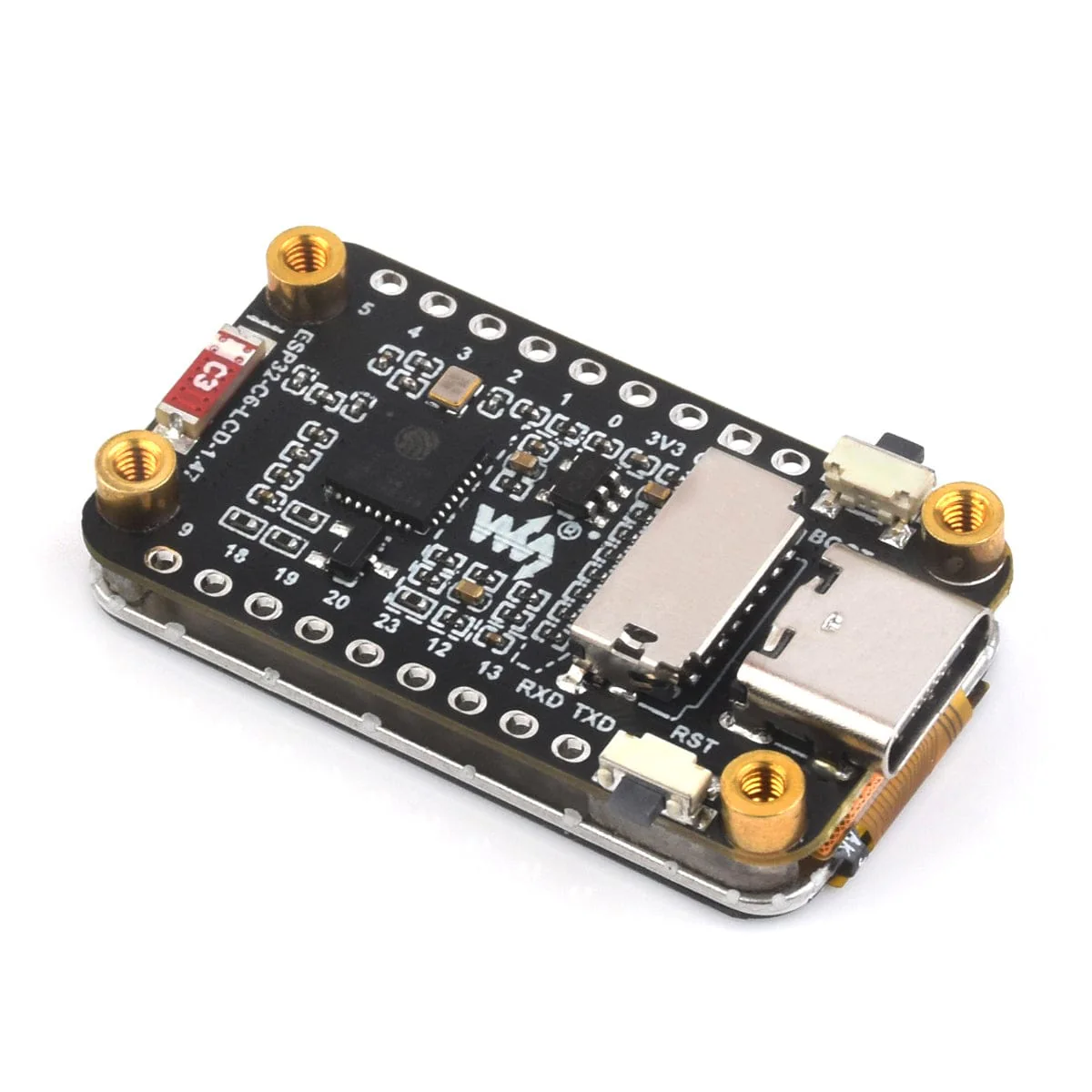

What's on Board

1. ESP32-C6FH4
2. ME6217C33M5G
   Low dropout regulator, 800mA output (Max.)
3. SD Card Slot
4. Ceramic Antenna
5. BOOT Button
6. RESET Button

Specifications

Connector	USB Type-C
Master Chip	ESP32-C6
Display Type	TFT
Display Control Chip	Display: ST7789
Onboard Device	Micro SD

Resources

• Product Wiki
• Schematic

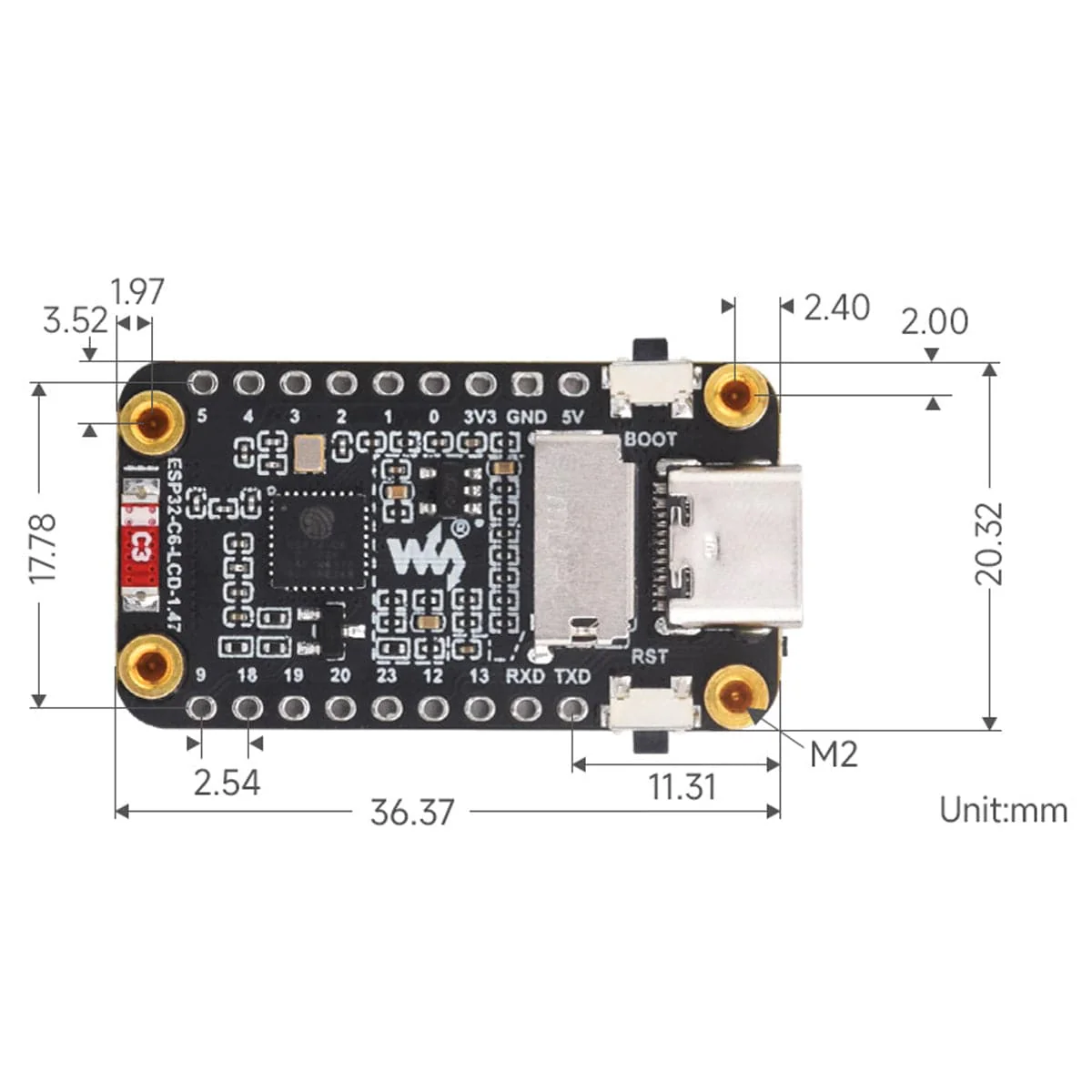

Pinout

Package Contents

• 1x ESP32-C6 1.47" Display Development Board
  • Headers loose (unsoldered) in the bag, or pre-soldered. Select an option before adding to cart.
