Zero2Go Omini Rev1: Wide Input Range Power Supply [Discontinued]

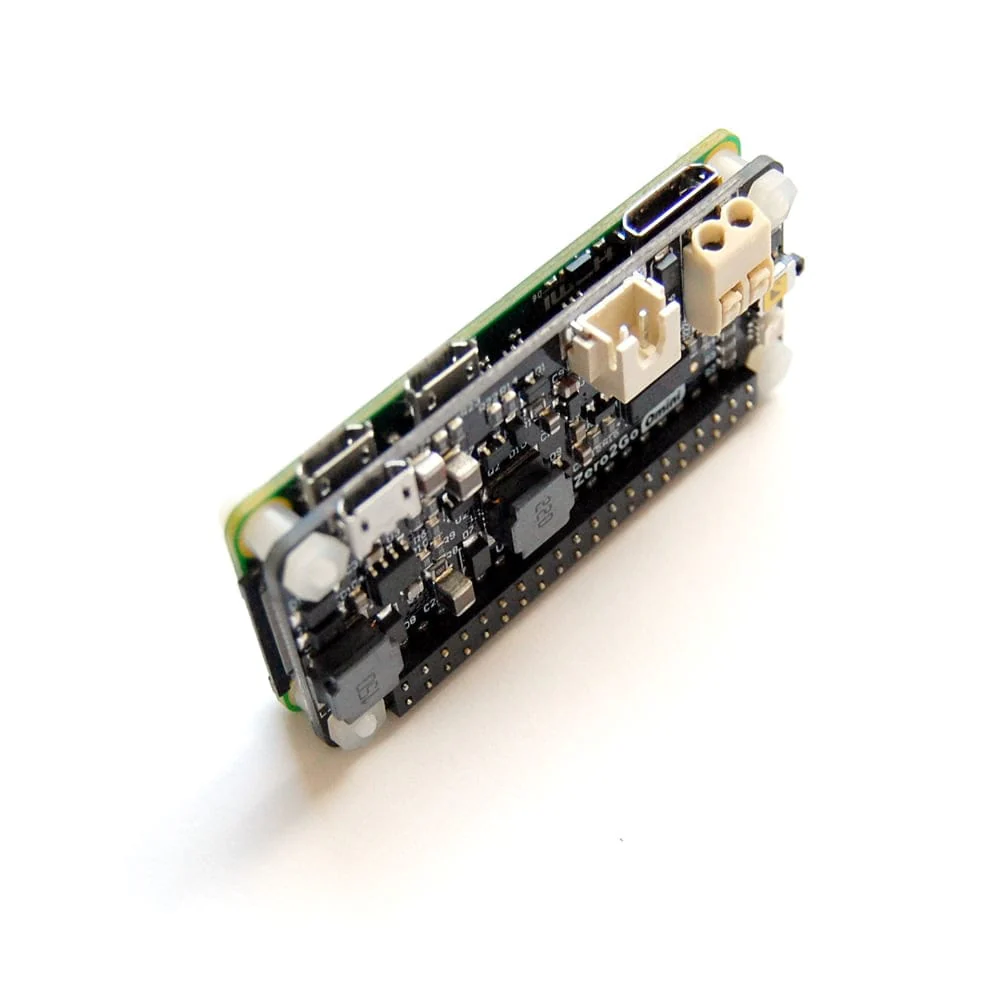

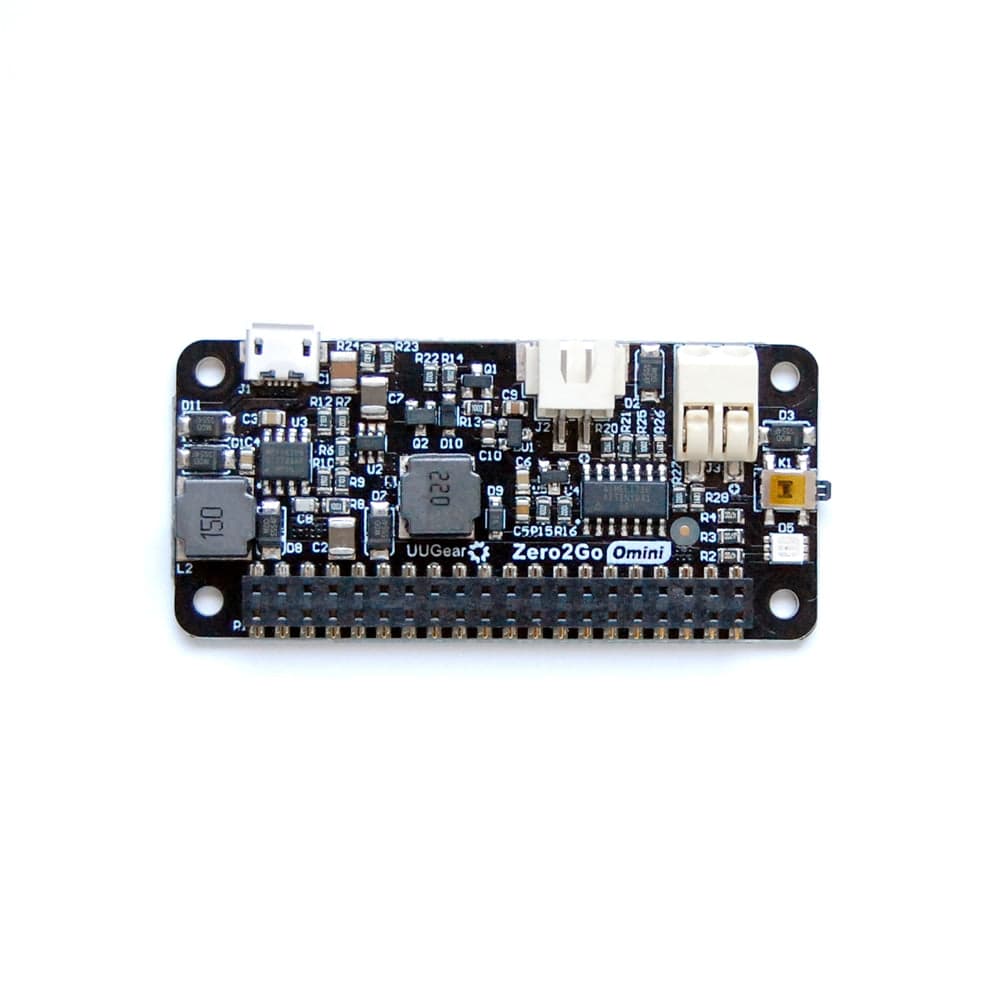

The Zero2Go Omini Rev1 is a Raspberry Pi Zero sized (or pHAT shape) extension board that can work as a wide input range power supply for Raspberry Pi.

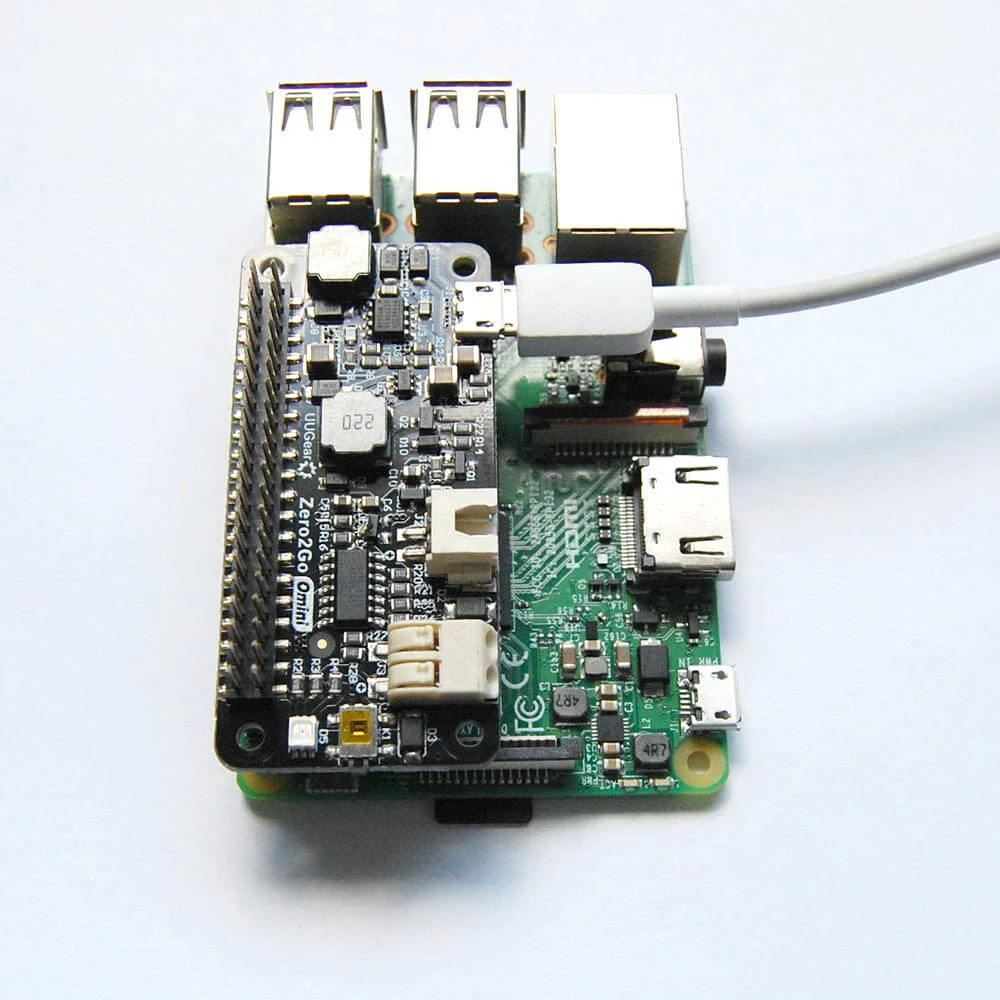

Zero2Go Omini supports all Raspberry Pi models that has the 40-pin GPIO header, including A+, B+, 2B, 3B, 3B+, Zero and Zero W.

The main features of Zero2Go Omini include:

• Three separated input channels (each accepts 3.5~28V DC).
• Auto step-up or step-down to output 5V for powering Raspberry Pi.
• Auto switch input channel (one with highest voltage takes the priority).
• Gracefully turn on/off Raspberry Pi with single tap on the button.
• Fully cuts power for Raspberry Pi and all its USB peripherals after shutdown.
• Long hold the button to force power cut, when OS loses response.
• Monitor the input voltage on each channel (via software).
• Shutdown Raspberry Pi when input voltage below preset threshold.
• Recover Raspberry Pi when input voltage exceed preset threshold.

Zero2Go has quite wide input range (3.5V~28V), so it is convenient to power your Raspberry Pi with power bank, Li-Po battery pack, solar panel, car battery or different kinds of power adapters etc. You can also configure it as a UPS (please read user manual for more details).

SOFTWARE INSTALLATION

To install Zero2Go’s software, please run this command in your home directory:

wget http://www.uugear.com/repo/Zero2GoOmini/installZero2Go.sh

If your Raspberry Pi has internet connection, it will immediately download the script from our website, and you will then see the “installZero2Go.sh” script in your home directory. Then you just need to this script with with sudo:

sudo sh installZero2Go.sh

You will need to use sudo to run this script. This script will copy a file to “/etc/init.d/zero2go_daemon”, and register it to run after the boot.

PACKAGE CONTENT

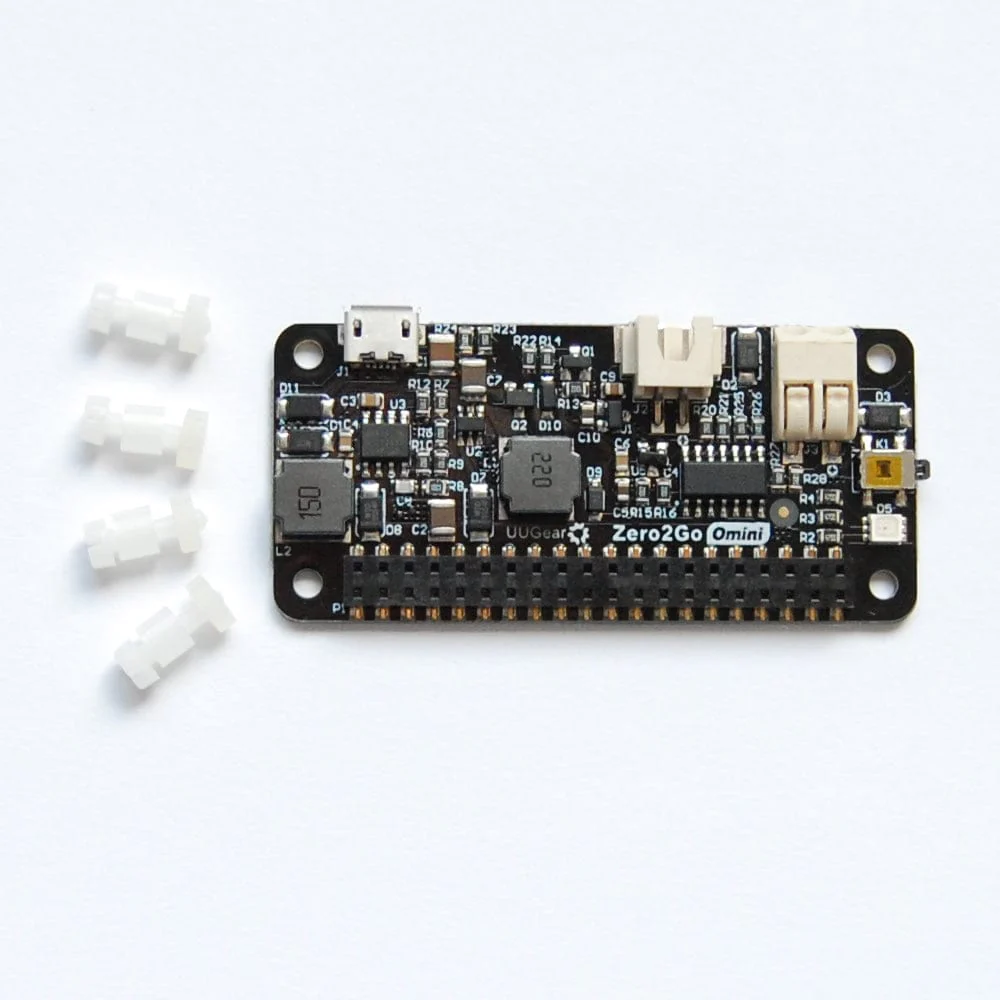

Each package of Zero2Go contains:

• Zero2Go board x 1
• 4mm plastic spacer x 4
• M2.5 x 10mm plastic screws x 4
• M2.5 plastic nuts x 4

Remarks: Raspberry Pi and 40-pin header are not included in the package.

SPECIFICATIONS

Dimension:	65mm x 30mm x 7.7mm
Weight	12g (net weight)
Mainly Used Chips	MCU: ATtiny841 (datasheet) DC-DC Bulk: MP4462 (datasheet) DC-DC Boost: SDB628 (datasheet)
LED Indicator	Three-color LED (red, green and blue)

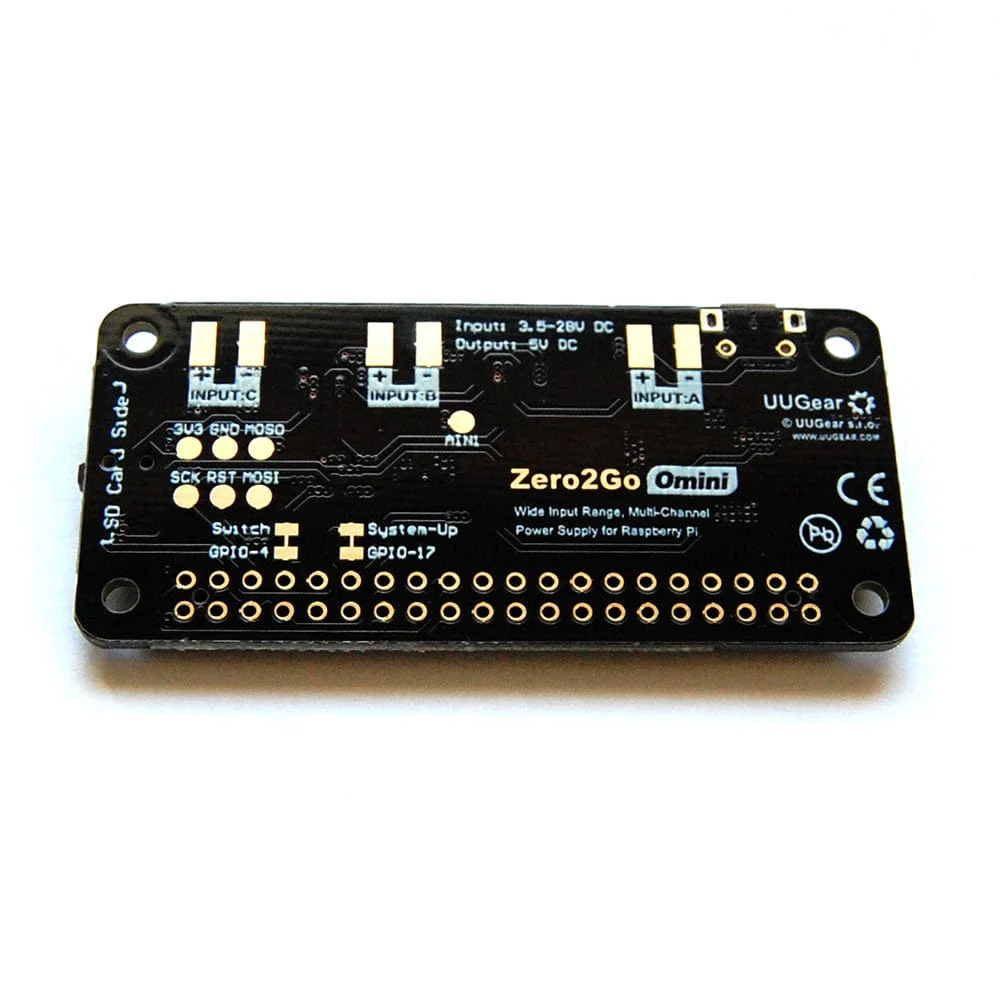

Interface	Micro USB female connector for input channel A. XH2.54-2P connector for input channel B. Universal wire connector for input channel C. 20×2 header (h=2mm) for connecting Raspberry Pi.
Input	Three separated channels (A, B, and C) All accept DC 3.5V~28V (5.5~7.0V is not recommended as the DC-DC converter needs more dropout to work well)
Output	Output 5V (±5%), maximum 2A
Efficiency	Up to 87% @ Step-Up mode Up to 82% @ Step-Down mode
Standby Current	~0.13mA @ Vin=3.5V ~0.36mA @ Vin=12V ~0.87mA @ Vin=28V
Operating Temperature	-30℃~80℃ (-22°F~176°F)
Storage Temperature	-40℃~85℃ (-40°F~185°F)
Humidity	0~80%RH, no condensing

USER MANUAL

More details about Zero2Go Omini can be found in its user manual: https://www.uugear.com/doc/Zero2Go_Omini_UserManual.pdf
