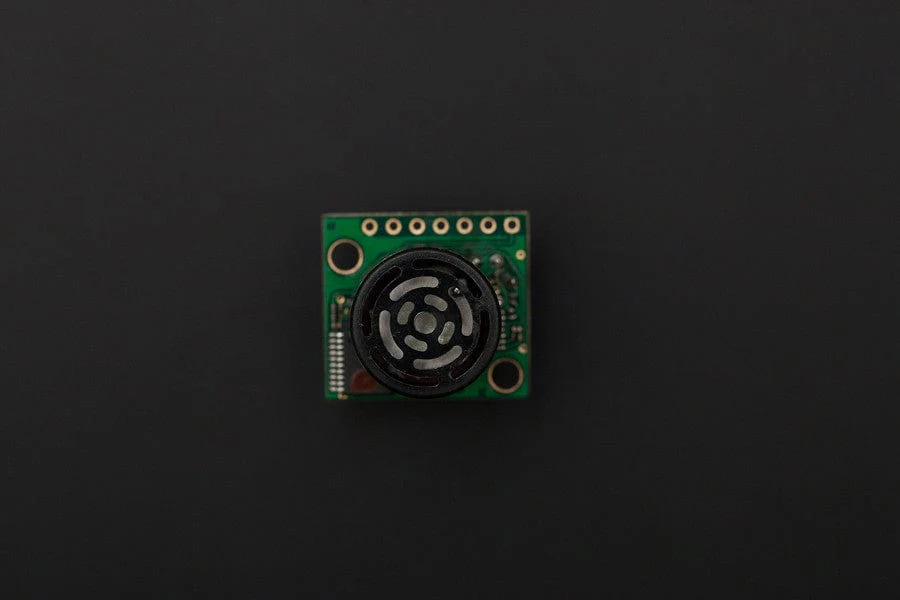

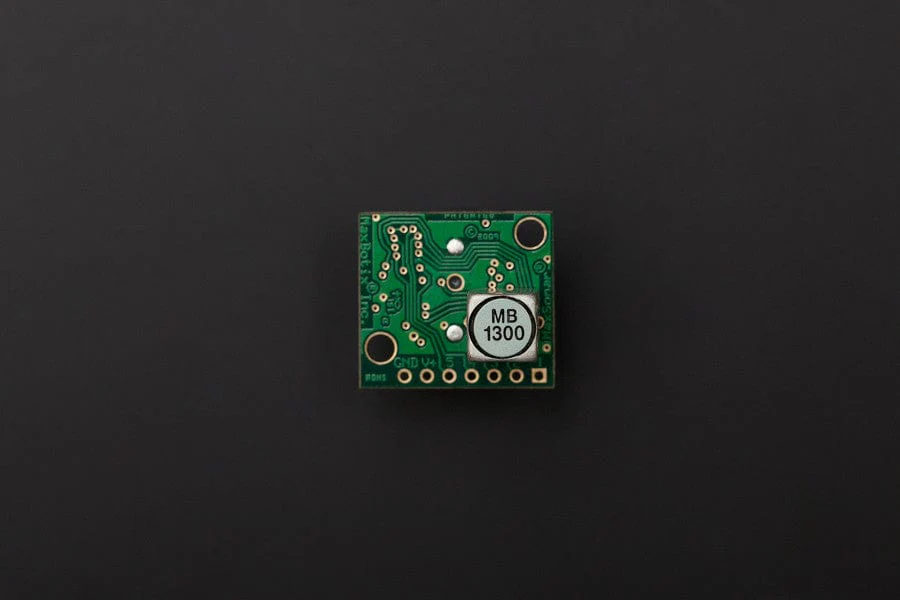

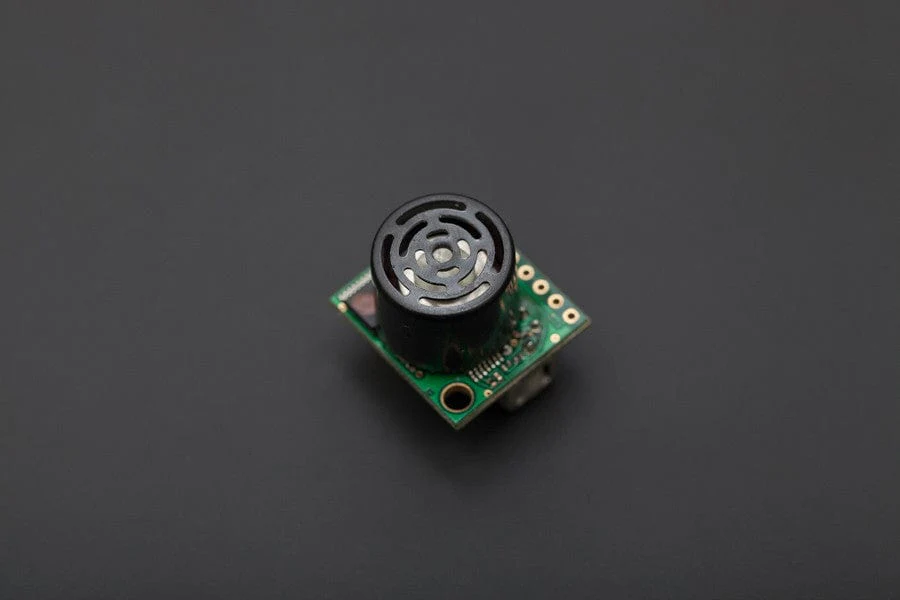

XL-MaxSonar-AE0(MB1300) [Discontinued]
The XL-MaxSonar-AE0 offers a wide and sensitive beam pattern for indoor use. This makes the XL-MaxSonar-AE0 an excellent choice wherever wide beam detection, reliable people detection, or reliable small obstacle detection are required.
Specification
- Operates from 3.3-5.5V
- Low 3.4mA average current requirement
- 42kHz Ultrasonic sensor measures distance to objects
- RoHS Compliant
- Read from all 3 sensor outputs: Analog Voltage, Serial, Analog Envelope
- Virtually no dead zone, objects closer than 20 cm(2.87") range as 20 cm
- Resolution of 1 cm(0.39")
- 10Hz reading rate
- Small, light weight module
- Designed for easy integration into your project or product
- Operational Temperature from -40? to +70? (-40?to +160?)
- Real-time automatic calibration (voltage, humidity, ambient noise)
- Firmware filtering for better noise tolerance and clutter rejection
- 200,000+ Hours Mean Time Between Failure
- Widest and most sensitive beam of our XL-MaxSonar-AE sensors
- Maximum range of 765 cm (300 inches)
- Hardware gain of 4000
- Long range, wide detection zone for small targets
- Size: 22x20x25mm(0.87"x0.79"x0.98")
Documents
- MB1300 Datasheet
- Ultrasonic Sensor Selection Guide
- Reliability Demonstration
- XL Chaining Application Notes
