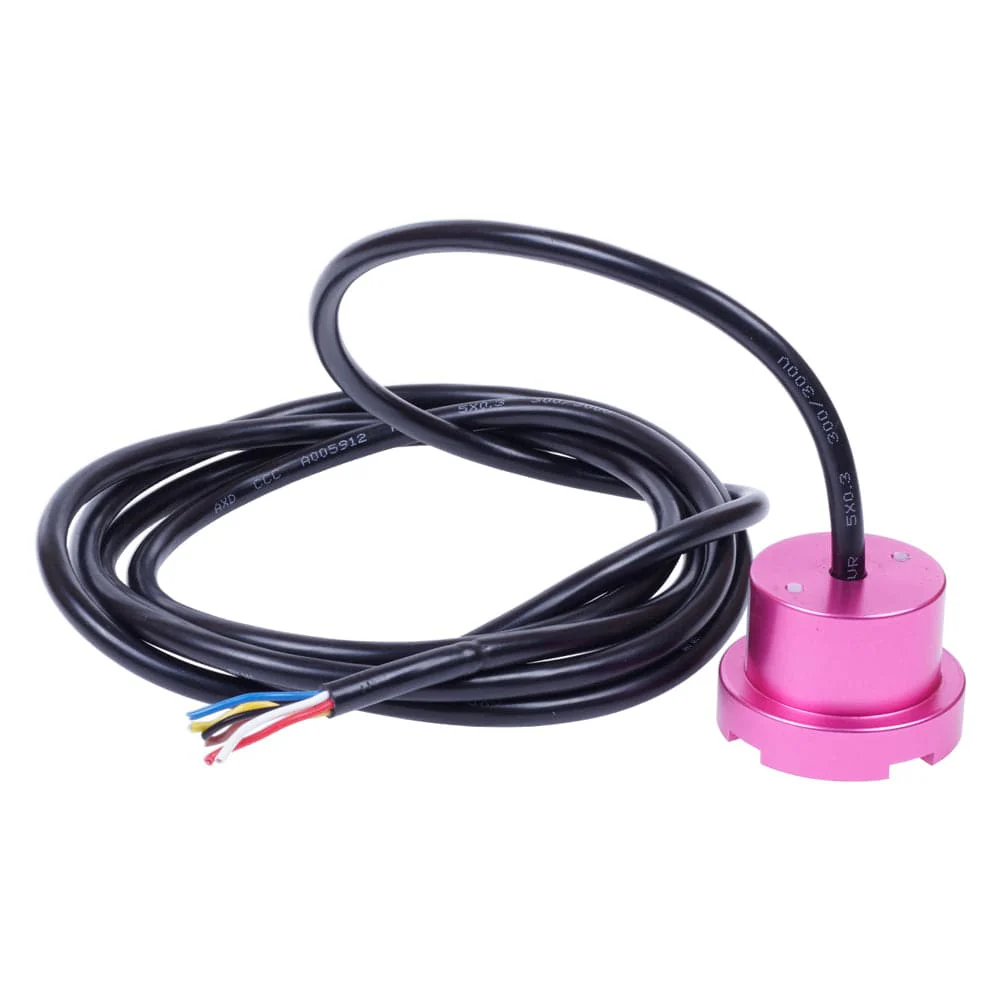

Water Leak Detector
The Water Leak Detector helps prevent damage by detecting leaks early. With an IP66-rated design, LoRaWANÂź compatibility, and a built-in relay for alarms or automatic shutdowns, itâs ideal for homes, server rooms, and industrial use.
Water leaks can cause serious damage to homes, server rooms, power distribution areas, and warehouses, as well as create potential health risks. Detecting leaks early is essential to minimise hazards and prevent costly damage.
The Water Leak Detector is built to industry standards and rated IP66 for water and dust resistance. Itâs suitable for a wide range of applications, including kitchens, sump pumps, and bathrooms. The device can also connect to a SenseCAP LoRaWANÂź Data Logger, allowing integration with a LoRaWANÂź network for low-power, long-range communication.

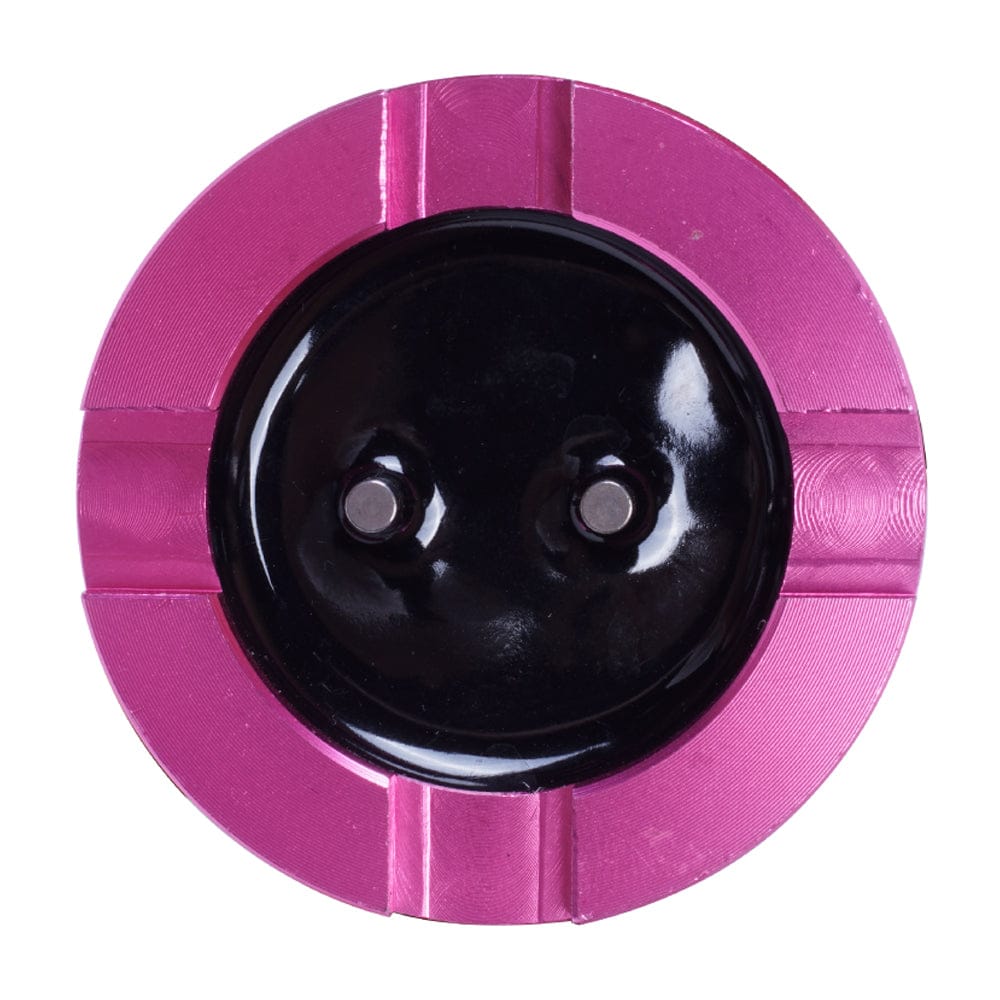

When the water level reaches the sensor probe, the built-in relay activates, triggering an alarm or automatically shutting down connected equipment. Its low-voltage control circuit ensures safe operation without the risk of igniting flammable materials.
Features
- Universal Protocol: GPIO
- User-friendly: Easy to install, clean, and remove
- Widely Applicable: Relay signal output, can be used with digital displays, PLCs, inverters, recorders and other water detection system
- Strong Robustness: Made of high-quality alloy and waterproof cable, suitable to be immersed in water for a long time, anti-corrosion
- High-performance: Strong anti-interference and long-term stability
Specifications
| Power Supply | 5V |
| Operating Current | < 30mA |
| Quiescent Current | < 10mA |
| Output Signal | watery: relay connection, dry: relay break |
| Cable Length | 2 meters |
| Relay Load | (3A 250V AC) / (3A 30V DC) |
| Response Time | < 50ms |
| Measurement Medium | water |
| Operating Temperature | -5â ~ +60â |
| IP Rating | IP66 |
| Device Weight | 200g |
| Supplier Code | 314990618 |
Wiring Diagram
Pin information:
- Red wire and brown wire ---- VCC+ and VCC-
- Yellow wire ---- Relay common pin
- Blue wire ---- Relay normal closed pin
- White wire ---- Relay normal open pin
Resources
- Datasheet
- Product Wiki
Package Contents
- 1x Water Leak Detector
