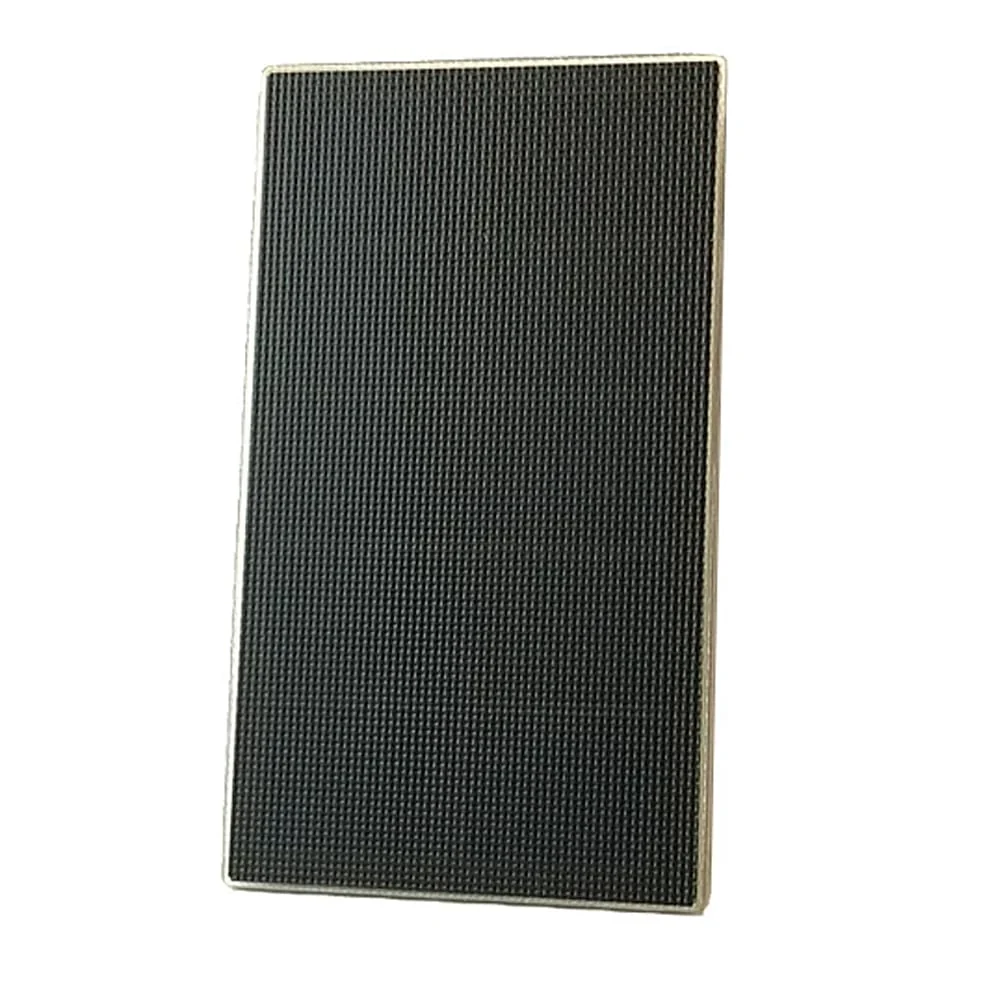

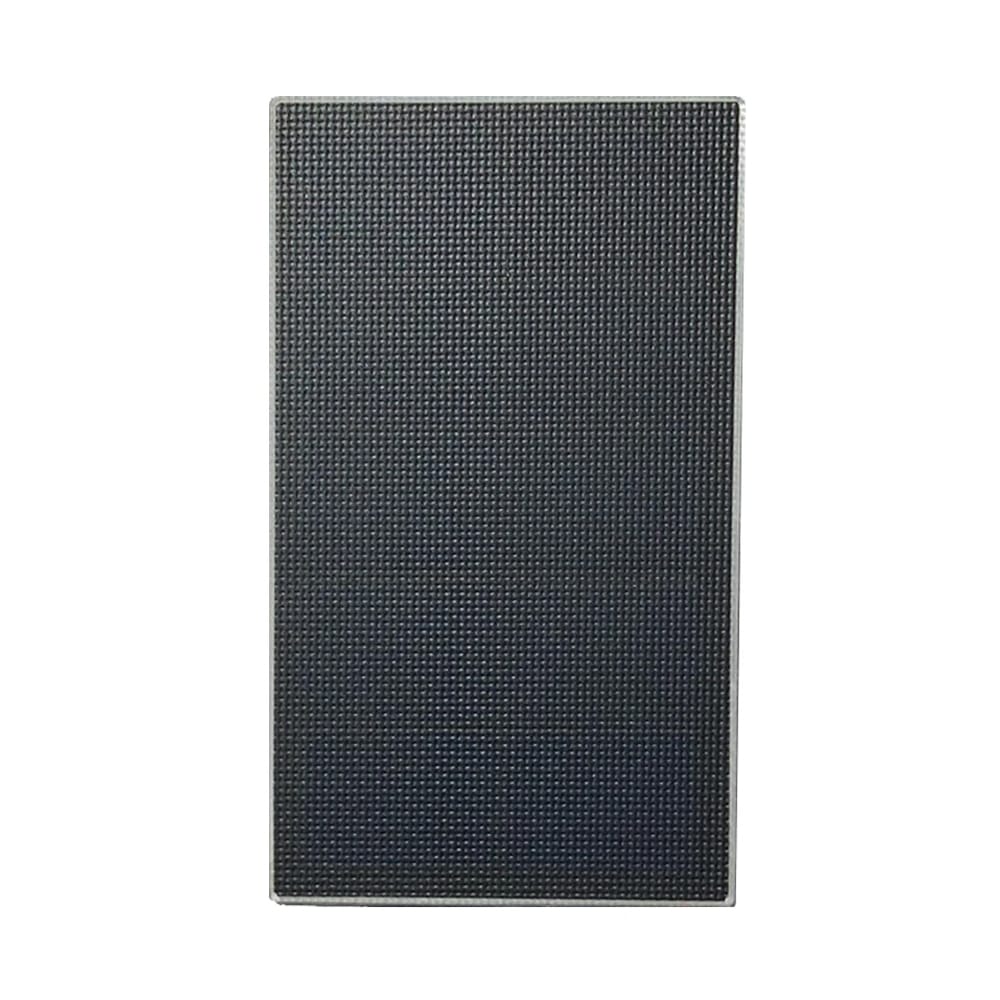

Voltaic P124 - 6V 1.2W Solar Panel (ETFE)

The P124 ETFE Solar Panel is a lightweight, high-performance solution for IoT, offering long-term durability and reliable output in demanding environments.

---

The Voltaic P124 is a 113x66mm, high-performance 6V 1.2W ETFE Solar Panel designed for IoT applications. It is lightweight, efficient, and cost-effective.

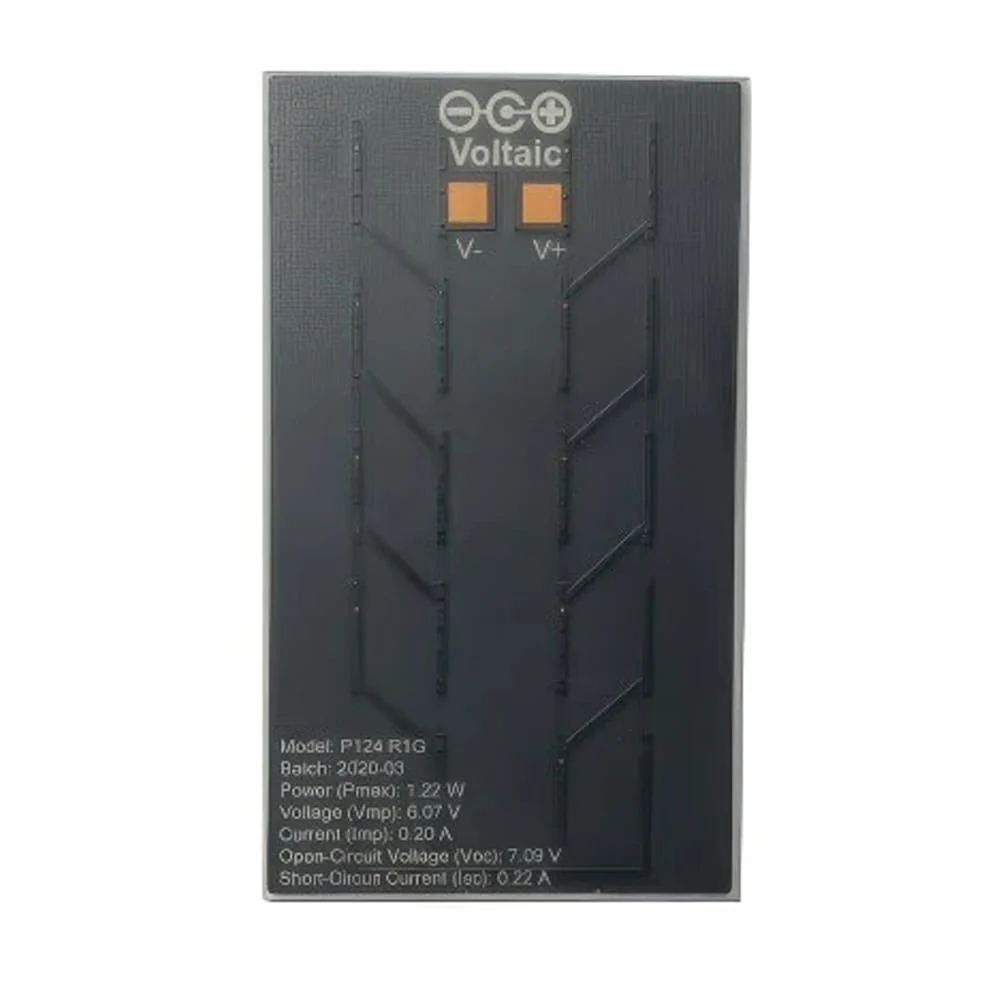

SMT ETFE panels are advantageous when size or weight is constrained, long lifetimes are desired, and strict quality and dimensional tolerances must be maintained. They do not come with a pre-installed cables, these panels require soldering.

The Voltaic ETFE panels are manufactured using a strictly sourced and qualified material stack. They are third-party tested for the equivalent of 10+ years of UV exposure in addition to thermal cycling, vibration stresses, and exposure to chemicals and oils. They are used in a number of ATEX applications.

Panel Accessories

• VHB Gasket - creates a waterproof, secure seal when mounting P126 solar panels to enclosures

Features

• Waterproof (IP67)
• UV resistant ETFE coating
• Durable and lightweight
• High efficiency monocrystalline cells: 22+%

Specifications

Output

• Open Circuit Voltage: 7.09V
• Peak Voltage: 6.07V
• Peak Current: 200mA
• Peak Power: 1.22W
• Power Tolerance: +/-10%
• For maximum power output, orient the panel towards the sun

Mechanical Characteristics

• Dimensions: 113 x 66 x 2.6 mm
• Weight: 31.6 g
• Standard Tolerance: ± 0.5 mm
• Compliance: RoHS and REACH
• Testing: relevant sections of IEC 61215, SAE J1455, and IEC 60529
• Mounting: G108 VHB gasket
• Operating Temperature: −40°C to 85°C

Construction

• Matte ETFE coating
• 1.5mm double sided PCB

Electrical Characteristics

Symbol	Parameter	Nominal	Expected*	Unit
WP	Max power (mpp)	1.29	1.09	W
VP	Voltage @ mpp	6.11	5.89	V
IP	Current @ mpp	0.21	0.18	A
VOC	Open-circuit voltage	7.25	7.04	V
ISC	Short-circuit current	0.22	0.21	A
η	Cell efficiency	24	-	%

*Expected values are adjusted for real-world losses that include cutting of cells, imperfect transmissivity of the EVA and ETFE encapsulation layers, and the tolerance of the lowest performing cell piece in the series.

Resources

• Datasheet
• Technical Drawing
• STEP Model
• Testing summary ETFE panels

Package Contents

• 1x Voltaic P124 6V 1.2W Solar Panel - ETFE
