Voltaic Magnetic Panel Mounts for Solar Panels
Voltaic Magnetic Panel Mounts provide a simple, drill-free way to attach solar panels to metal surfaces using strong neodymium magnets for quick and flexible installation.

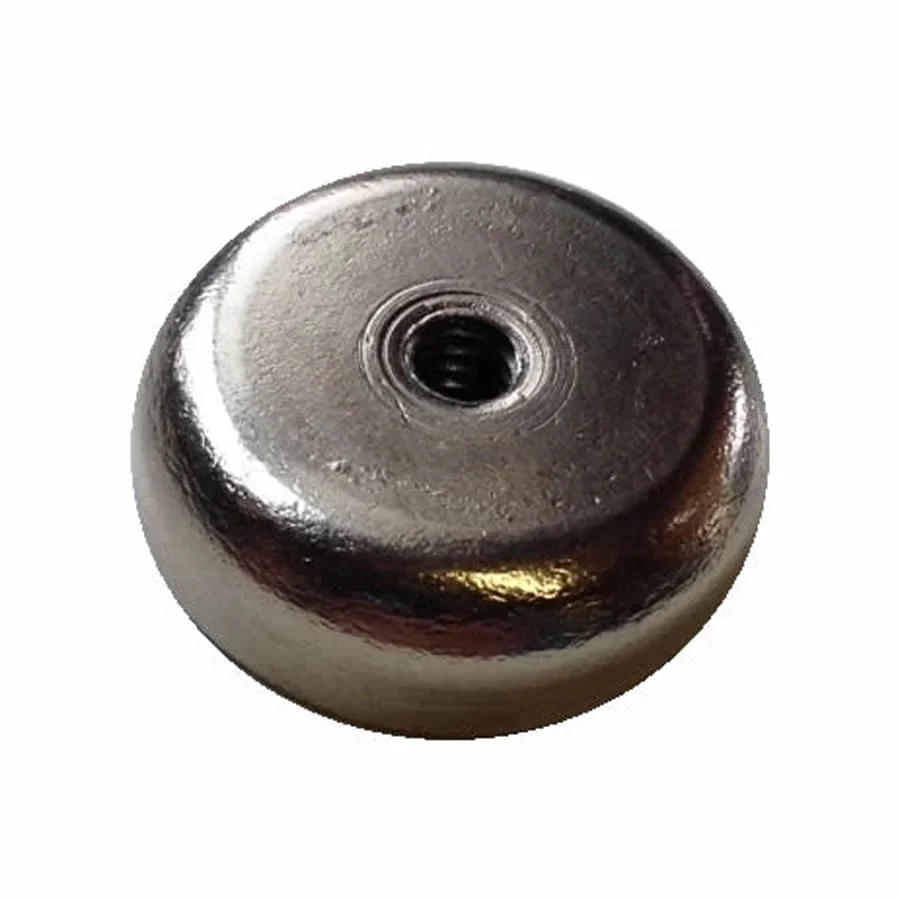

Voltaic Magnet Panel Mounts are a convenient mounting solution for securing compatible Voltaic solar panels to metal surfaces without the need for drilling or permanent fixtures. Each mount uses a high-strength neodymium magnet, providing a reliable hold for temporary or semi-permanent installations.
Designed with a 4-40 internal screw thread, these magnets attach directly to the corner mounting points of Voltaic panels with corner holes. This makes them ideal for quick deployment on metal enclosures, vehicles, or other steel surfaces where flexibility and ease of repositioning are important.

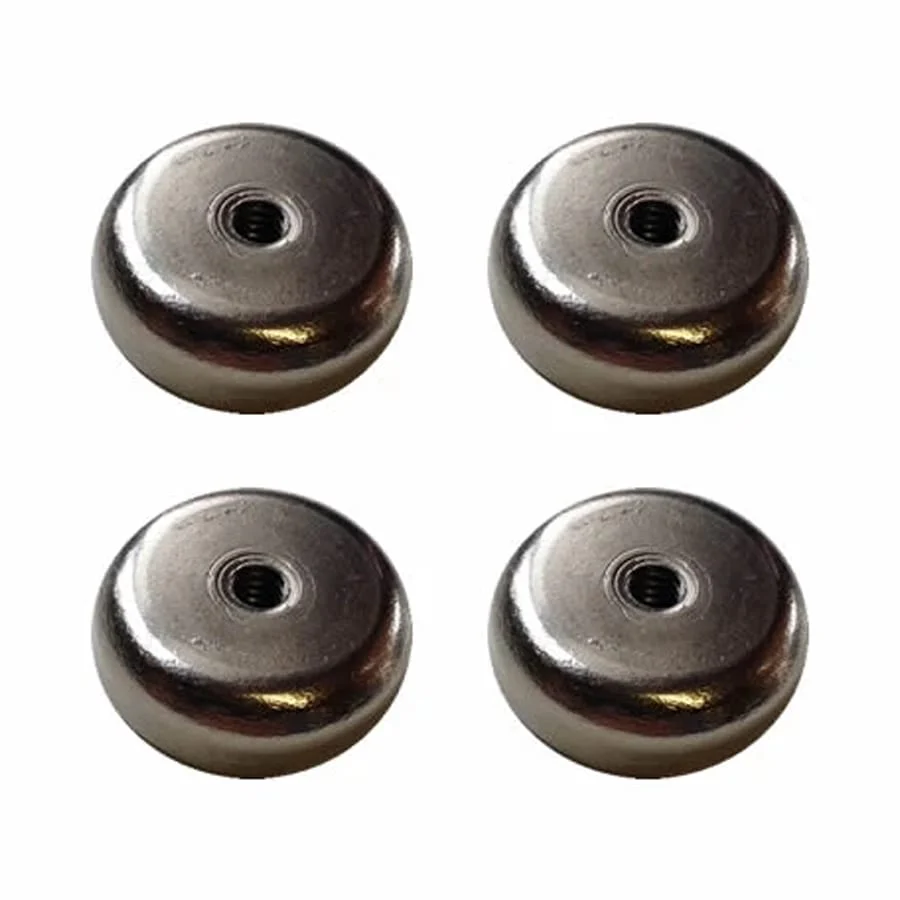

Each pack includes four magnet mounts, allowing for balanced and secure panel placement. The simple screw-on installation keeps setup straightforward, while the compact design ensures minimal added bulk to your solar setup.
4-40 Screws/washers required but not included. We also stock a full magnetic panel mounting set which includes fixings.
Features
- 4-pack of high-strength neodymium magnet mounts for Voltaic solar panels
- Compatible with 2W, 3.5W, 6W, 9W, and 17W Voltaic panel models
- Secures panels to metal surfaces without drilling or permanent fixtures
- 4-40 internal screw thread attaches directly to panel corner mounting points
- Allows quick deployment and easy repositioning on metal enclosures and vehicles
- Ideal for temporary or semi-permanent installations
- Compact design minimises added bulk to solar setup
- Suitable for prototyping and field use
- Tool-free installation and repositioning
Specifications
- Diameter: 5/8"
- Internal Thread Size: #4-40
- Height: 3/16" (0.187")
- Material: NdFeB, Grade N42
- Plating/Coating: Ni-Cu-Ni (Nickel)
- Weight: 0.217 oz. (6.17 g)
- Pull Force: 9.45 lbs
- Brmax: 13,200 Gauss
- BHmax: 42 MGOe
Compatibility
- Voltaic Systems Panels: 2 Watt, 3.5 Watt, 6 Watt, 9 Watt, 17 Watt
Package Contents
- 4x Voltaic Magnetic Panel Mounts
4-40 Screws/washers required but not included.
