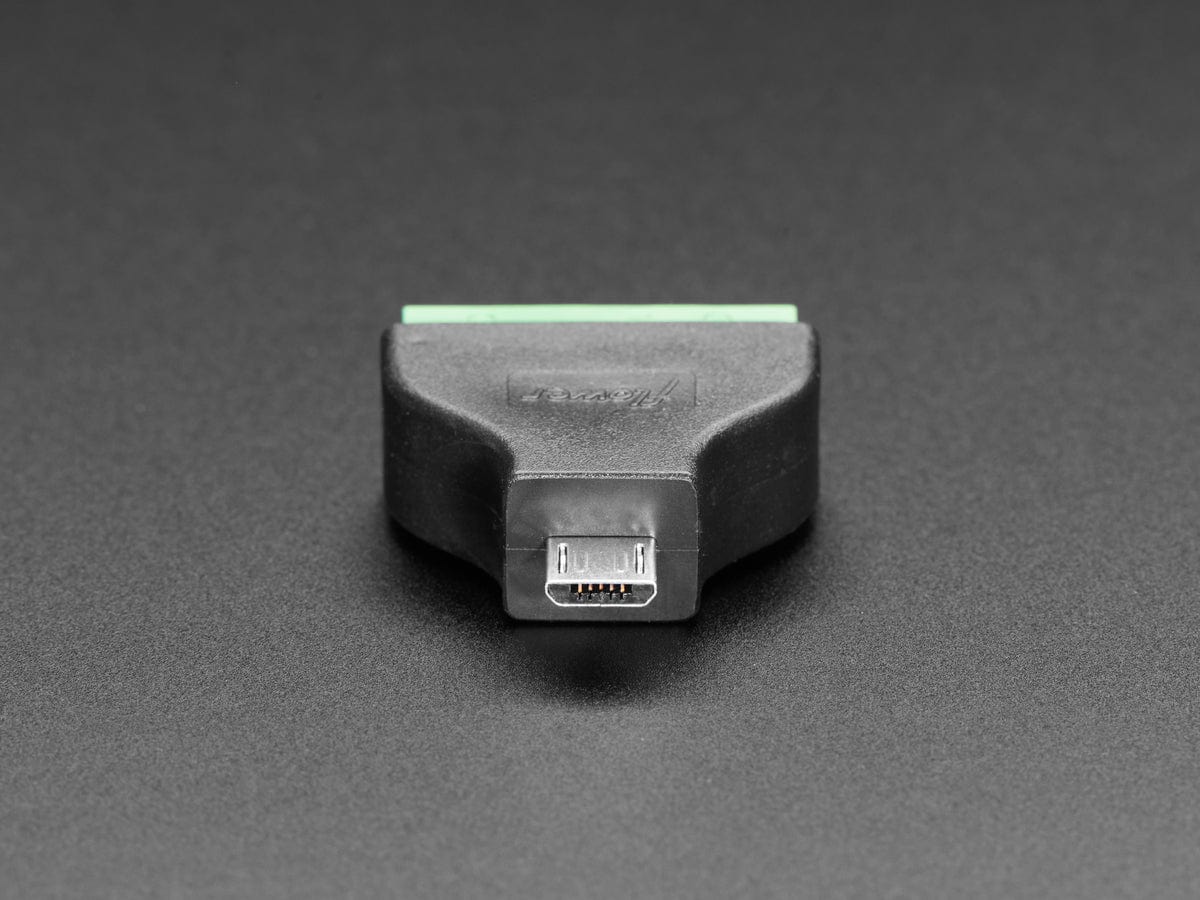

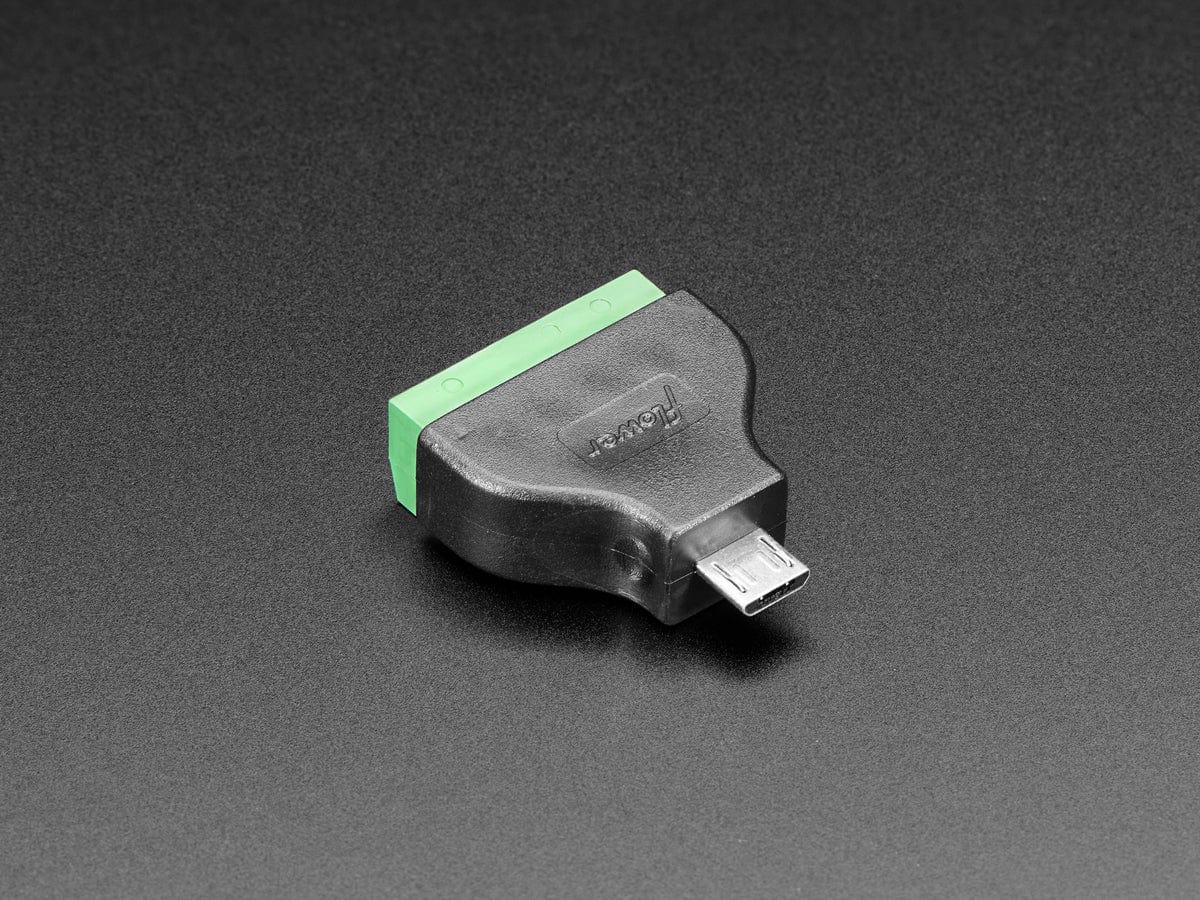

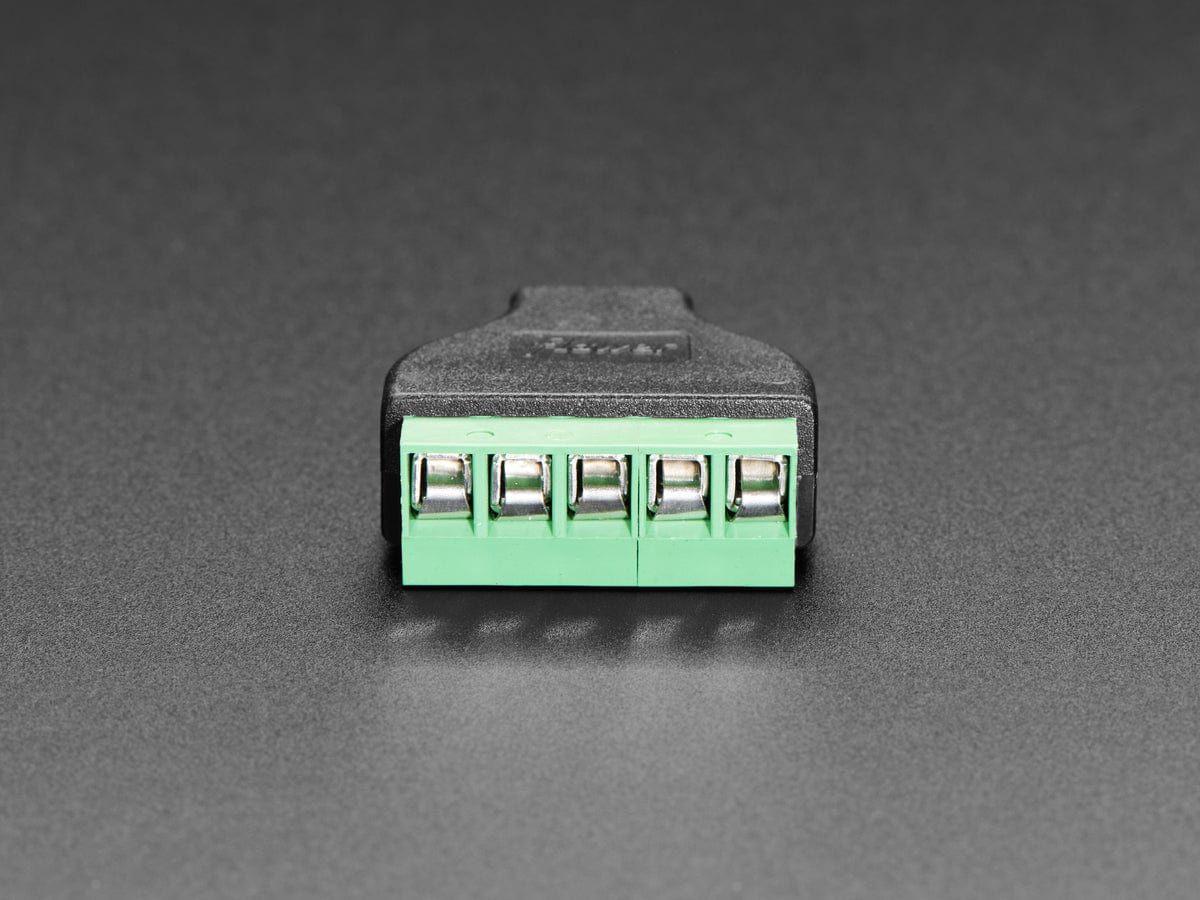

USB Micro B Male Plug to 5-pin Terminal Block
Make your next custom USB cable a breeze with a USB Micro B Male Plug to 5-pin Terminal Block. If you need to connect to a device with a micro USB plug or maybe make your own USB OTG device or custom cable of sorts - this adapter will come in very handy: no soldering required! Just use a small screwdriver to open up the terminal blocks, slide in your stranded or solid-core wire, and re-tighten.

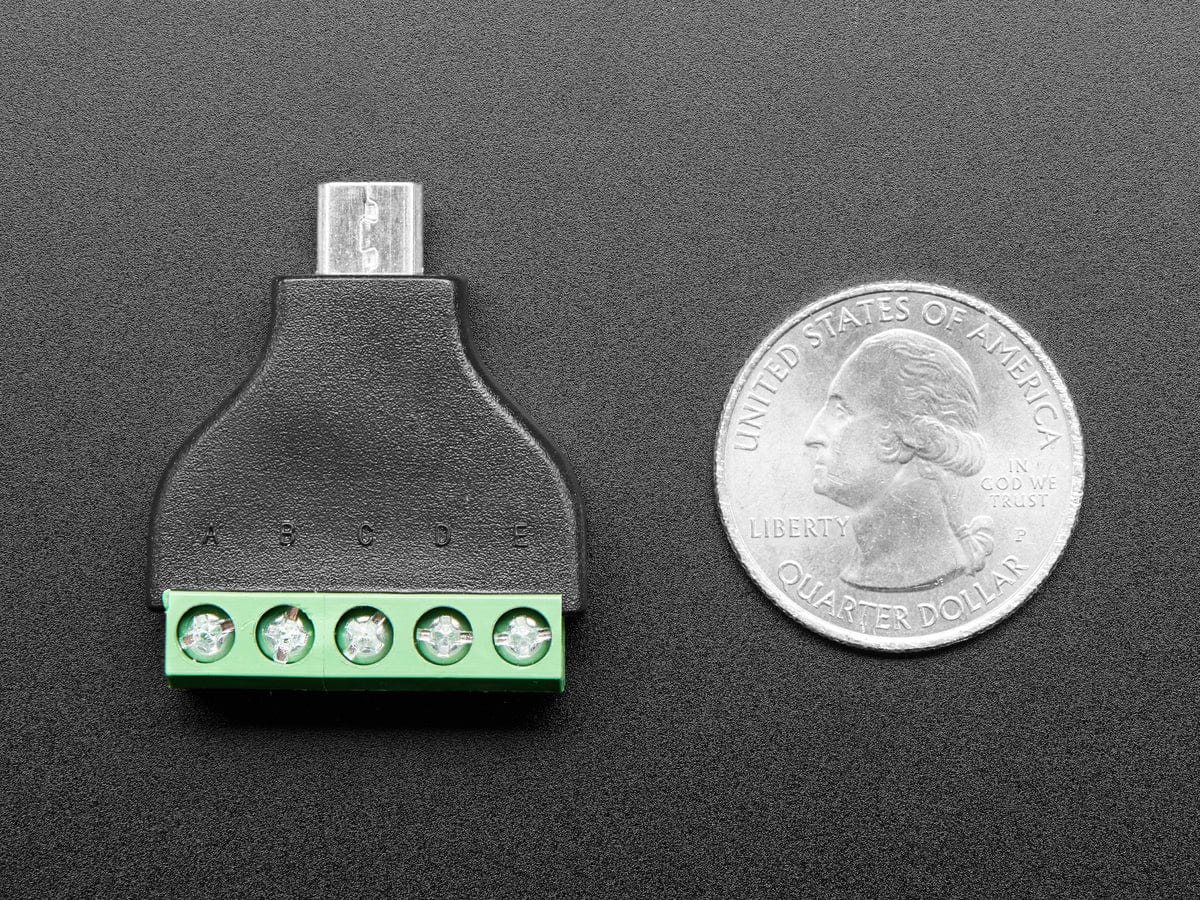

All the pins are labeled, which is really nice because we keep forgetting the order.
- E – Pin 1 (V+)
- D – Pin 2 (D-)
- C – Pin 3 (D+)
- B – Pin 4 (ID)
- A – Pin 5 (GND)
We also carry the plug 'mating' version of this adapter.
Technical Details
Terminal Block Pitch: 5mm
Wire gauge: 26-16AWG
Product Dimensions: 32.5mm x 28.0mm x 10.4mm / 1.3" x 1.1" x 0.4"
