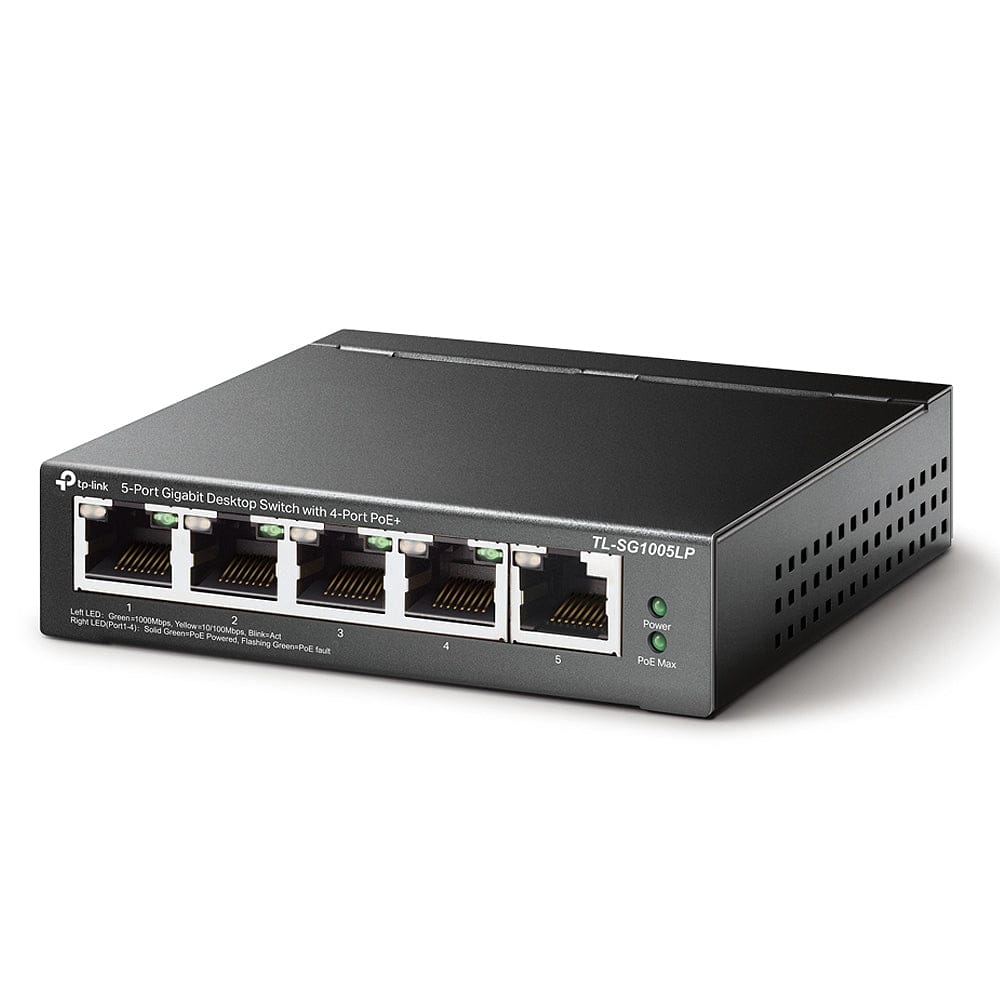

TP-Link TL-SG1005LP - 5-Port PoE+ Gigabit Switch

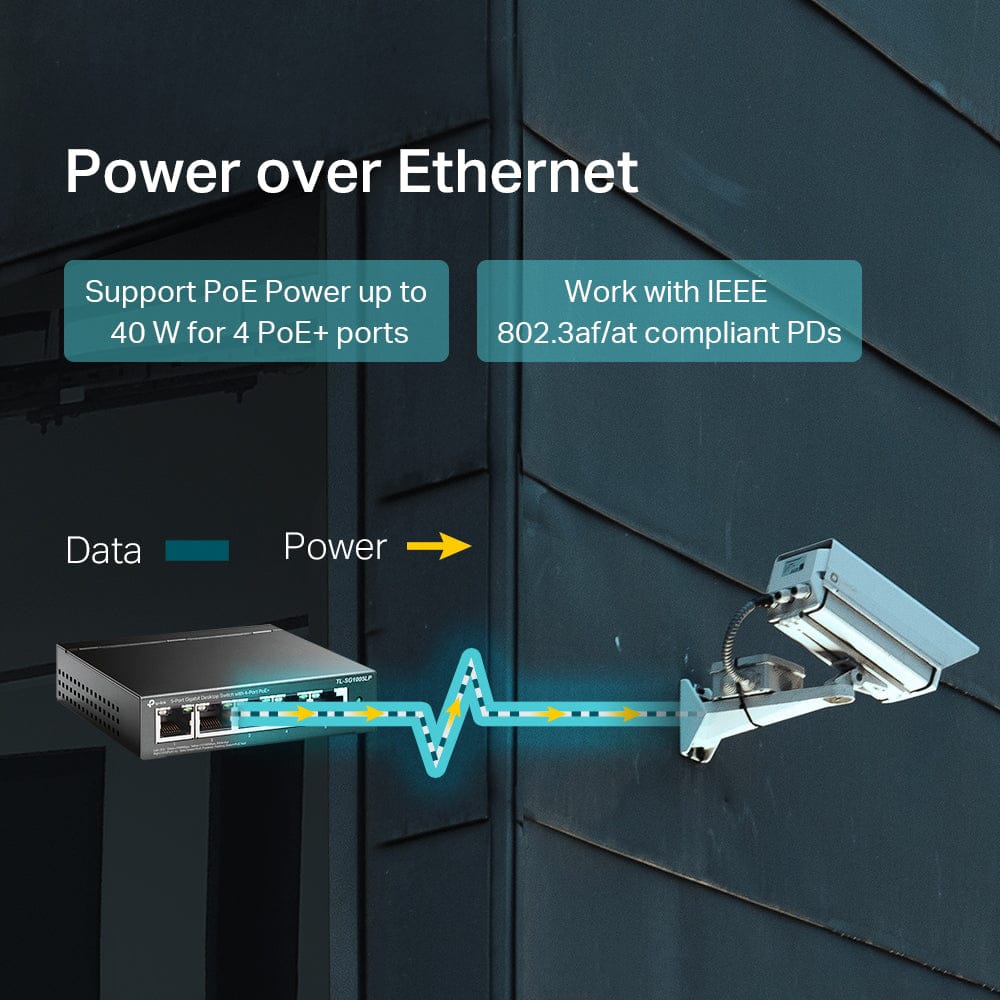

The TP-Link TL-SG1005LP is a 5-port Gigabit desktop switch with four PoE+ ports, able to send both data and power over a single cable. It works with IEEE 802.3af/at compliant powered devices and supports up to 30W per PoE port, with a total PoE budget of 40W across ports 1-4.
Being PoE+ and offering 30W on a single port, it's able to power a Raspberry Pi when combined with a PoE+ HAT!

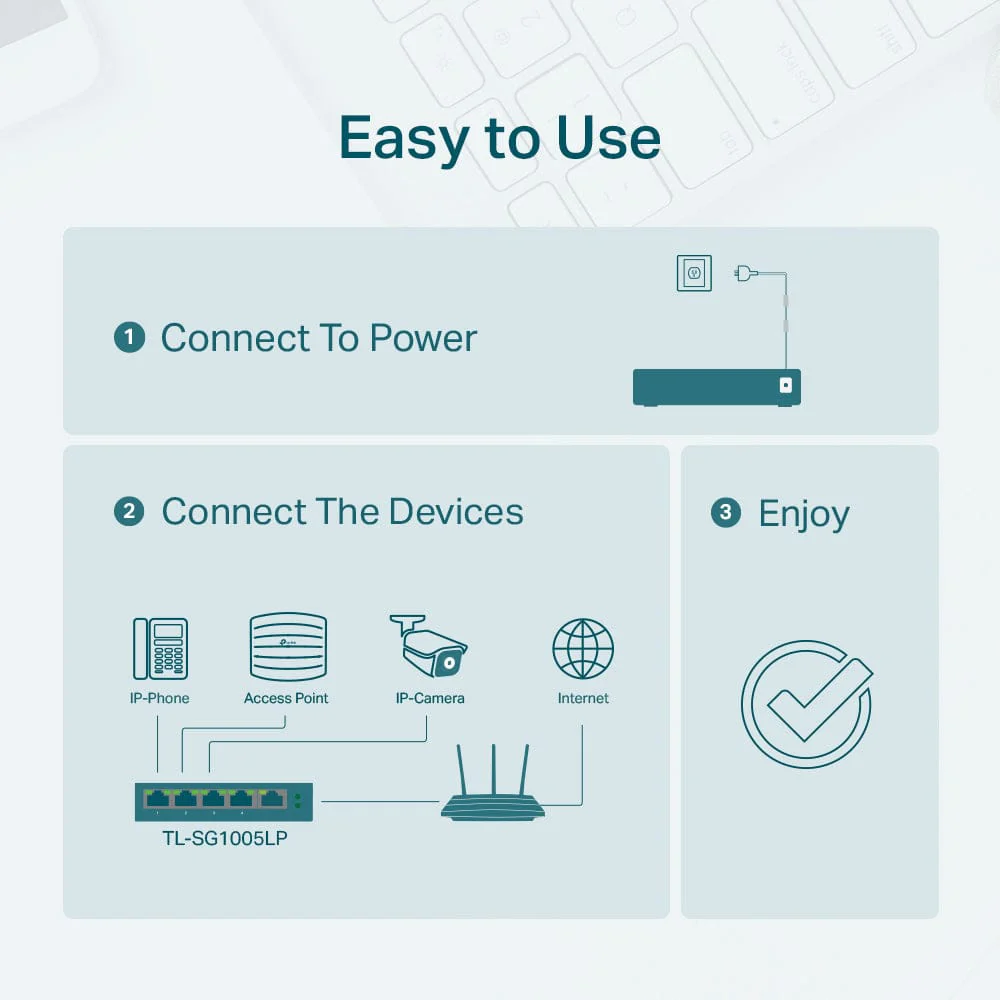

It is plug and play, so there is no configuration or installation needed. If total power demand goes over 40W, intelligent power management cuts power to the lower-priority port first to protect the switch from overload while keeping higher-priority devices running. It also automatically detects the power required by connected PoE devices and helps protect both PoE and non-PoE equipment from damage.

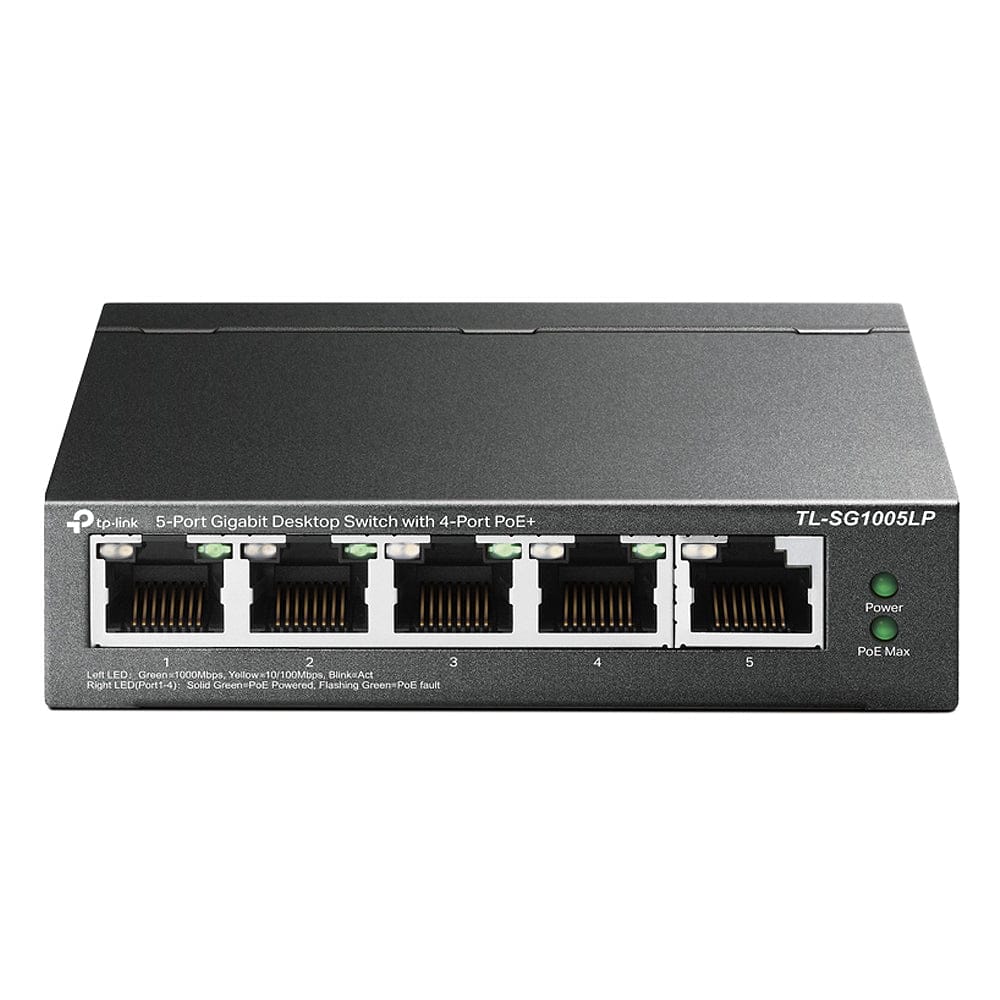

For performance, it includes 802.1p/DSCP QoS for smoother latency-sensitive traffic and IGMP Snooping to optimise multimedia traffic delivery for applications such as IPTV. The switch has a durable metal casing, a compact desktop design, wall-mounting support and a fanless design. It features 5× 10/100/1000 Mbps RJ45 ports, 10 Gbps switching capacity and a 7.44 Mpps packet forwarding rate.
Note: Supplied with a UK power adapter.
Features
- 5× 10/100/1000 Mbps RJ45 ports
- With four PoE+ ports, transfers data and power on one single cable
- Works with IEEE 802.3af/at compliant PDs
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 40 W for all PoE ports*
- Plug and play, no configuration and installation required
Specifications
| Interface | 5× 10/100/1000Mbps RJ45 Ports AUTO Negotiation AUTO MDI/MDIX |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 53.5 VDC / 0.81 A) |
| Packet Forwarding Rate | 7.44 Mpps |
| PoE Ports (RJ45) | Standard: 802.3 af/at compliant PoE Ports: Ports 1–4 Power Supply: 40 W |
| Mac Address Table | 2K |
| Jumbo Frame | 16 KB |
| Switching Capacity | 10 Gbps |
| Dimensions ( W x D x H ) | 99.8×98×25 mm |
| Max. Power Consumption | 4.12 W (220/50 Hz. no PD connected) 47.5 W (220/50 Hz. with 40 W PD connected) |
| Max. Heat Dissipation | 14.05 BTU/h (no PD connected) 161.98 BTU/h (with 40 W PD connected) |
| Advanced Features | Compatible With IEEE 802.3af/at Compliant PDs Mac Address Auto-Learning And Auto-Aging IEEE 802.3x Flow Control 802.1p/DSCP QoS IGMP Snooping |
| Transmission Method | Store-And-Forward |
| Certification | FCC, CE, RoHS |
| Environment | Operating Temperature: 0–40 ℃ (32–104 ℉) Storage Temperature: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing |
Resources
- TP-Link TL-SG1005LP downloads
Package Contents
- 1x TP-Link 5-Port PoE+ Gigabit Desktop Switch
- 1x UK Power Adapter
- 1x Installation guide
