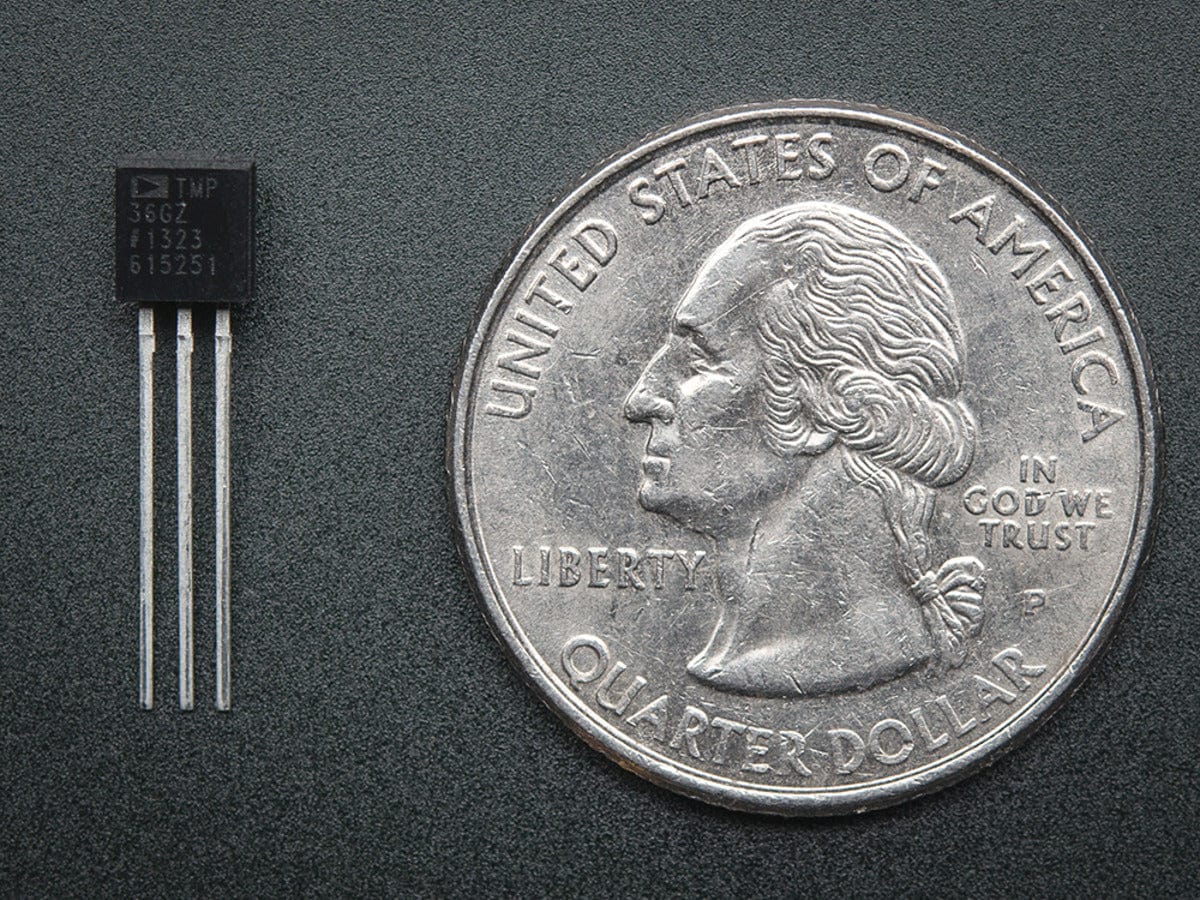

TMP36 Analog Temperature Sensor
Wide range, low power temperature sensor outputs an analog voltage that is proportional to the ambient temperature. To use, connect pin 1 (left) to power (between 2.7 and 5.5V), pin 3 (right) to ground, and pin 2 to analog in on your microcontroller. The voltage out is 0V at -50°C and 1.75V at 125°C. You can easily calculate the temperature from the voltage in millivolts: Temp °C = 100*(reading in V) - 50
See the webpage for datasheets and more information.
For a full tutorial with wiring diagrams, Arduino and CircuitPython code examples and project ideas, please read the TMP36 temperature sensor tutorial page!
Technical Details
Dimensions:
- Length: 3.5mm / 0.14"
- Width: 4.6mm / 0.18"
- Height: 19mm / 0.74"
- Weight: 0.2g
