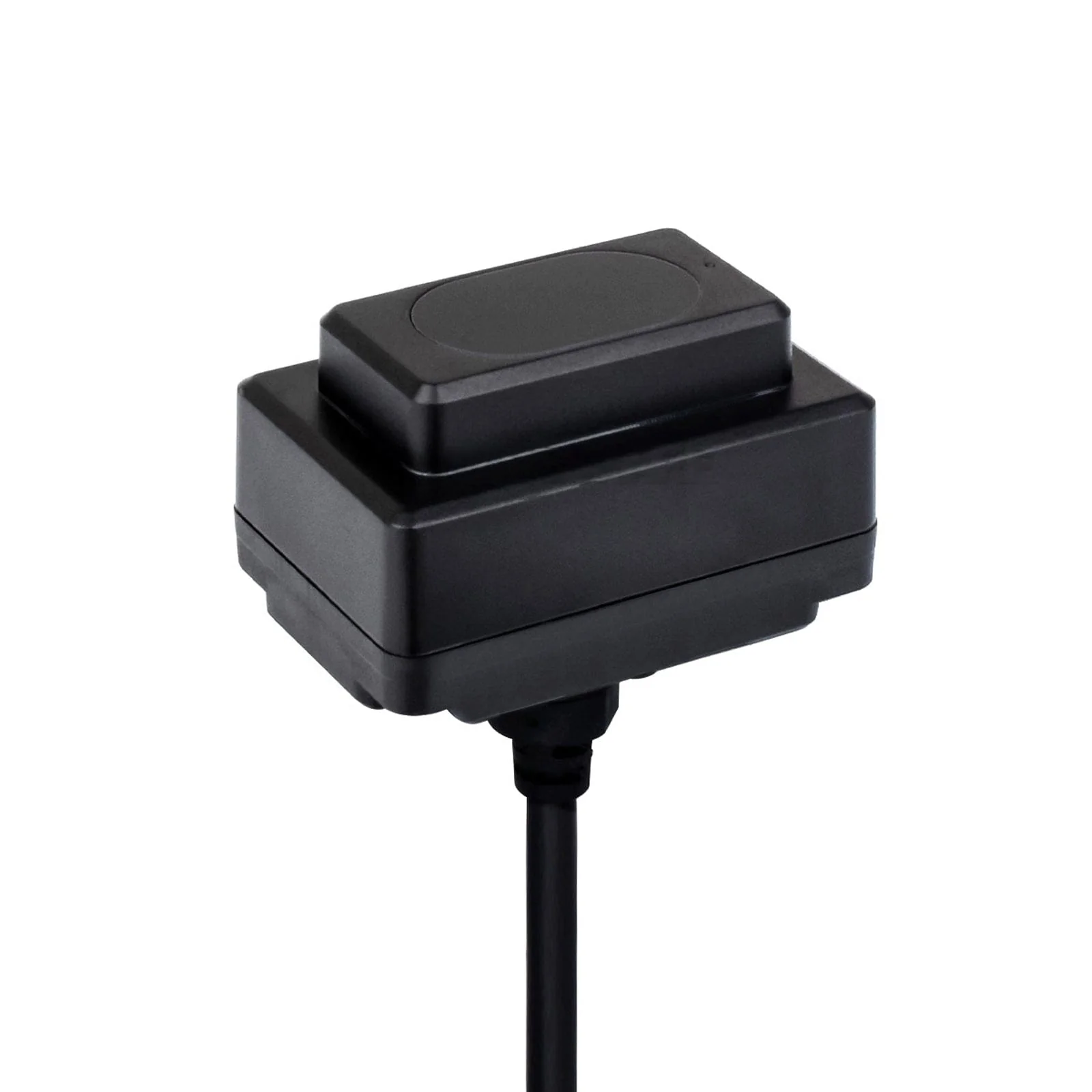

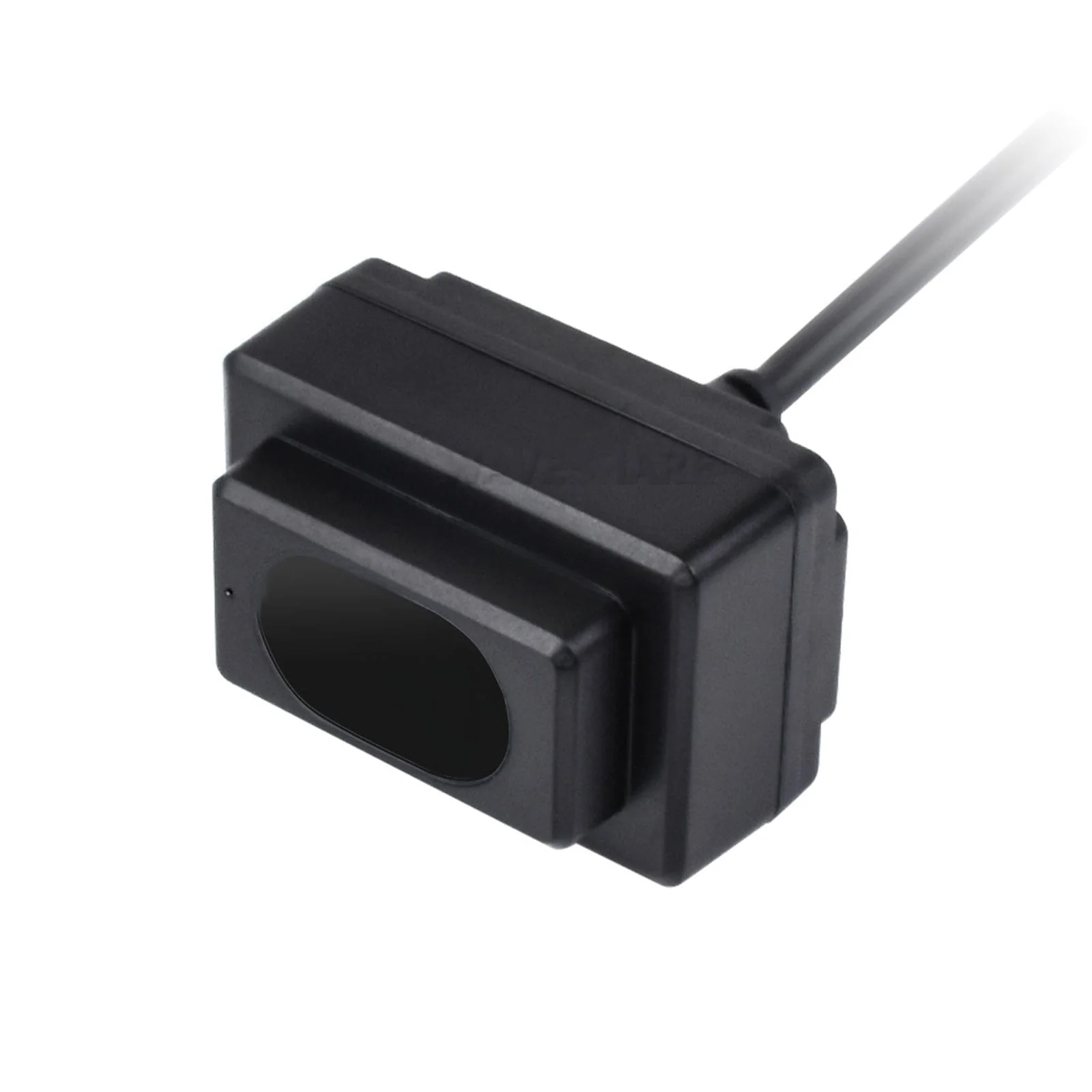

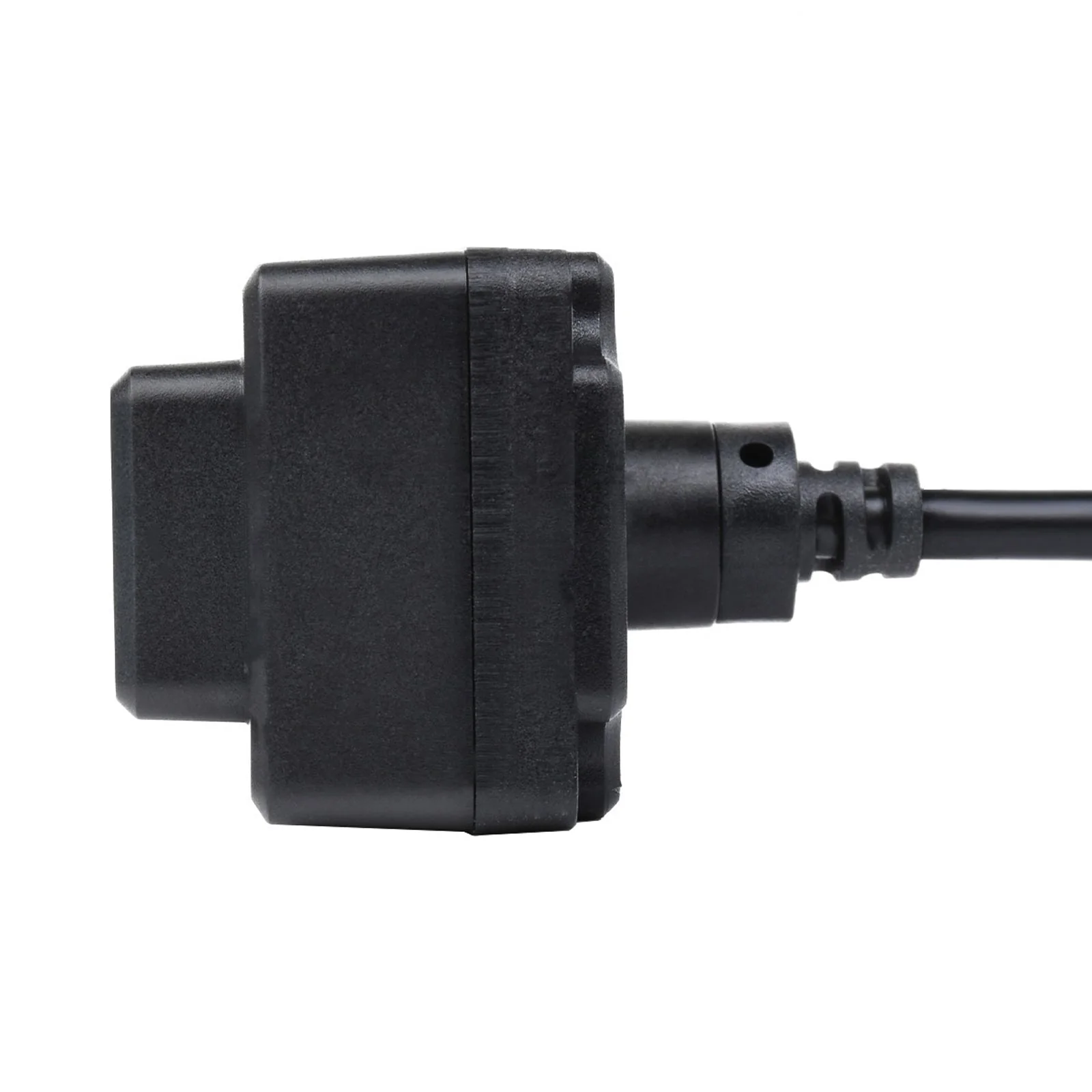

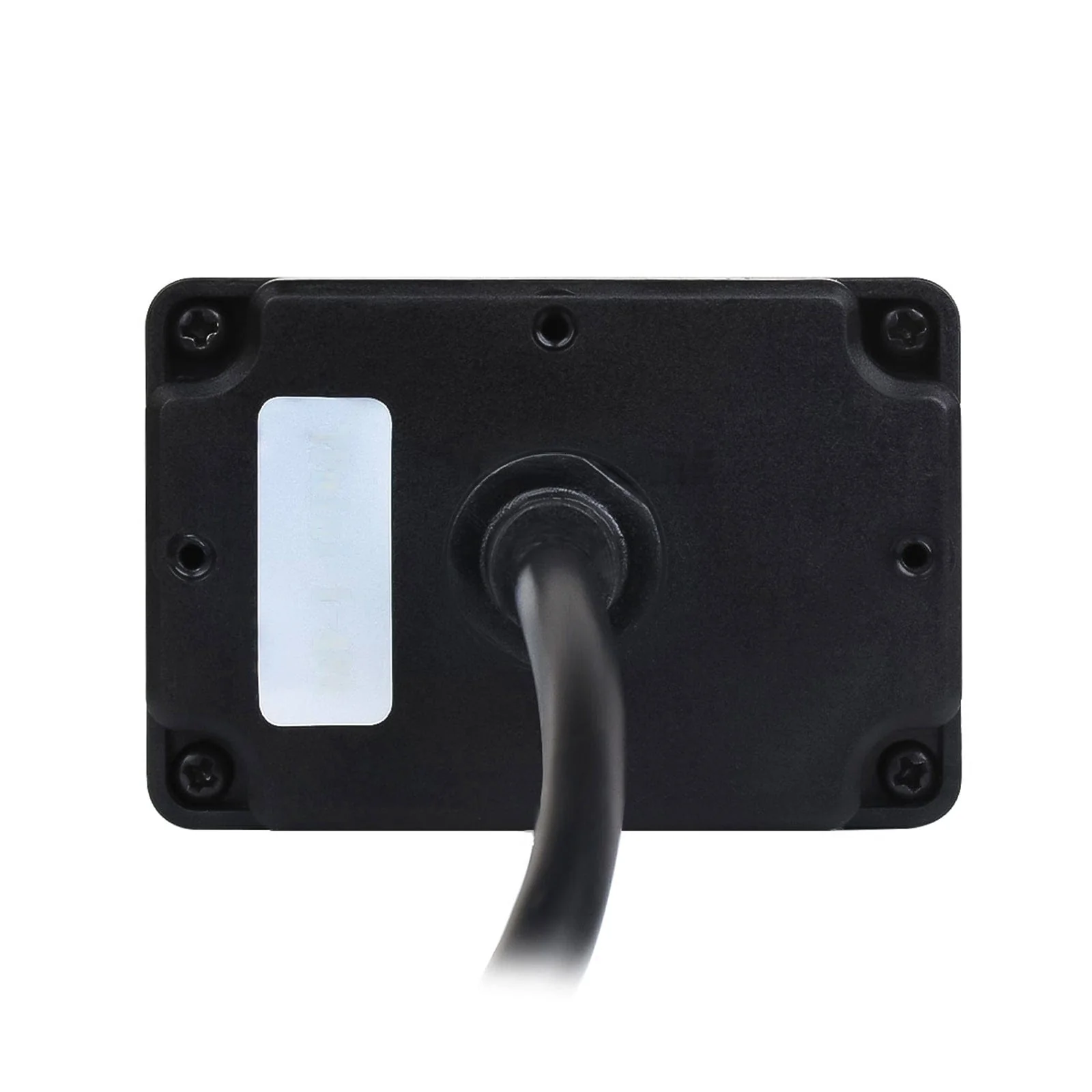

TFmini-i Industrial Lidar Ranging Sensor
This sensor uses a Time-of-Flight (TOF) ranging principle to accomplish its precise distance measurement capabilities. This advanced technology relies on the fundamental concept of measuring the time it takes for light to travel to an object and back to the sensor, which is then converted into a distance value with remarkable accuracy.
With a maximum ranging distance of 12 meters, this sensor is engineered to provide accurate and reliable distance data. It is equipped with IP65 protection, making it resistant to dust and water ingress. This level of environmental shielding ensures that the sensor can still work in challenging conditions, including outdoor and industrial environments, where exposure to elements could potentially hinder its performance.
The sensor's compatibility with the RS485 industrial interface underscores its suitability for industrial deployments. This interface enables seamless integration into complex systems and networks commonly found in industrial automation and control setups. It has a wide voltage input range of 7 to 30V, which offers flexibility in power supply options and accommodates a variety of power sources.
With its impressive 12-meter ranging distance, IP65 protection, RS485 industrial interface, and wide voltage range, the sensor is poised to excel in different projects ranging from logistics and automation to robotics and machinery control, where accurate and dependable distance measurements are paramount.
Features
- 12m Ranging Distance
- IP65 Protection
- RS485 Interface
- 7~30V Wide Range Voltage
- TOF Ranging Principle
Specifications
| Performance | |
| Ranging Distance | 0.1~12.0m @90% reflectivity (Indoor 0klux) |
| 0.1~7.0m @10% reflectivity (Indoor 0klux) | |
| 0.1~12.0m @90% reflectivity (Outdoor 70klux) | |
| 0.1~7.0m @10% reflectivity (Outdoor 70klux) | |
| Frame Rate | 1-40Hz |
| Ambient Light Tolerance | 70 Klux |
| Accuracy | ±6cm@(0.1~6m) |
| ±1%@(6~12m) | |
| Distance Resolution | 1cm |
| Protection Level | IP65 |
| Optical Parameters | |
| Light Source | VCSEL |
| Eye Safety | Class 1 (IEC60825) |
| Central Wavelength | 850nm |
| Field of View | 2° |
| Electrical Parameters | |
| Power Supply | DC 7V~30V |
| Power | ≤0.8W@12V |
| Average Current | ≤65mA@12V |
| Peak Current | 100mA@12V |
| Others | |

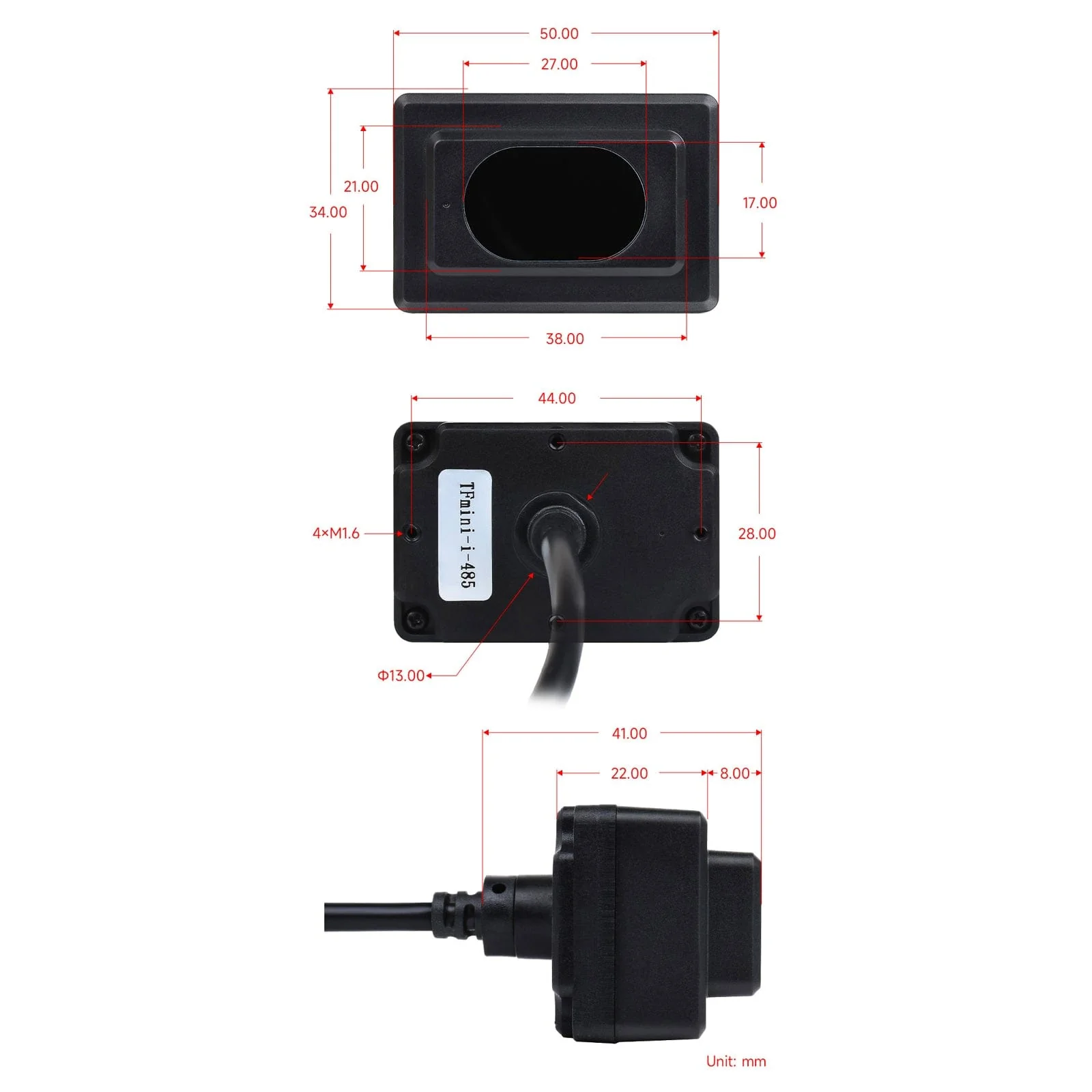

| Dimensions | 50 x 34 x 41mm |
| Case Material | ABS/PC/PMMA |
| Operating Temperature | -20~60°C |
| Weight | 52g |
| Storage Temperature | -30~75°C |
| Cable Length | 70cm |
Resources
- Product Wiki
- Manual
- Datasheet
Pinout
| Number | Colour | Function | Description |
| 1 | Red | VCC | Power Supply |
| 2 | White/Yellow | RS485-B | RS485-B |
| 3 | Green | RS485-A | RS485-A |
| 4 | N/A | - | - |
| 5 | Blue/Orange | UART_RXD | UART Receive (debug) |
| 6 | Brown | UART_TXD | UART Transmit (debug) |
| 7 | Black | GND | Ground |

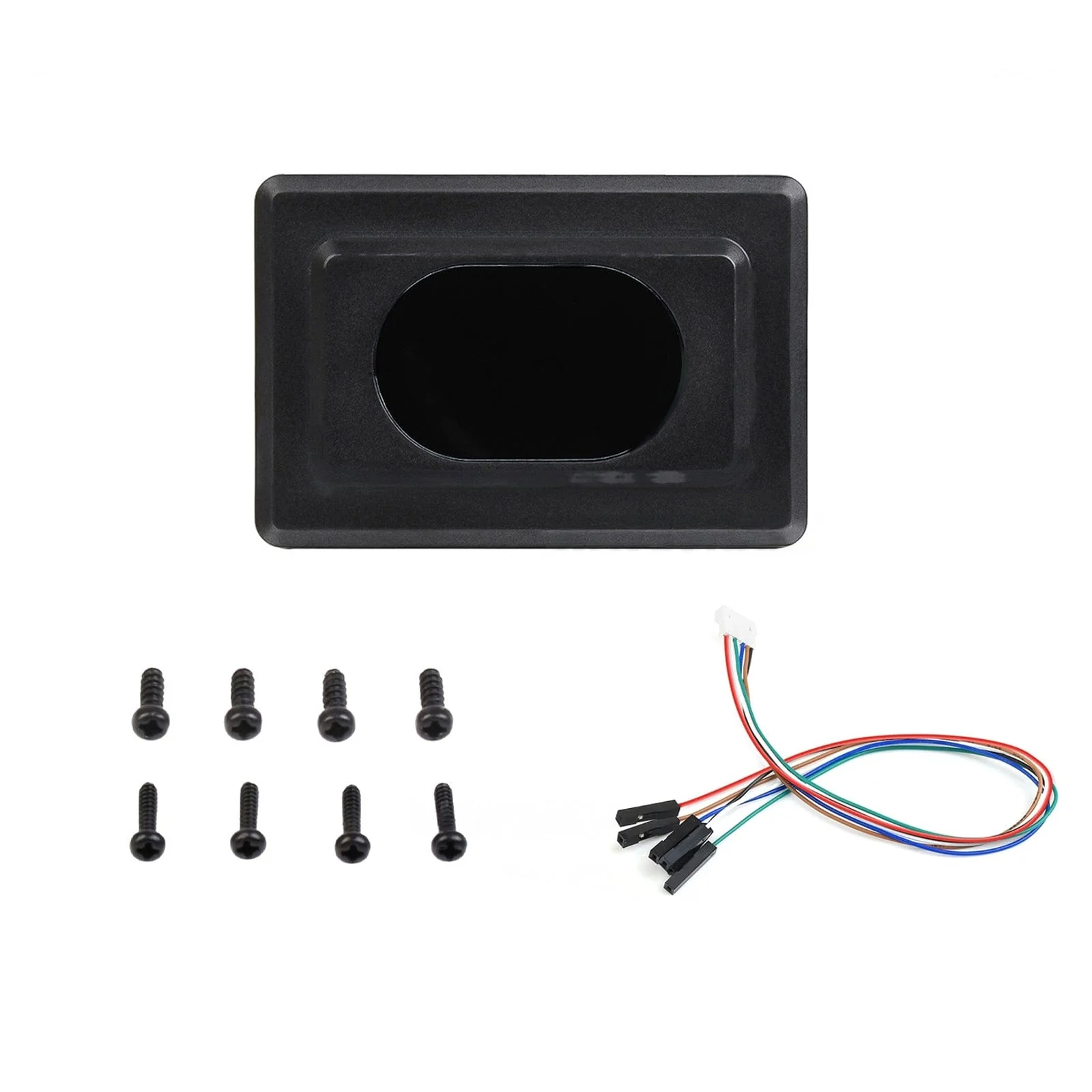

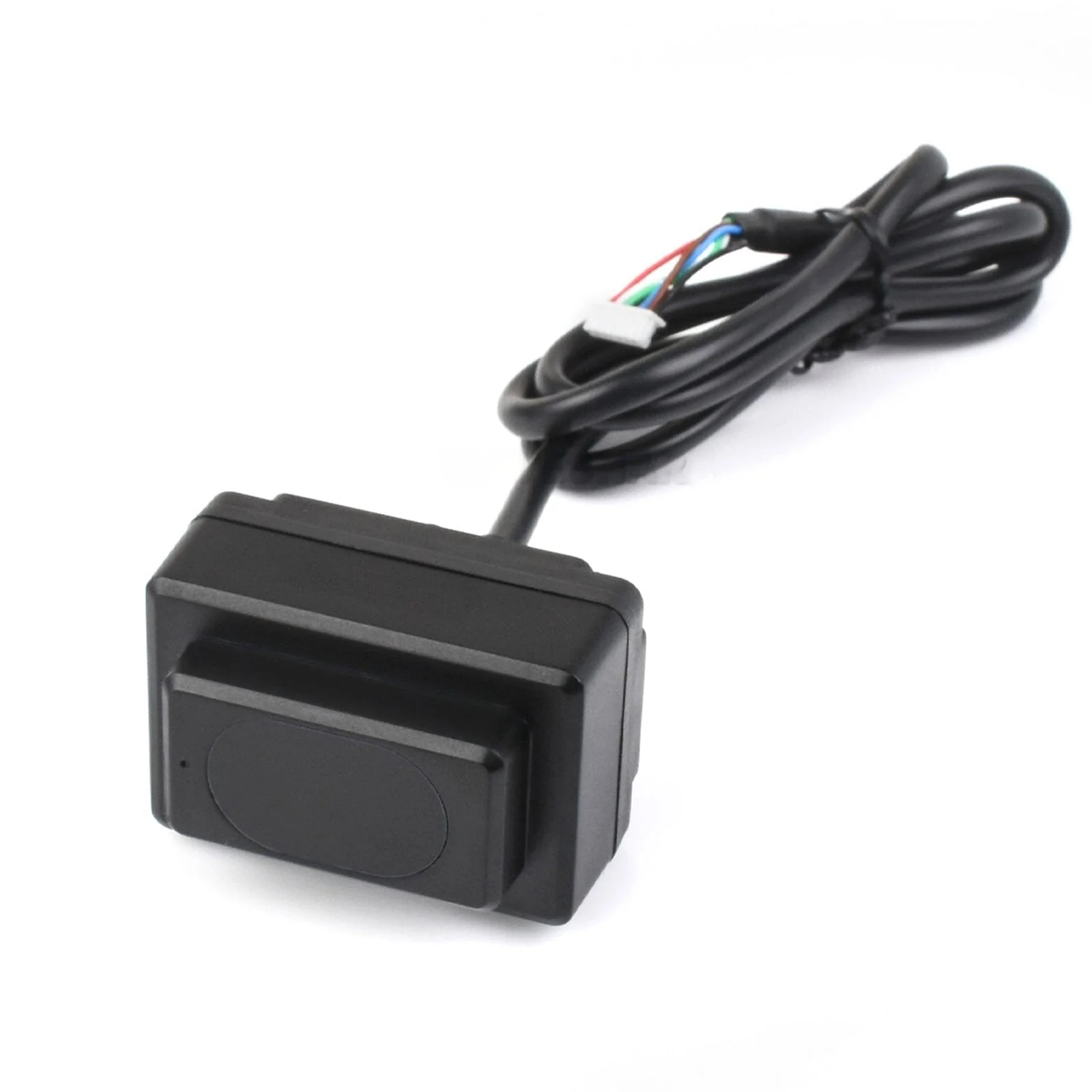

Package Contents
- 1x TFmini-i LiDAR Range Sensor
- 1x Female 5-Pin Cable
- 8x Cross head Screws
