SupTronics X1007 Dual SATA Expansion for Raspberry Pi 5

The SupTronics X1007 Dual SATA Expansion for Raspberry Pi 5 adds two 2.5" SATA 3.0 ports with up to 5Gbps speeds via PCIe. Mounts under the Pi 5 without blocking GPIO, powers via pogo pins, and supports mass storage setups.

---

Introducing the SupTronics X1007 Dual SATA Expansion, designed to provide a mass-capacity storage and high-speed storage solution via PCIe, for your Raspberry Pi 5. This board facilitates the simultaneous connection of two 2.5" HDDs/SSDs, with SATA 3.0 interface speeds reaching up to 5Gbps.

Note: does not currently support booting from SSD with the existing firmware.

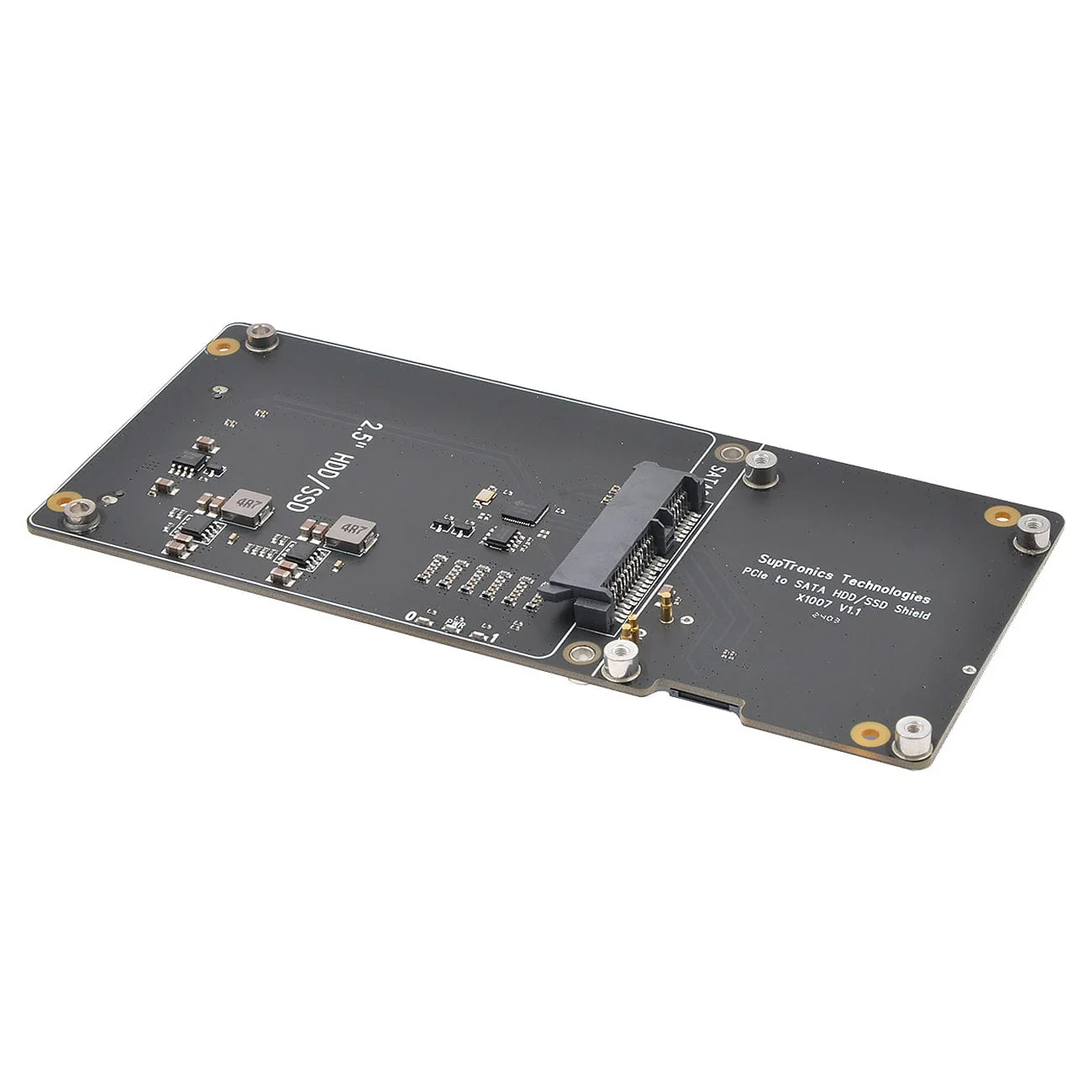

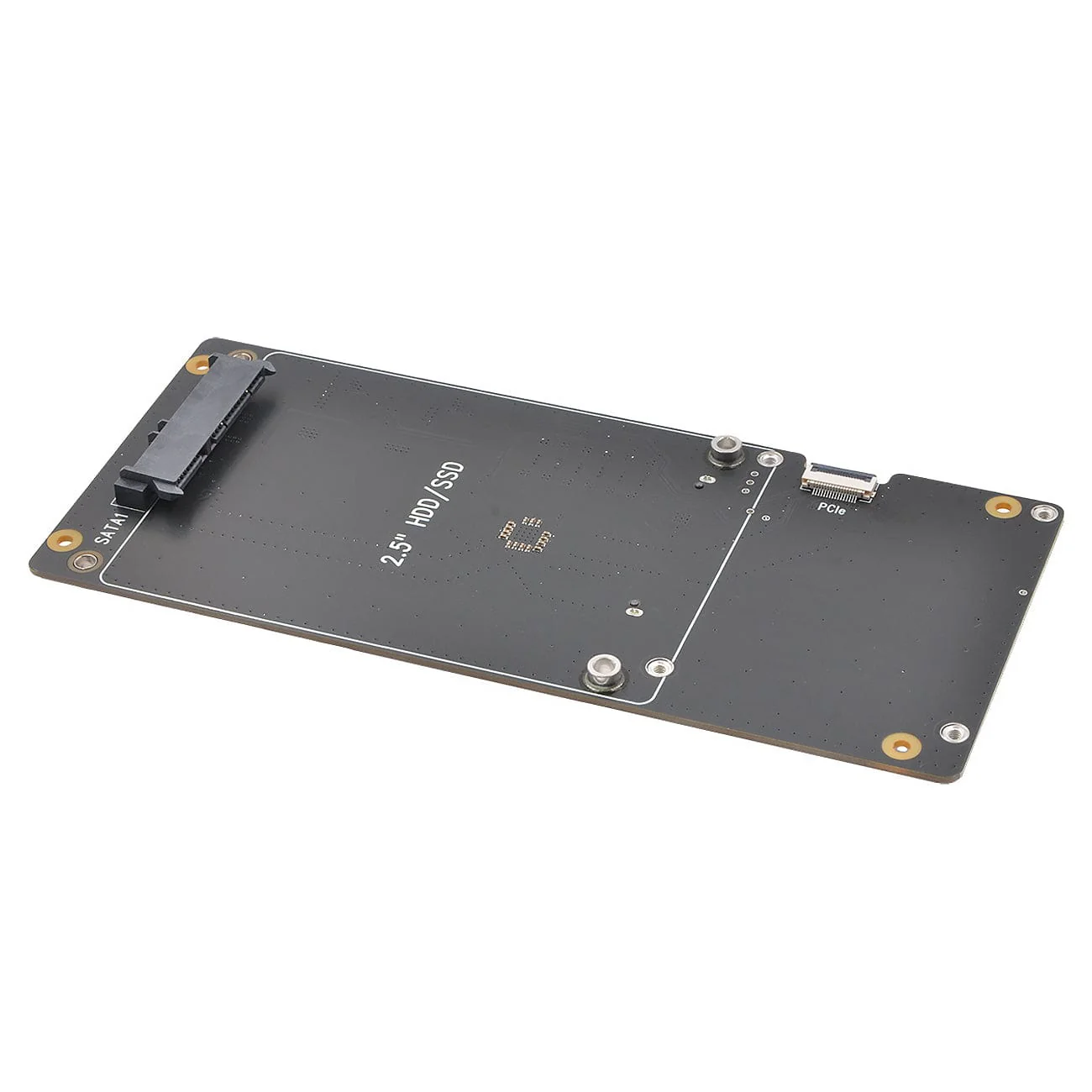

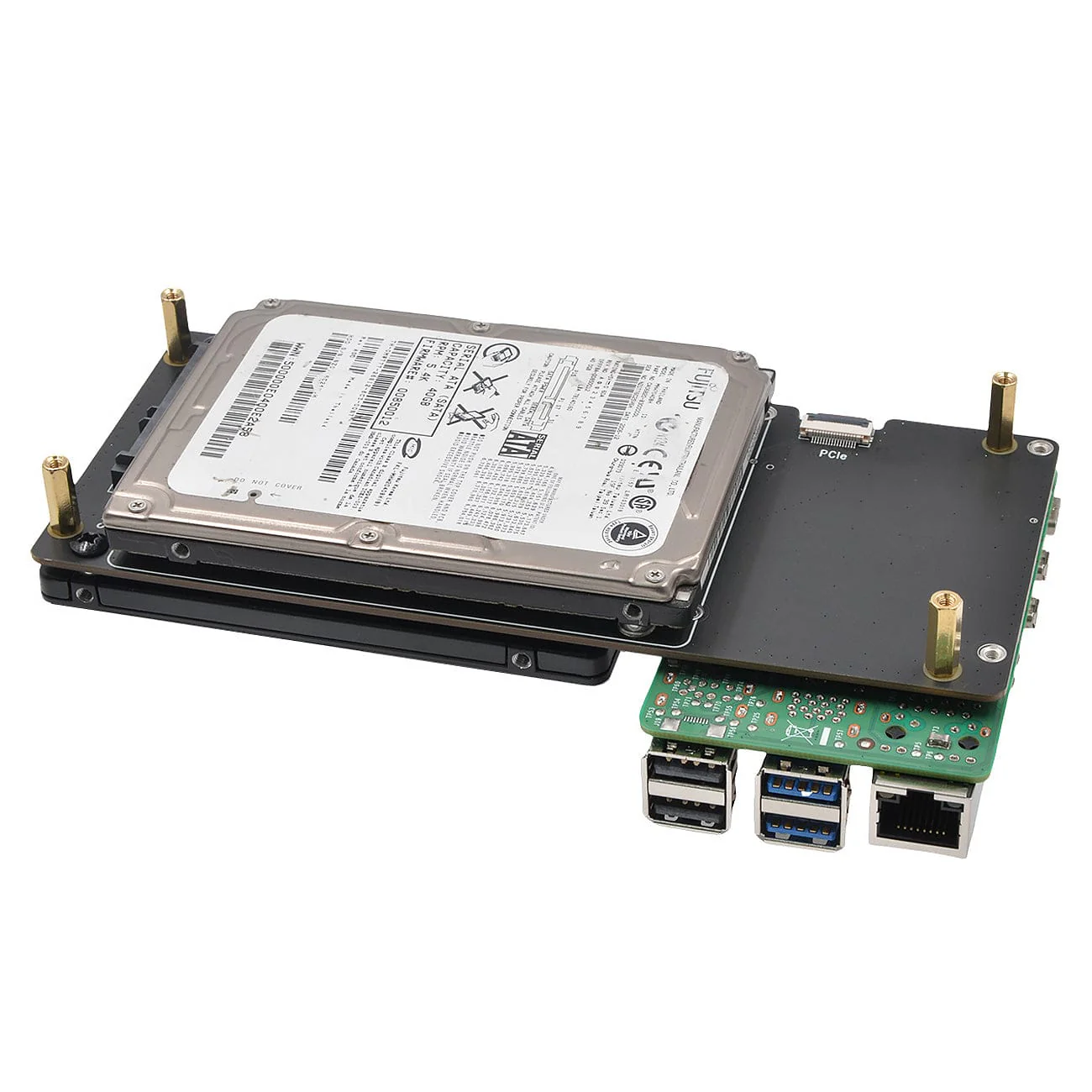

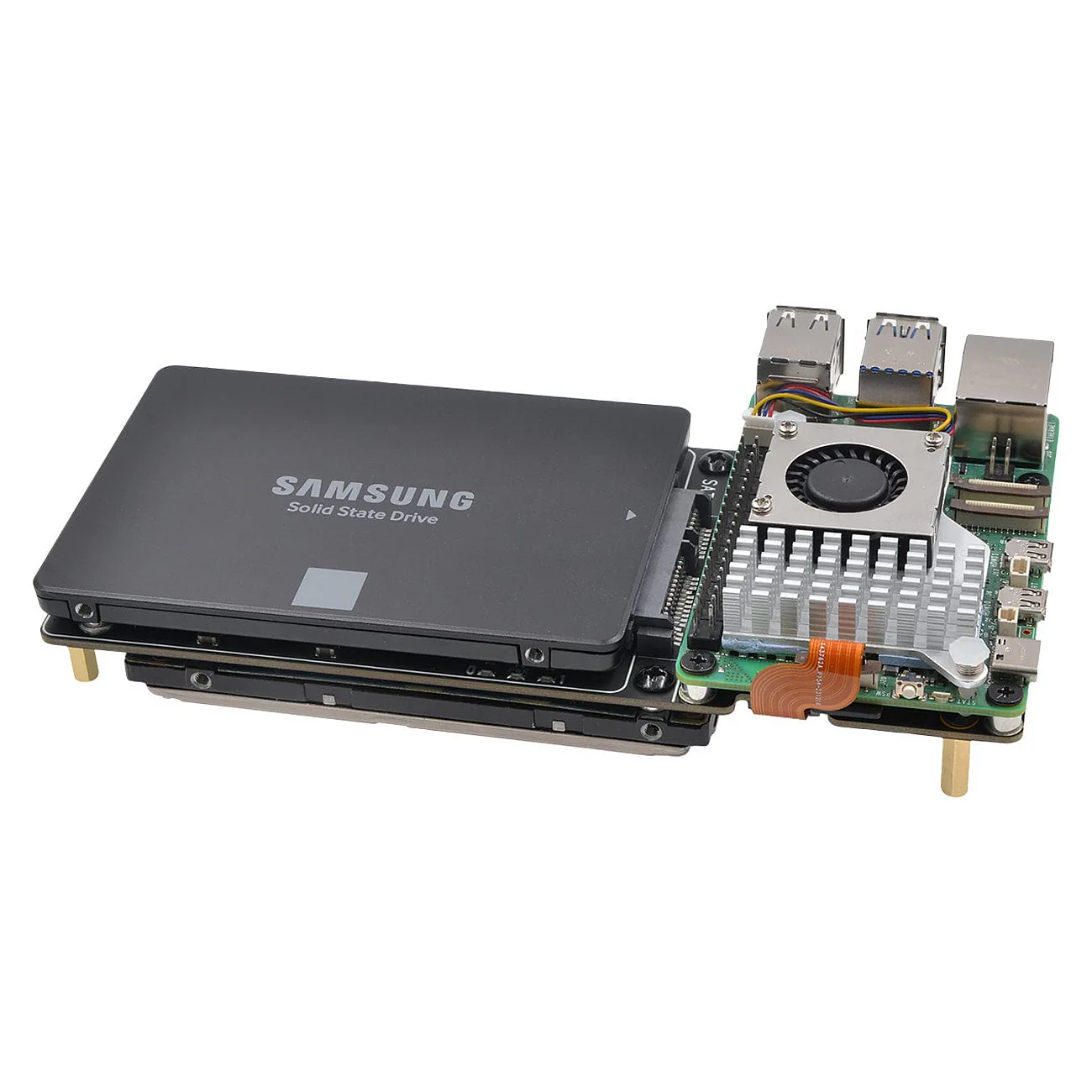

The X1007 connects to the underside of the Raspberry Pi 5, eliminating the need for a passthrough for the GPIO. This means you can use your favourite HATs while also utilising this expansion board. The X1007 and your SSDs/HDDs can be powered from Raspberry Pi 5 via chunky pogo pins, using your single USB-C power supply for everything.

The X1007 serves as the perfect storage solution for establishing a home media centre or constructing a network-attached storage (NAS) system.

SSDs, Raspberry Pi and Active Cooler not included

Features

• Compatible with Raspberry Pi 5
• Supports the connection of two 2.5" HDD/SSD to your Raspberry Pi 5 simultaneously
• Supports up to 4TB + 4TB 2.5" SATA disk drives (HDDs/SSDs)
• Compliant with the Serial ATA 3.0 specification, with backward compatibility to SATA 2.0 and SATA 1.0
• Adheres to the PCI-Express v2.0 specification and is backward compatible with PCI-Express v1.0
• Supports communication speeds of 5.0 Gbit/s, 3.0 Gbit/s, and 1.5 Gbit/s
• Compatible with SATA 6G, 3G, and 1.5G hard drives
• LED indicators display power and drive status
• Powered from Raspberry Pi 5 via pogo pins
• Compatible with the Raspberry Pi Active Cooler
• Supports the HAT+ STANDBY power state, automatically turning off SATA devices when the Pi 5 is powered down

The X1007 is designed for data storage purposes and does not currently support booting from HDD/SSD with the existing firmware.

Specifications

Power supply	5Vdc ±5% ≥3A via FFC & pogo pins
Ports & connectors	PCIe connector ×1 – 16-pin pitch 0.5mm
	SATA connectors ×2 – 7+15P
PCIe FFC cable length	37mm
PCB size	164.5mm × 71.85mm

Resources

• Software setup/tutorials
• Hardware information and assembly

Package Contents

• 1x SupTronics X1007 Dual SATA Expansion for Raspberry Pi 5
• 1x 37mm PCIe cable
• 1x Screw pack

SSDs, Raspberry Pi and Active Cooler not included
