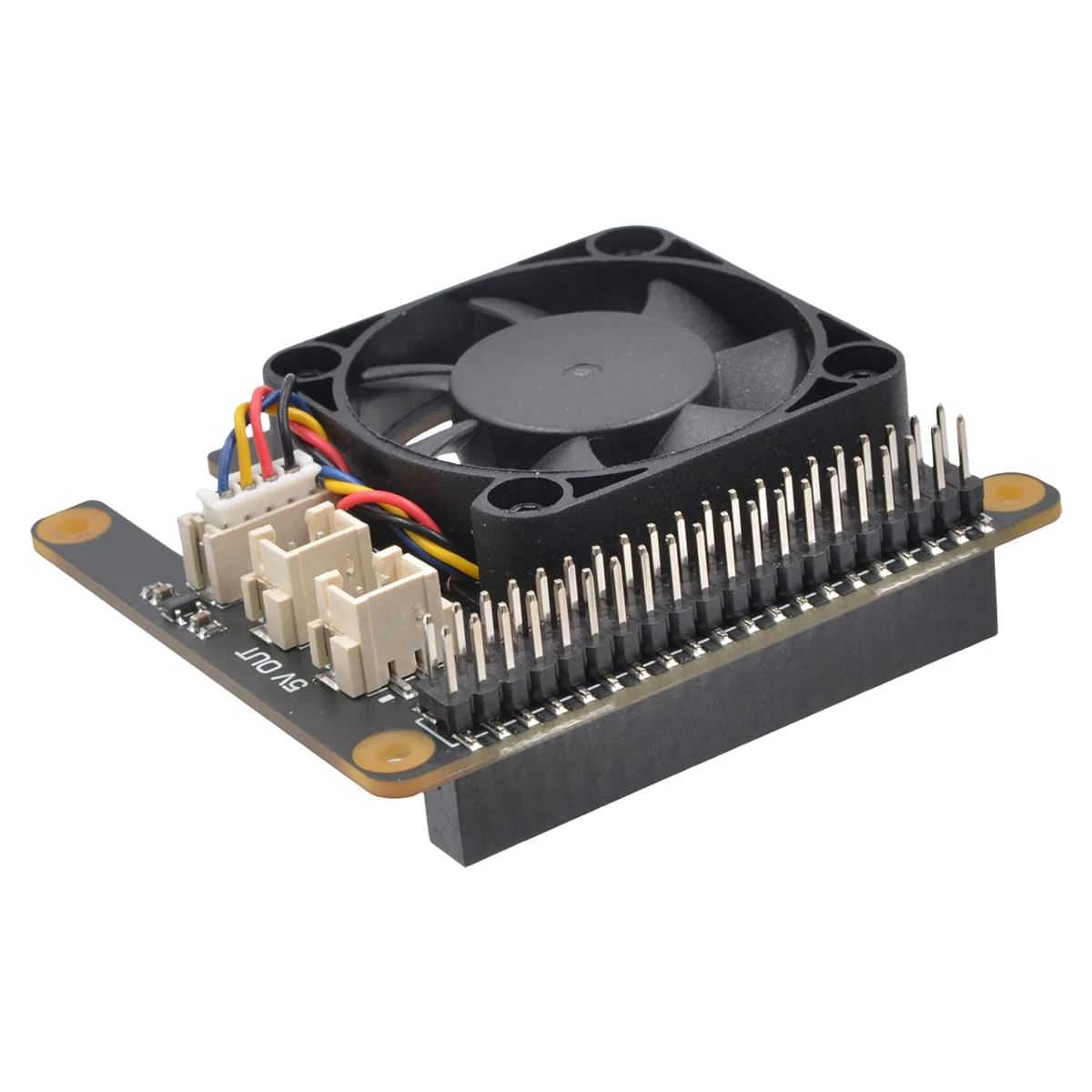

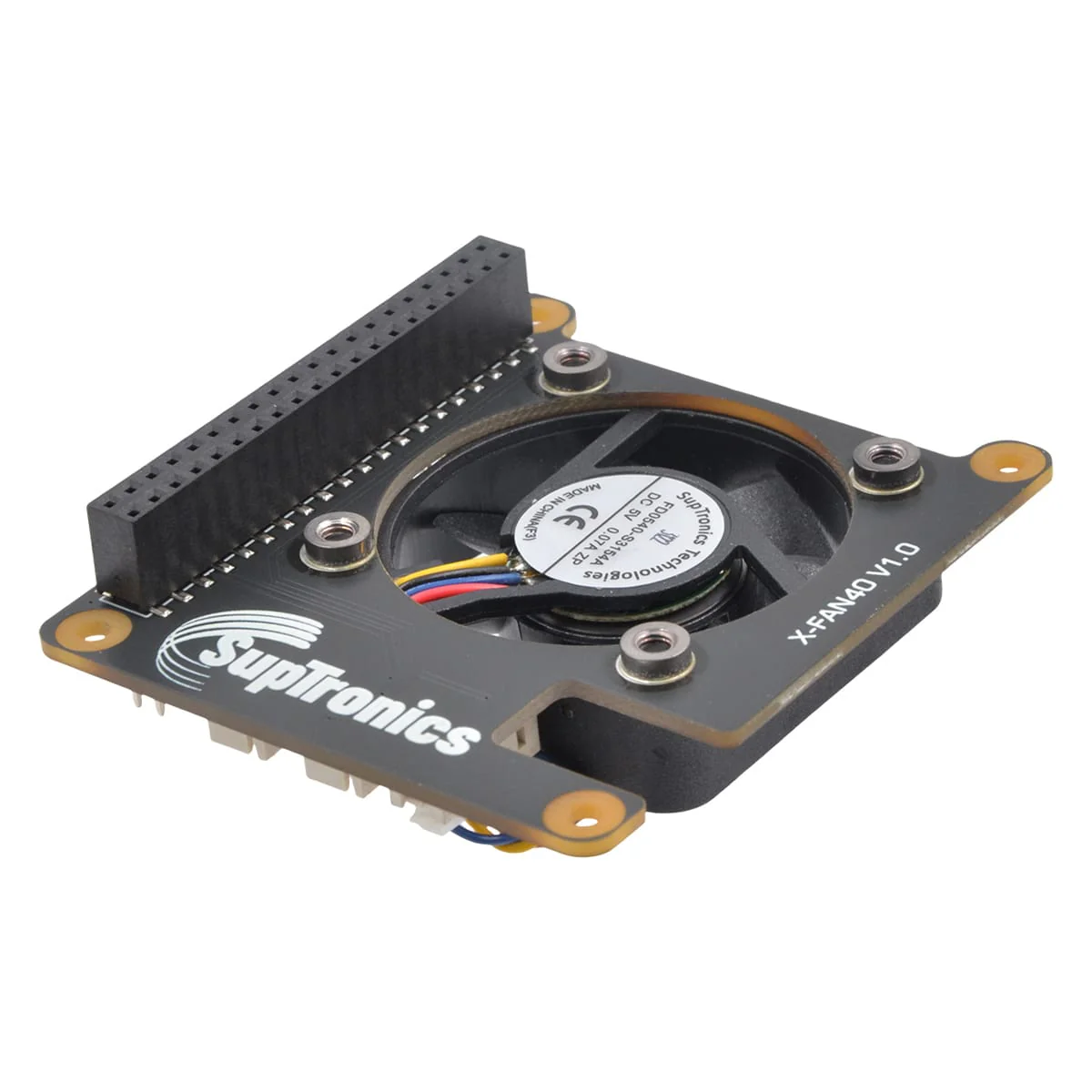

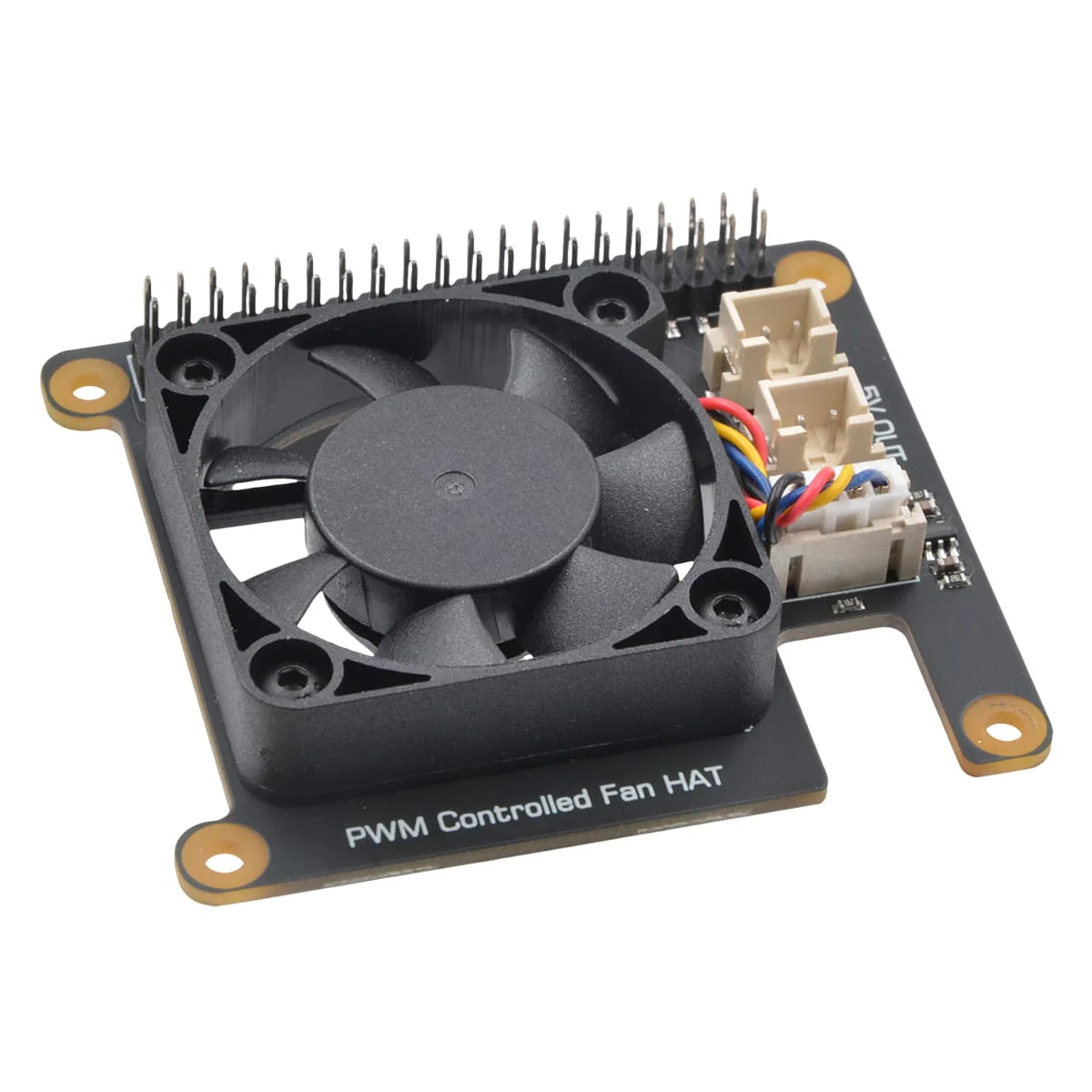

SupTronics X-FAN40 PWM Fan HAT
The SupTronics X-FAN40 is a high-performance PWM fan HAT designed to provide active cooling for Raspberry Pi 5 systems and M.2 NVMe expansion boards such as the X1001-Max and X1004.
Its powerful 40mm PWM fan delivers up to 6.01 CFM airflow, offering significantly greater cooling performance than the official Raspberry Pi active cooler.
Designed for sustained high-load operation, it helps maintain stable temperatures for demanding applications including AI accelerator cards, high-performance SSDs, and other power-intensive workloads. The stackable top-mount design also allows it to integrate neatly alongside other HATs and expansion boards.
Please note: Raspberry Pi 5 not included.Â
Features
- Dual-Cooling Versatility: Dedicated cooling for M.2 devices or supplemental cooling for Raspberry Pi 5.
- Seamless Compatibility: Designed to fit perfectly with X1001-Max/X1004 NVMe expansion boards.
- High-Performance Airflow: 40mm PWM fan delivers 6.01 CFM – over 5x the airflow of the official Pi active cooler.
- Sustained Performance: Maintains stable temperatures under continuous high load.
- Built for Demanding Workloads: Ideal cooling solution for power-intensive applications, including AI accelerator cards and high-performance SSDs.

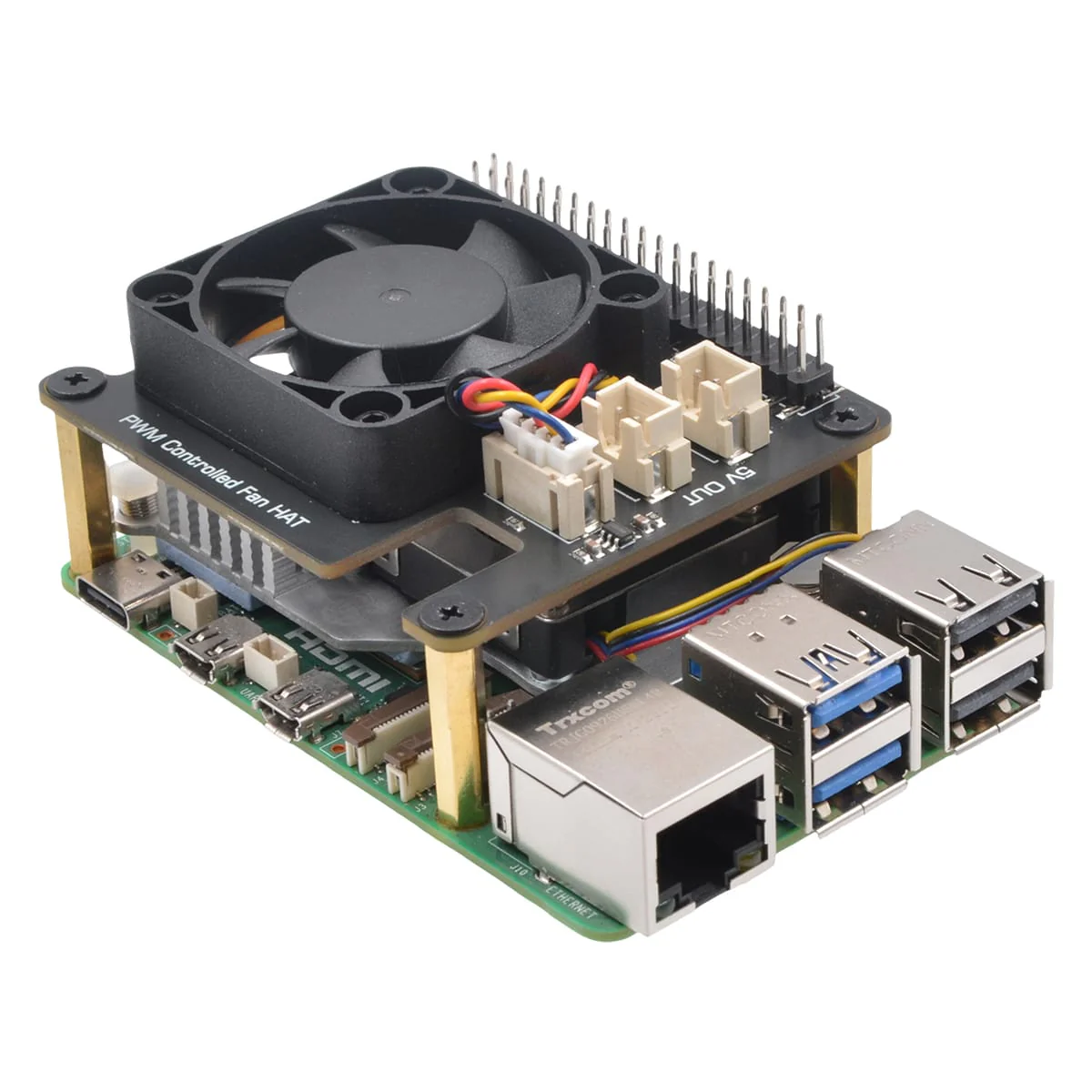

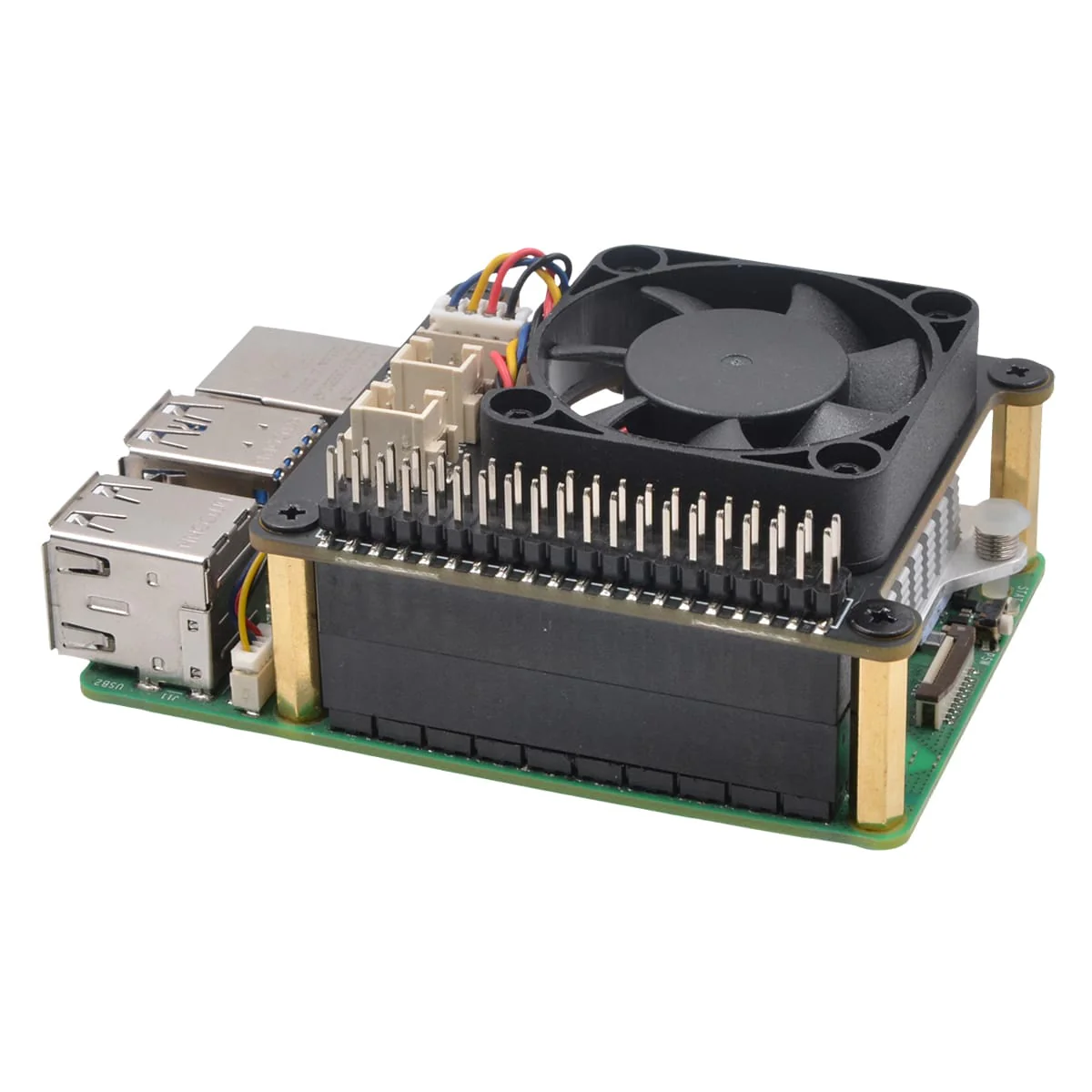

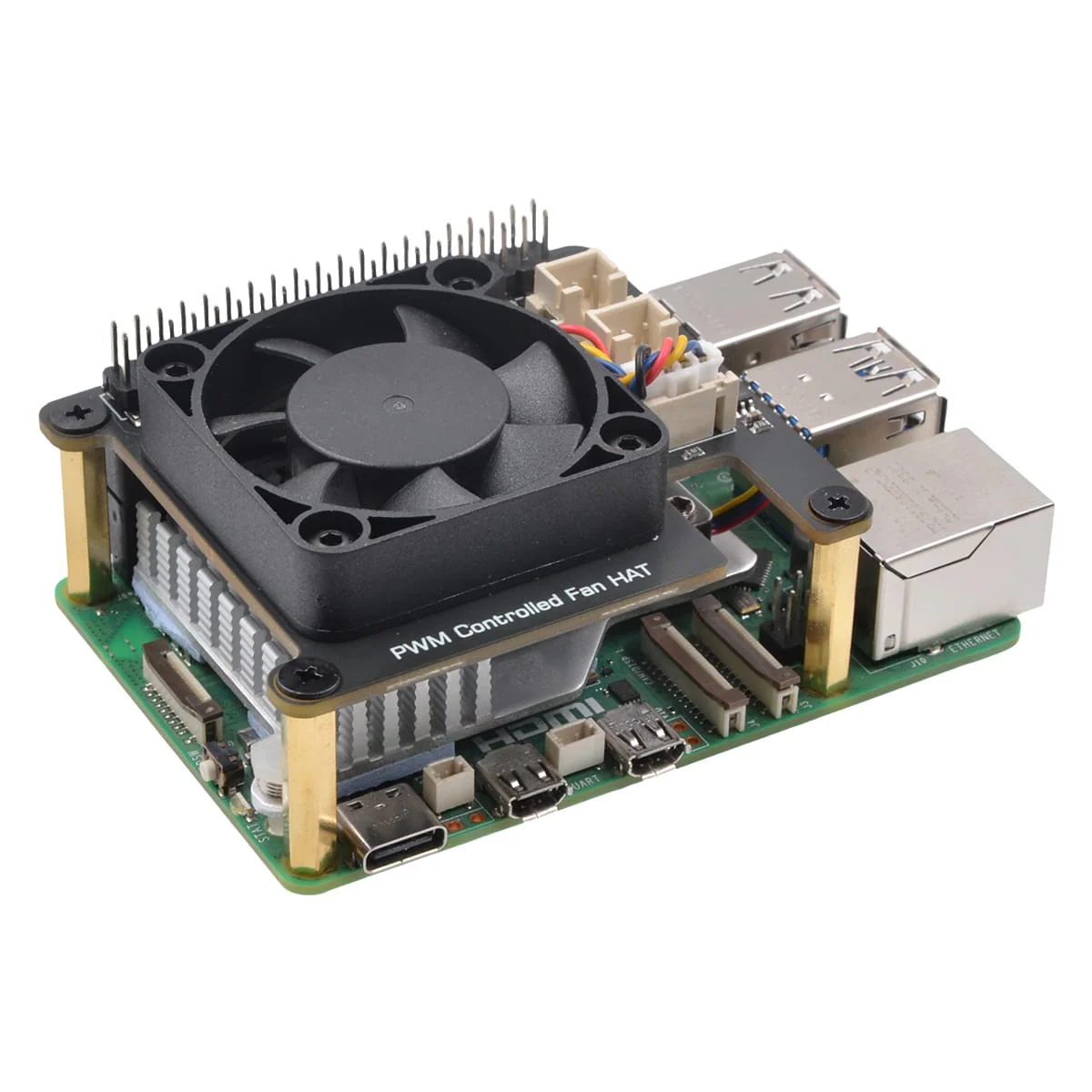

- Stackable Top-Mount Form: Mounts on top of the M.2 HAT or Pi 5, allowing seamless stacking with other HATs.

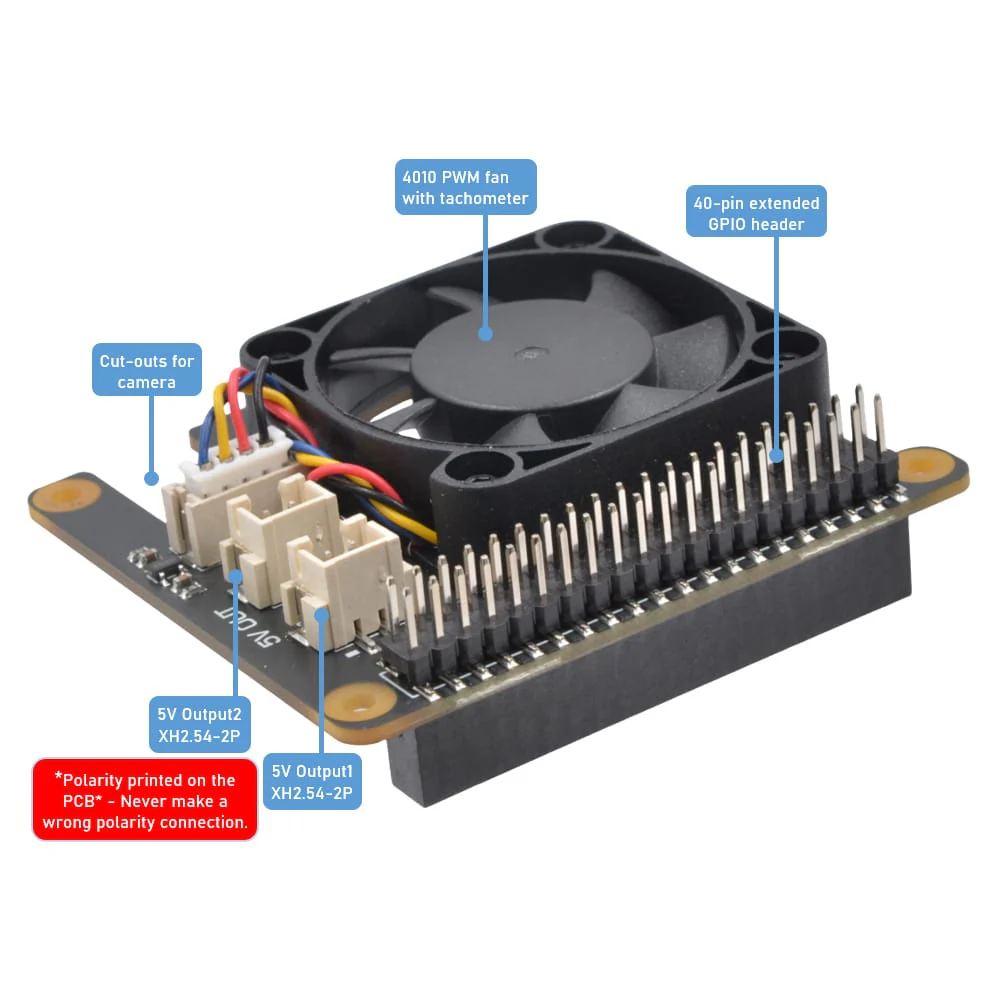

- XH2.54 Power Output: Equipped with 5V power output connectors for expanded functionality.
Specifications
| Operating voltage: | 5V DC (4.5 – 5.5V) supplied via four-pin fan header on a carrier board |
| Start voltage: | ≥ 3.5V |
| Power consumption: | 0.35W |
| Rated current: | 0.07A ± 0.02A |
| Fan speed control: | Pulse width modulation control with tachometer |
| Maximum fan speed: | 5000 RPM ± 10% |
| Maximum airflow: | 6.01 CFM |
| Noise: | 24.3 dBA |

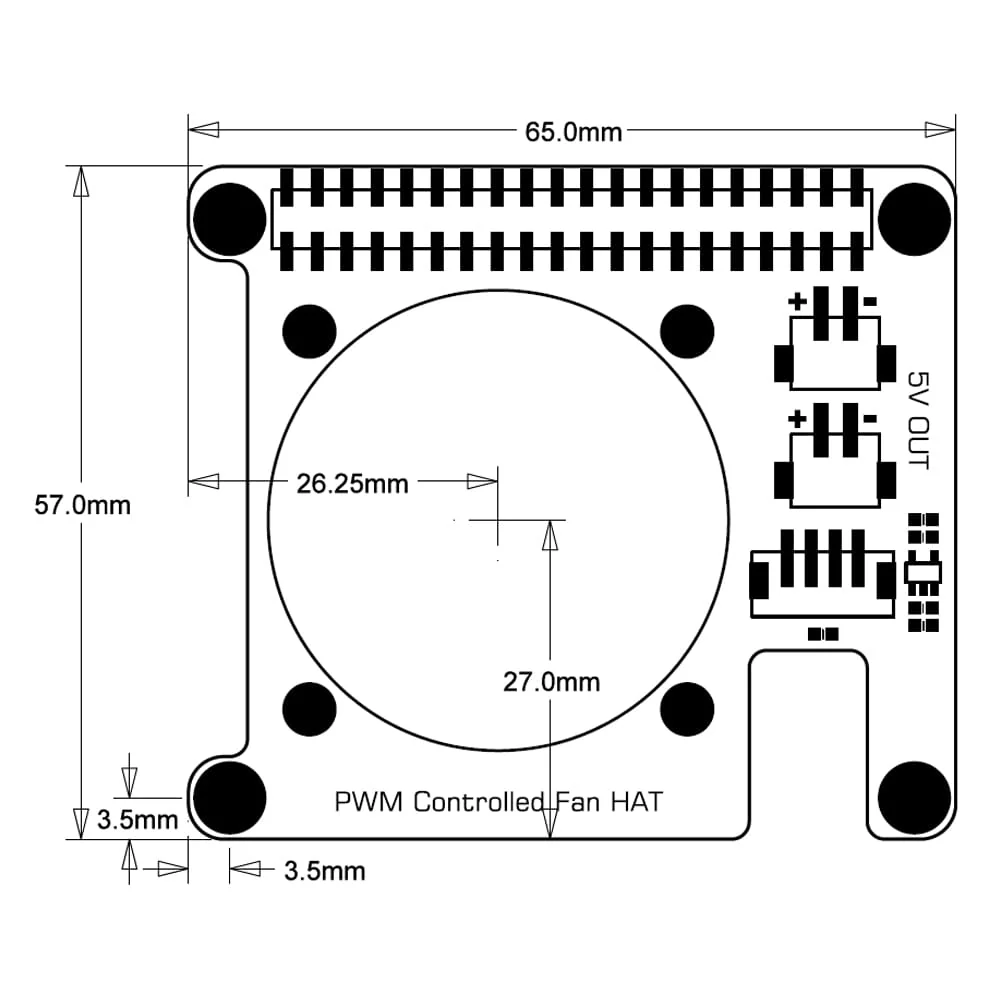

| PCB dimensions: | 65Ă—57mm |
Resources
- Software setup/tutorials
- Hardware information and assembly
Package Contents
- 1x SupTronics X-FAN40 PWM Fan HAT
- 4x M/F M2.5x12mm Spacer
- 4x F/F M2.5x20mm Spacer
- 8x M2.5x5mm Screw
Raspberry Pi 5 not included.Â
