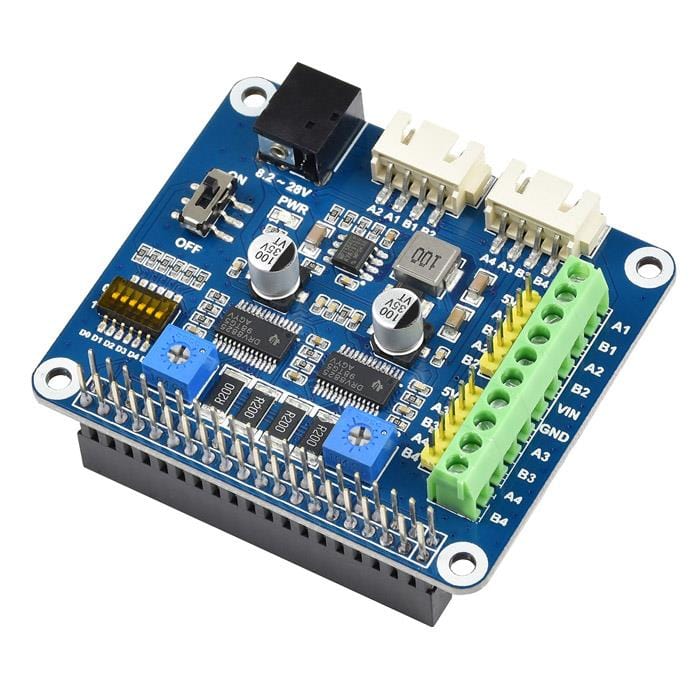

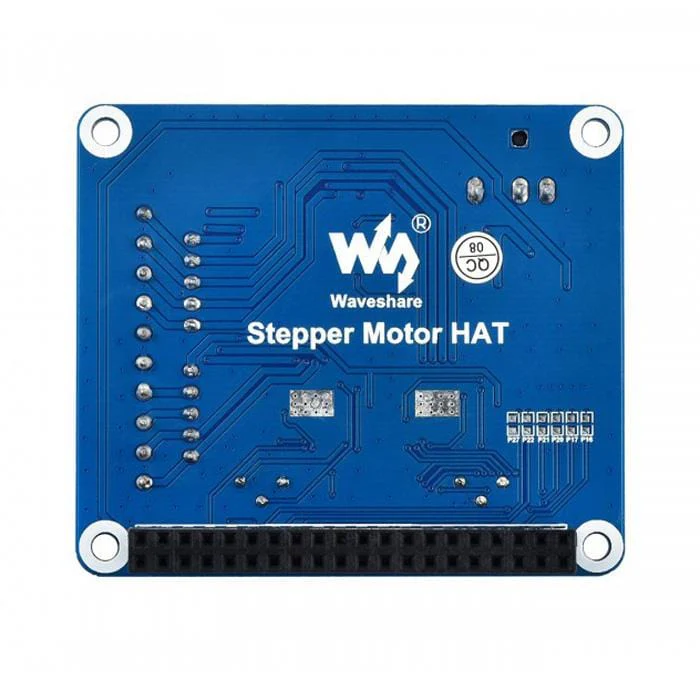

Stepper Motor HAT for Raspberry Pi

This Stepper Motor HAT gives your Raspberry Pi the ability to drive two stepper motors at the same time and supports up to 1/32 microstepping. This version uses a DRV8825 controller.

The HAT features six step modes (full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step) and includes multiple connector options to accommodate a range of stepper motors.

An onboard 5V regulator has been included to power your Raspberry Pi.

Note: Stepper motors NOT included

Features

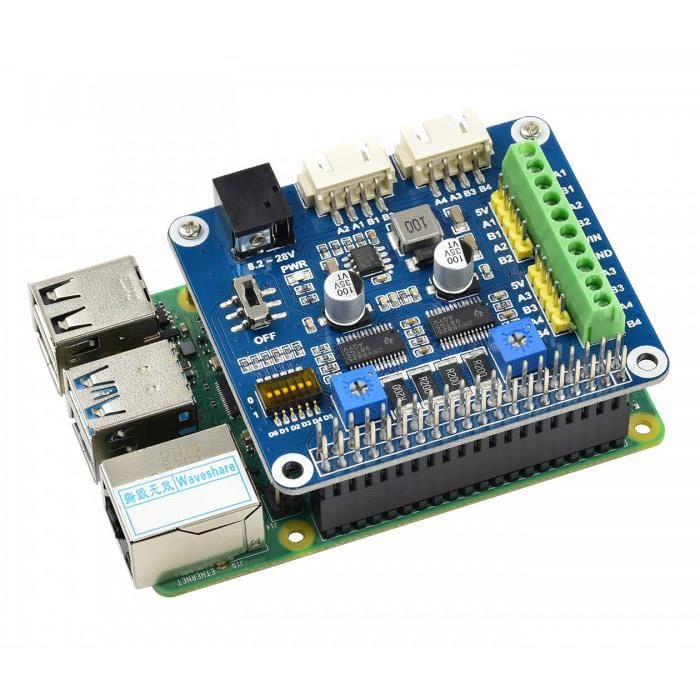

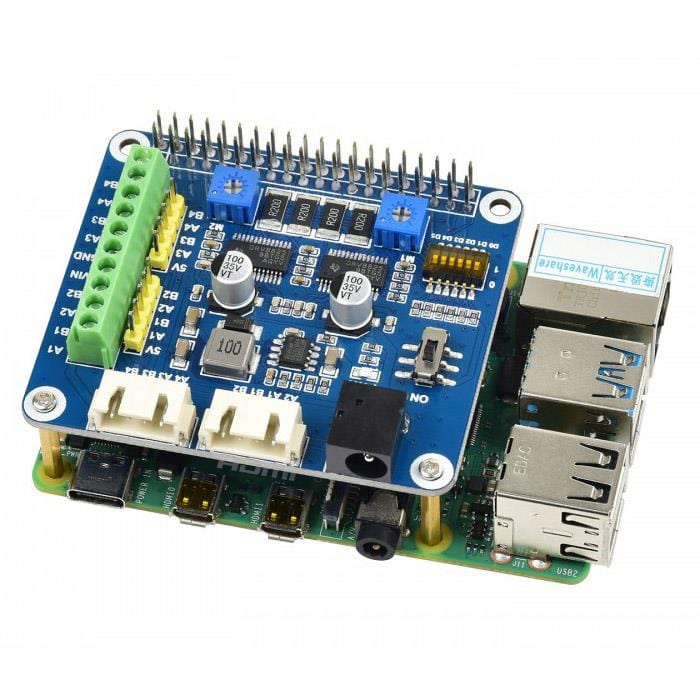

• Standard Raspberry Pi 40-pin GPIO extension header
• Onboard dual DRV8825 motor controller IC with built-in microstepping indexer

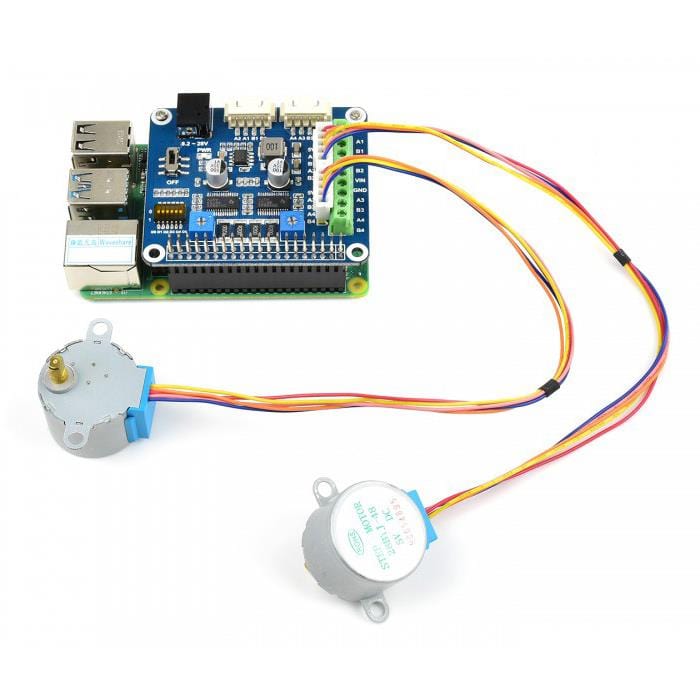

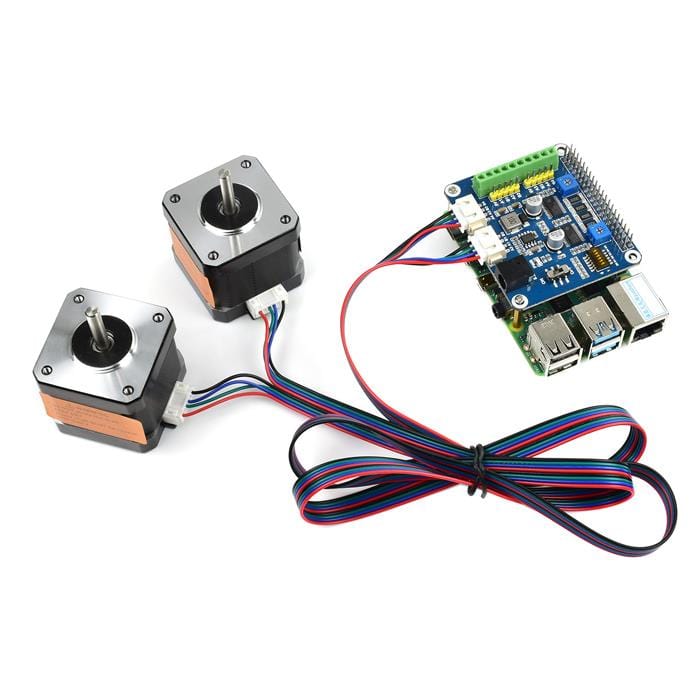

• Drives two stepper motors
• 6 available microstepping modes, configured with the DIP switches: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step
• Adjustable motor drive current via potentiometer, maximum 2.5A current output
• Overcurrent Protection (OCP)
• Thermal Shutdown (TSD)
• VM Undervoltage Lockout (UVLO)
• Integrates 5V regulator providing power to your Raspberry Pi

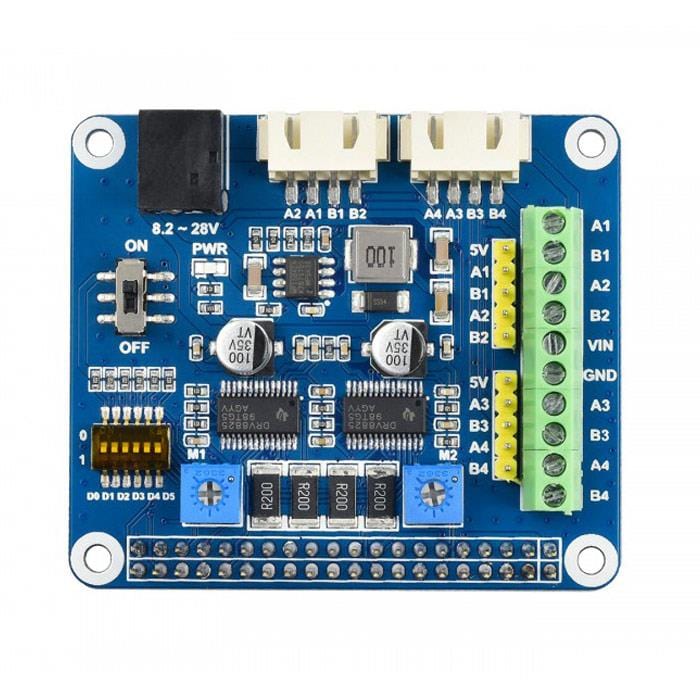

• Onboard multi-connector options for stepper motors in different specifications
• Comes with development resources and manual
• 2.1/5.5mm barrel jack connection

Resources

• Product Wiki
• User manual
• Libraries

Specifications

• Motor controller: DRV8825
• Motor drive voltage: 8.2V~28V
• Motor drive current: 2.5A
• Logic voltage: 3.3V
• Dimension: 65mm × 56mm
• Mounting hole size: 3.0mm

Applications

• 3D Printer
• Sculpturing machine
• Mechanical arm
