SparkFun Micro-USB Breakout

Product image 1
Product image 2
Product image 3
Product image 4

SparkFun Micro-USB Breakout

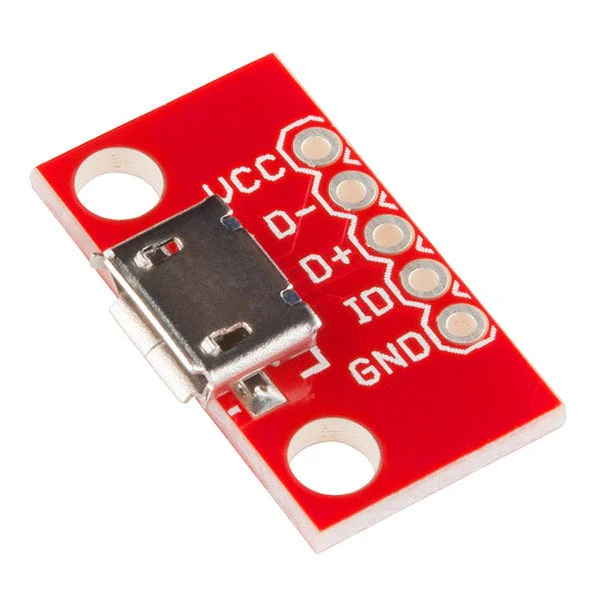

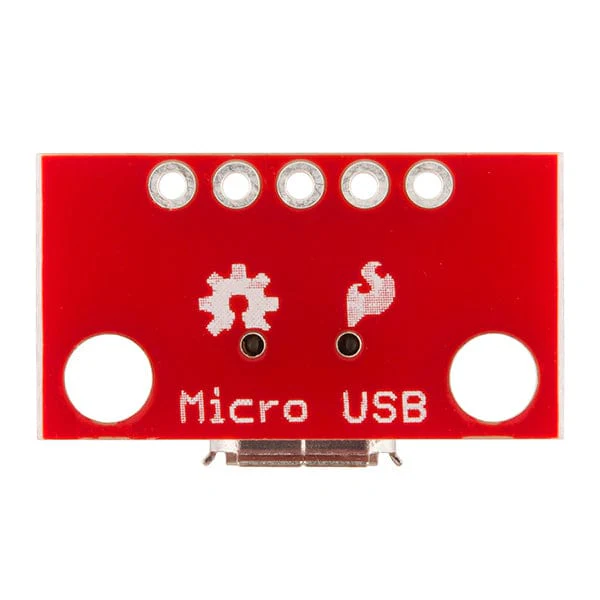

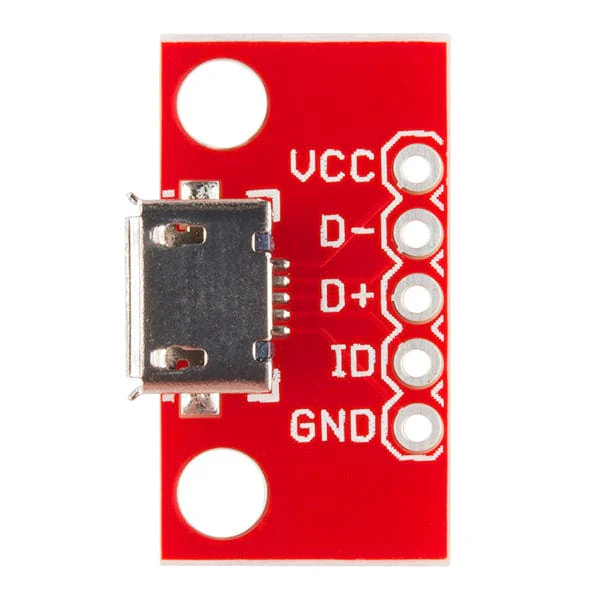

This simple board breaks out a Micro-B USB connector's VCC, GND, ID, D- and D+ pins to a 0.1" pitch header.

If you want to add the popular Micro-B USB to your project, but don't want to put up with soldering the tiny connector, this is the board for you!

Micro-USB cables are available here!

Specifications

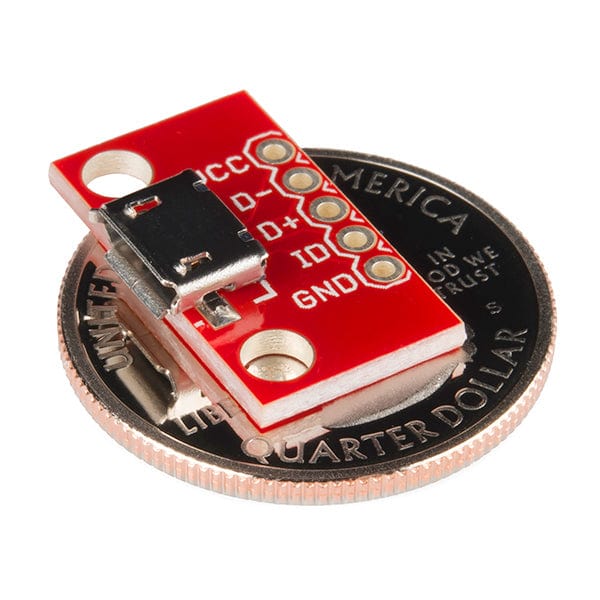

  • Dimensions: 0.8 x 0.45" (20.3 x 11.4mm).

Resources

  • Schematic
  • Eagle Files
  • GitHub
$1.19

Original: $3.95

-70%
SparkFun Micro-USB Breakout—

$3.95

$1.19

Product Information

Shipping & Returns

Description

This simple board breaks out a Micro-B USB connector's VCC, GND, ID, D- and D+ pins to a 0.1" pitch header.

If you want to add the popular Micro-B USB to your project, but don't want to put up with soldering the tiny connector, this is the board for you!

Micro-USB cables are available here!

Specifications

  • Dimensions: 0.8 x 0.45" (20.3 x 11.4mm).

Resources

  • Schematic
  • Eagle Files
  • GitHub
