SparkFun DE9 Breakout - Male
The SparkFun Male DE9 Breakout features a male DE9 connector with all nine pins and two ground connections routed to a 0.1" PTH header, measuring 1.25" x 0.9" with dual 4-40 mounting holes.

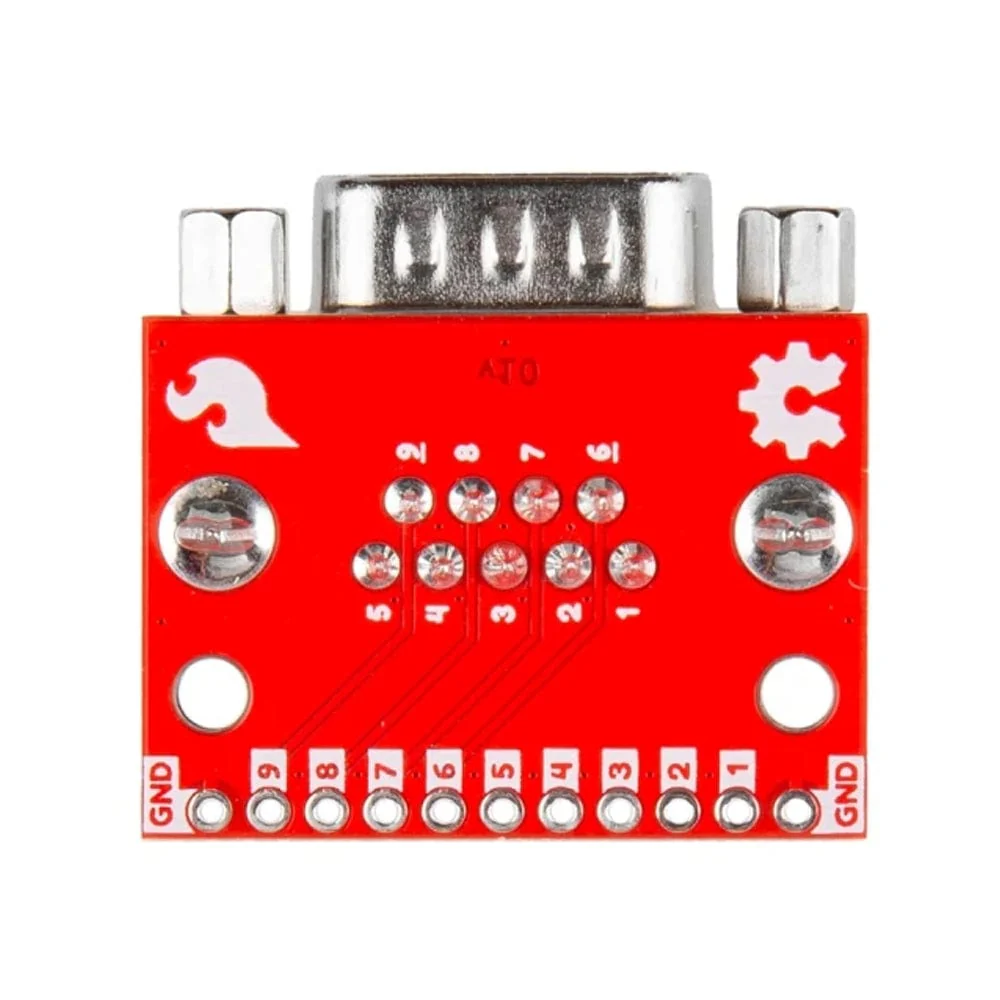

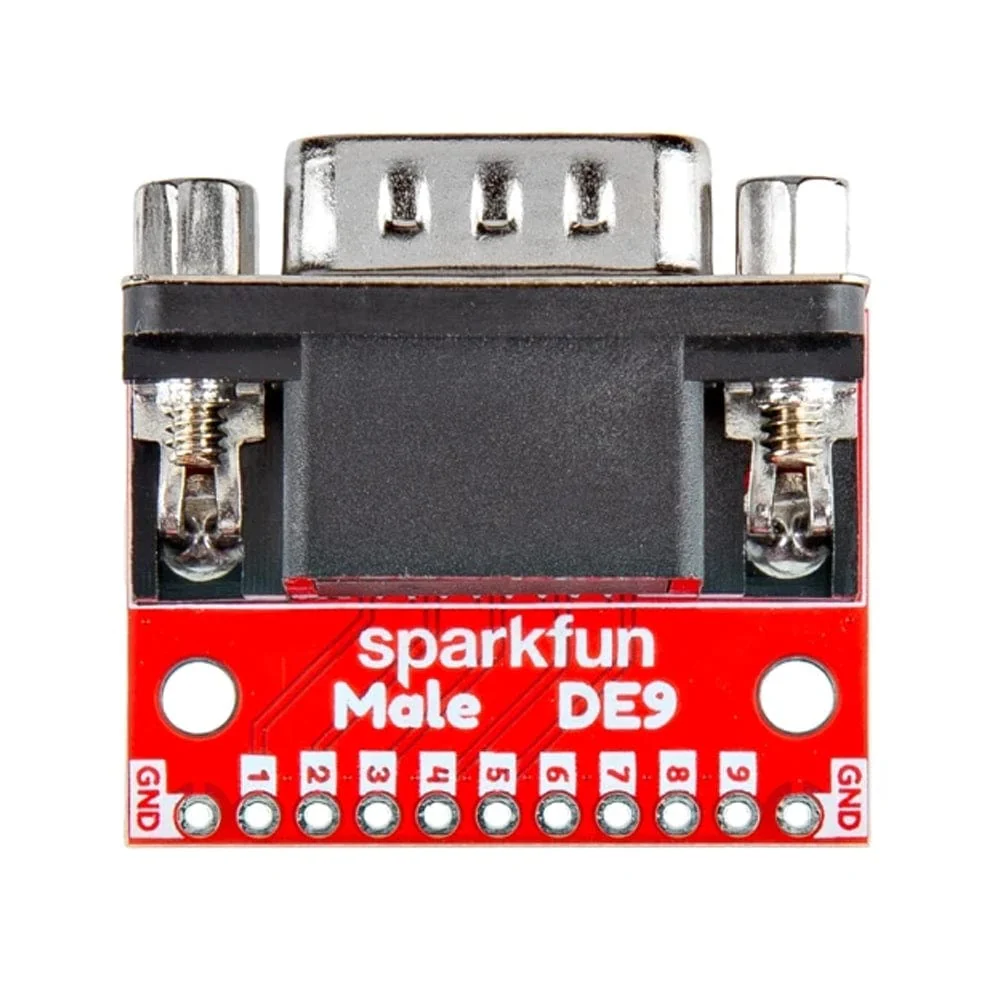

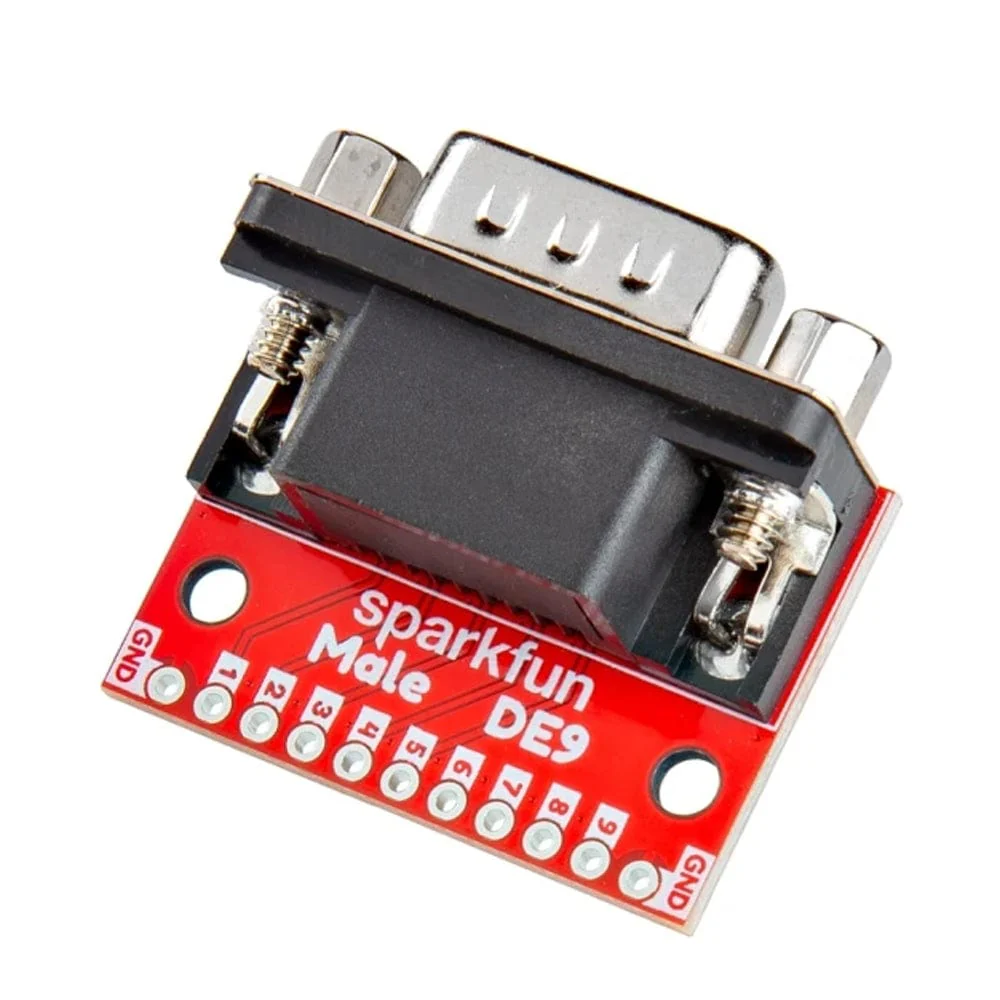

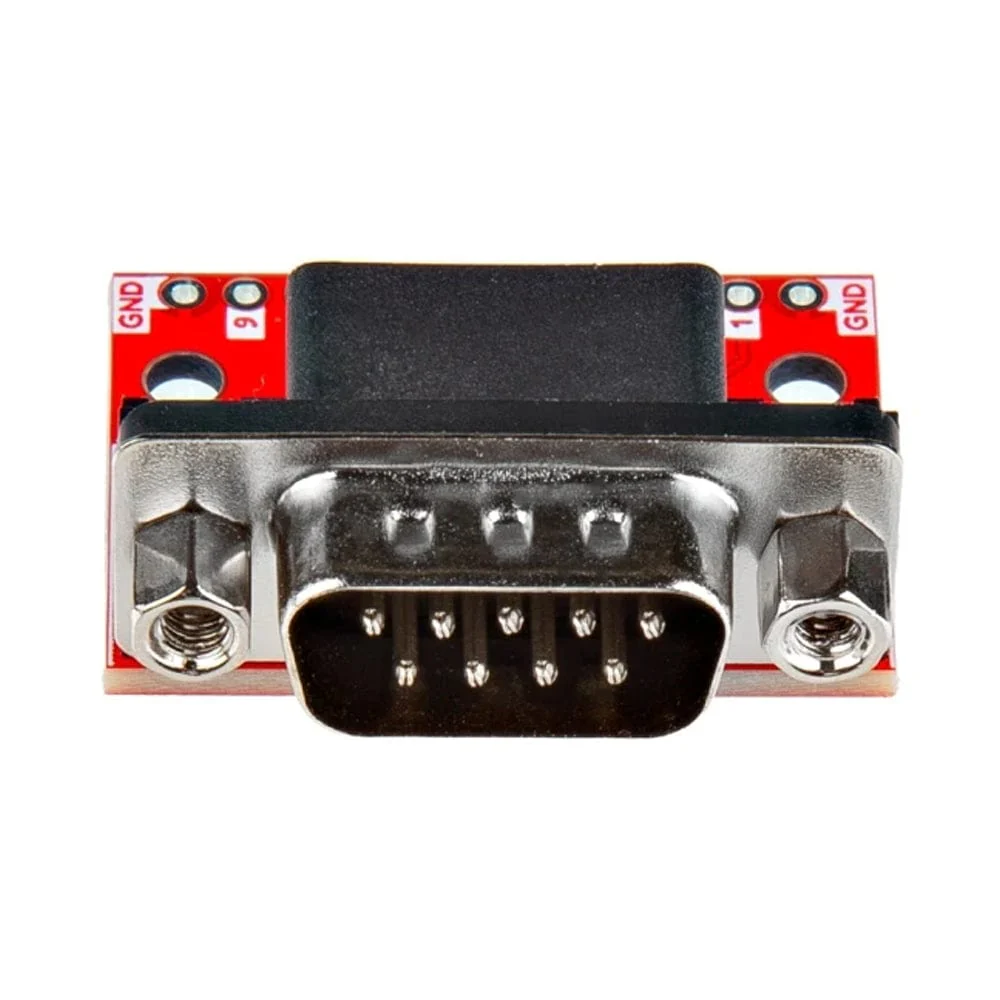

The SparkFun Male DE9 Breakout is a simple breakout board featuring a male DE9 (commonly referred to as DB9) connector. The board comes with the male DE9 connector and routes all nine of the connector's pins, along with two extra ground connections, to a 0.1in.-spaced plated through-hole header.

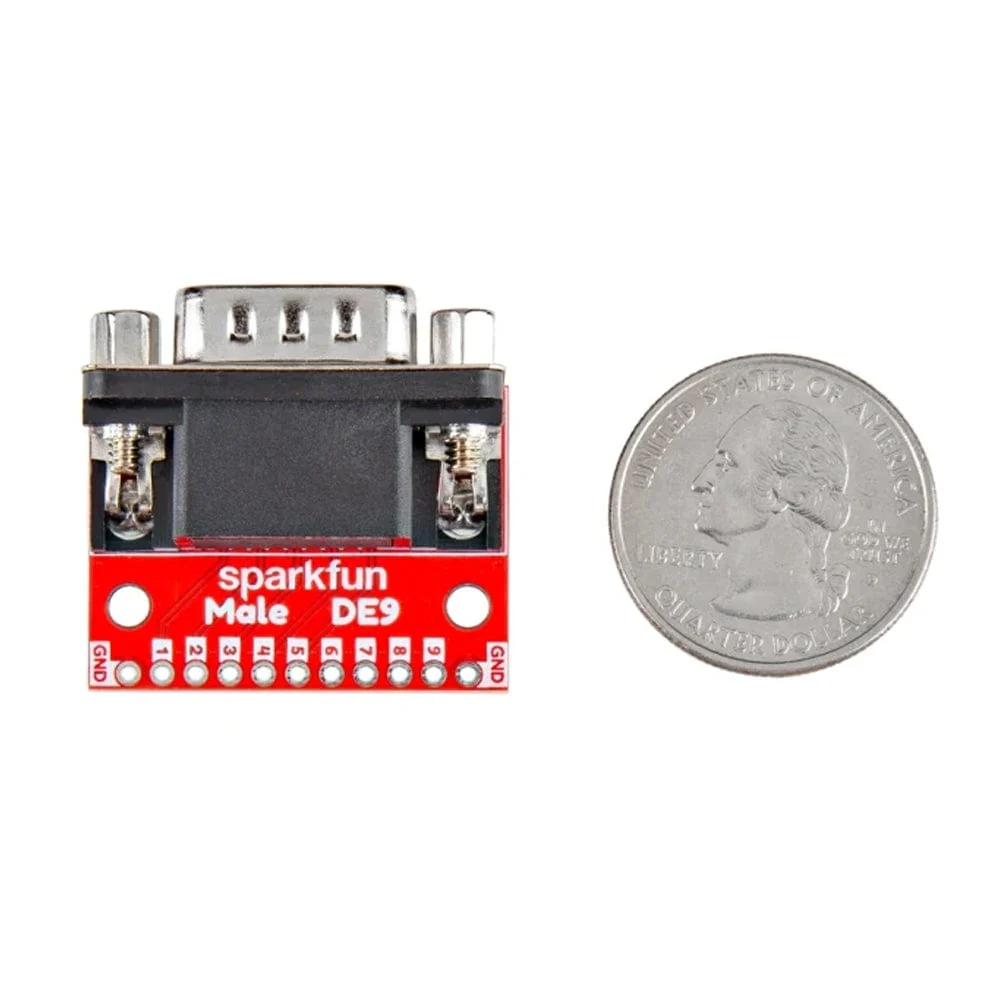

The board measures 31.75mm x 22.86mm and includes two mounting holes that fit a 4-40 screw.
Features
- Male DE9/DB9 Connector
- 0.1in. Plated Through-Hole PTH Pins
- 2x Mounting Holes
Specifications
- Board measures 31.75mm x 22.86mm
Resources
- Schematic
- KiCad Files
- Board Dimensions
Package Contents
- 1x SparkFun DE9 Breakout - Male
