Snap-In Panel Mount Cable - USB Type A Socket to 4 Wires

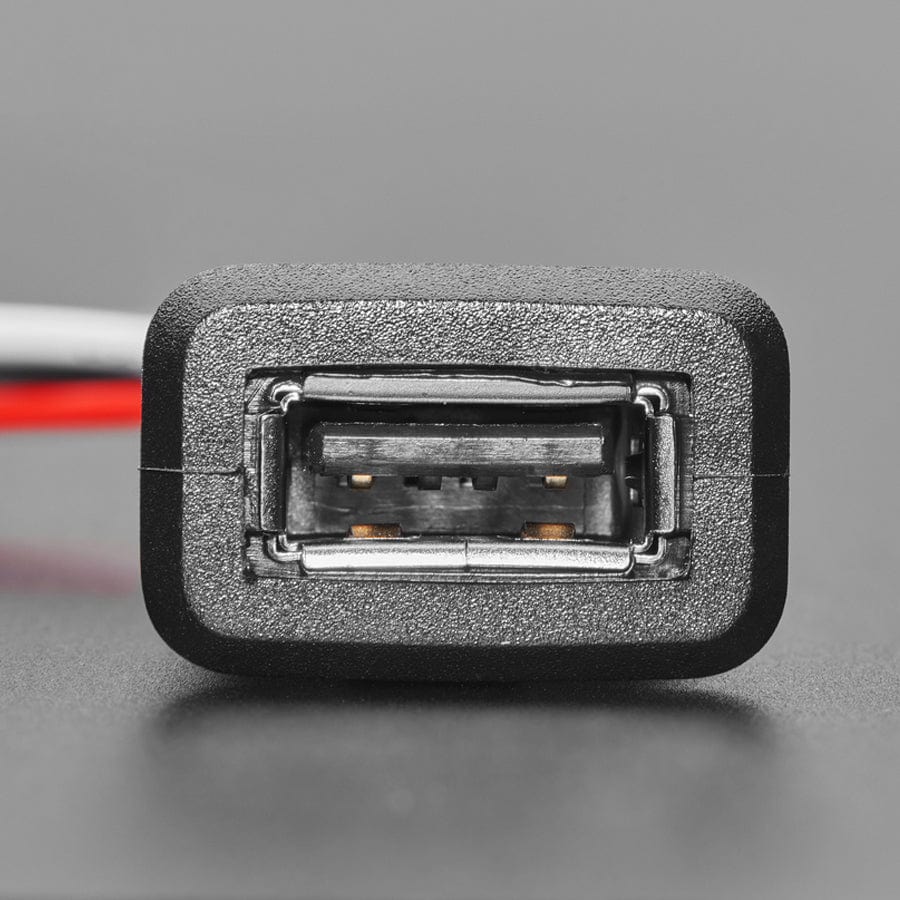

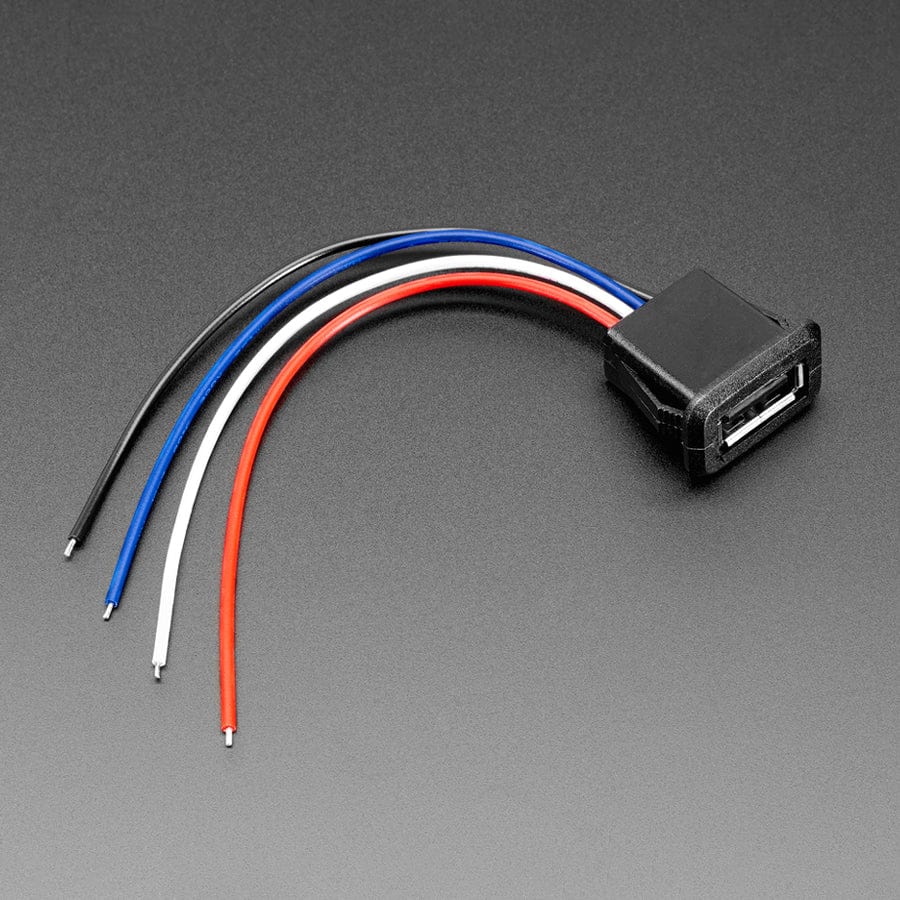

This panel-mount cable is great for making USB Host connections with a panel-mount setup. On the rectangular panel-mount side you get a USB Type-A connector, the other end has power, ground and D+ / D- lines. We particularly like that the panel mount part is very small and snaps in and you get a wire pigtail cable on the other end for quick integration.

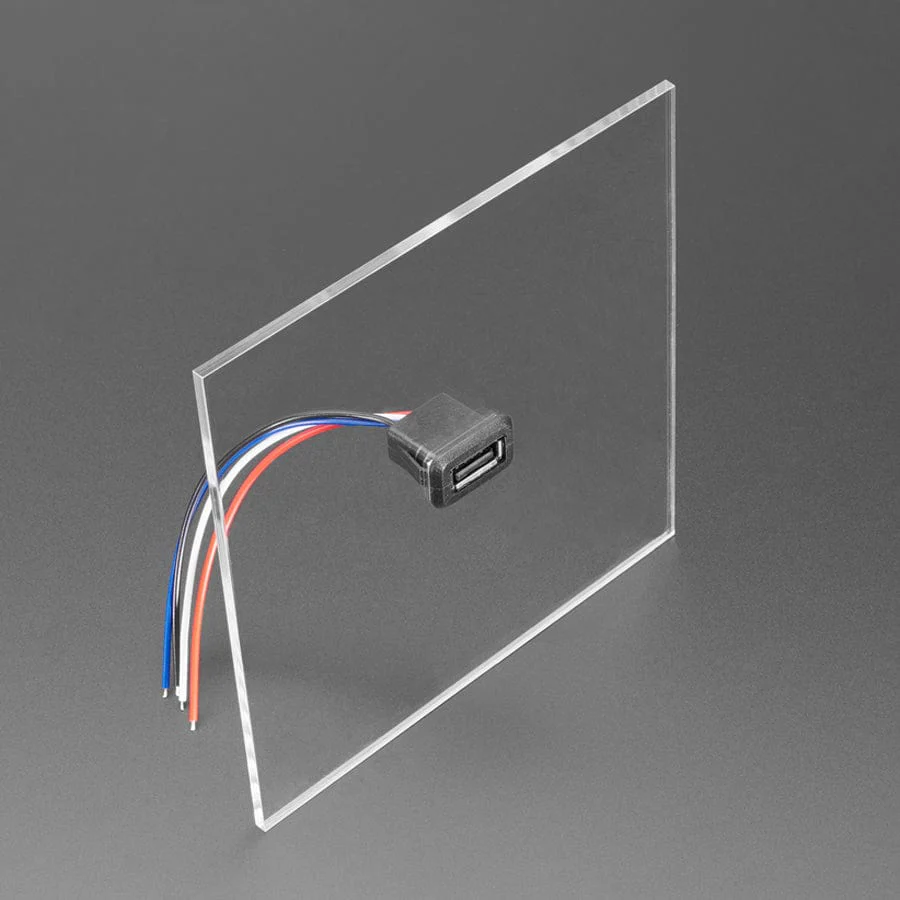

What's special about this, you ask? It's a Snap-In Panel Mount Cable - much easier than a classic panel mount cable; you don't need screws or drills for installation. Cut out a rectangular hole about 2cm by 1cm, up to 4mm thick, and then snap the panel in; it will fit snugly and cover up any burrs, so your cut doesn't have to be so precise. Perfect for adding a USB A host port to your project enclosure!

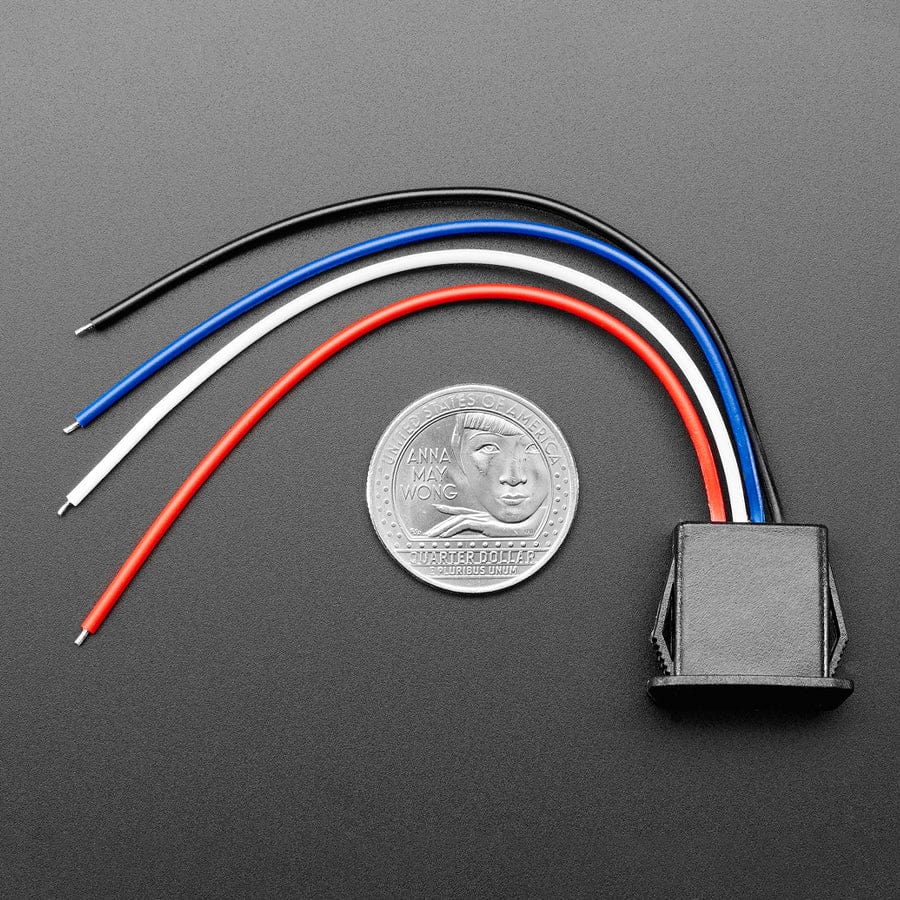

The red cable is 5V, the white wire is D-, the blue cable is D+ (traditionally this is green), and the black wire is ground.

We also have a 2 wire version here

Specifications

• Wire length: 4"

Resources

• Datasheet
