Small 8x8 Dot Matrix Ultra Bright - Red

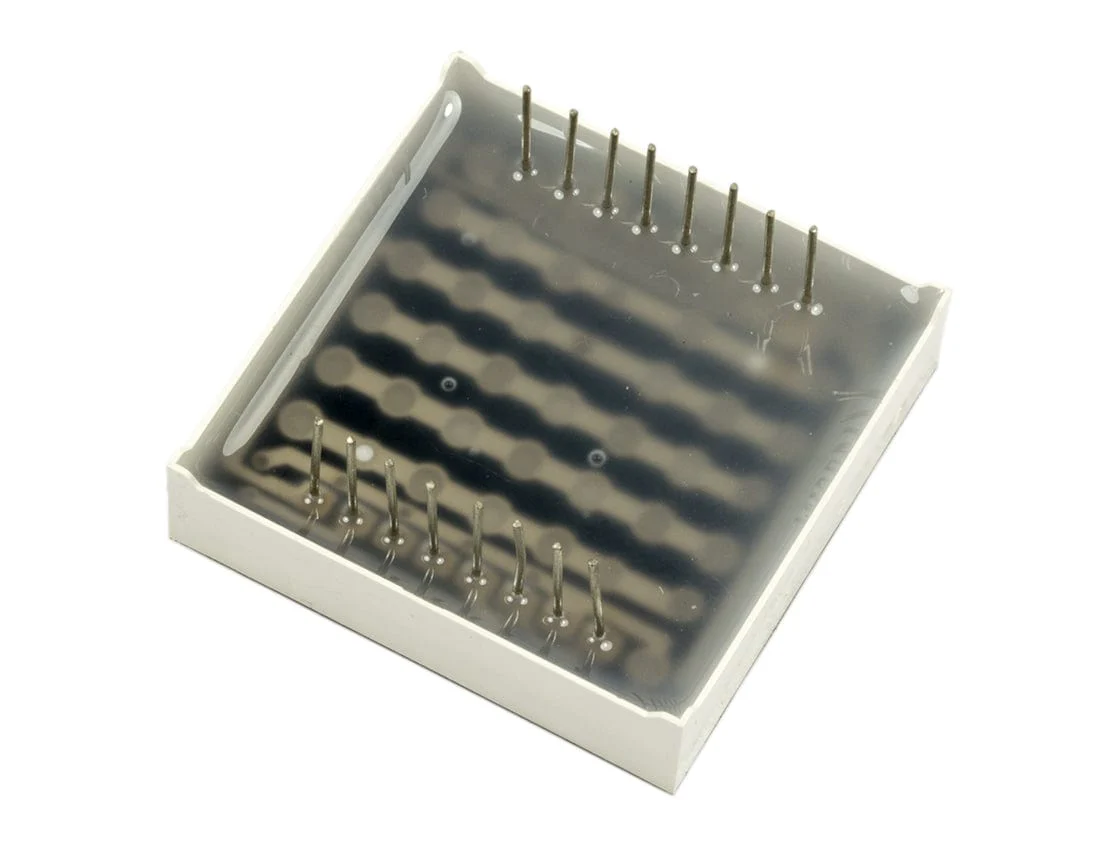

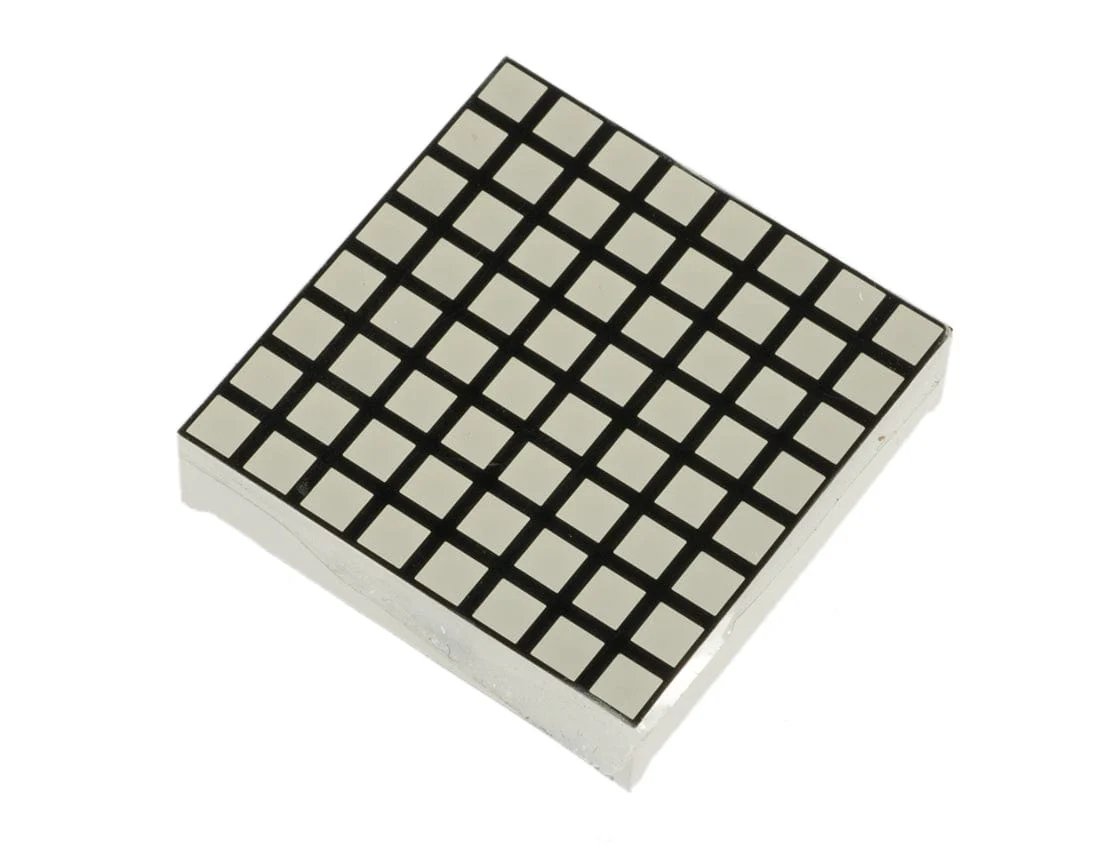

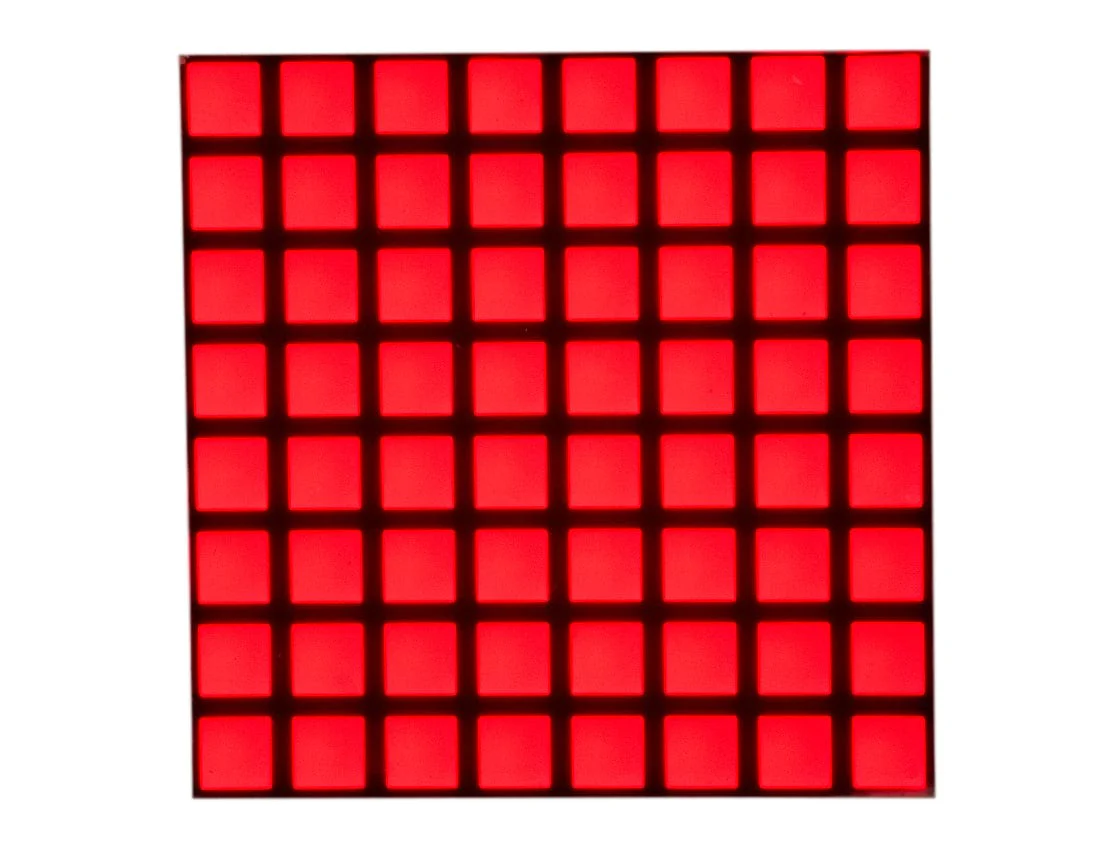

This small 8 x 8 (64 LED) dot matrix is only 1.25" (32mm) square, and ready to display any scrolling text, graphs, clock display, counter or signs you can think of! The ultra-bright LEDs are very visible, and the units are small enough to plug into a breadboard! The LEDs are contained inside the plastic body in an 8x8 matrix. There are 16 pins on the side, 8 on each, with 0.1" spacing so you can easily plug it into a breadboard with one row on each side for wiring it up.

This dot matrix requires an IC to run, and the display is in a grid so you'll need a 1:8 multiplex to control it. You can run it with a MAX7219 which does the multiplexing for you.

Specifications

• Colour: Red (630nm)
• Luminous Intensity: 30mcd
• DC Forward Current: 20mA
• Forward Voltage Range: 1.8 - 2.6V
• Long operational life
• Low power dissipation
• Dimensions 31.75 x 31.75 x 8mm
