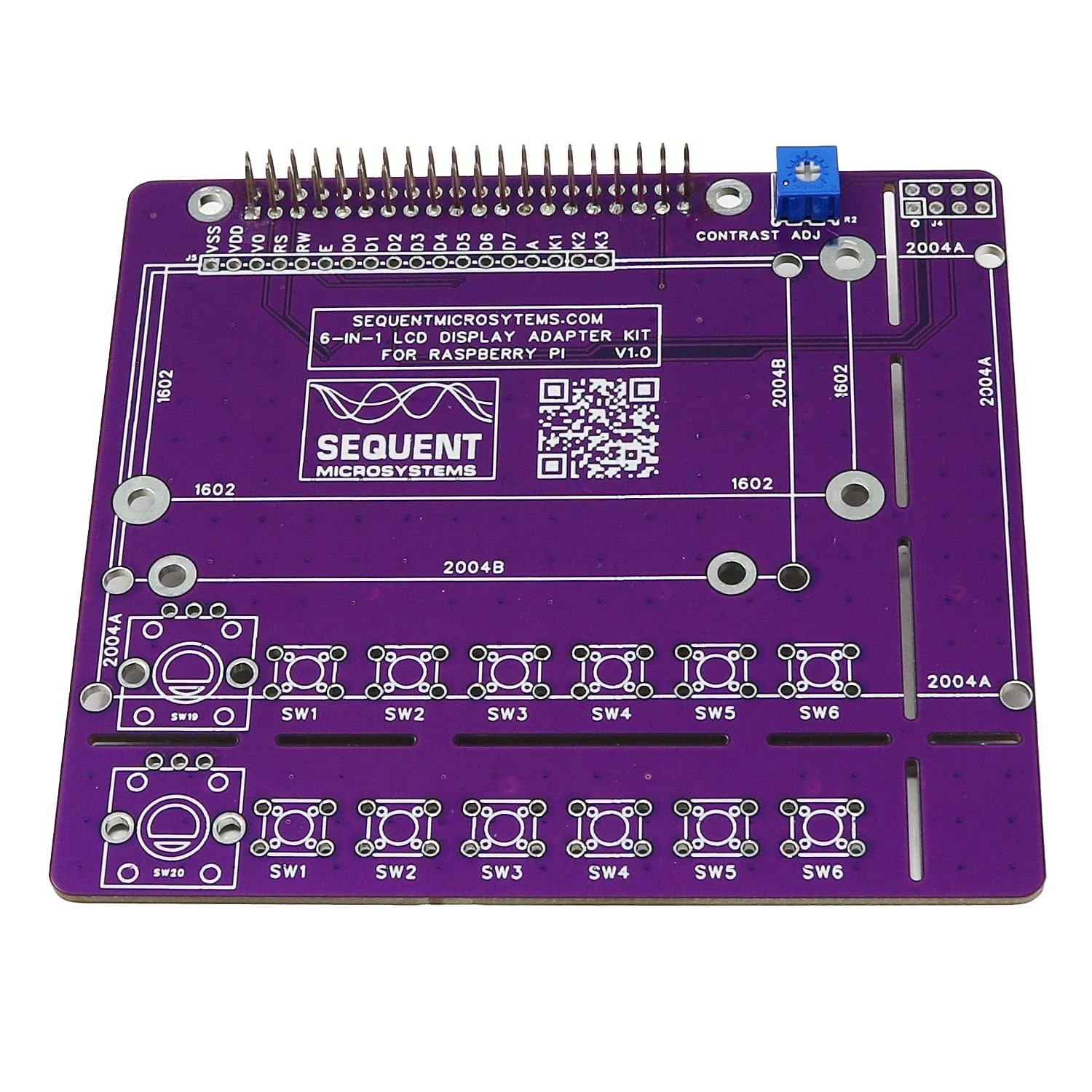

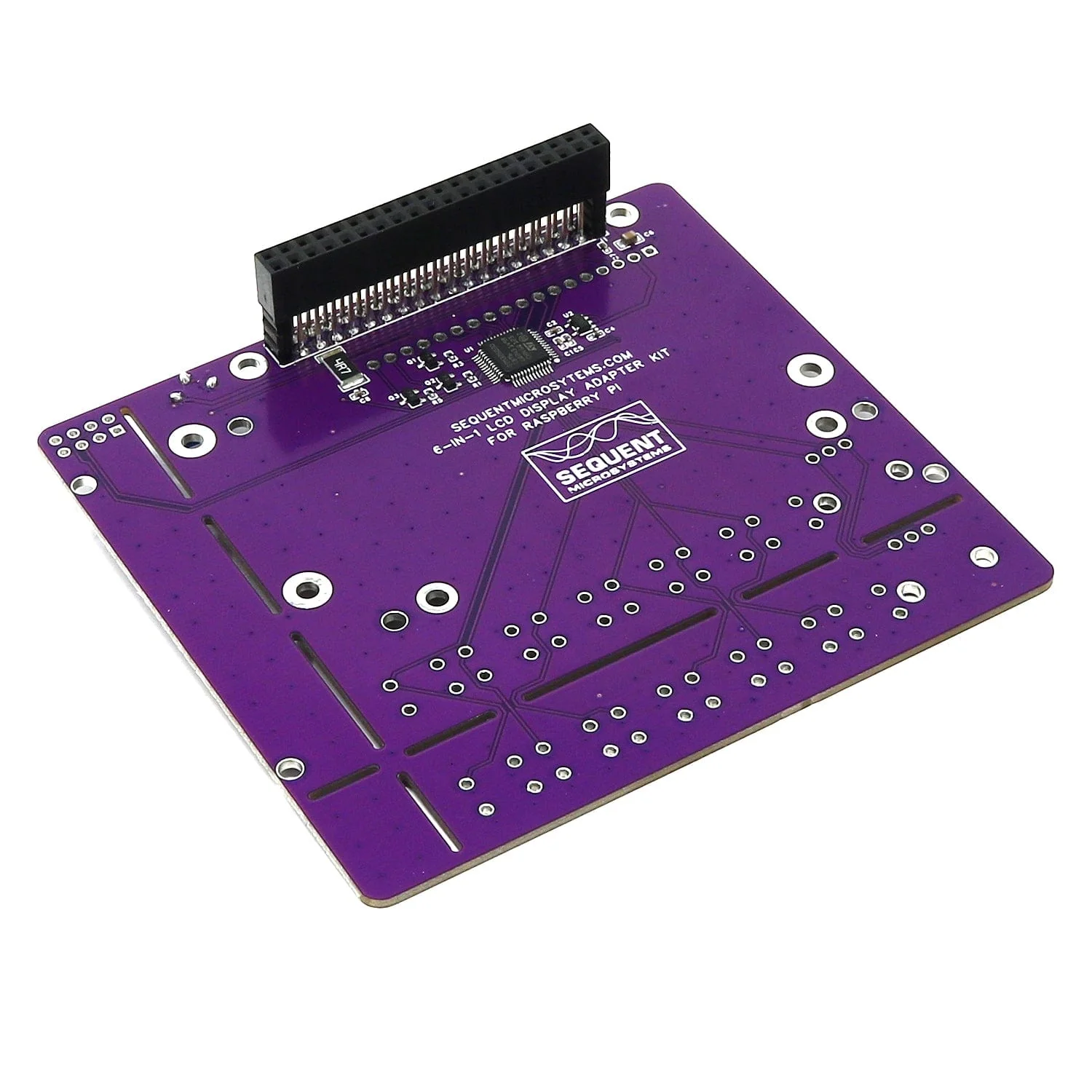

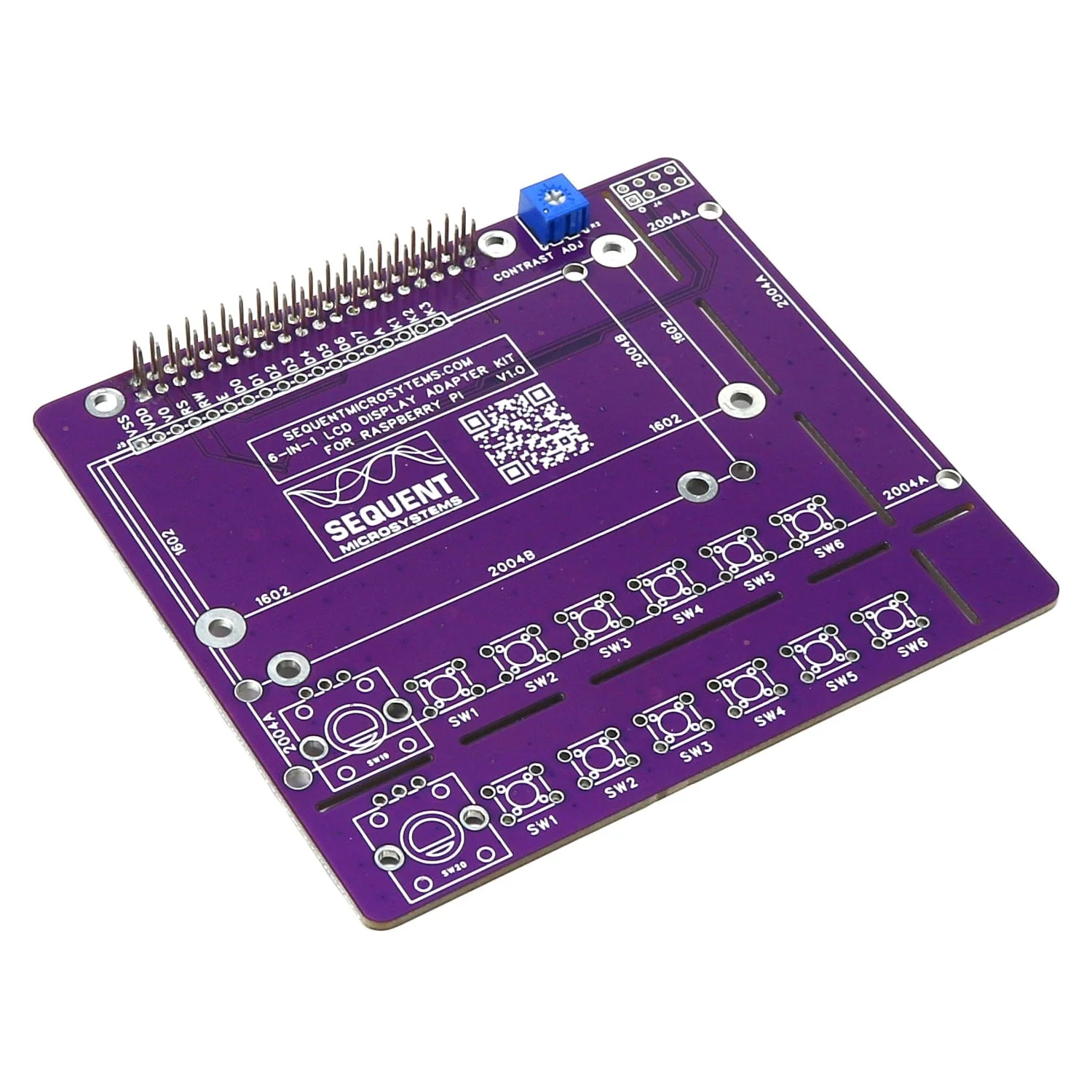

Six-in-one LCD Adapter Kit for Raspberry Pi

This LCD Adapter Kit for Raspberry Pi is a simple yet effective solution for displaying information on different projects. It's compatible with Raspberry Pi models that have an HDMI port and is useful for a project that requires a clear data display. This kit includes the use of two types of LCDs. The LCD1602, small at 80mm by 36mm, shows 2 lines of 16 characters. The larger LCD2004 comes in two sizes and displays 4 lines of 20 characters. Both types are available with monochrome or RGB backlit options, offering clear visibility or colourful displays.

All display variants use a 16-pin or 18-pin connector and can be easily controlled through a single interface. This makes the kit user-friendly and versatile for various projects, such as DIY projects, home automation, or educational uses.

Note: Raspberry Pi and LCD displays are NOT included

Features

• Six-in-one LCD Adapter Kit using 2004 or 1602 LCDs for Raspberry Pi
• Supports two lines x16 (1602) and four lines x 20 (2004) LCD's
• Supports 77 x 47mm and 98x60mm four lines LCD's
• Supports LCDs with monochrome or RGB backlighting
• LCD display is NOT included
• On-board 32-bit processor, uses only I2C pins to communicate
• Rotary Encoder and six pushbuttons for inputs
• Installs on top of Raspberry Pi or away with a ribbon cable
• LCD Adapter Raspberry Pi

Resources

• Open Source Schematic
• Command line
• Arduino
• Node-RED example
• Python
• 3D Model

Package Contents

• 1x LCD Display Adapter Kit
• 2x20 Male-Female Raspberry Pi Tall GPIO Header (Pre-installed)
• 6x Brass Standoffs
• 6x Nuts
• 6x Bolts
• 1x Rotary Encoder
• 6x Pushbutton Switches
• 1x18 Male and Female Pin Headers
