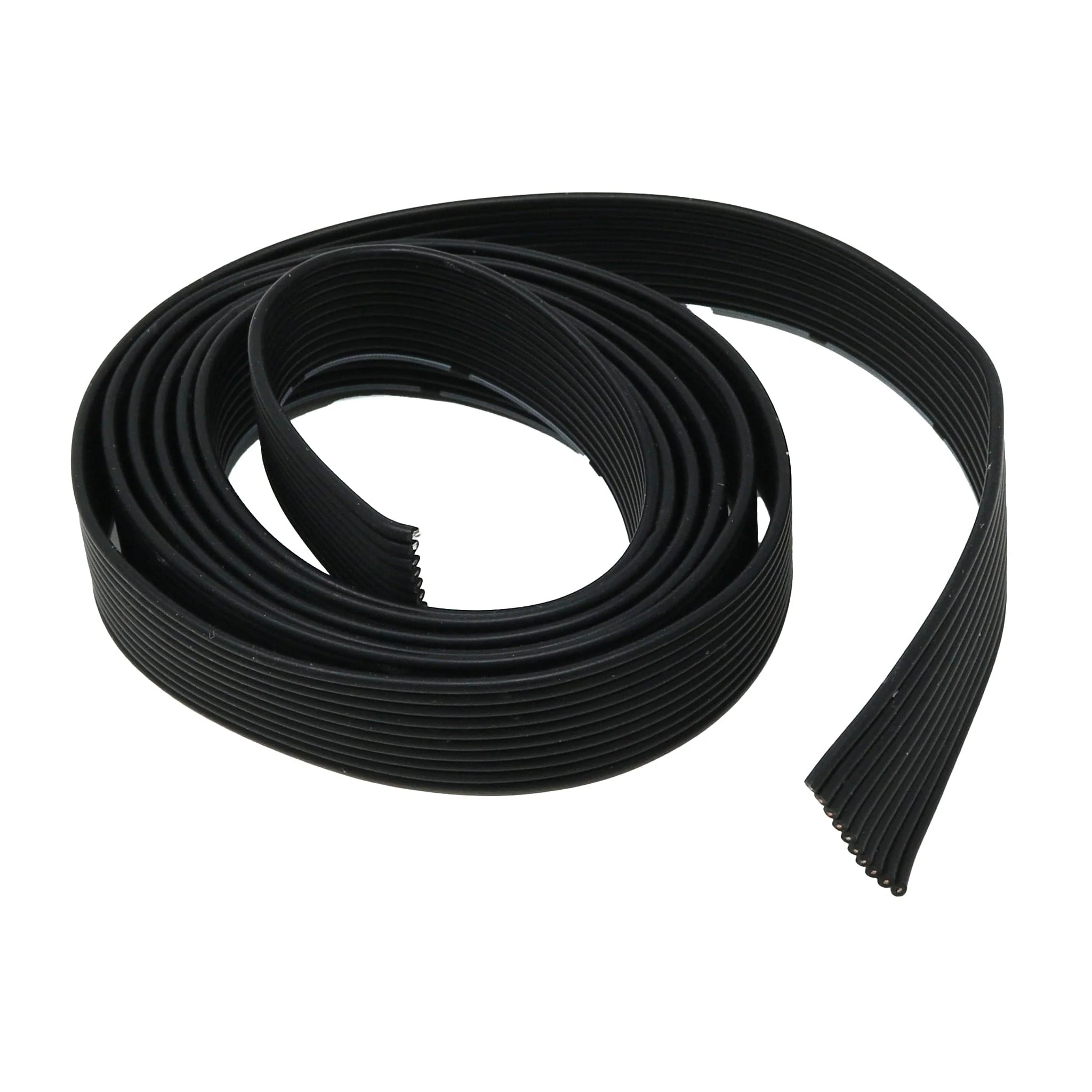

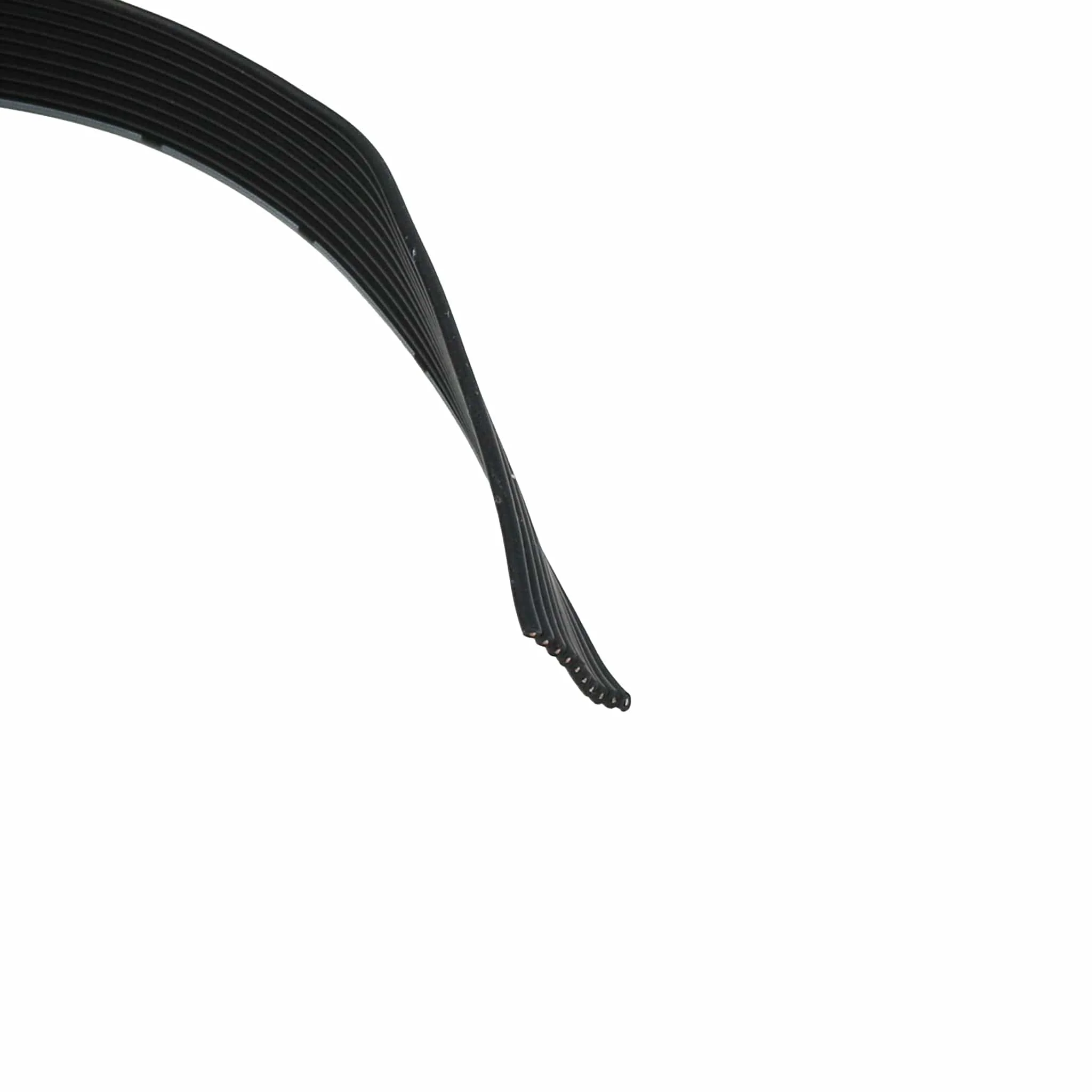

Silicone Cover Stranded-Core Ribbon Cable - 10 Wire (28AWG)
If you need an upgrade from standard silicone-covered wires, these Silicone Cover Ribbon Cables offer improved performance.
Each cable is silicone-sheathed for flexibility and can withstand temperatures up to 200°C and voltages up to 600V. This makes them suitable for projects requiring high heat tolerance and flexibility, such as wearables or movable wire harnesses.
You receive 1 meter of 10 28AWG stranded wires with a 1.2mm outer diameter, which can be easily separated to suit your needs.
We have other gauges available here!
Specifications
- Length: 1 meter
- Outer Diameter (single wire): 1.2mm
- Nominal Voltage: 600V
- Temperature Range: -60ÂșC ~ 200ÂșC
- OD Tolerance: ±0.1mm
- Resistance: 220 Ω/Km
- Dimensions: 1,000.0mm x 12.4mm x 1.2mm
- Weight: 22.0g
Package Contents
- 1x 10-wire Silicone Cover Stranded-Core Ribbon Cable - 28 AWG 1m
