Shelly 5-Terminal Add-on for The Pill

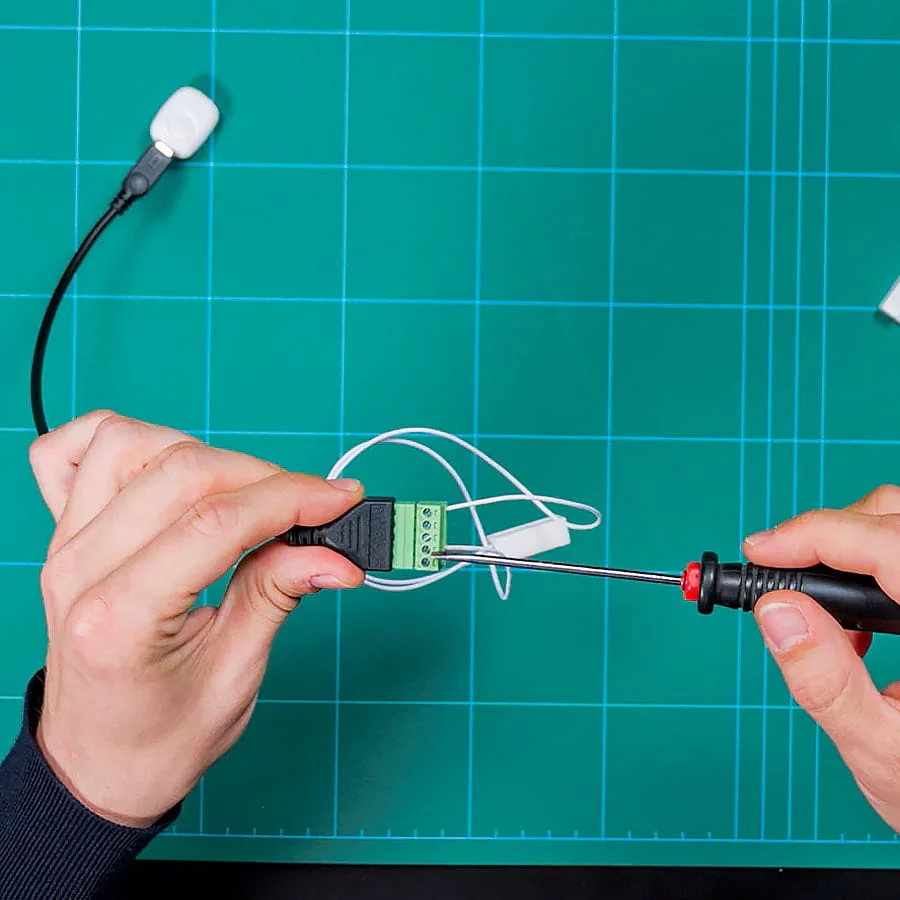

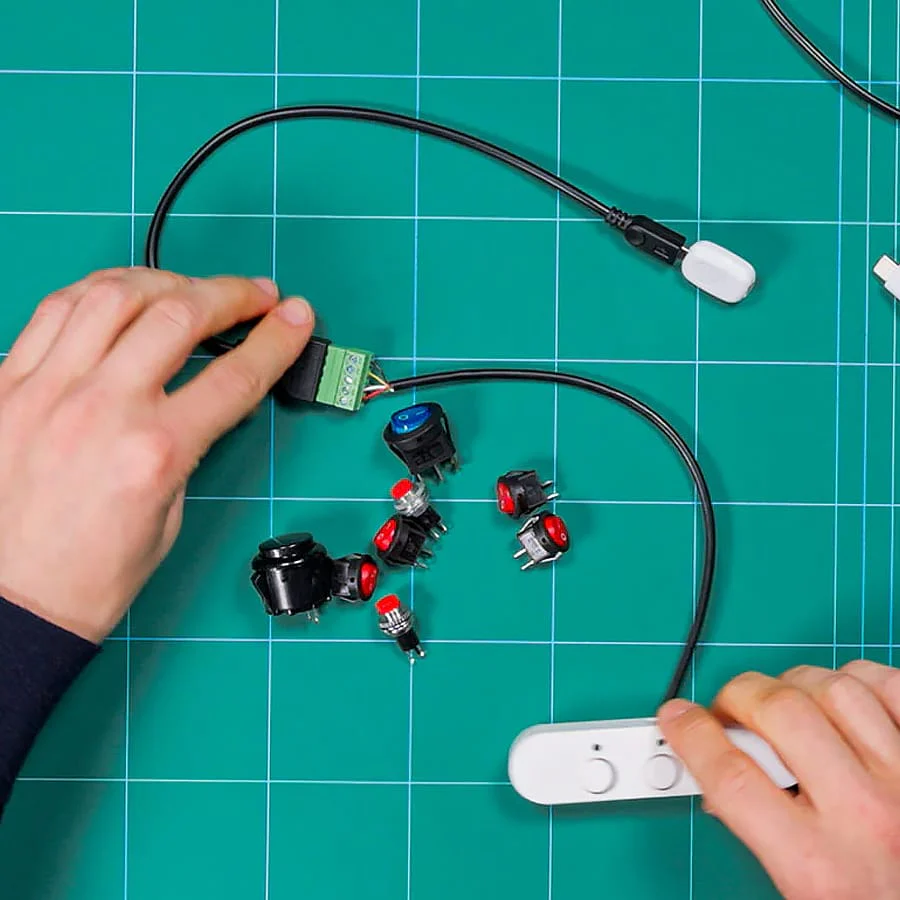

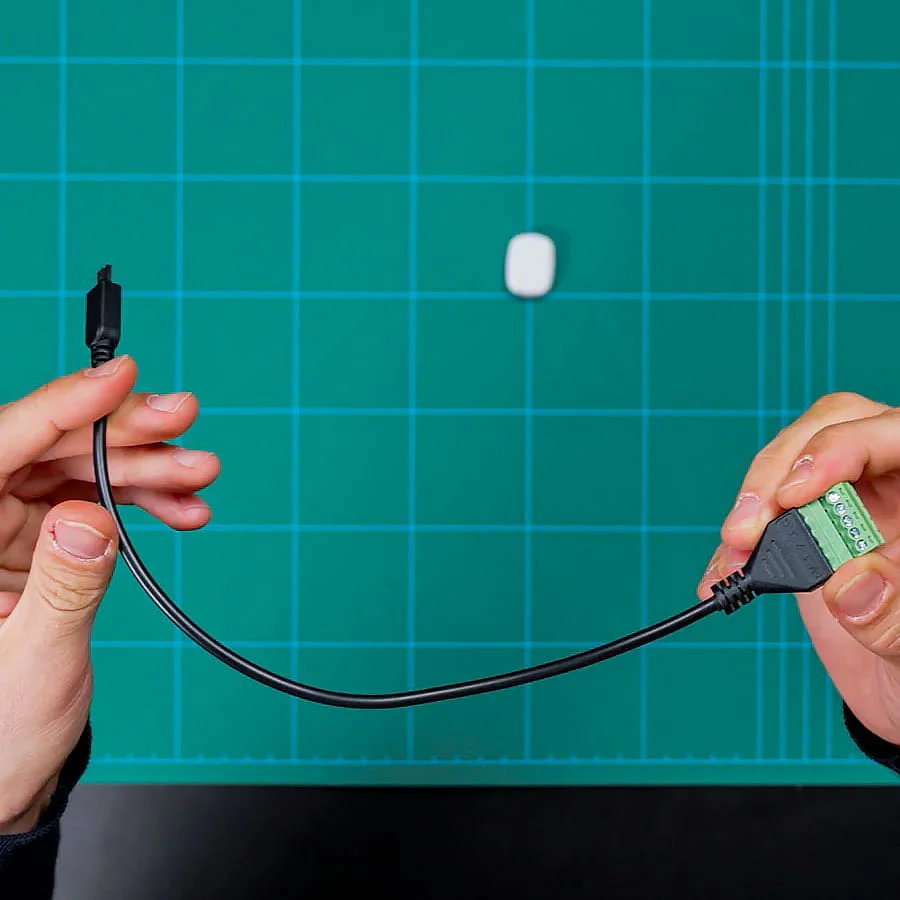

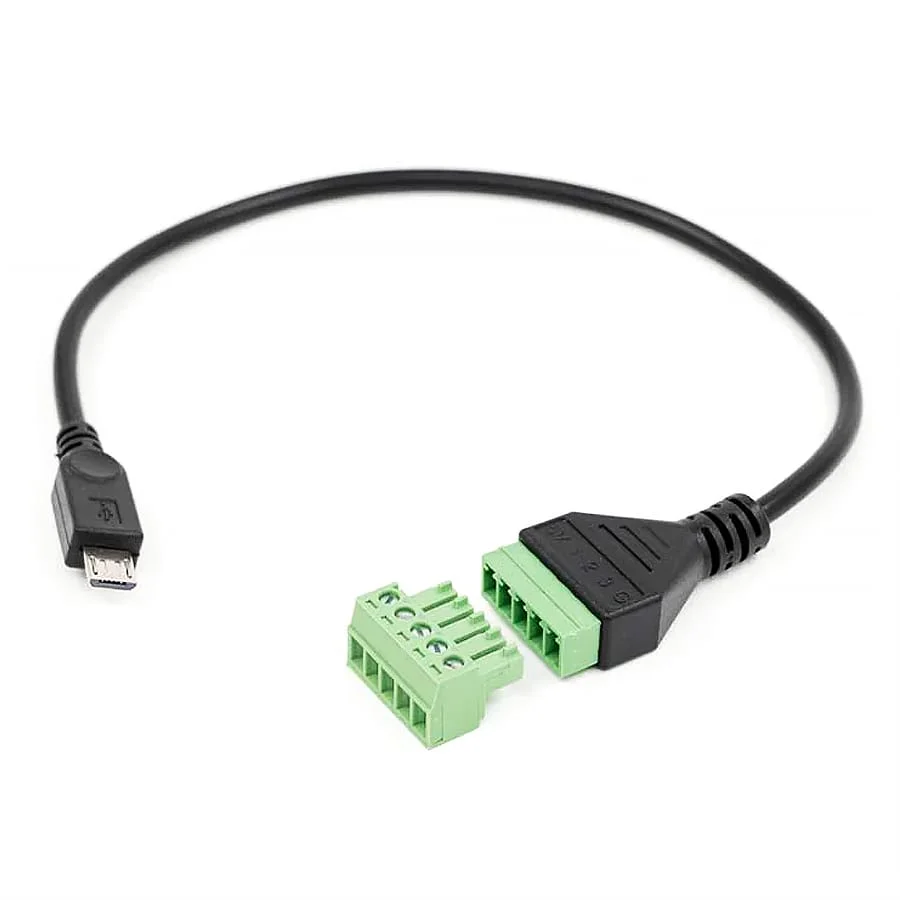

This is an interface cable/module for The Pill by Shelly, connecting via Micro-USB and providing power, ground, and three configurable I/O via the pluggable terminal block at the other end. Perfect for connecting sensors, buttons, or other control elements in any setup.

It exposes The Pill’s full hardware potential, giving you access to all logic-level IOs and power terminals, allowing you to connect sensors, create automation logic, or test new setups, providing a simple and reliable interface for any smart project.

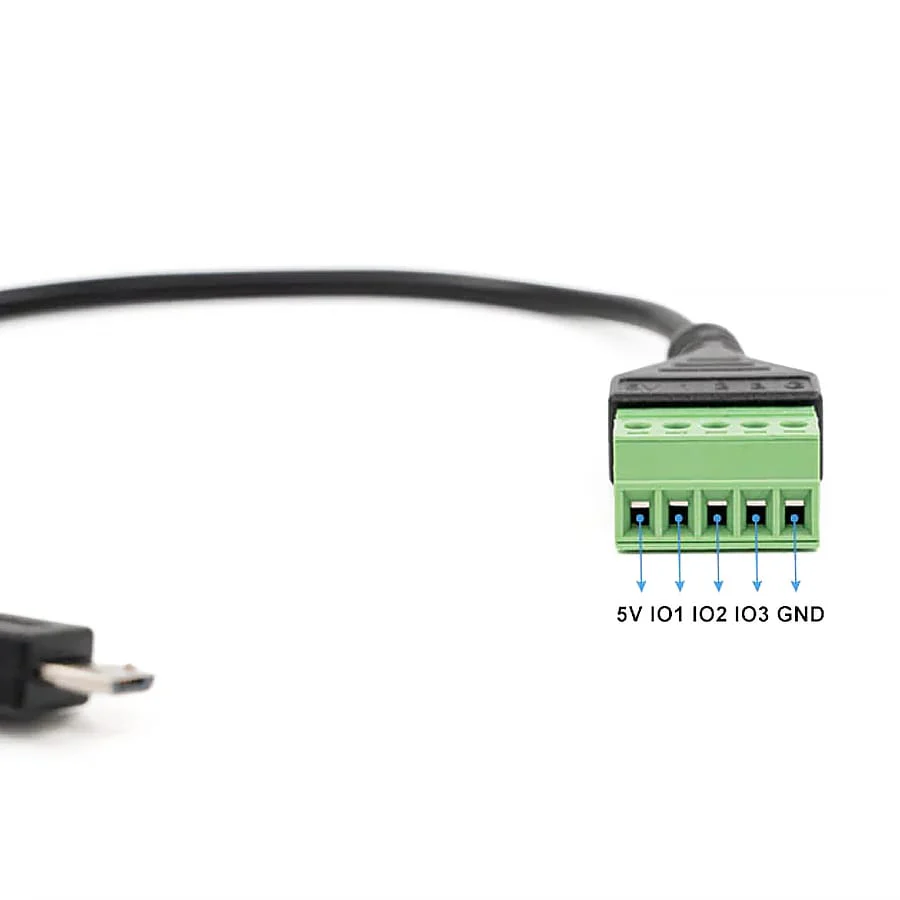

The terminal block offers 3 inputs/outputs (3.3V logic-levels) and 5V power with GND reference, ready to use for logic-level digital input/digital outputs, analog input (range 0-2.5V) or temperature sensors (DS18B20, DHT22).

The Pill by Shelly not included.

Features

• Three configurable Inputs/Outputs (3.3V logic-level)
• Supports digital inputs/outputs, analog input, and temperature sensors (DS18B20, DHT22)
• 5V power and GND terminals for connected devices
• Compact interface for prototyping and integration
• Required base module for other The Pill by Shelly add-ons

Resources

• Shelly Product Documentation
• Declaration of Conformity
• Device Identification
  • Device name: 5-Terminal Add-on (Accessory for The Pill by Shelly)
  • Device number: N/A
• EAN: 3800238073572

Handy Shelly Resources

• Shelly Cloud
• Shelly App
  • Apple App Store
  • Google Play
  • Huawei AppGallery
• Home Assistant Shelly Integration
• Shelly Community Forum
• Shelly Facebook Support Group
• Shelly Knowledgebase
• Shelly Device Finder (easy-to-use software to find Shelly devices in the local network)
• Shelly Developer API

Package Contents

• 1x 5-Terminal Add-on for The Pill by Shelly

The Pill by Shelly not included.
