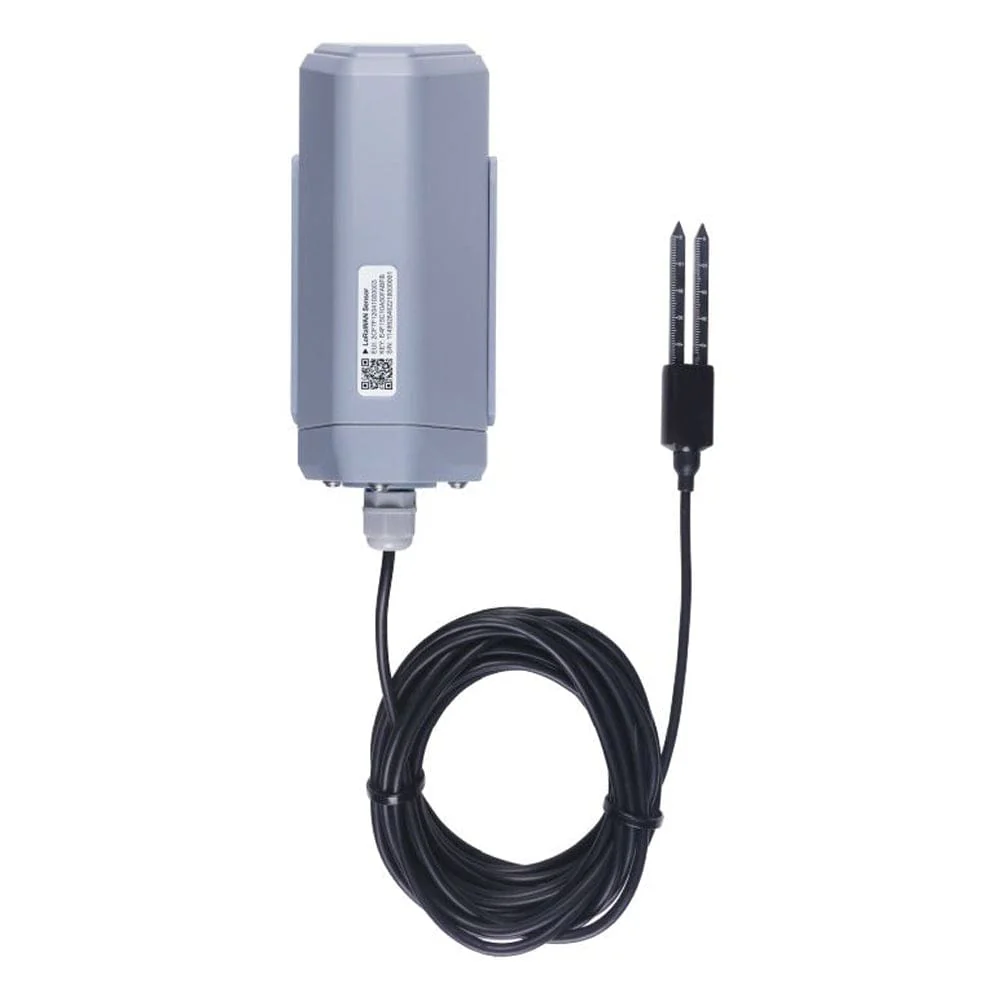

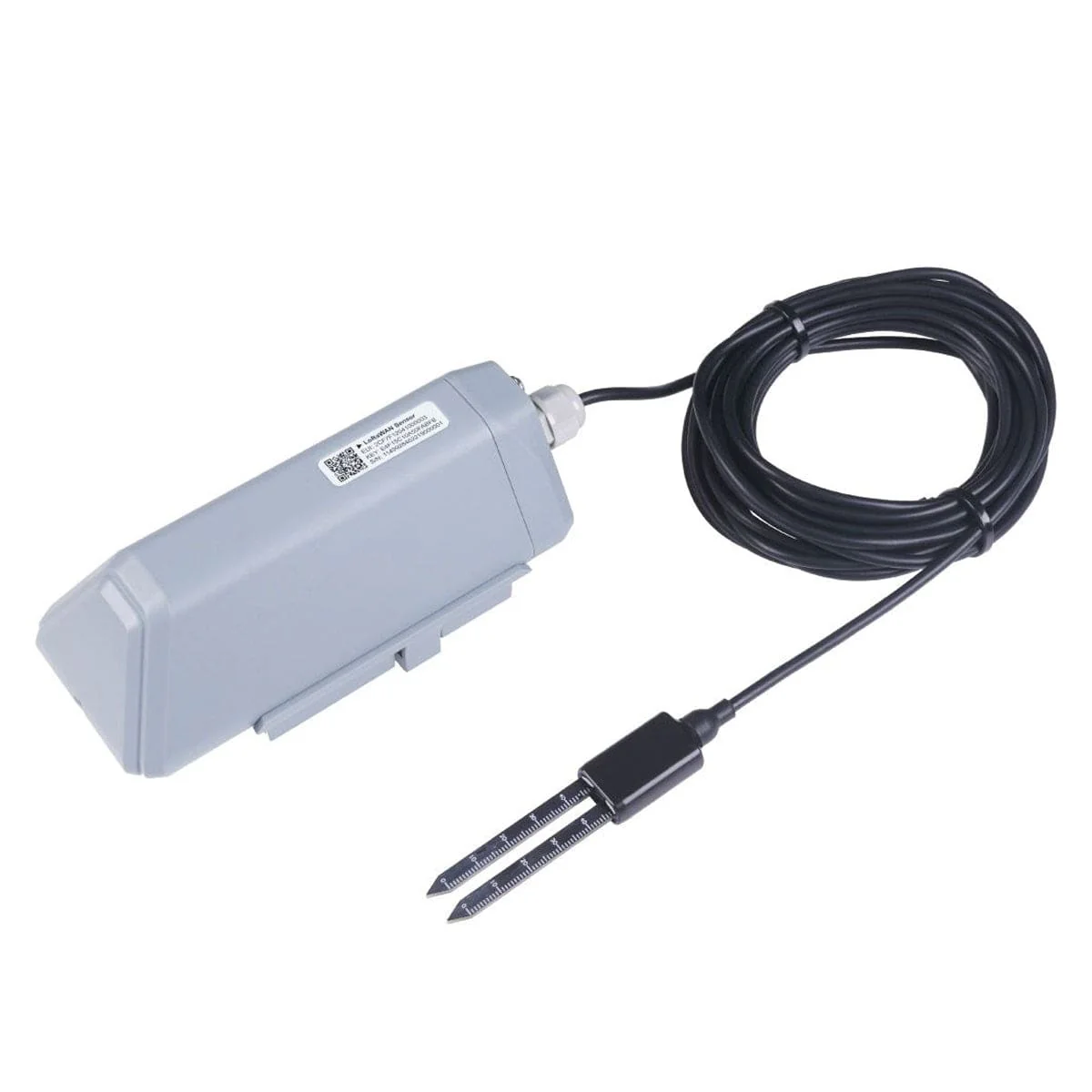

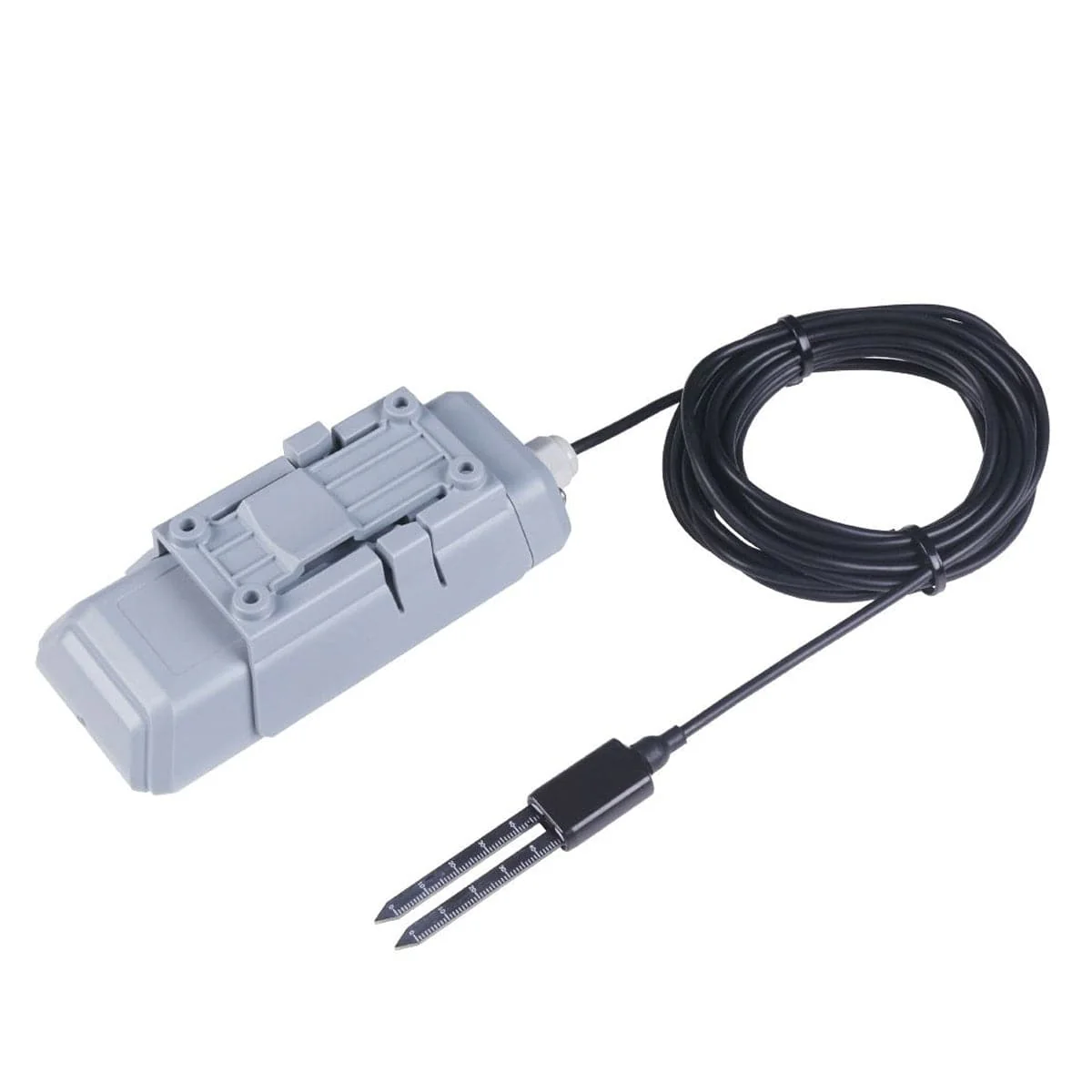

SenseCAP S2104 - LoRaWAN Soil Moisture and Temperature Sensor

The SenseCAP S2104 is a battery-powered wireless LoRaWAN sensor designed for accurate soil moisture and temperature monitoring in demanding environments. It measures soil moisture from 0 to 100% (m³/m³) and temperature from -40°C to 80°C, making it well-suited for agriculture, environmental research, and industrial soil sensing applications. The sensor is housed in a rugged IP66-rated enclosure, providing strong resistance to water, dust, and extreme temperatures.

Designed with long-range LoRaWAN® connectivity, the S2104 can transmit data up to 2km in built-up areas and up to 10km in open line-of-sight conditions, all while maintaining very low power consumption. It’s powered by a replaceable standard Li-SOCl₂ battery (ER34615), offering up to 10 years of battery life. This eliminates the need for mains wiring, significantly simplifying deployment in remote or outdoor sites.

The sensor supports over-the-air updates and configuration via built-in Bluetooth, using the SenseCAP Mate App. This makes setup and management quick and accessible, even for users without technical experience. Combined with the SenseCAP Portal platform, users can remotely configure devices, monitor data, and manage access keys – all through a clean web interface or mobile app.

The S2104 is designed for long-term durability and reliability. It has passed a series of tests including waterproofing, long-range communication, freezing resistance, and high/low temperature operation. It supports a wide range of LoRaWAN® frequency plans (863–928 MHz) and is compatible with common LoRaWAN® networks such as The Things Network, Loriot, and Chirpstack.

Videos

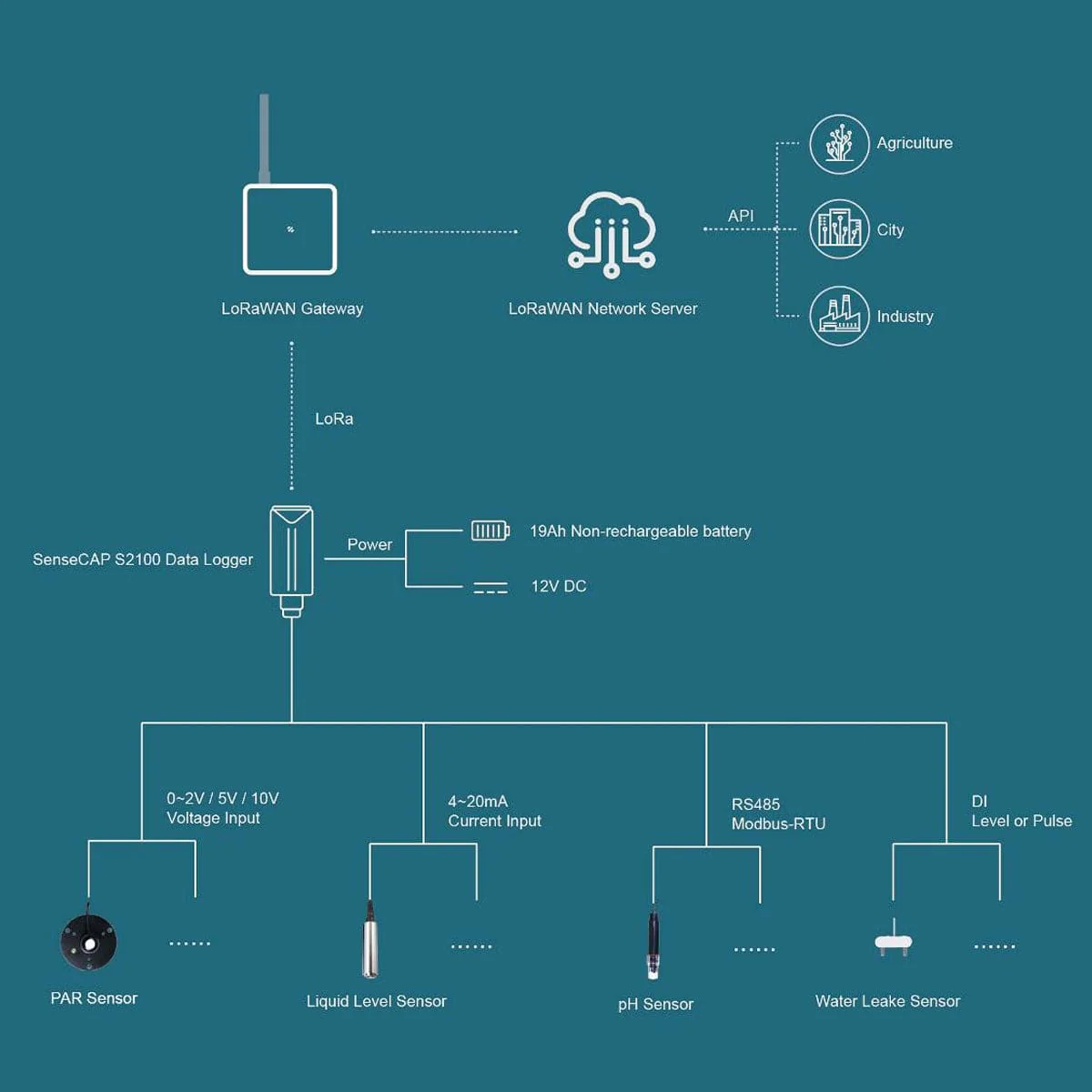

Network Example

---

Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within the United Kingdom. With this item in your cart your shipping options will be limited and may cost more than our usual rates. Why?

---

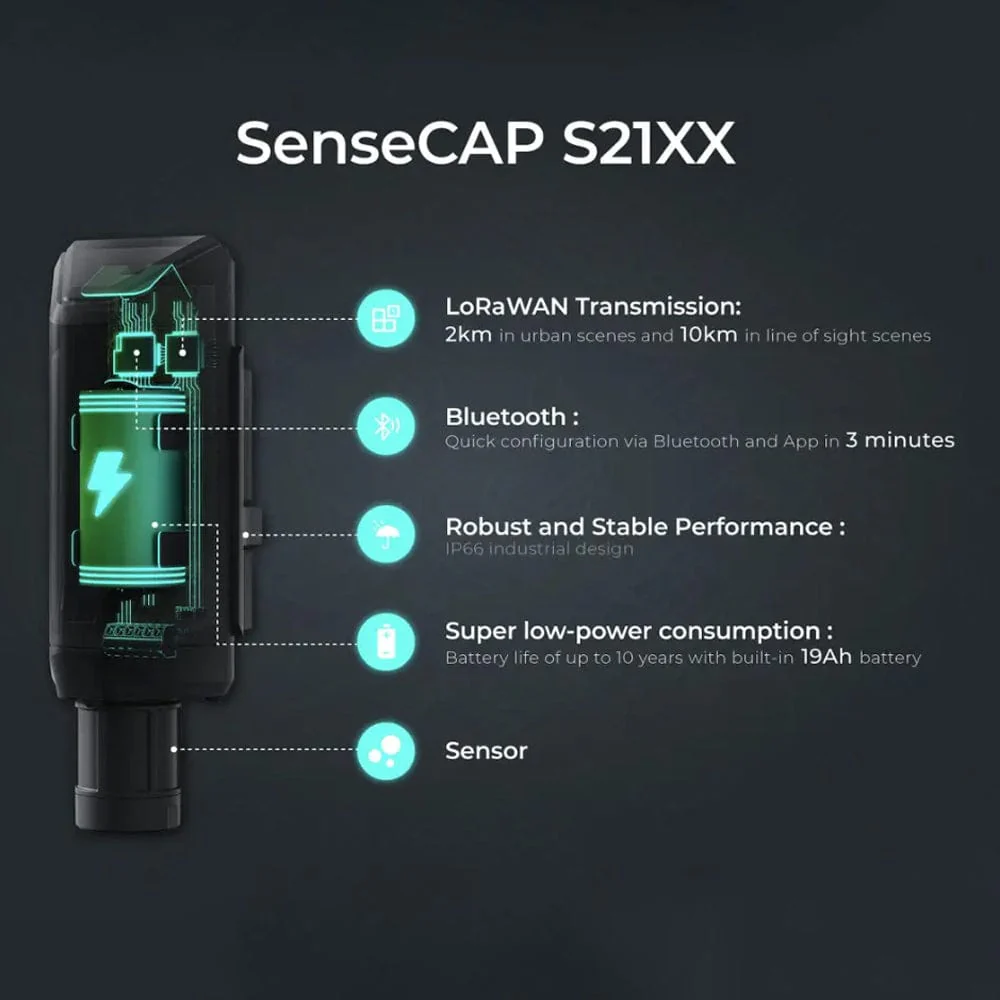

Features

• Measures soil moisture (0–100% m³/m³) and temperature (−40°C to 80°C)
• LoRaWAN® connectivity with up to 10km line-of-sight range
• Battery-powered using standard replaceable Li-SOCl₂ battery (ER34615)
• Up to 10 years battery life
• Built-in Bluetooth for quick OTA configuration and updates
• IP66-rated enclosure for outdoor and industrial use
• Operating temperature range: −40°C to +85°C
• Compatible with common LoRaWAN® networks: TTN, Loriot, Chirpstack, and others
• Simple 4-step setup using the SenseCAP Mate App
• Remote data monitoring and device management via SenseCAP Portal
• Supports multiple LoRaWAN® frequency plans (863–928 MHz)
• Passed extensive reliability testing for harsh environments

Specifications

Soil Temperature
Range	-40 to +80 °C
Accuracy	0 to 50 °C: ±0.5 °C -40 to 0, 50 to 80 °C: ±1 °C
Resolution	0.1 °C
Soil Moisture (VWC – Volumetric Water Content)
Range	0 to 100% (air–water)
Accuracy	0 to 50%: ±3% 50 to 100%: ±5%
Resolution	0 to 50%: 0.1% 50 to 100%: 0.5%
General Parameters
Product Model	S2104
Microcontroller	Wio-E5
Support Protocol	LoRaWAN v1.0.3 Class A
Built-in Bluetooth	App tool to change parameters
LoRaWAN Channel Plan	IN865/EU868/US915/AU915/AS923/KR920/RU864 *
Max Transmitted Power	19 dBm
Sensitivity	–136 dBm @ SF12 BW=125 kHz
Communication Distance	2 to 10 km (depending on gateway antenna and environment)
IP Rating	IP66
Operating Temperature	–40 to +85 °C
Operating Humidity	0 to 100 %RH (non-condensing)
Device Weight	405 g
Cable Length	5 metres
Battery (Contained in equipment)
Battery Life	Up to 10 years**
Battery Capacity	19 Ah (non-rechargeable)
Battery Type	Standard D-size SOCl₂ Battery

Resources

• Product Wiki
• Connect S210X Sensors to Azure IoT Central User Guide
• Battery Life Prediction Table
• SenseCAP S210X Decoder
• Product Number: Seeed 114992870

LoRaWAN Frequency

S210x Devices are manufactured to support the universal frequency plan from 863MHz ~928MHz in one SKU. That is to say, every single device can support the frequency plans below - the sensor can be switched to other frequency plans at any time:

Frequency Plan	Common Name	Sub-band
EU863-870	EU868	–
US902-928	US915	Sub-band from 1 to 8
AU915-928	AU915	Sub-band from 1 to 8
AS923	AS923	AS923_1, AS923_2, AS923_3, AS923_4
IN865-867	IN865	–
KR920-923	KR920	–
RU864-867	RU864	–

The frequency plan setting is none by default, and it will not transmit RF signal until it has been set by the app via Bluetooth at the first power-up. And it can be changed to other frequency plans at any time.

Package Contents

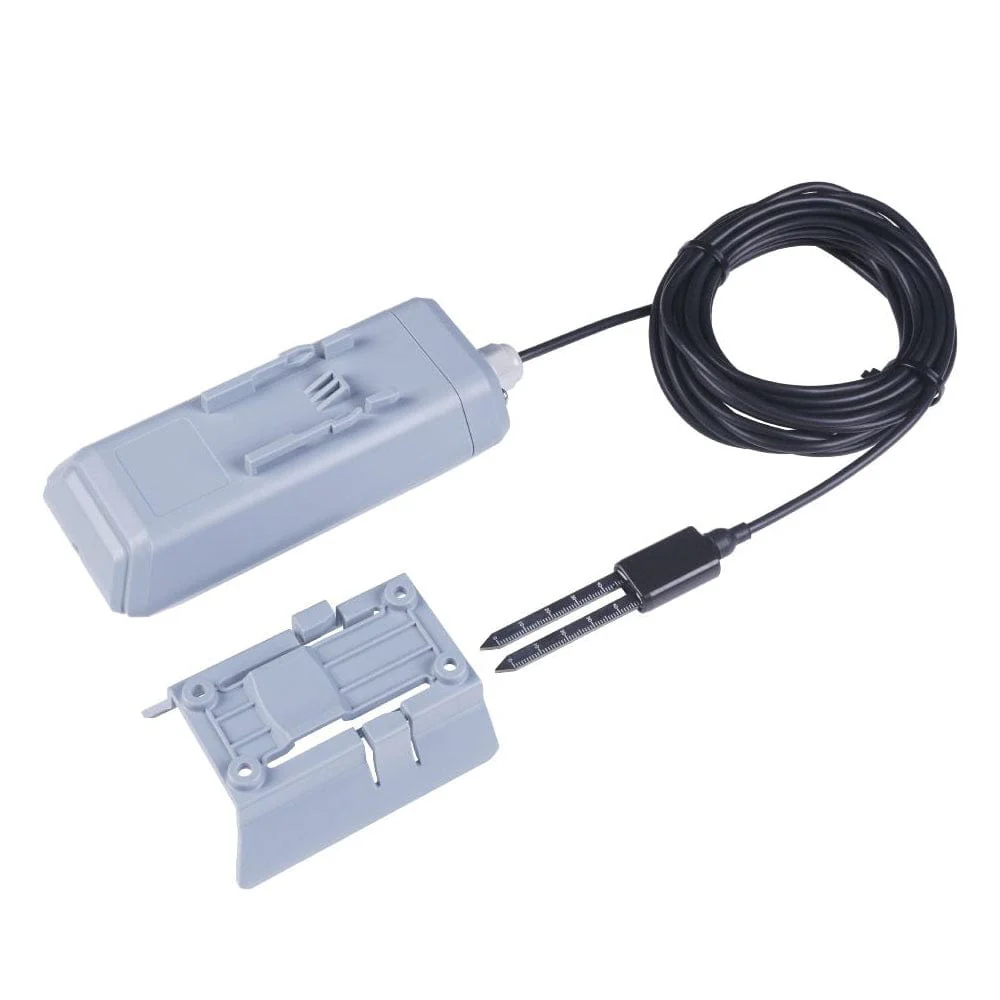

• 1x SenseCAP S2104 - LoRaWAN Soil Moisture and Temperature Sensor
• 2x Bracket
• 4x KA4x20mm Self-drilling Screw
• 1x Quick Start Guide
