RP2040 Camera Development Board

This camera development board has a dual-core Arm Cortex M0+ processor, which gives an efficient performance with a clock speed of up to 133 MHz. It has 264KB of SRAM for smooth processing and 16MB of onboard Flash memory for plenty of storage. As you've guessed, the board features an onboard HM01B0 grayscale camera and it includes a 1.14" IPS LCD display, offering a resolution of 240 x 135 and displaying up to 65K colours for a crisp and vibrant display.

Features

• RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
• Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
• 264KB of SRAM, and 16MB of onboard Flash memory
• Type-C connector, keeps it up to date, easier to use
• Onboard HM01B0 grayscale camera
• Onboard 1.14" IPS LCD display, 240 x 135 resolution, 65K color
• USB 1.1 with device and host support
• Low-power sleep and dormant modes
• Drag-and-drop programming using mass storage over USB
• 13 x multi-function GPIO pins
• Accurate clock and timer on-chip
• Temperature sensor
• Accelerated floating-point libraries on-chip
• 8 x Programmable I/O (PIO) state machines for custom peripheral support

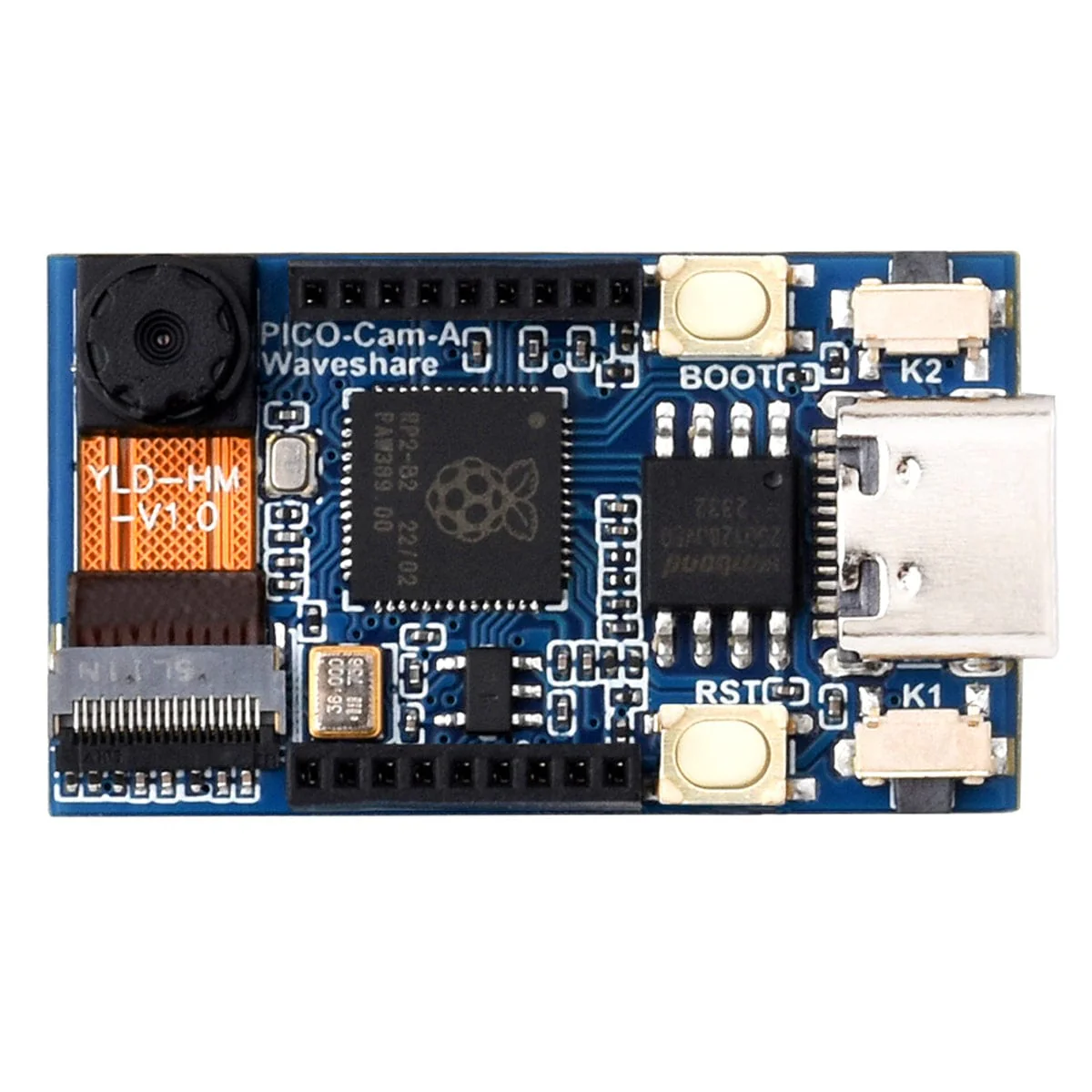

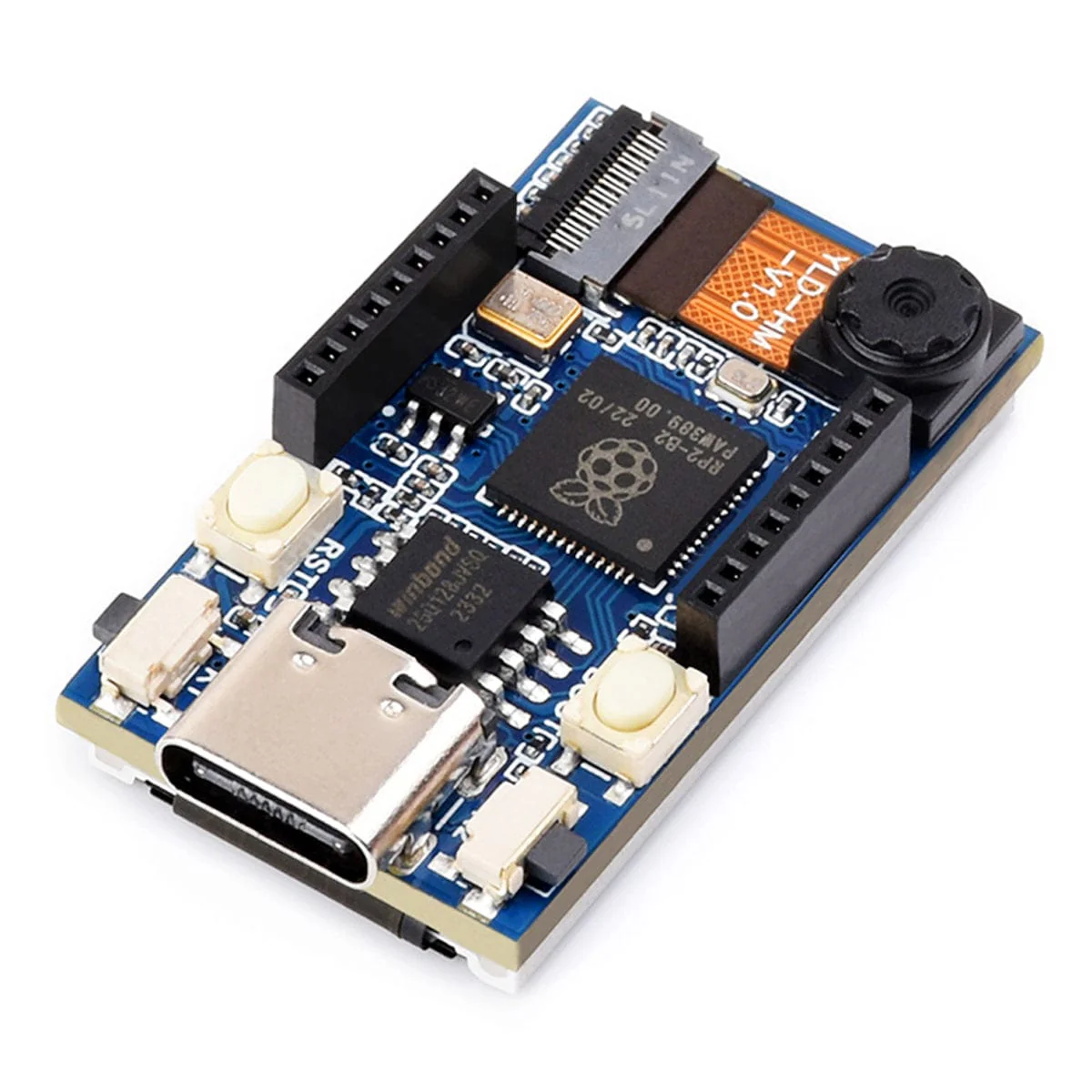

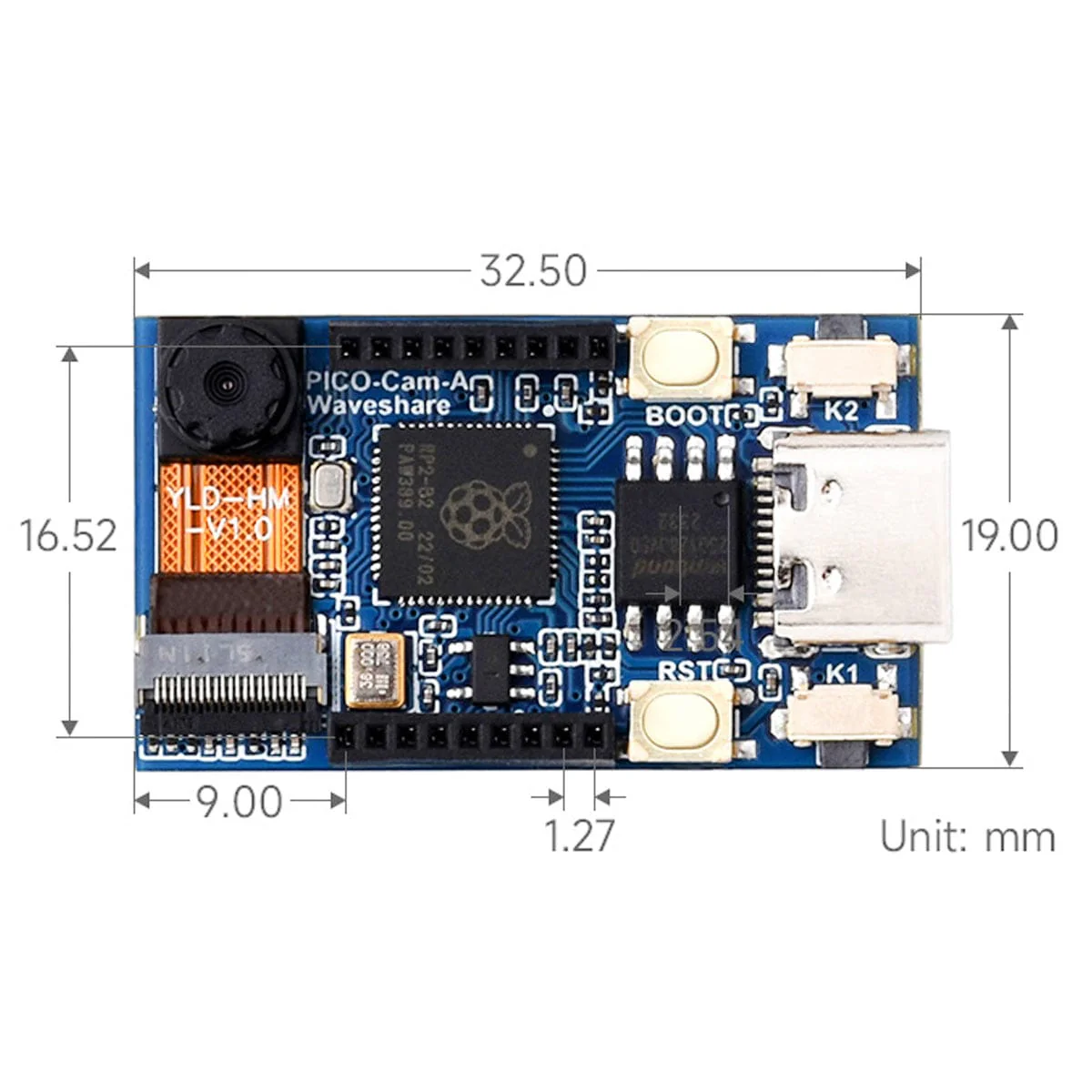

What's on Board

1. USB Type-C connector
2. User button
3. BOOT button
   Press it when resetting to enter download mode
4. RESET button
5. GPIO pins
6. RP2040
   Dual-core processor, up to 133MHz operating frequency
7. HM01B0 greyscale camera
8. W25Q128
   16MB NOR-Flash
9. 1.14" LCD
   240 x 135 pixels, 65K Color

Specifications

Controller	ST7789V
Communication Interface	SPI
Display Panel	IPS
Resolution	135(H) RGB x 240(V)
Display Dimensions	14.864(H) x 24.912(V) mm
Pixel Size	0.1101(H) x 0.1035(V) mm

Resources

• Product Wiki
• Schematic

Pinout

Package Contents

• 1x RP2040 Camera Development Board
