Round LCD HAT for Raspberry Pi [Discontinued]

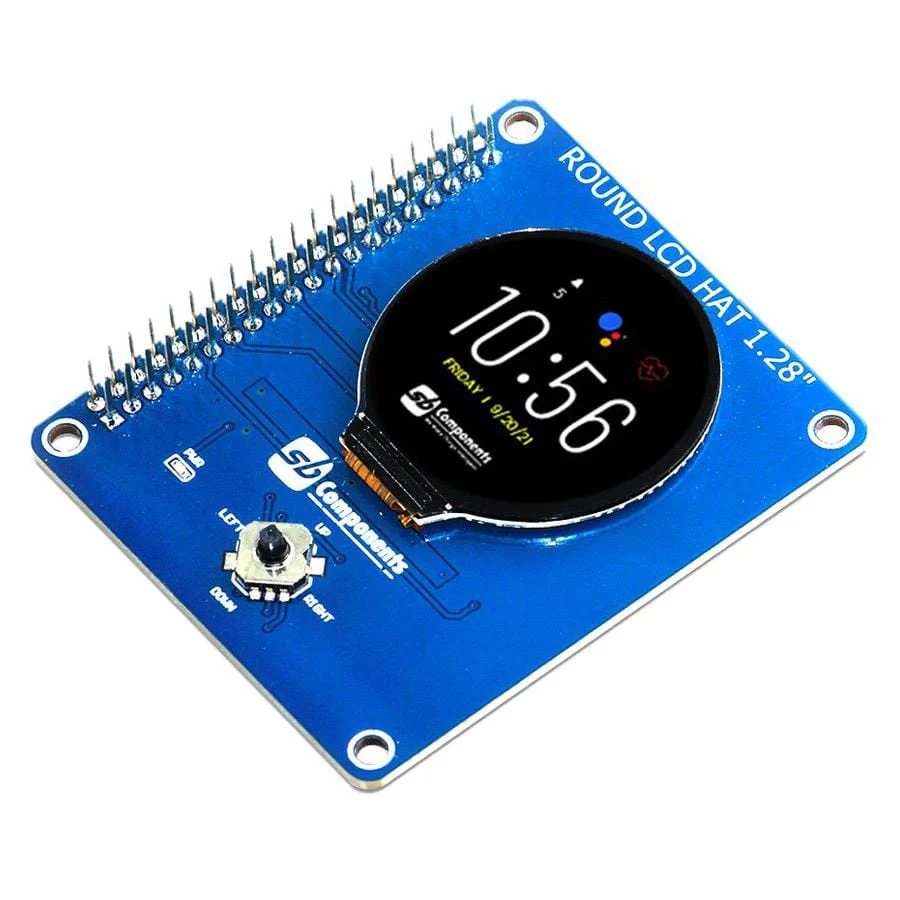

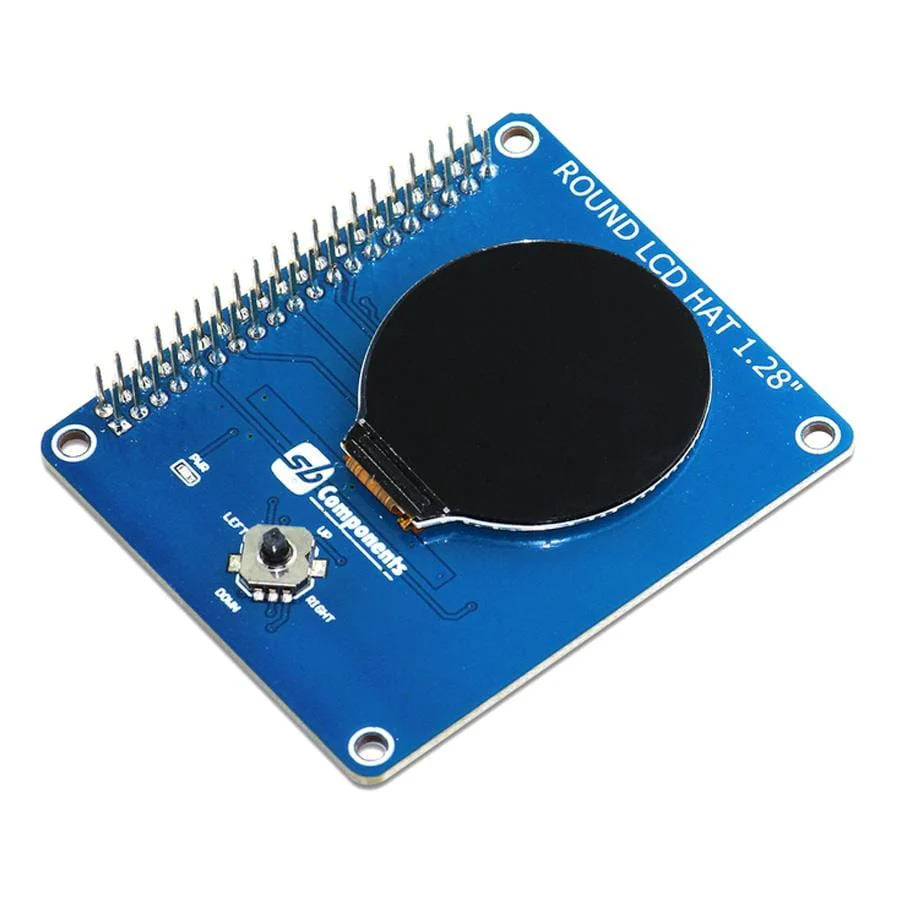

The Round LCD HAT is a 1.28" round display expansion board for the Raspberry Pi with a 240×240 resolution, 65K RGB colours and a joystick!

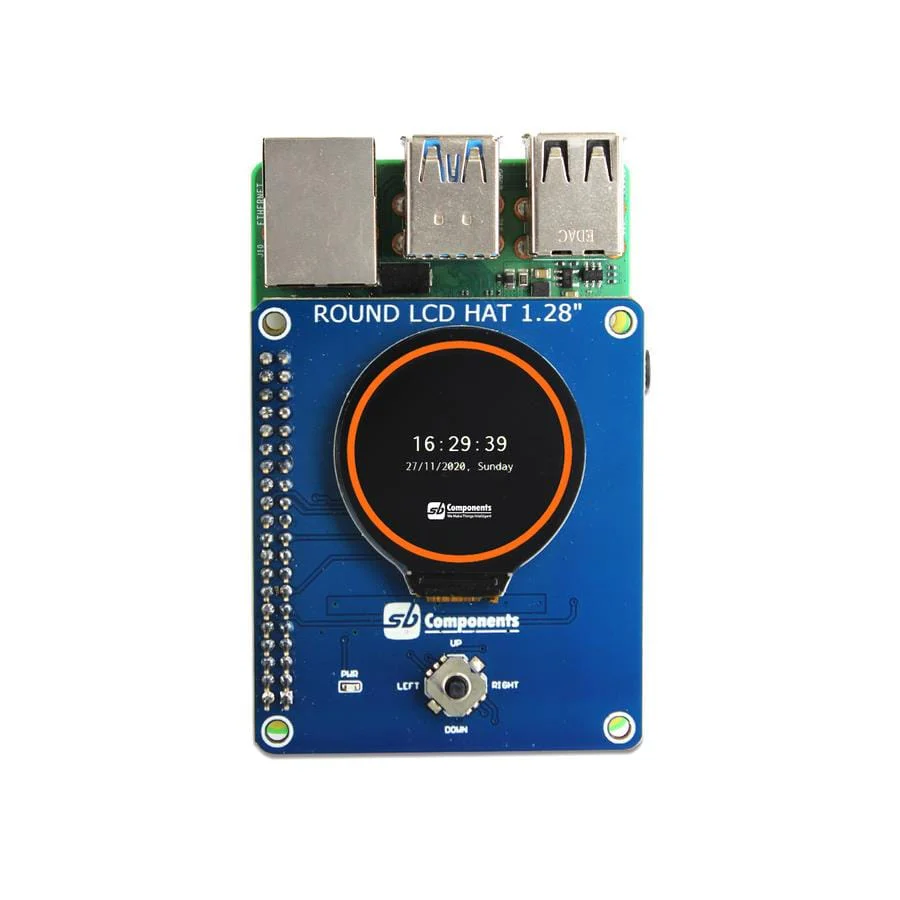

The HAT attaches via the standard 40-pin GPIO header and utilises an embedded GC9A01 driver and SPI to communicate with the Raspberry Pi. This also keeps your GPIO pin usage to a minimum, leaving them available for the other parts of your project.

The 5-input Joystick gives your project a convenient physical input option that uses 5 GPIO pins for direction and selection commands. Program your own interface and menu system!

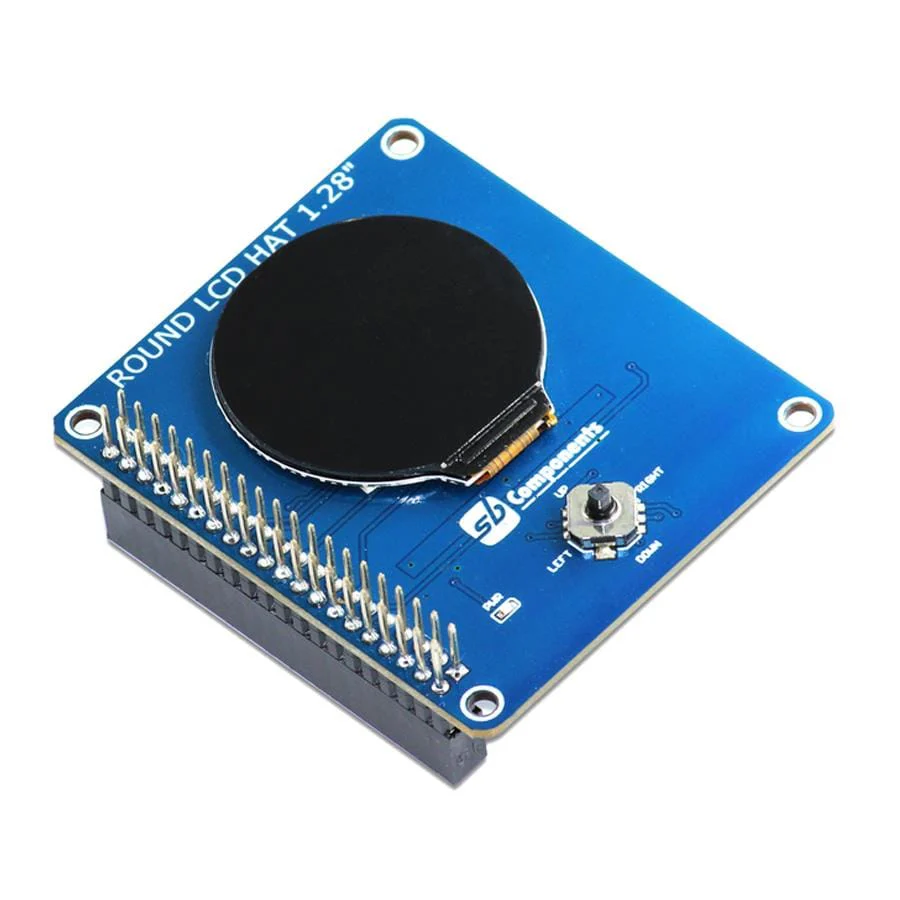

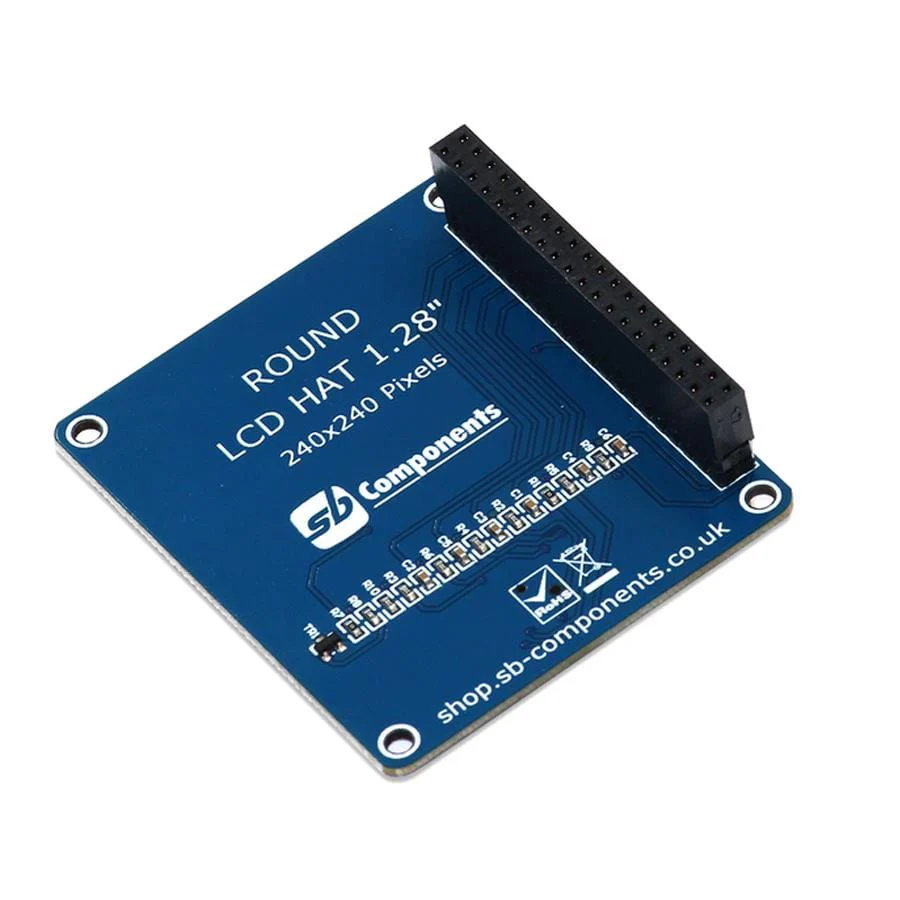

The pre-soldered board uses a stacking header, giving you easy access to the remaining GPIO pins via jumper wires.

Features

• Compatible with all 40-pin Raspberry Pi models
• 1.28" round display
• 240x240 resolution
• 65K RGB colours
• Joystick control for direction and selection navigation
• 4-wire SPI using GC9A01 driver
• GPIO pins accessible via pre-soldered stacking header
• Dedicated GitHub repository and Product Wiki for details and instructions

Resources

• Product Wiki
• GitHub Repository

Pinout

Specification

• Operating voltage: 3.3V
• Pixel size: 0.135mm x 0.135mm
• Board dimensions: 56mm x 65mm
• Pixels: 240 x 240 resolution
• Display colour: 65K RGB
• Driver: GC9A01

Package Contents

• 1x Round LCD HAT

Raspberry Pi not included
