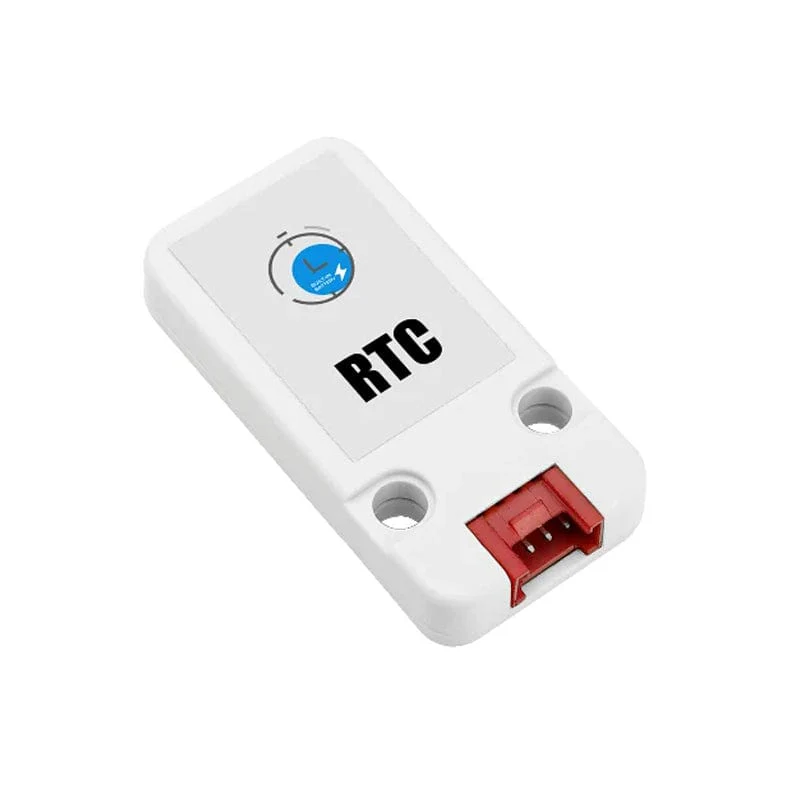

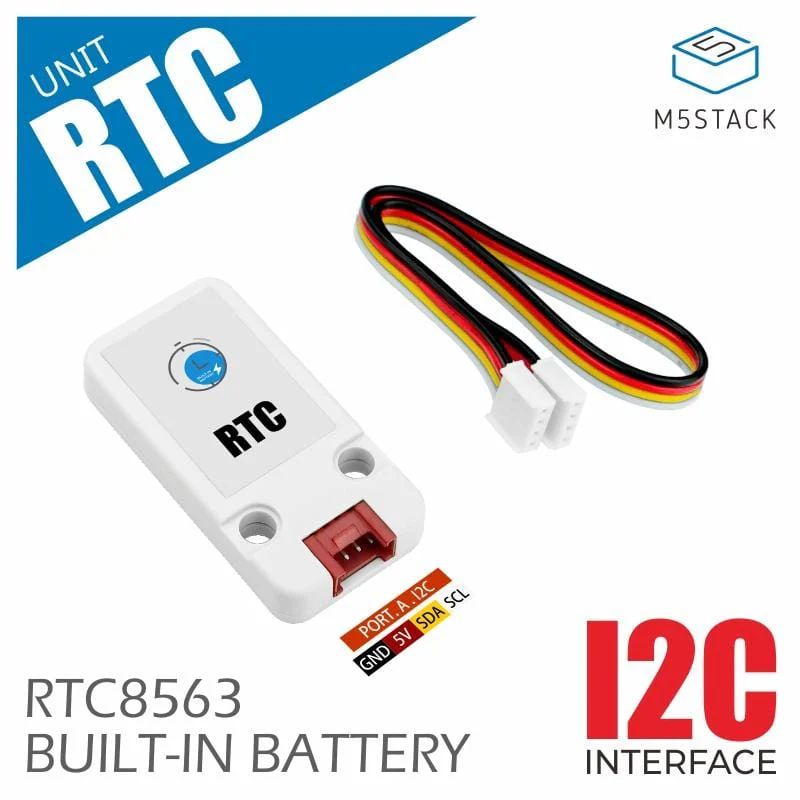

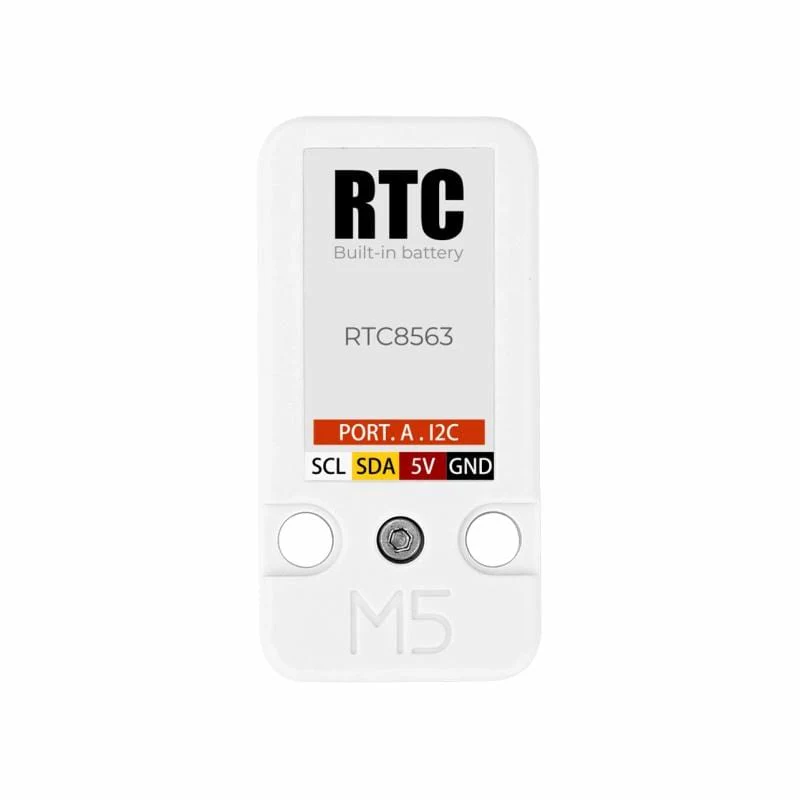

M5Stack Real Time Clock (RTC) Unit (HYM8563)

The RTC unit is a programmable real-time clock module, with integrated HYM8563 low-power CMOS real-time clock/calendar chip, using a I2C communication interface, a full-coverage case can effectively protect the circuit making its operation more stable.

---

Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within the United Kingdom. With this item in your cart, your shipping options will be limited and may cost more than our usual rates. Why?

---

Features

• Support second/minute/hour/day/month/year. time data reading and writing
• 32.768kHz high-precision clock crystal, greatly reducing the time error
• Low power consumption, coin battery can work continuously for years
• With century mark
• I2C communication interface

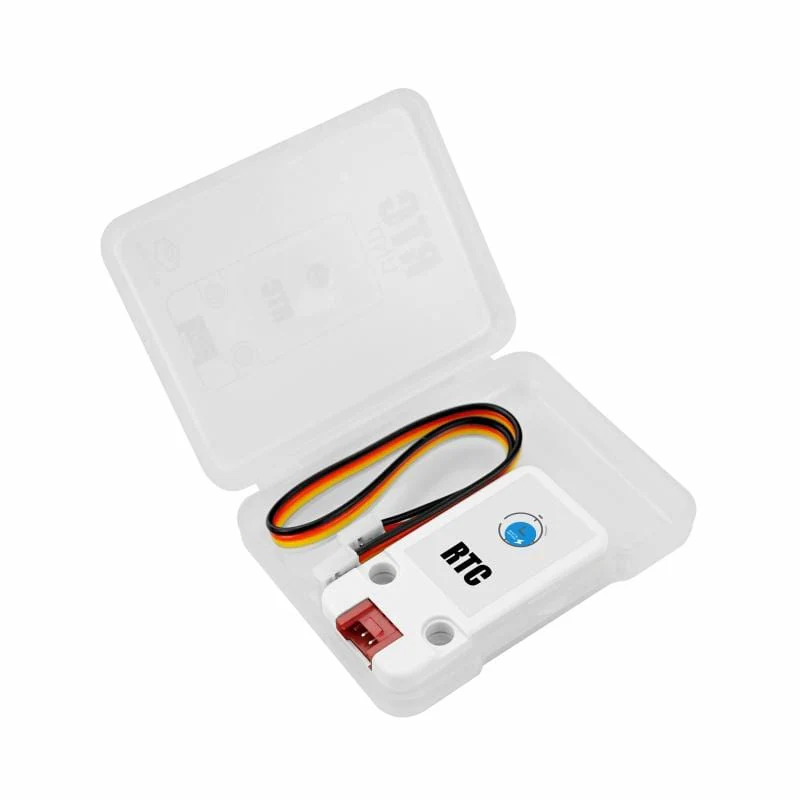

Package Contents

• 1x Unit RTC
• 1x Coin cell battery (38mAh)
• 1x HY2.0-4P cable

Specifications

Specifications	Parameters
Clock chip	HYM8563
Crystal Frequency	32.768kHz
Communication interface	I2C, addr: 0x51, bus max speed 400Kbps
Power supply voltage	5V DC
Net weight	4.1g
Gross Weight	8.3g

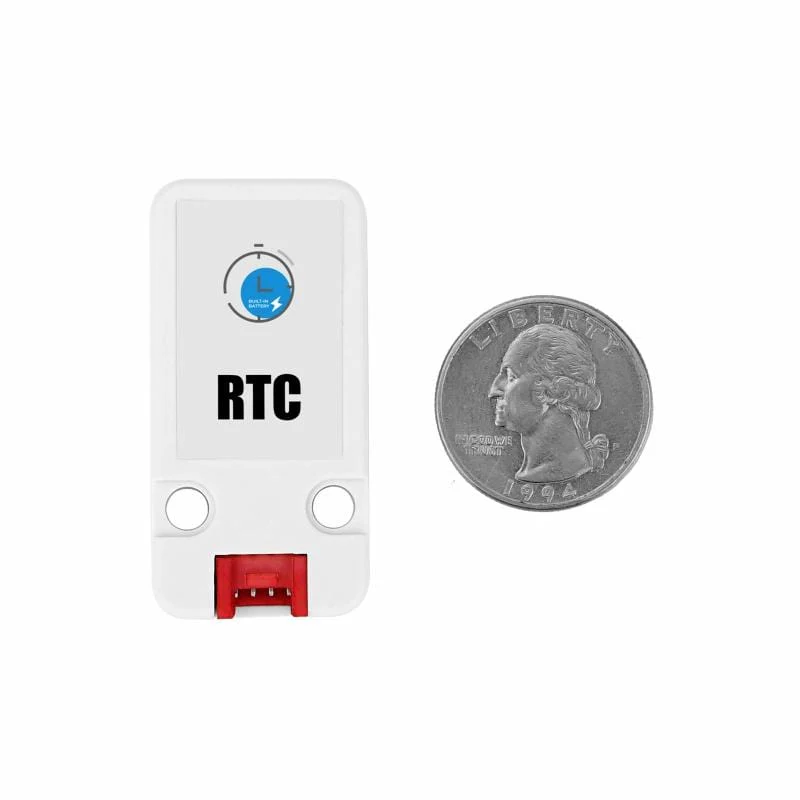

Product Dimensions	48 x 24 x 8mm
Package Size	67 x 53 x 12mm
