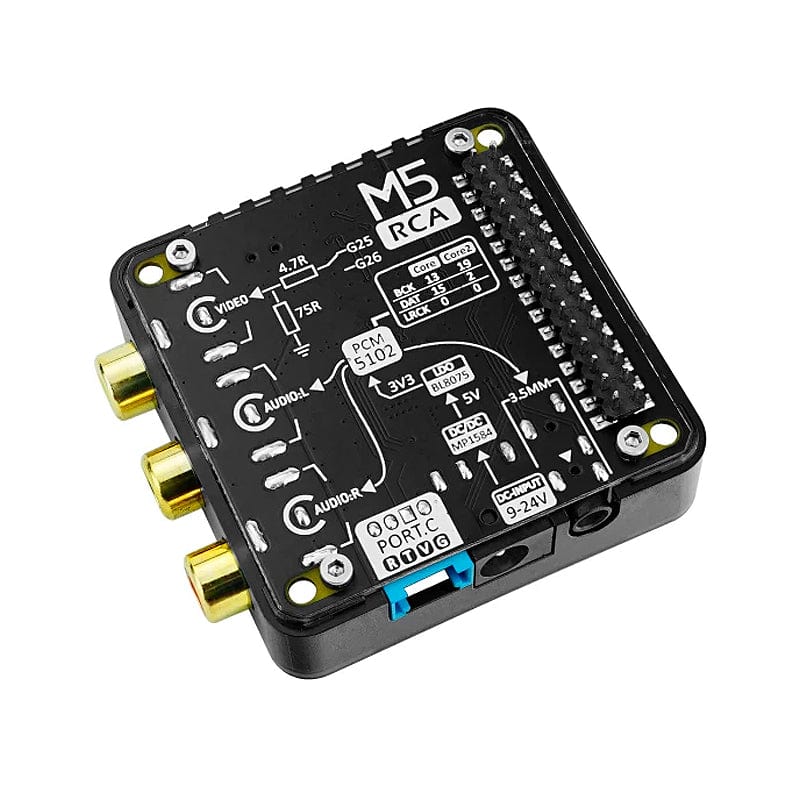

RCA Audio/Video Composite Module 13.2

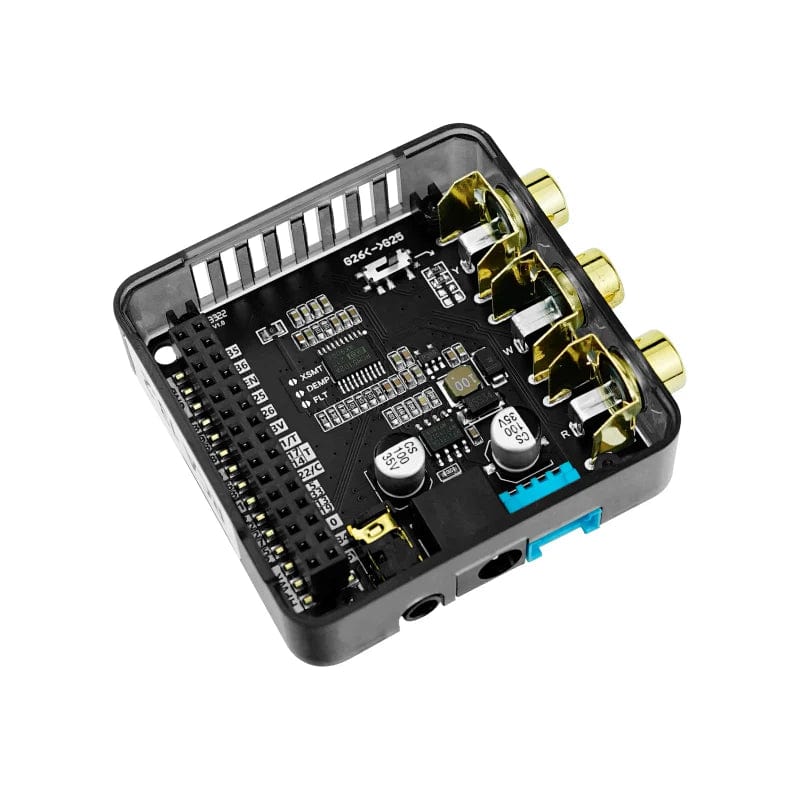

The Module RCA is a composite signal expansion module for audio and video, that uses the common S-terminal RCA connector, divided into two (left and right channels) audio and one video output. The audio part adopts the I2S power amplifier chip PCM5102APWR scheme, which has a 32-bit stereo audio signal output. In terms of video, the DAC analogue video signal function of the main control ESP32, can generate analogue video signals with a max resolution of 864 x 576 (PAL, PAL_M) The module contains a DC socket and a 9-24V to 5V DCDC circuit. This product is suitable for audio and video equipment that drives the S-terminal interface.

Features

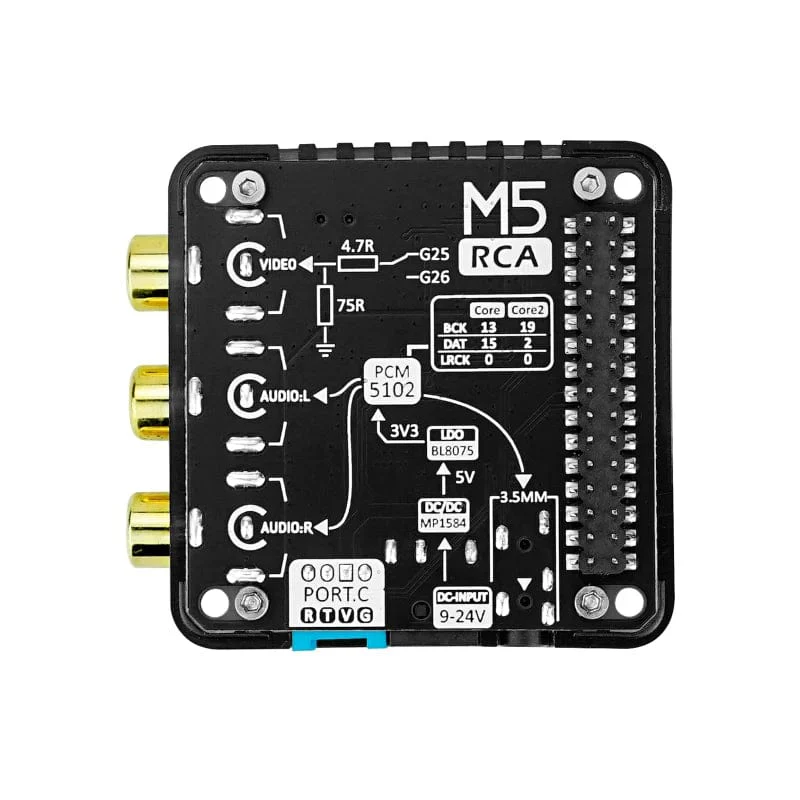

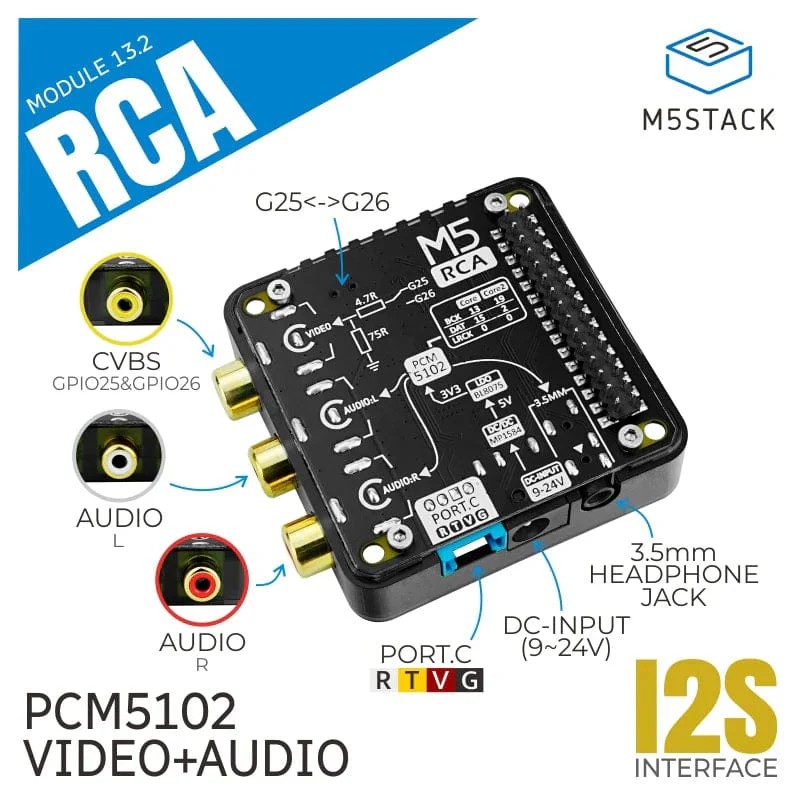

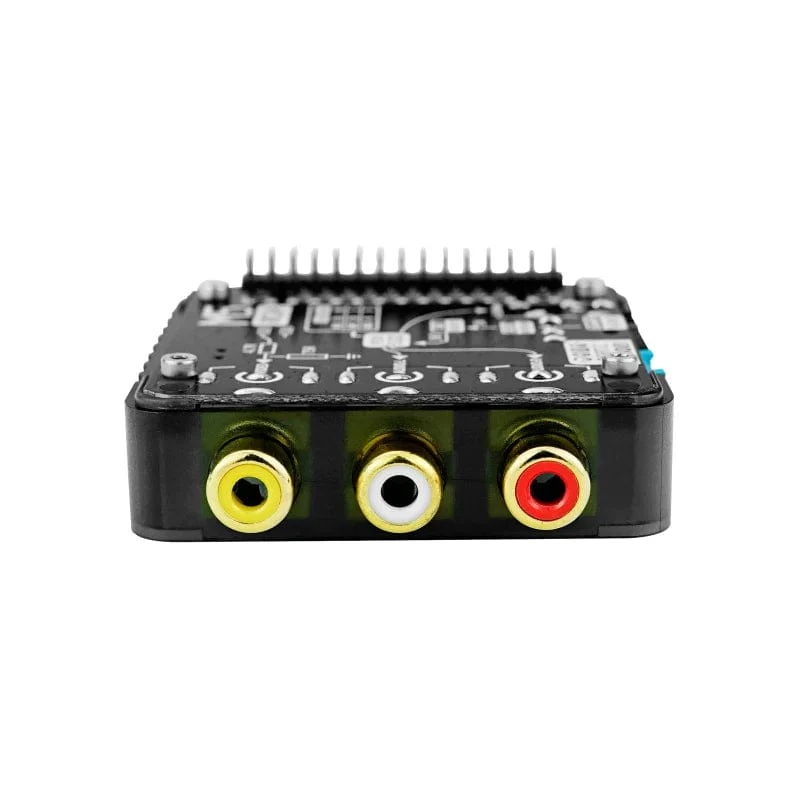

• RCA composite video audio output(Left and right channel audio interface)
• RCA female jack terminals
• 1 CVBS video output interface (GPIO25&GPIO26 switch between two choices)

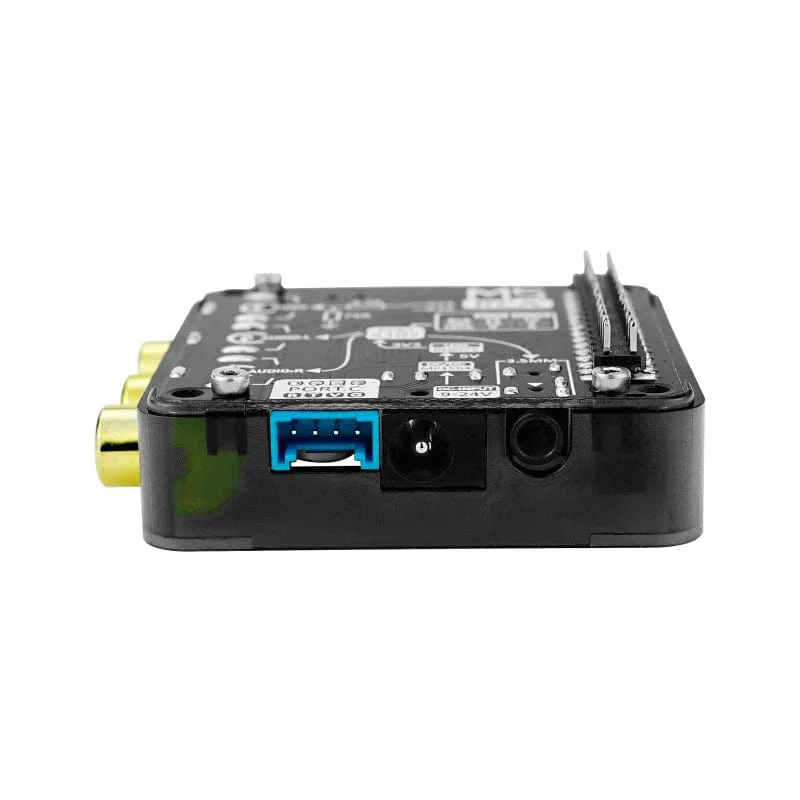

• 3.5mm headphone jack audio output
• Port C interface
• PCM5102 audio stereo DAC
• DC 9-24V to 5V Output (<5V, 3A)

Specifications

Resources	Parameters
Audio stereo DAC chip	Audio stereo DAC chip
interface	RCA female seat
channel	1 CVBS video output interface (GPIO25&GPIO26 switch between two choices)
Output signal	Audio and video (3.5mm headphone jack output optional)
DCDC	MP1584EN
Audio stereo DAC chip	PCM5102APWR
Product Size	54mm × 54mm × 19.7mm
Package Size	93mm × 63mm × 25mm
Product Weight	22.5g
Package Weight	41.7g

Resources

• Product Wiki

Package Contents

• 1x RCA Module
