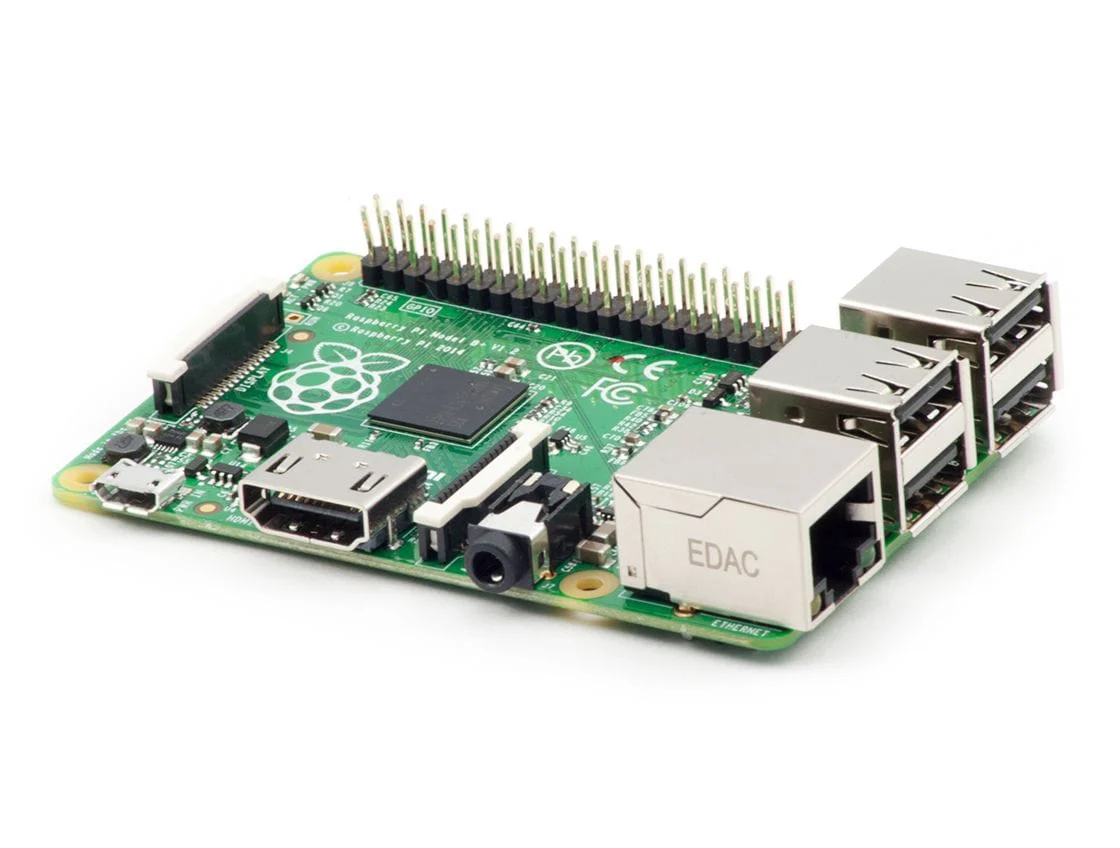

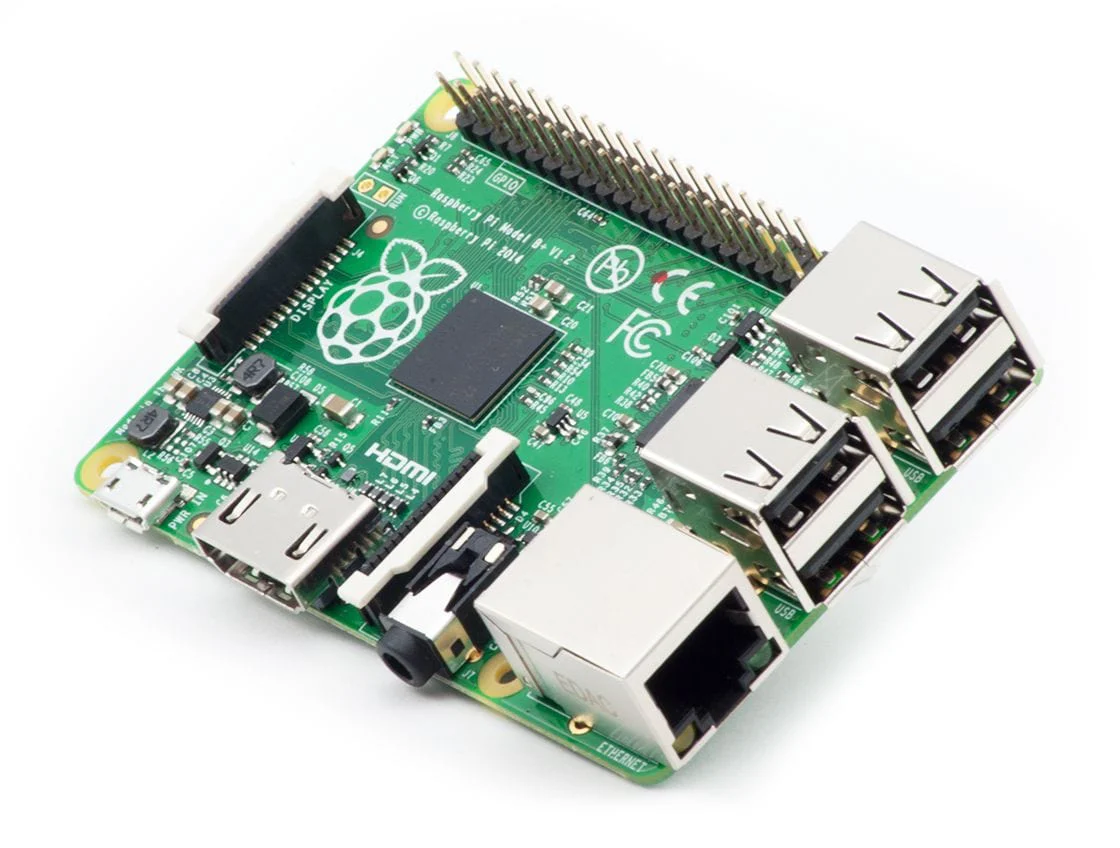

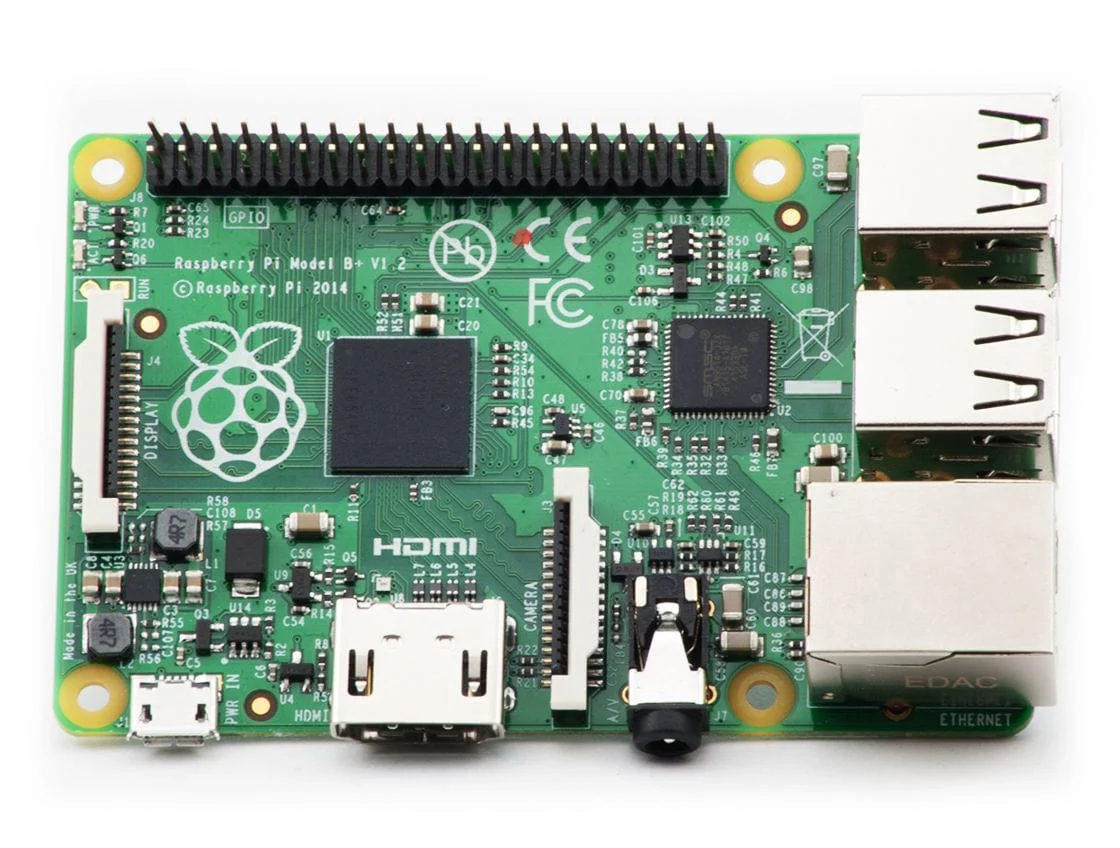

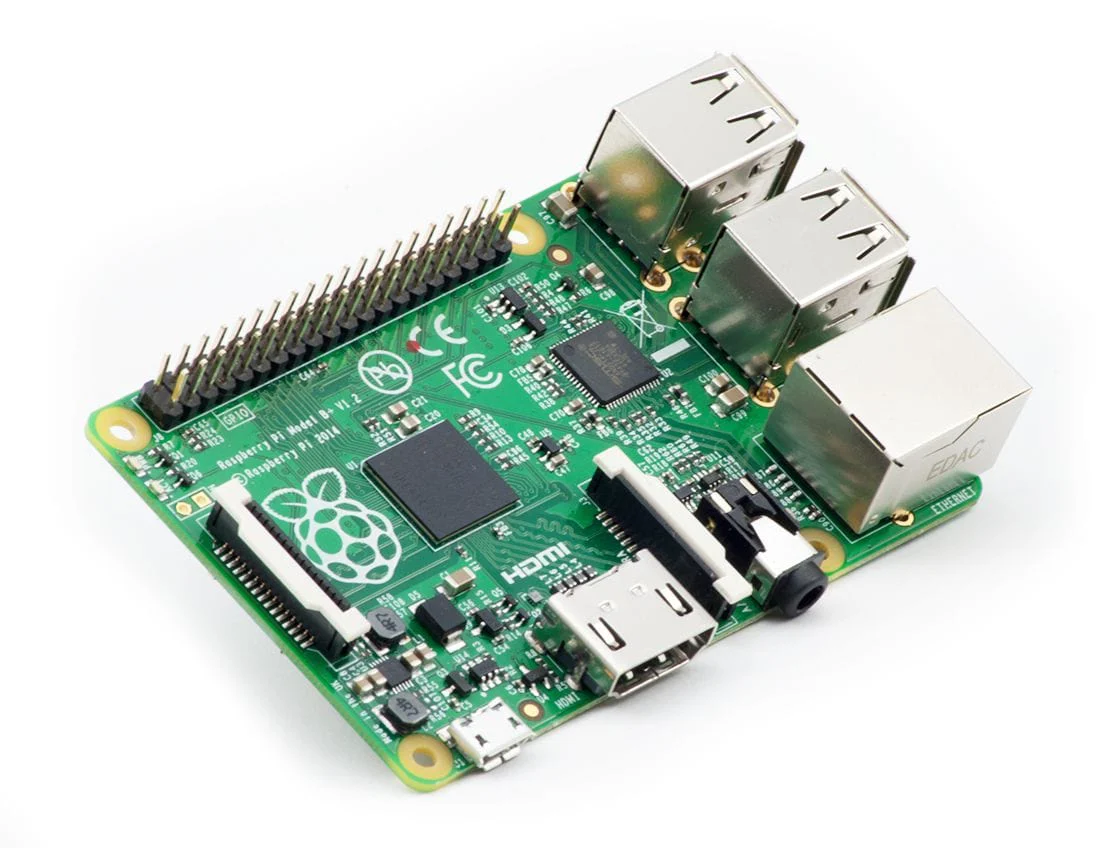

Raspberry Pi - Model B+ [Discontinued]
The Raspberry Pi Model B+ has landed at ModMyPi! The ultra-low-cost, deck-of-cards sized Linux computer has had a makeover, and it's a good one at that! The Raspberry Pi Model B+ incorporates a number of enhancements and new features including improved power consumption, increased connectivity with 4 USB ports, and a greater 40 Pin GPIO!
Back-Compatibility Note - The GPIO Pin area is now 40 pins long however the first 26 pins are identical to the Model B to provide 100% backward compatibility for your projects. The B+ also includes the same CSI port for the camera module, and is compatible with the same operating systems (Raspian, OpenELEC, OSMC etc.). The new Model B+ also requires a 5V 2A or greater power supply for best results (which we stock separately!)
Case Fitment Note - The Raspberry Pi Model B+ Features a completely revised layout. Model B cases WILL NOT FIT. Please ensure that any case purchase is for a Model B+ Case.
Please Note. Purchase is for 1 x 512MB Raspberry Pi MODEL B+ Board, which comes without any other peripherals.
The Raspberry Pi Model B+ Features:
- Model B+ Raspberry Pi with Mounting Points and 512MB RAM
- Broadcom BCM2835 ARM11 700Mhz
- Integrated Videocore 4 Graphics GPU capable of playing Full 1080p HD Video
- 4 x USB Ports (Max Output 1.2A)
- Board Power Draw: 600mA
- HDMI Video Output
- 4 Pole Stereo & Composite Video Output
- 10/100Mb Ethernet Port for Internet Access
- 5V 2A Micro USB Power Input Jack
- MicroSD Flash Memory Card Slot
- 40-pin 2.54mm Header Expansion Slot (Which allow for peripherals and expansion boards)
- Dimensions 85 x 56 x 17mm
Improvements over the Model B
- 40 Pin GPIO
- 4 x USB Ports with improved power regulation
- You can now provide up to 1.2 AMP to the 4 USB ports
- 4 Pole Stereo & Composite Video Output
- Revised Layout
- Micro SD Port
- The B+ board now uses less power (600mA)
Downloads
- Board Dimension Sheet
- I/O Connector Schematic
- GPIO 40 Pin Connector Shematic
- GPIO Pin Out Diagram
More Information
For more information about the Raspberry Pi Foundation, visit the Raspberry Pi Foundation’s Website
