Raspberry Pi Dual-Band 5GHz/2.4GHz USB WiFi Adapter with Antenna [Discontinued]
IMPORTANT! To use this WiFi adapter with Raspberry Pi OS, you will need to install a driver. This adapter will not automatically work without driver installation!
We have documented the installation process for you here.
Please note that this driver works as of 18/09/2023 however changes to Raspberry Pi OS or the driver repository are out of our control and may break at any time.

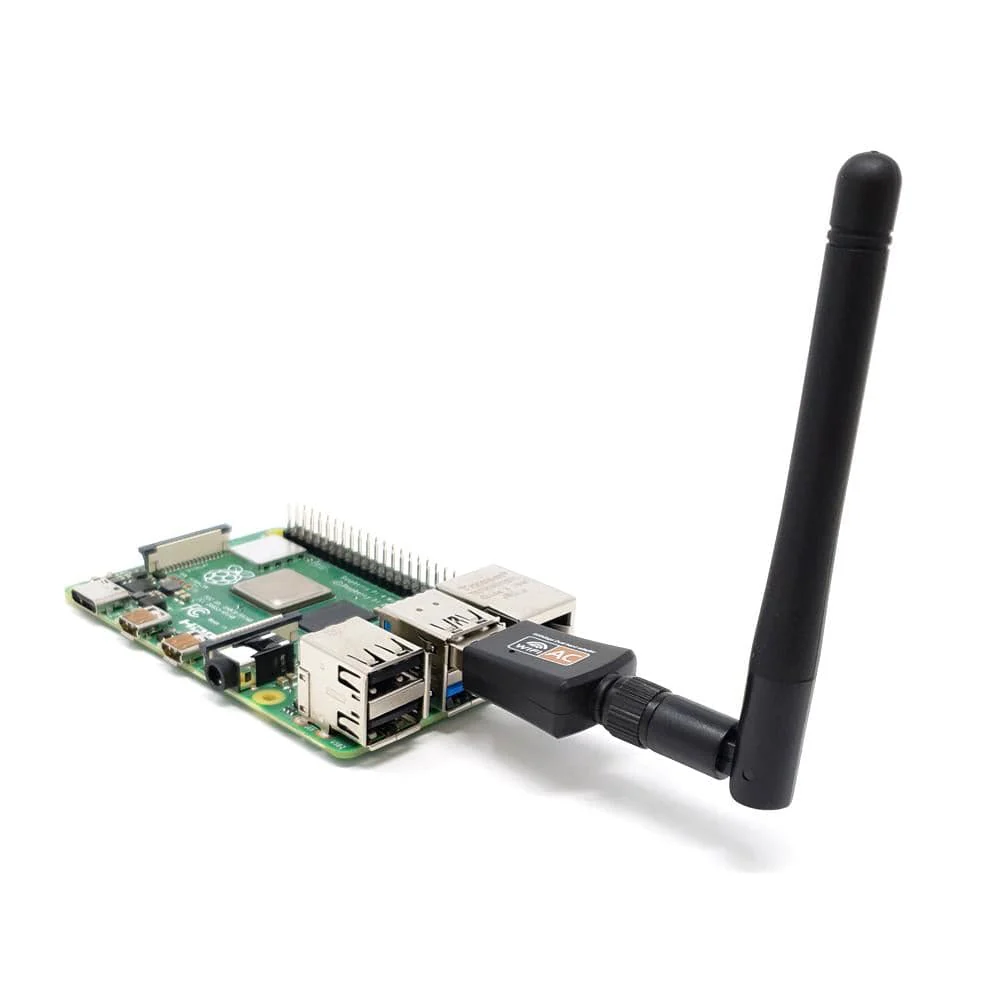

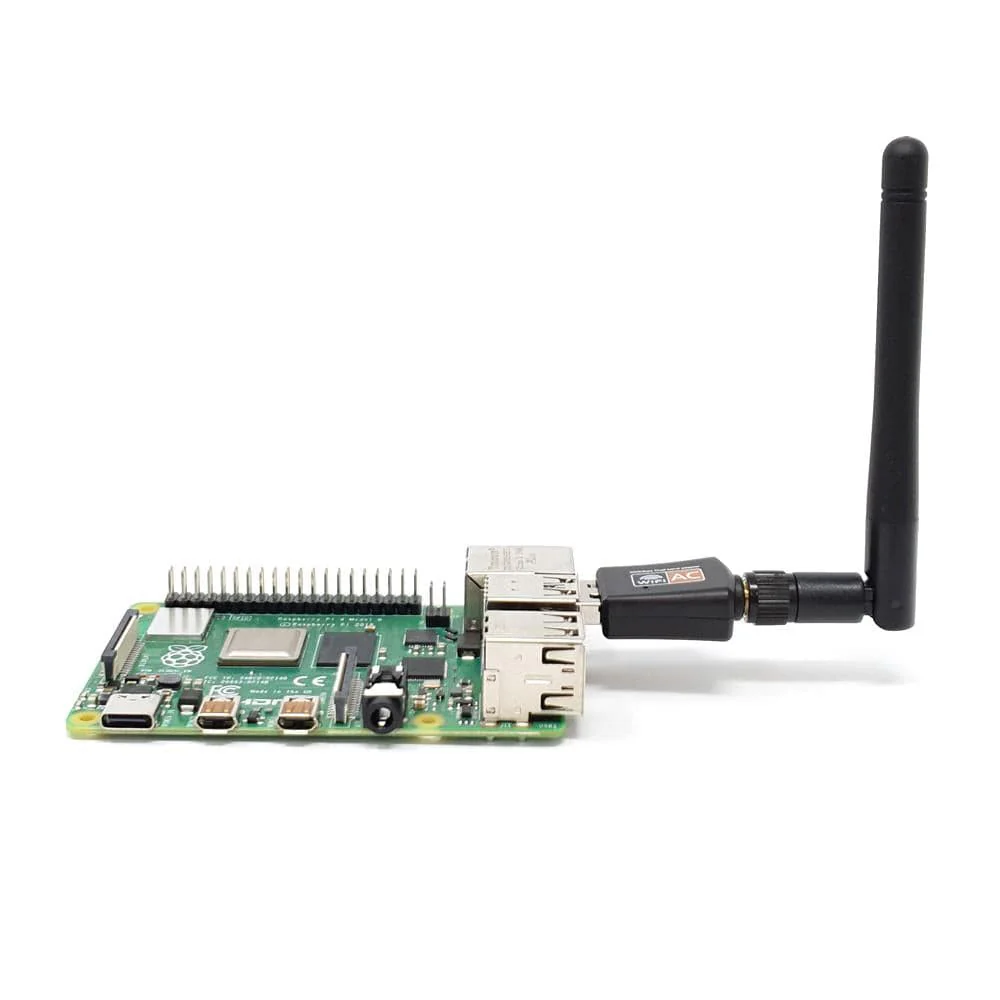

If the on-board WiFi antenna on your Raspberry Pi isn't giving you enough range, this dual-band 2.4GHz/5GHz USB 2.0 WiFi adapter is a great option.
The antenna is dual-band meaning it can connect to a 2.4GHz or 5GHz network, and supports the 802.11ac standard (3 times faster than 802.11n networks).

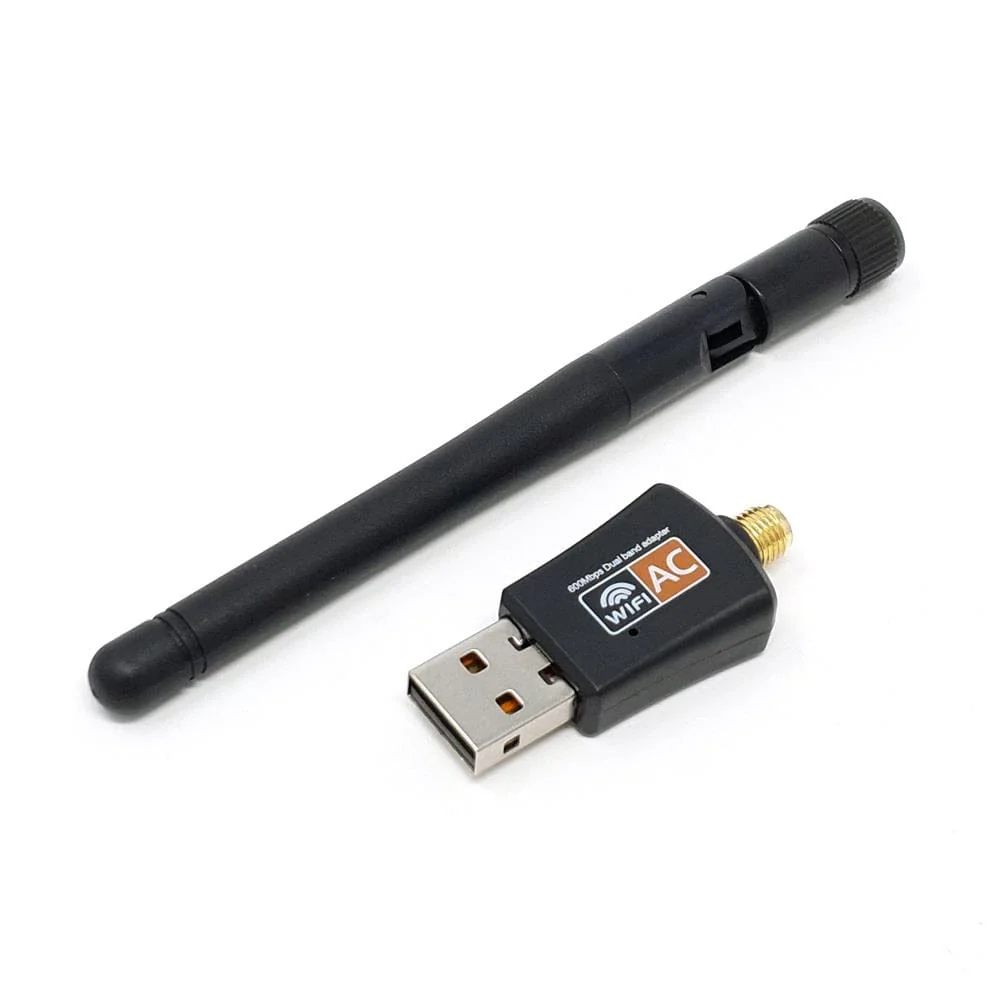

The USB 2.0 adapter features an LED status light and a removable antenna.
Compatible with both the Raspberry Pi 4 and Raspberry Pi 3B+/3.
Installation
The adapter requires driver installation which will take around 5 minutes. See our installation guide here.
Features
- Compatible with Raspberry Pi 4Â and Raspberry Pi 3
- 150Mbps at 2.4GHz and 433Mbps at 5GHz
- The external high gain adjustable & detachable antenna provides wide coverage for your wireless network
- Backwards compatible with 802.11n/g/b/a
- LED status light
Specifications
- Chip: Realtek RTL8811cu
- Interface: USB 2.0
- Wireless transmit power: 20dBm
- Network Speed: 600Mbps
- Network Mode: Dual Band
- Applicable System: Windows Vista / XP / 2000/7/8/10, Linux, Mac OS
- USB Head Size: 4.5 x 2 x 1.2cm
- Connector (USB end): RP-SMA Female
- Connector (Antenna): RP-SMA Male
- Antenna Length: 10.8cm
- Net Weight: 12g
- Datasheet
Package includes
- 1 x Dual Band 2.4G/5G USB Wifi Antenna Adapter
- 1 x CDÂ (because the 90s lives on!)
Note: Does not include Raspberry Pi
