Raspberry Pi Compute Module 5 Passive Cooler

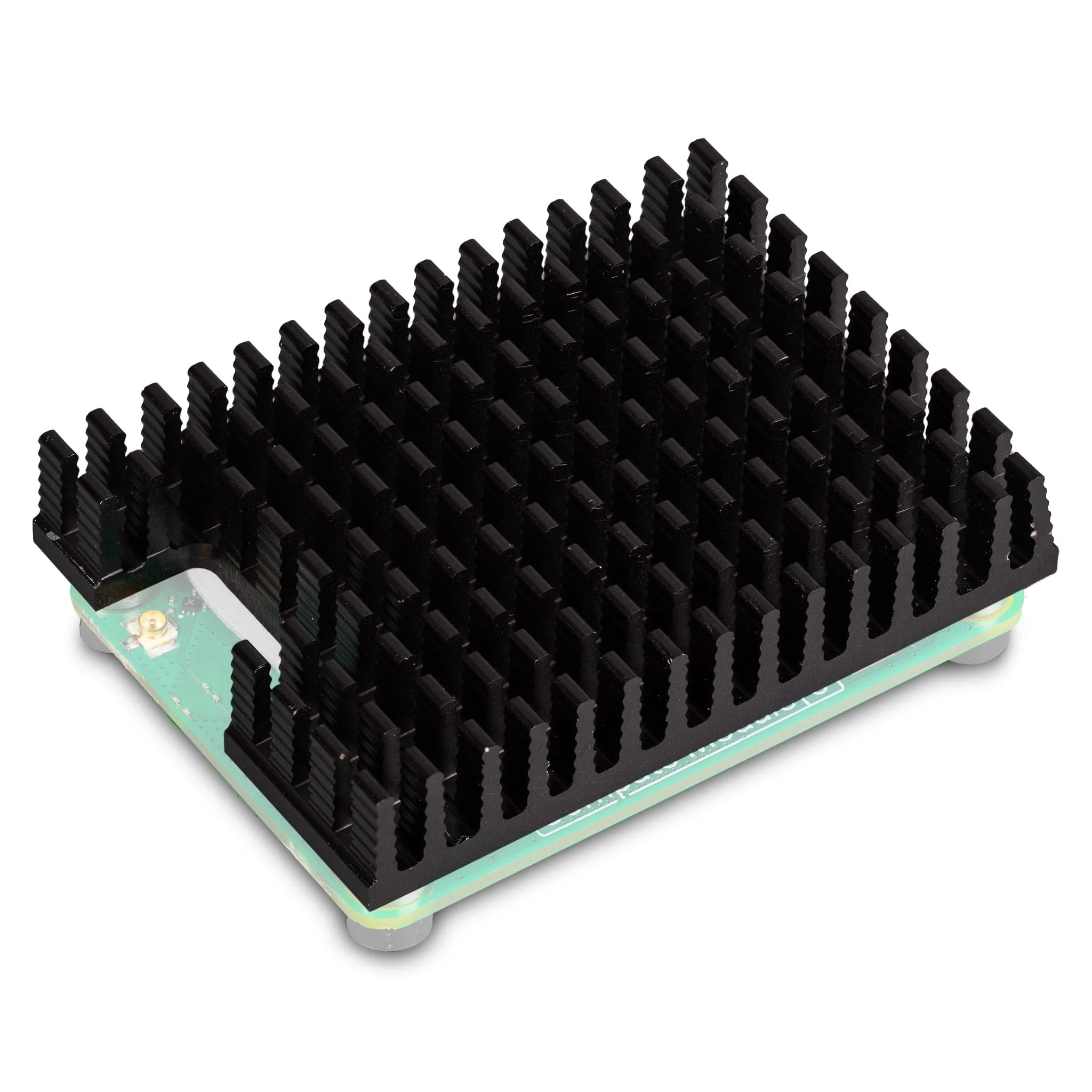

The Raspberry Pi Cooler for Raspberry Pi Compute Module 5 is a passive heatsink that helps Compute Module 5 dissipate heat, improving CPU performance, and protects it from mechanical damage.

Thermally conductive silicone on the underside of the Cooler effectively couples it to the surface of the Compute Module 5 CPU, wireless module, and power management chip for optimal heat dissipation.

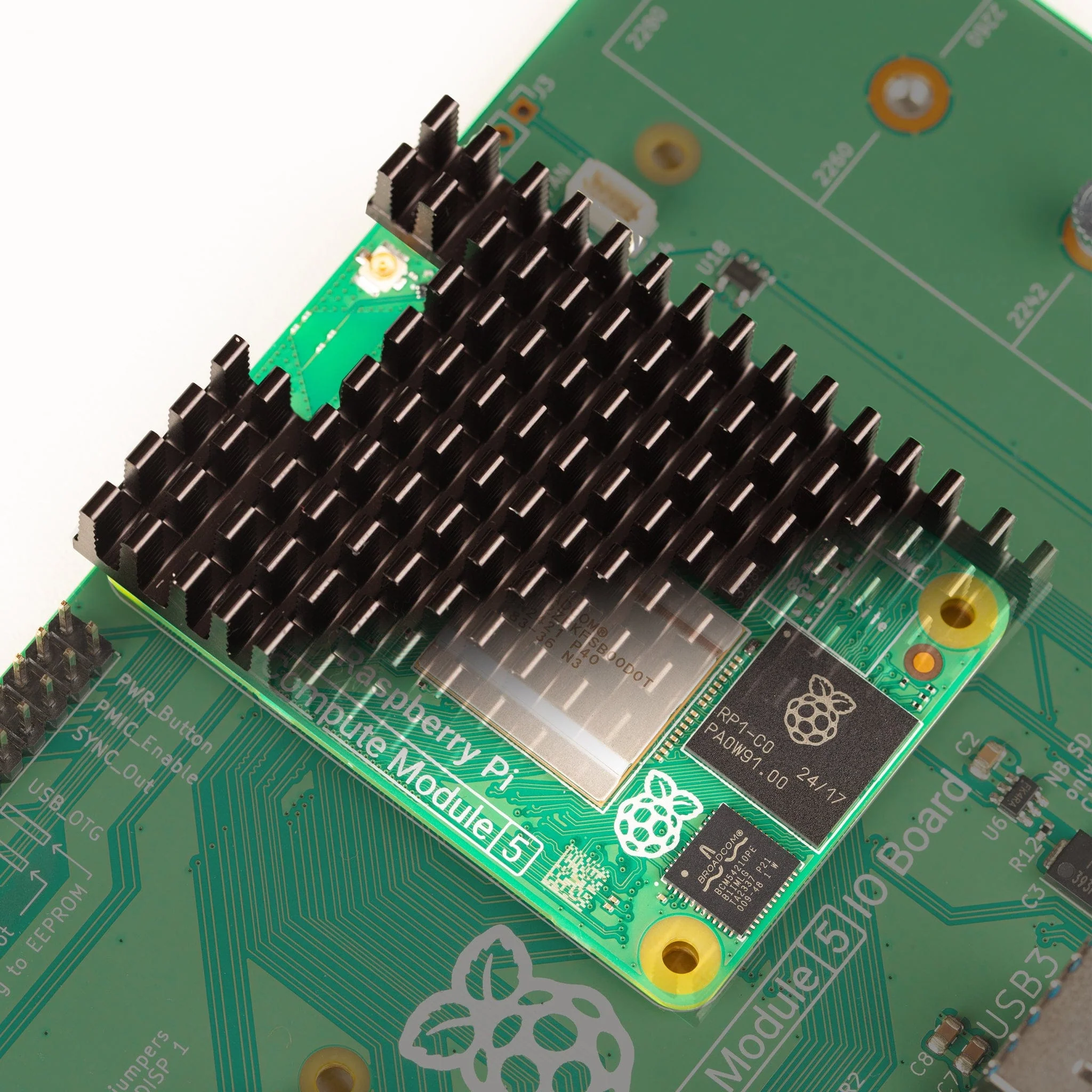

The Passive Cooler can be used when the CM5 is installed on a Raspberry Pi Compute Module 5 IO Board, and also fits inside the Raspberry Pi Compute Module 5 IO Case (the IO case fan needs to be removed to fit and use the cooler).

CM5 and IO board not included

Specifications

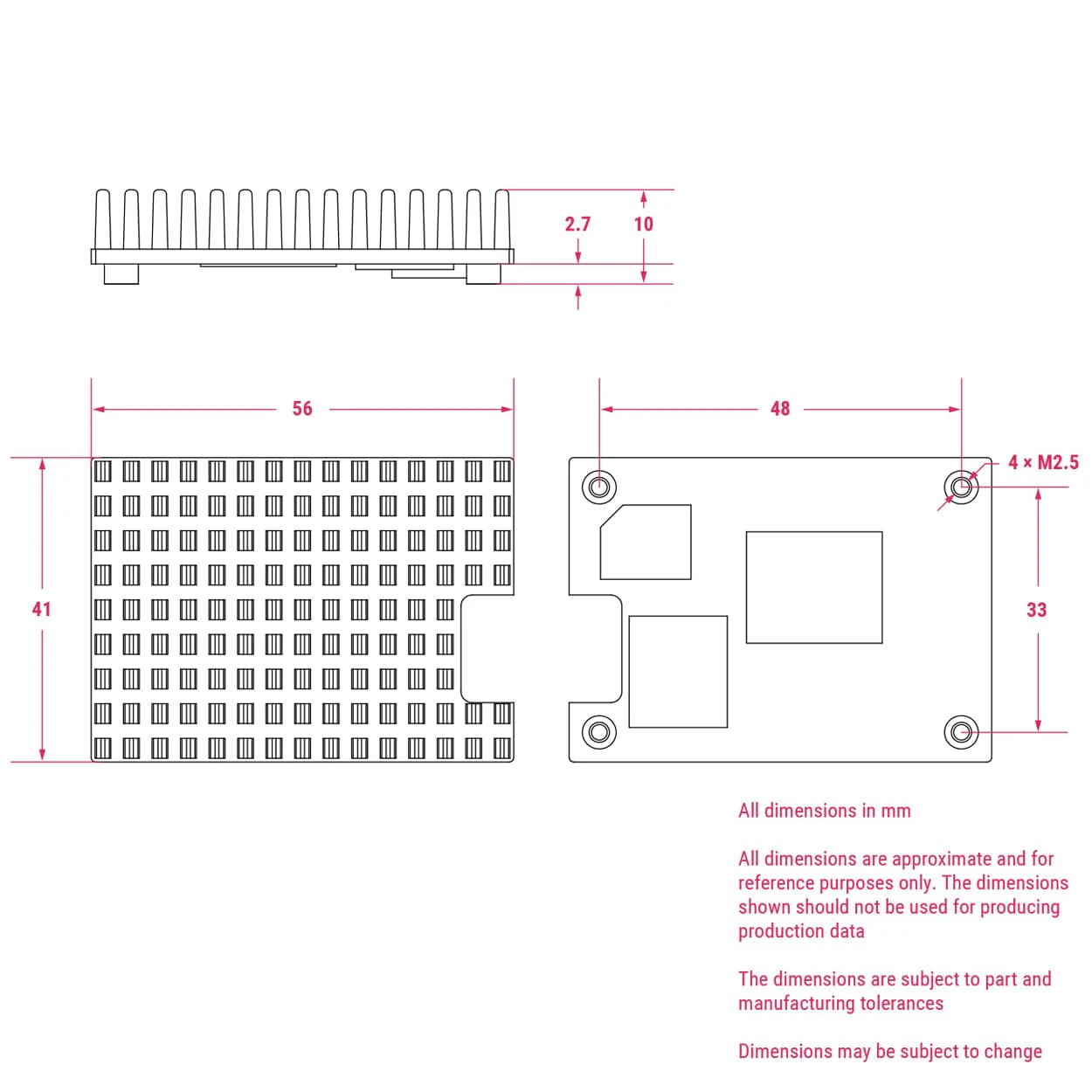

Form factor	56 mm × 41 mm × 12.7 mm
Product material	Aluminium profile, thermally conductive silicone
Production lifetime	The Raspberry Pi Cooler for Raspberry Pi Compute Module 5 will remain in production until at least January 2036
Compliance	For a full list of local and regional product approvals, please visit pip.raspberrypi.com

Resources

• Raspberry Pi Compute Module 5 Passive Cooler announcement
• Raspberry Pi Compute Module 5 Passive Cooler Product Brief

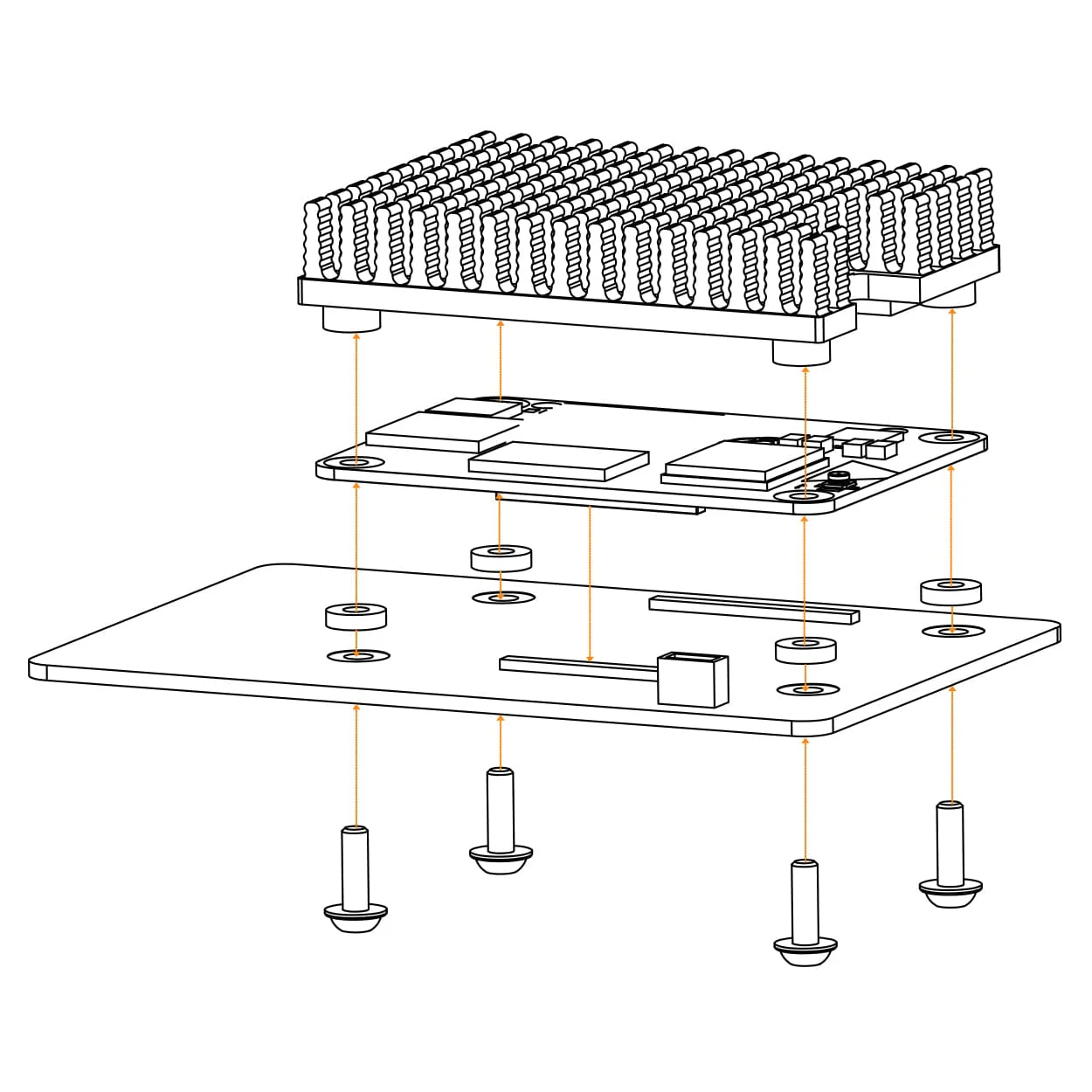

  • Includes assembly instructions

• Raspberry Pi Compute Module 5 Passive Cooler Documentation
• Product number: Raspberry Pi SC1752
• EAN: 5056561805283

Package Contents

• 1x Raspberry Pi Compute Module 5 Passive Cooler
  • Thermal silicone pre-fitted to the underside
• 4x M2.5 Nylon washers
• 4x M2.5 Screws

CM5 and IO board not included
