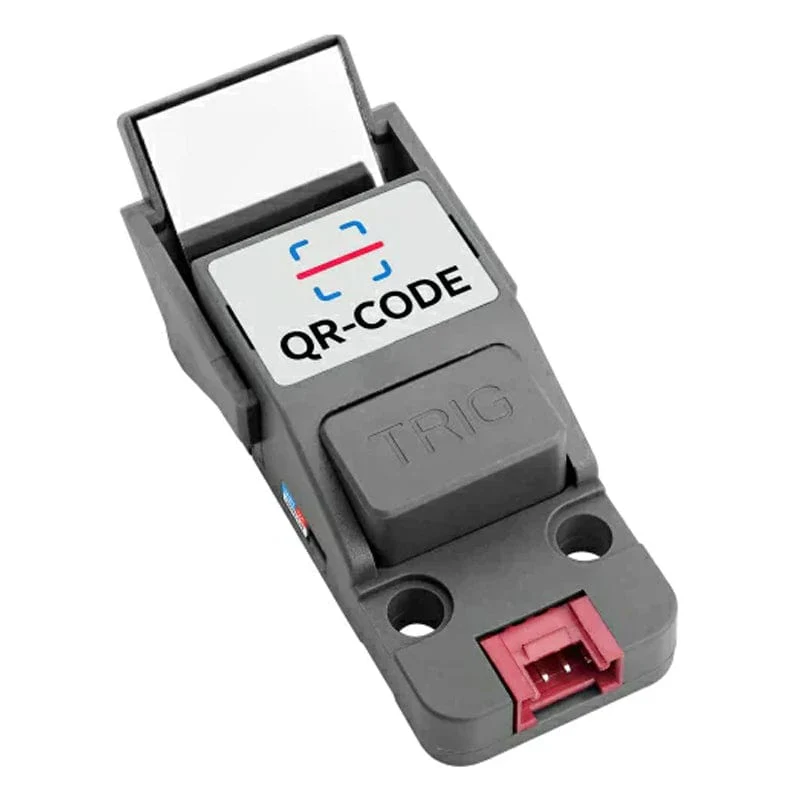

QR Code Scanner Unit (STM32F030)

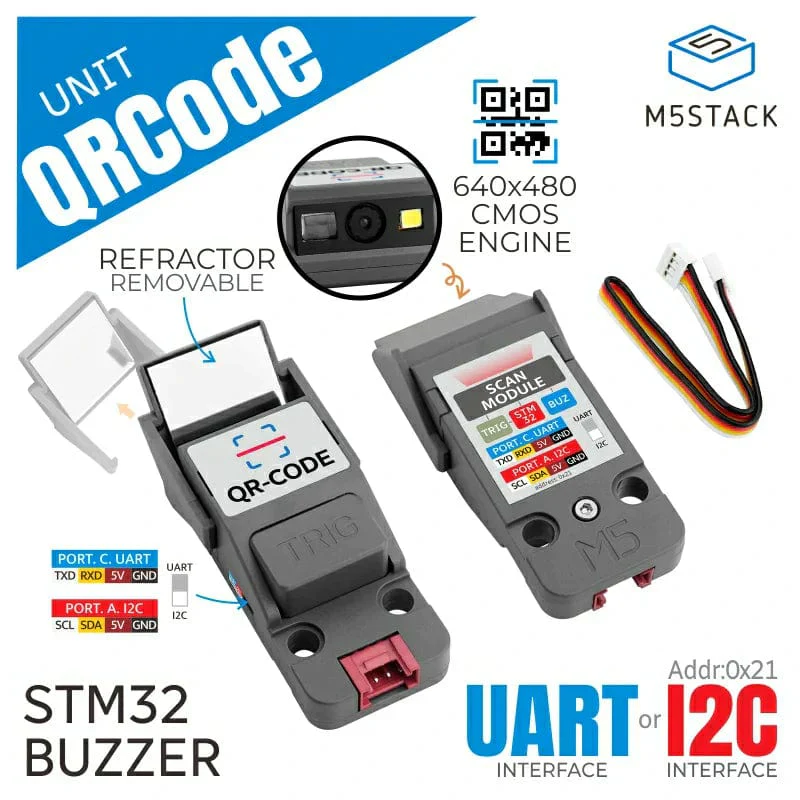

The QRCode Unit is a simple yet effective scanning device, combining a CMOS QR code capture engine with a 640 x 480 resolution and a bus conversion MCU (STM32F030). It includes a switch for alternating between I2C and UART communication interfaces.

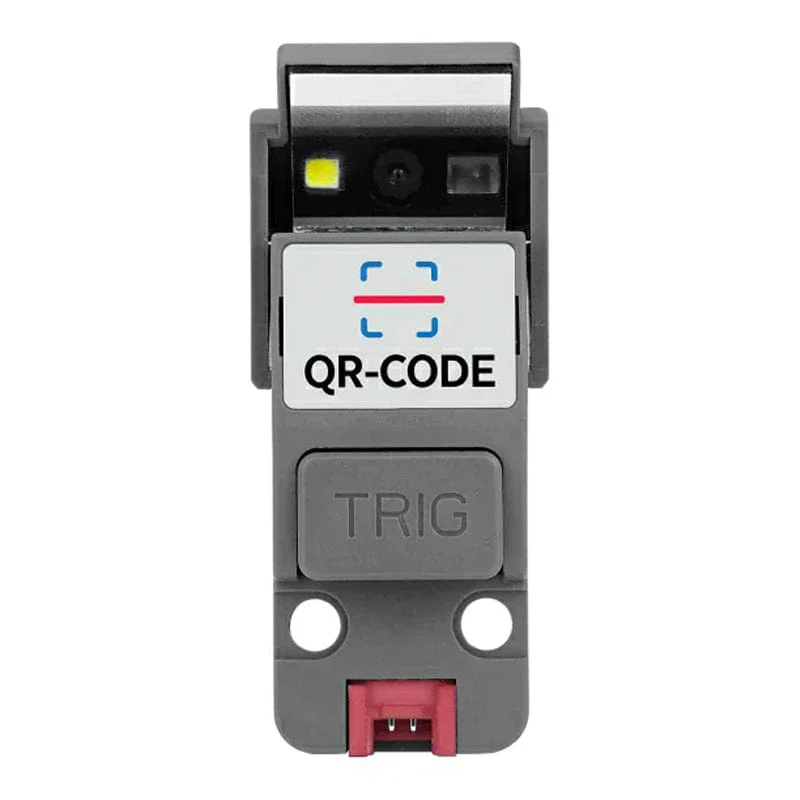

This unit can read three common types of QR codes and eight types of one-dimensional barcodes. It features a firmware upgrade interface for added convenience. It has a scan trigger button, a buzzer, and LED lights, which help in indicating different states and assist in scanning.
You can set up the unit to work in either an automatic continuous trigger mode or a manual trigger mode, based on their needs. It's a practical tool for areas like logistics, retail, and manufacturing, where barcode scanning is a regular activity.
Note: To switch to UART serial communication mode, ensure the device is powered off, and toggle the mode switch to the UART serial position. Then, press and hold the TRIG button for 2 seconds while powering on until the device completes startup to successfully switch to UART serial communication mode.
Features
- STM32F030F4P6@32 bit ARM Cortex-M0 processor
- Supports 3 types of two-dimensional code and 8 types of one-dimensional code
- Upgradable firmware

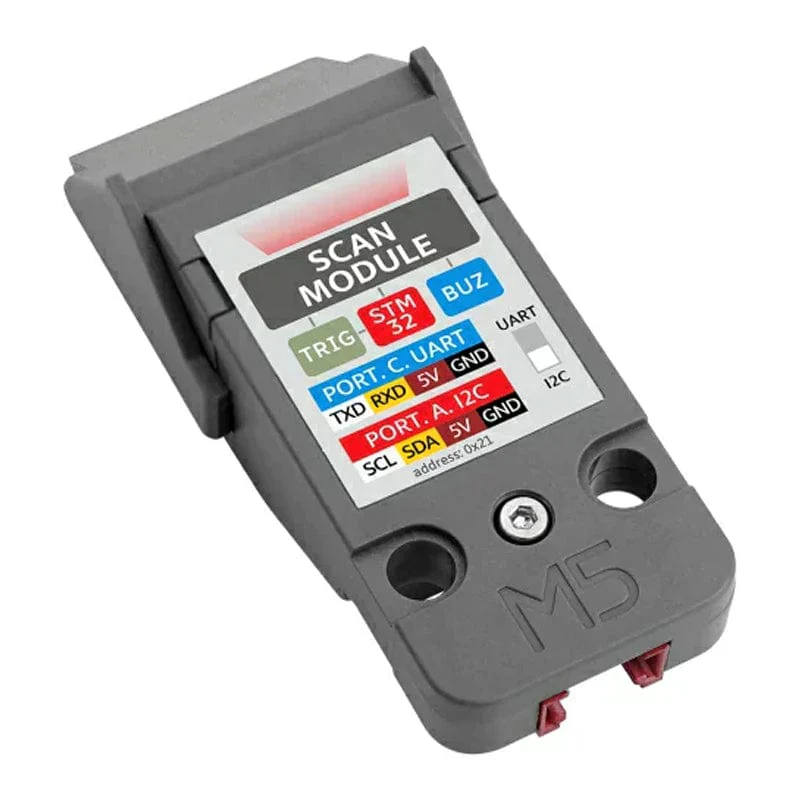

- Built-in I2C and UART communication interface switch
- Built-in buzzer sound prompts
- Built-in lighting LED
- High-resolution imaging
- Focusing and aiming functions
Specifications
| MCU | STM32F030F4P6@32 bit ARM Cortex-M0 processor |

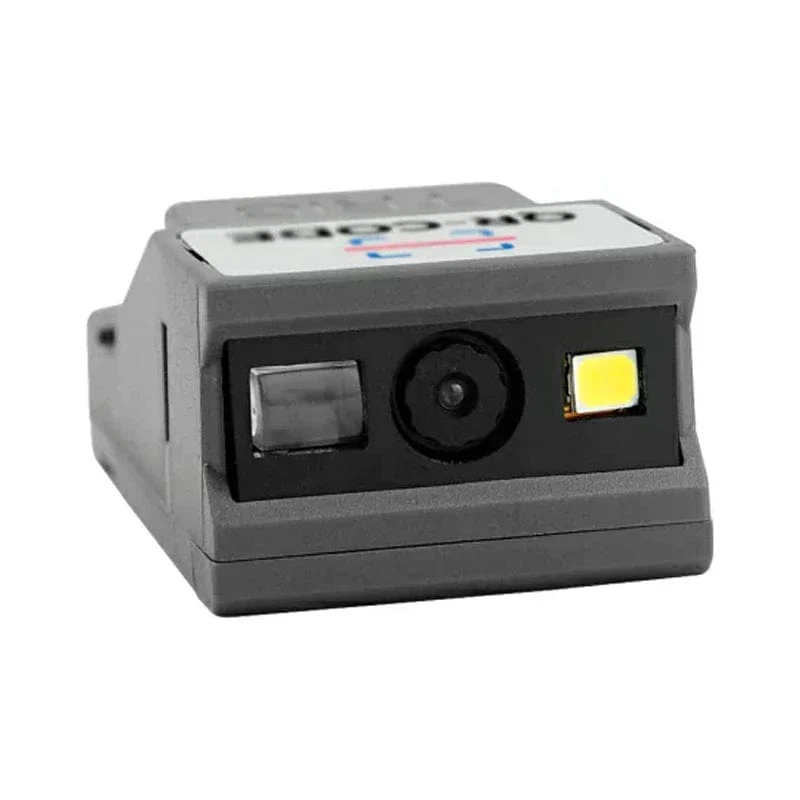

| Sensor | 640 x 480 CMOS |
| Illumination | White LED |
| Focusing and Aiming | Green led |
| Read the type of QR code | PDF417, QR Code, Data Matrix |
| Read one-dimensional code types | Code39, Code93, Code 128, EAN-13, EAN-8, UPC-A, UPC-E, Interleaved 2 of 5 |
| Recognition reading accuracy | ā„5mil |
| Print contrast | ā„ 20% |
| Scanning angle | Elevation Ā±55Ā°, declination Ā±55Ā° (plus refractor lens, can change the scanning Angle) |
| Communication Interface | I2c serial communication (0x21) |
| Shell Material | Plastic (PC) |

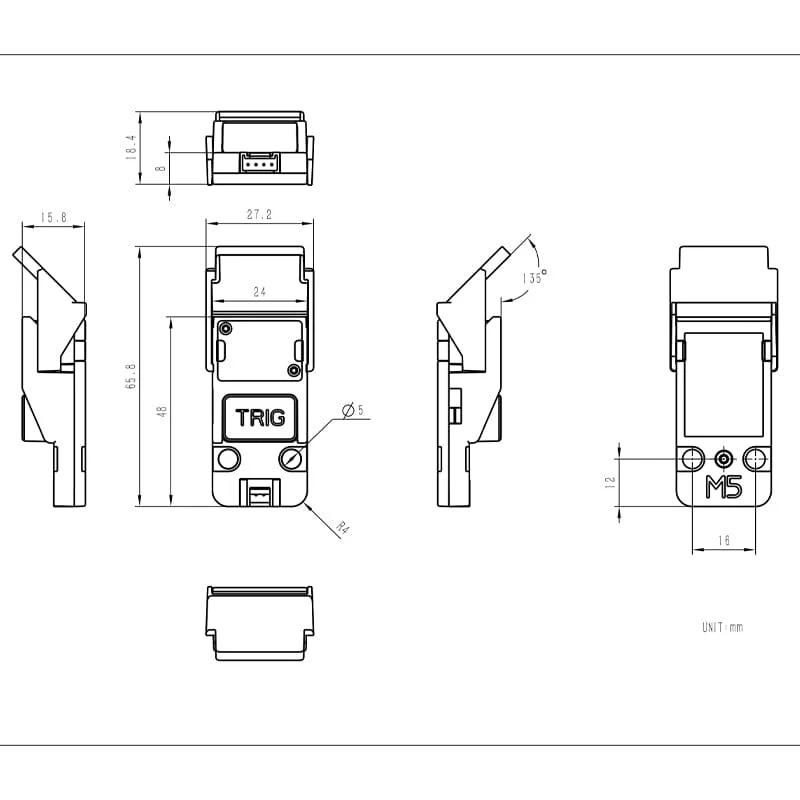

| Product Size | 65.8 x 18.4 x 15.8mm |
| Package Size | 136 x 92 x 16mm |
| Product Weight | 14g |
| Package Weight | 19.4g |
Resources
- Product Wiki
Package Contents
- 1x QRCode Unit
- 1x HY2.0-4P Cable (20cm)
