M5Stack Proto Pegboard Module - 13.2

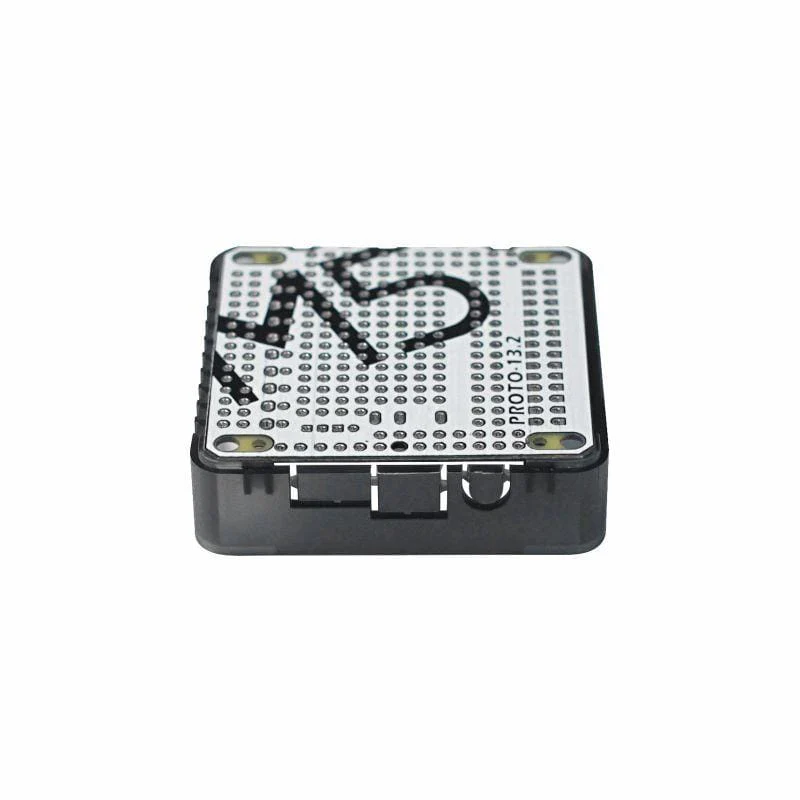

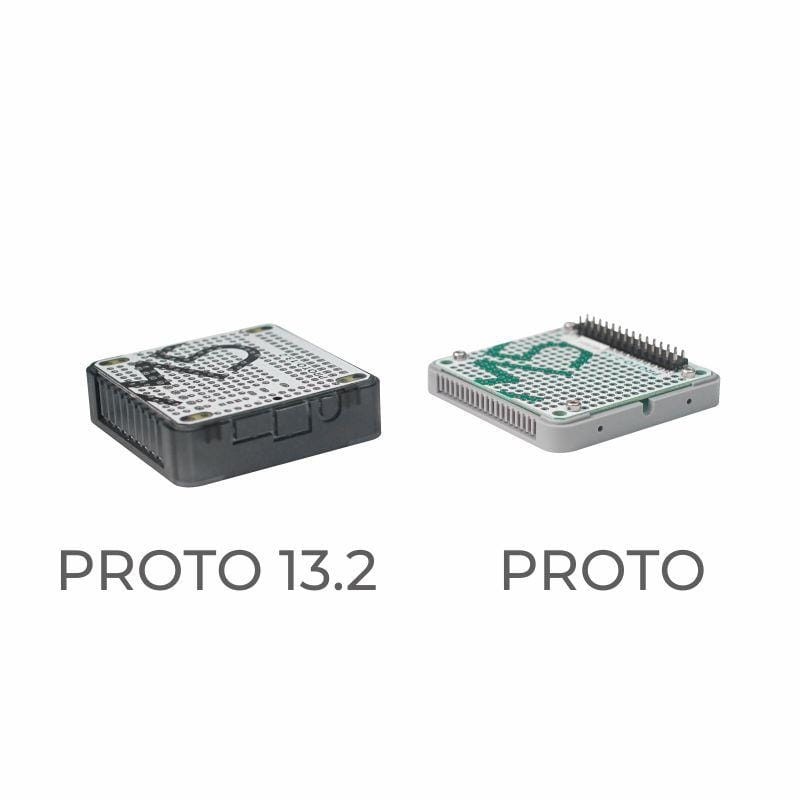

This Proto Pegboard 13.2 is a universal DIY proto module in the m5stack stack module series with a height of 13.2mm. You can design and build the prototype circuit to suit your needs, and interact with the M5Core on the top layer through the M-BUS. There is a HY2.0 4P, DC power socket, VH3.96 and other common openings on the board, so it is easy to use.

Features

• Main Hole Size: 0.039" 1mm (CNC Drilled)
• Hole Pitch: 0.1" - (2.54 mm)
• Entire Hole Quantity: 169 Holes

Package Contents

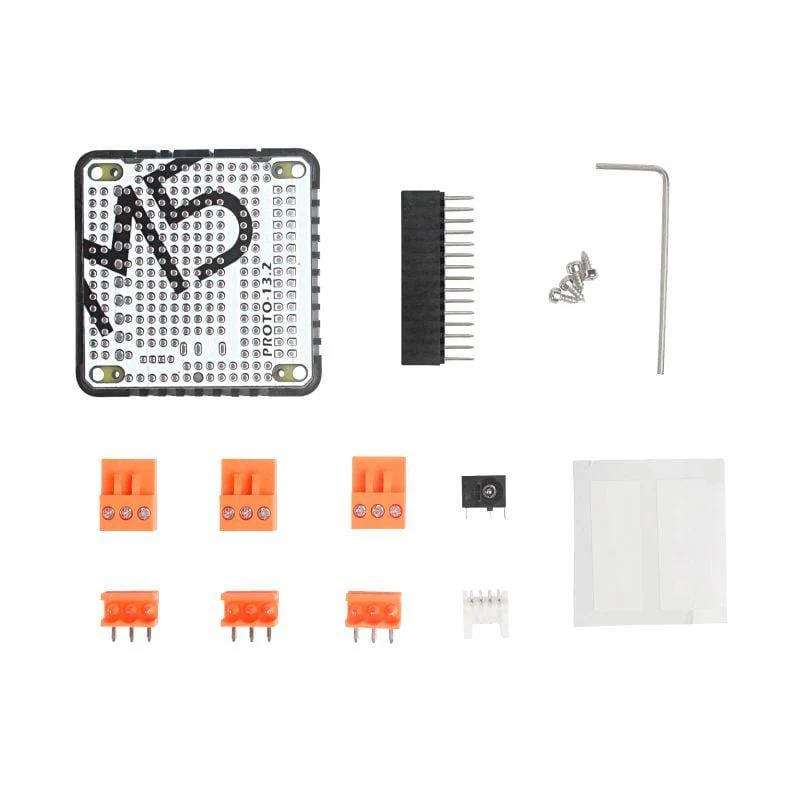

• 1x Proto 13.2 board
• 1x M-bus
• 3x VH-3.96 3P Plug & Plug Base
• 1x HY-2.0 4P Plug Base
• 1x DC 5V Power outlet
• 4x M2*5mm Hexagon self tapping screw
• 1x M2 Hex Key
• 1x Sticker

Specifications

Resources	Parameter
Net weight	24g
Gross weight	49g
Product Size	54.2 x 54.2 x 13.2mm
Package Size	93 x 64 x 20mm
