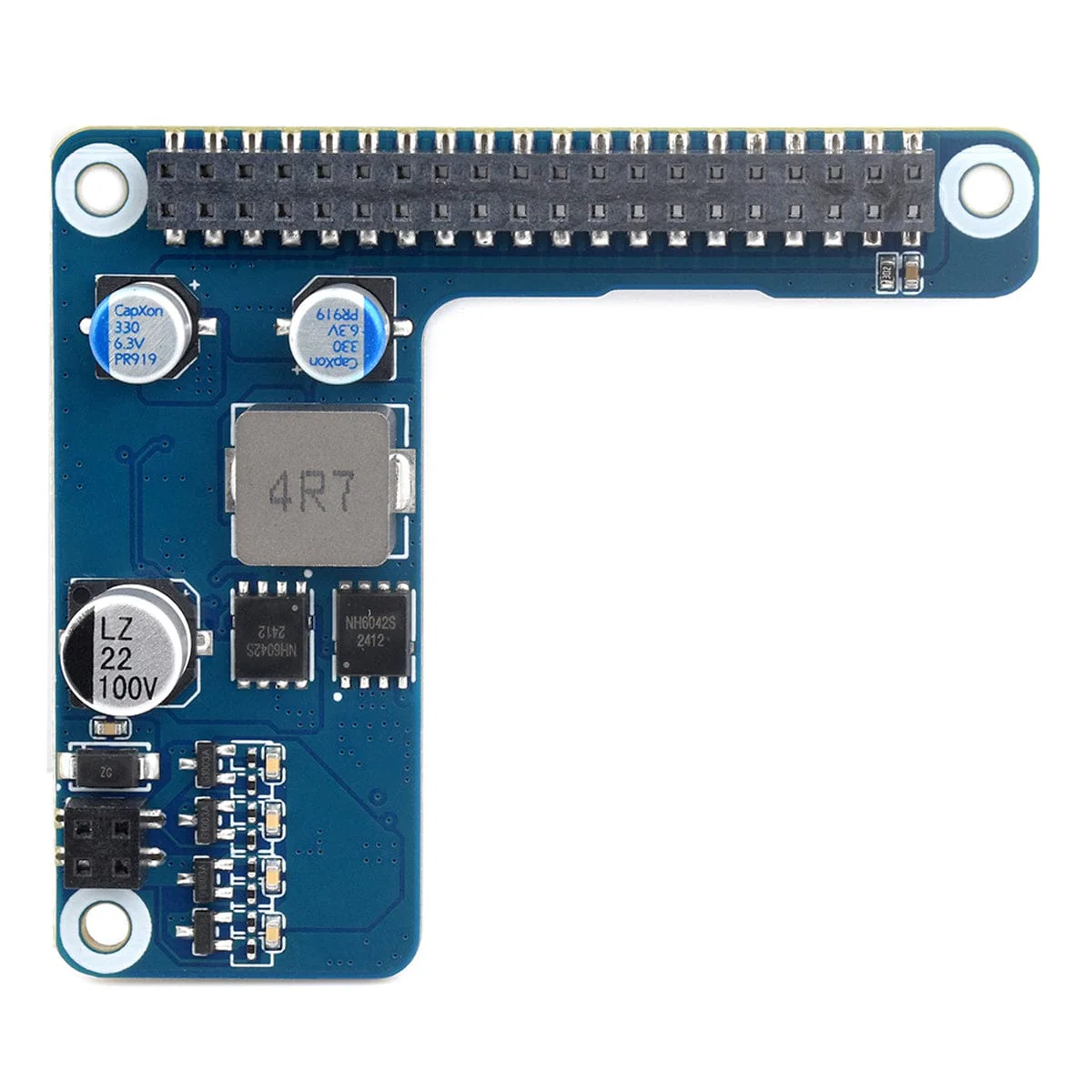

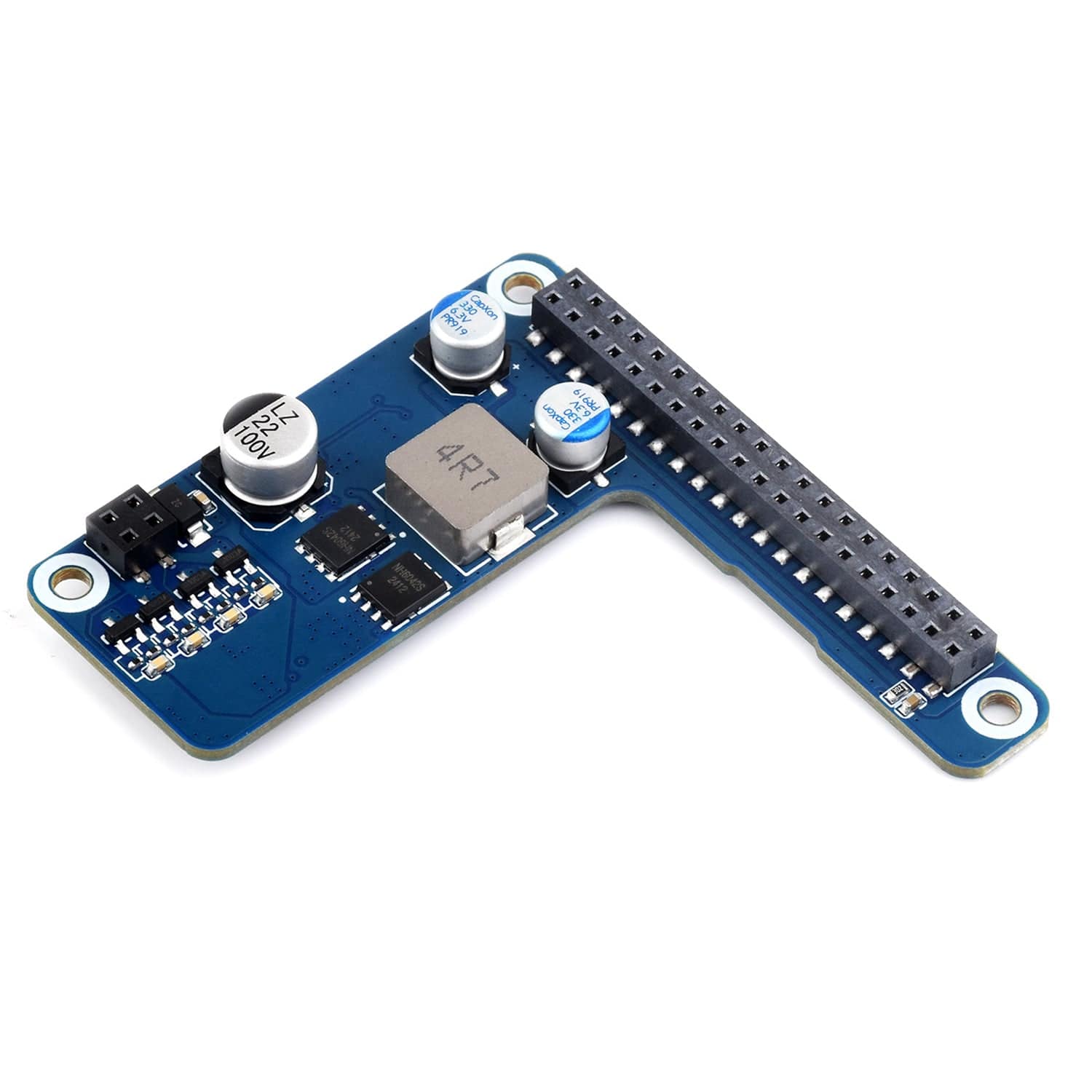

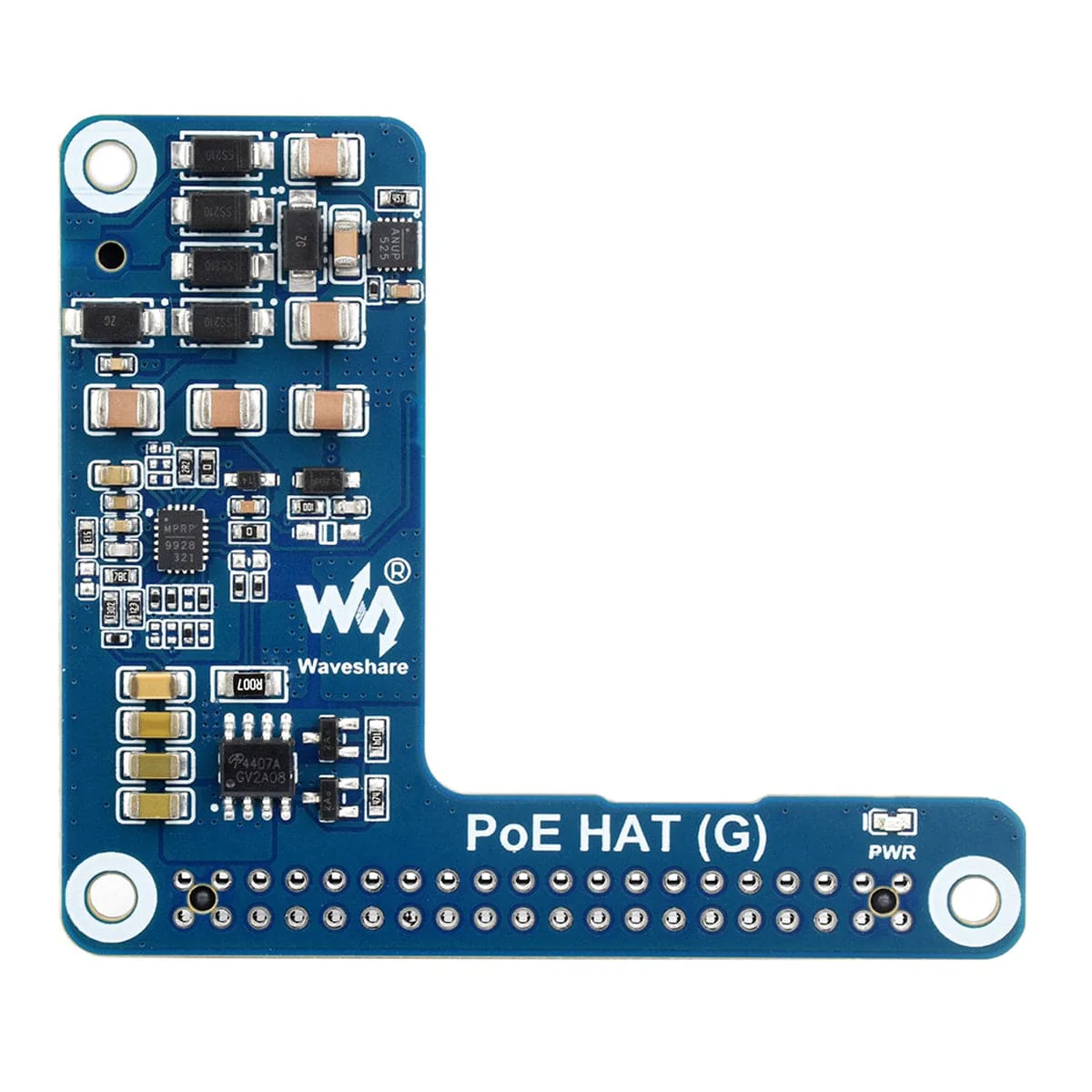

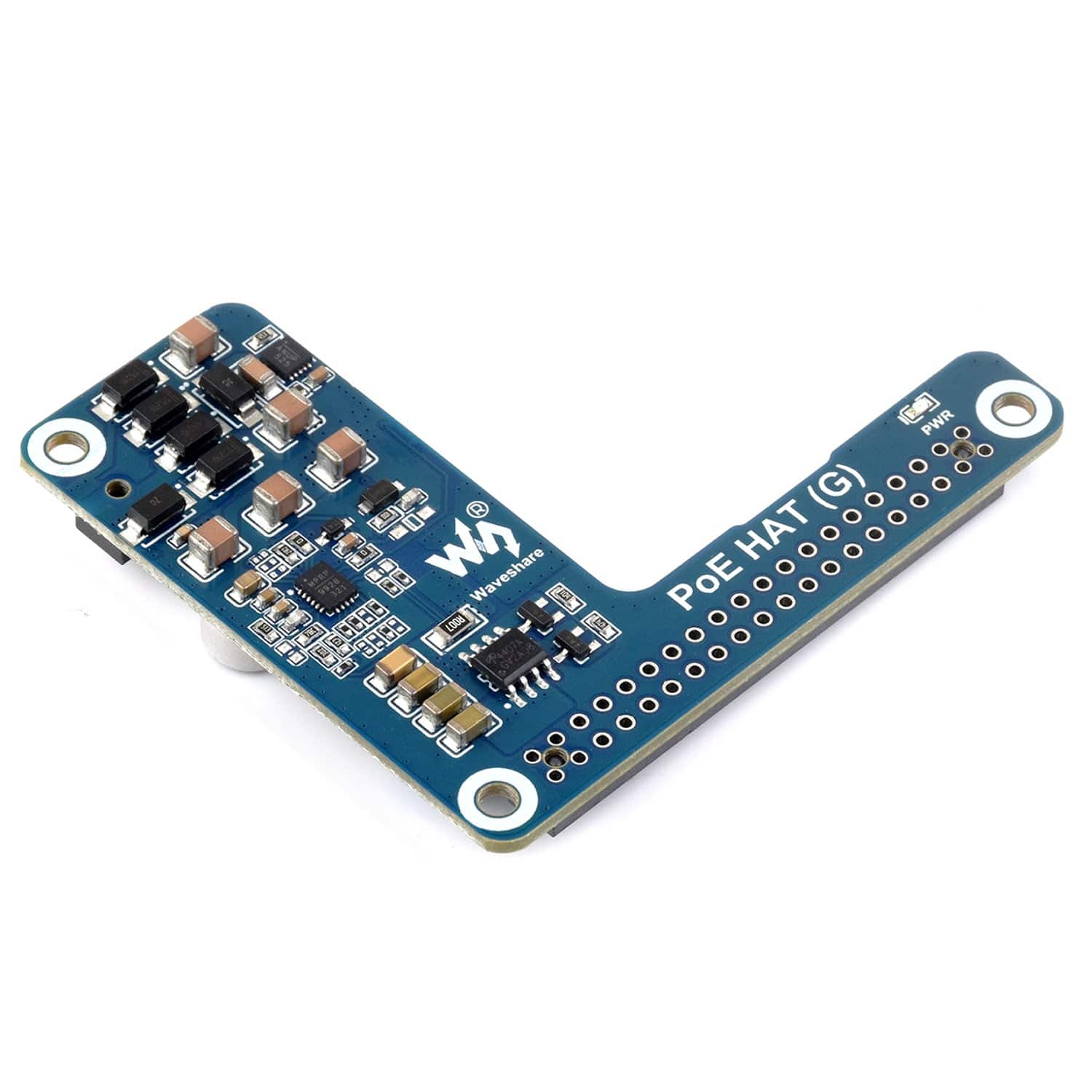

PoE HAT (G) for Raspberry Pi 5

The Waveshare Power Over Ethernet HAT (G) for Raspberry Pi 5 is a compact, minimal PoE HAT solution to power your Pi 5 using compatible (802.3af/at) PoE equipment whilst also providing a stable network connection.

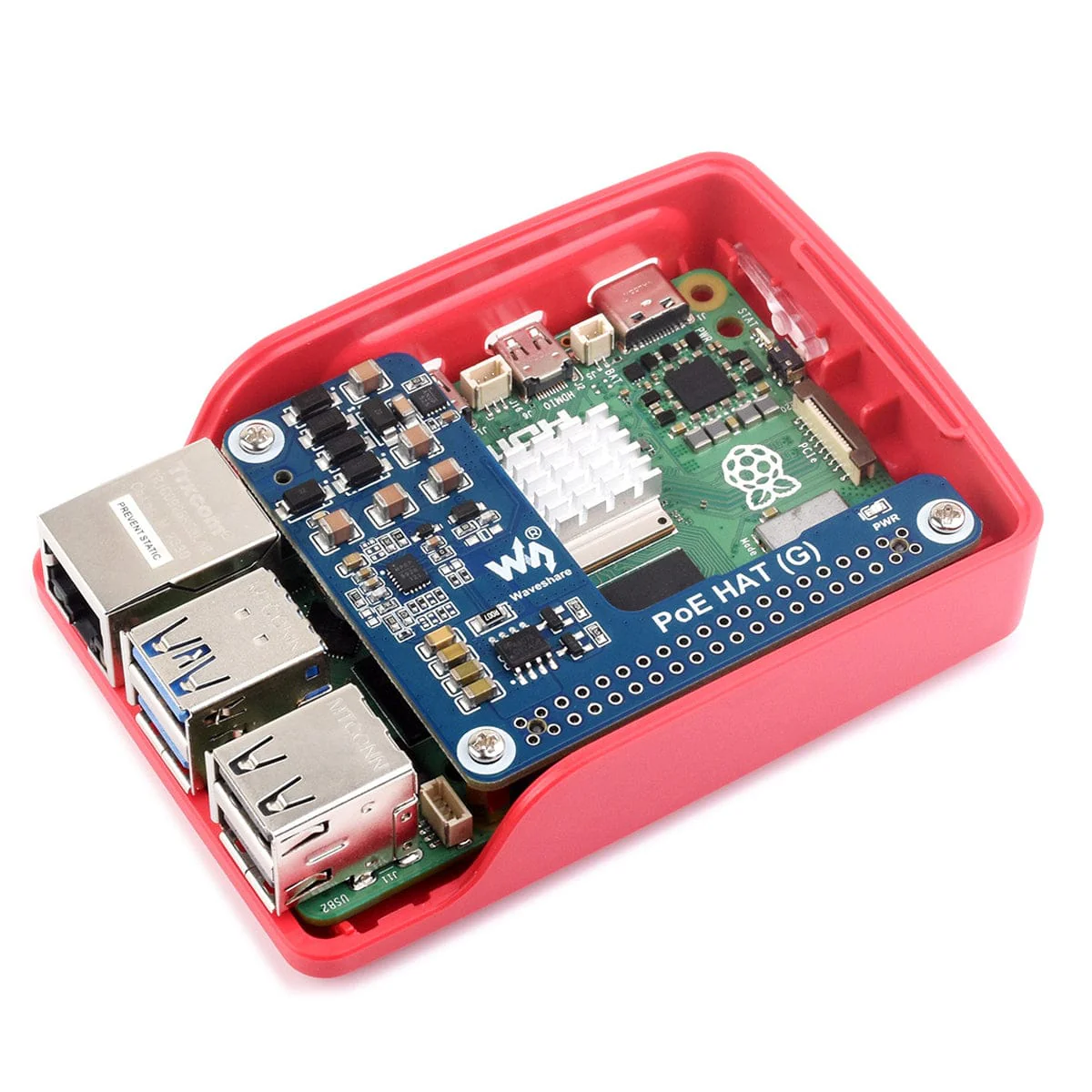

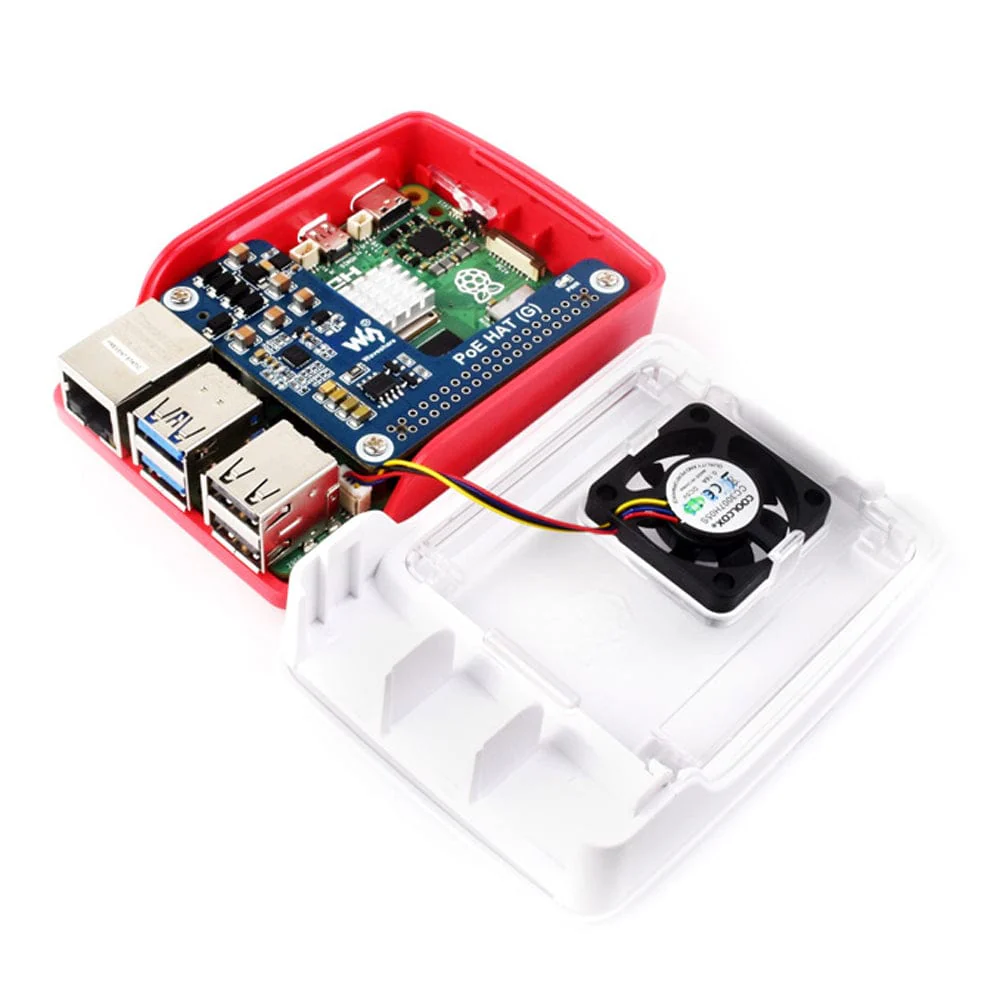

This PoE board for Raspberry Pi 5 offers 5V 5A output (max). It is compatible with the Official Raspberry Pi 5 Case, compact enough to sit within the enclosure whilst providing PoE functionality alongside the built-in case fan.

Compatible with the Raspberry Pi PoE+ Injector.

We also offer the 'F' variant, which includes a 12V output and onboard cooling fan.

Raspberry Pi 5 and case not included

Features

• Compact PoE HAT for Raspberry Pi 5
• Compatible with Raspberry Pi 5 only
• Standard Raspberry Pi 40-pin GPIO header
• IEEE 802.3af/at-compliant
  • Compatible with the Raspberry Pi PoE+ Injector
• Onboard original IC solution for more stable PoE power performance
• Adopts non-isolated switched-mode power supply (SMPS)
• Compact and easy to assemble

Specifications

PoE Power Input	38V ~ 57V DC in
Power Output	GPIO header: 5V 5A (MAX)

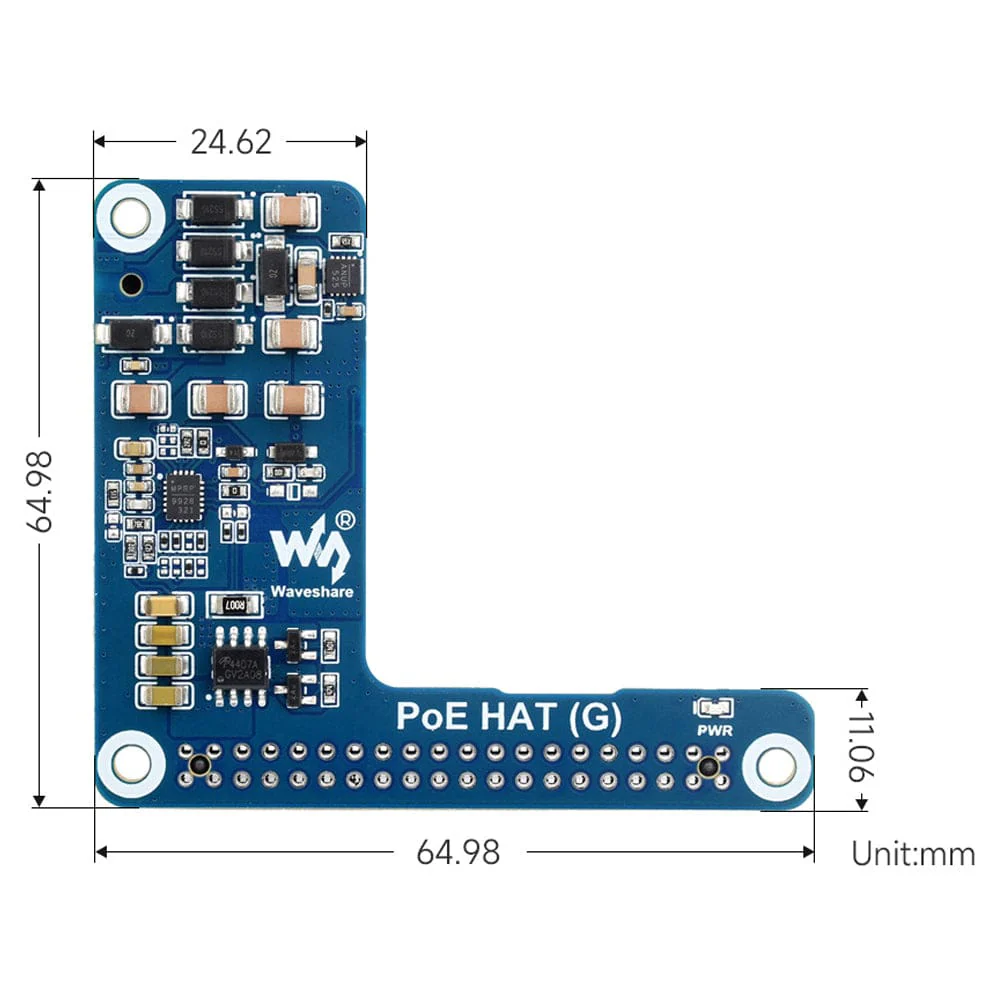

Dimensions	56.5 × 64.98mm
Network Standard	IEEE 802.3af/at PoE

Resources

• Product Wiki
• 3D Drawing

Package Contents

• 1x PoE HAT (G) for Raspberry Pi 5
• 1x Standoff/Fixing pack

Raspberry Pi 5 and case not included
