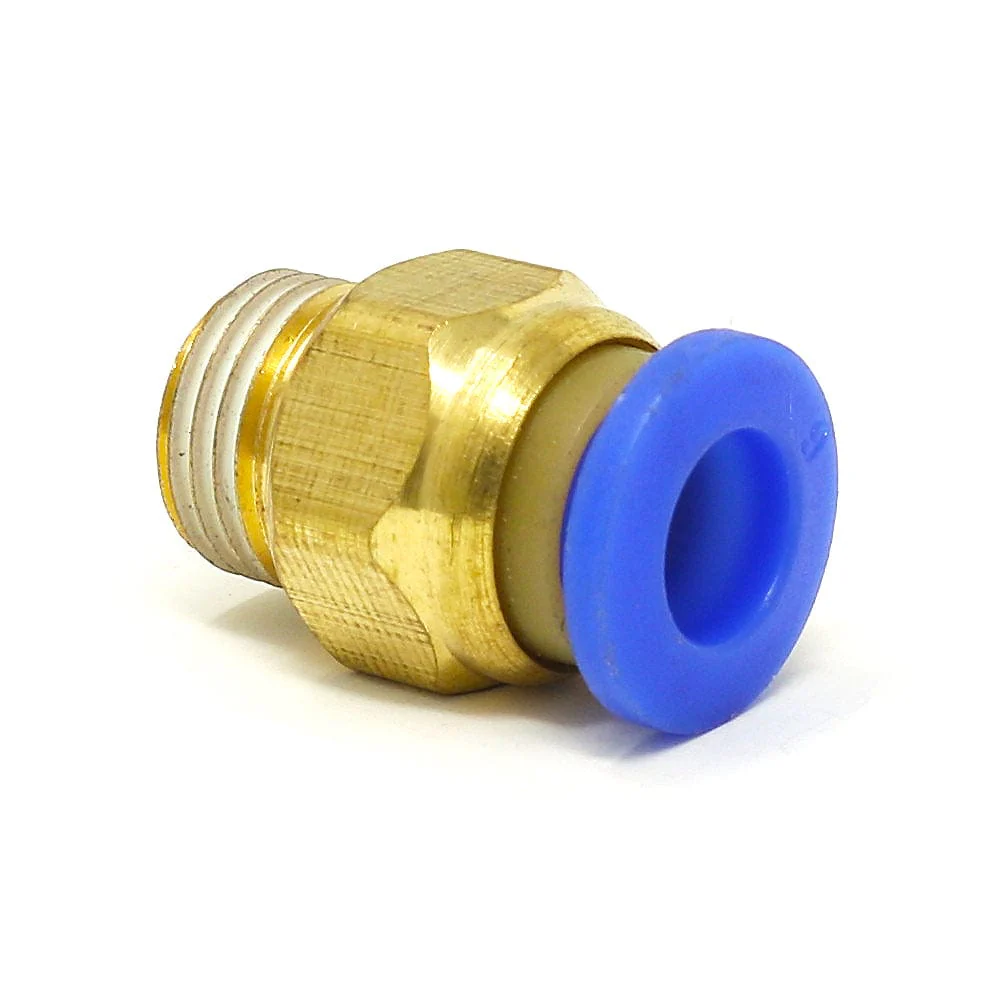

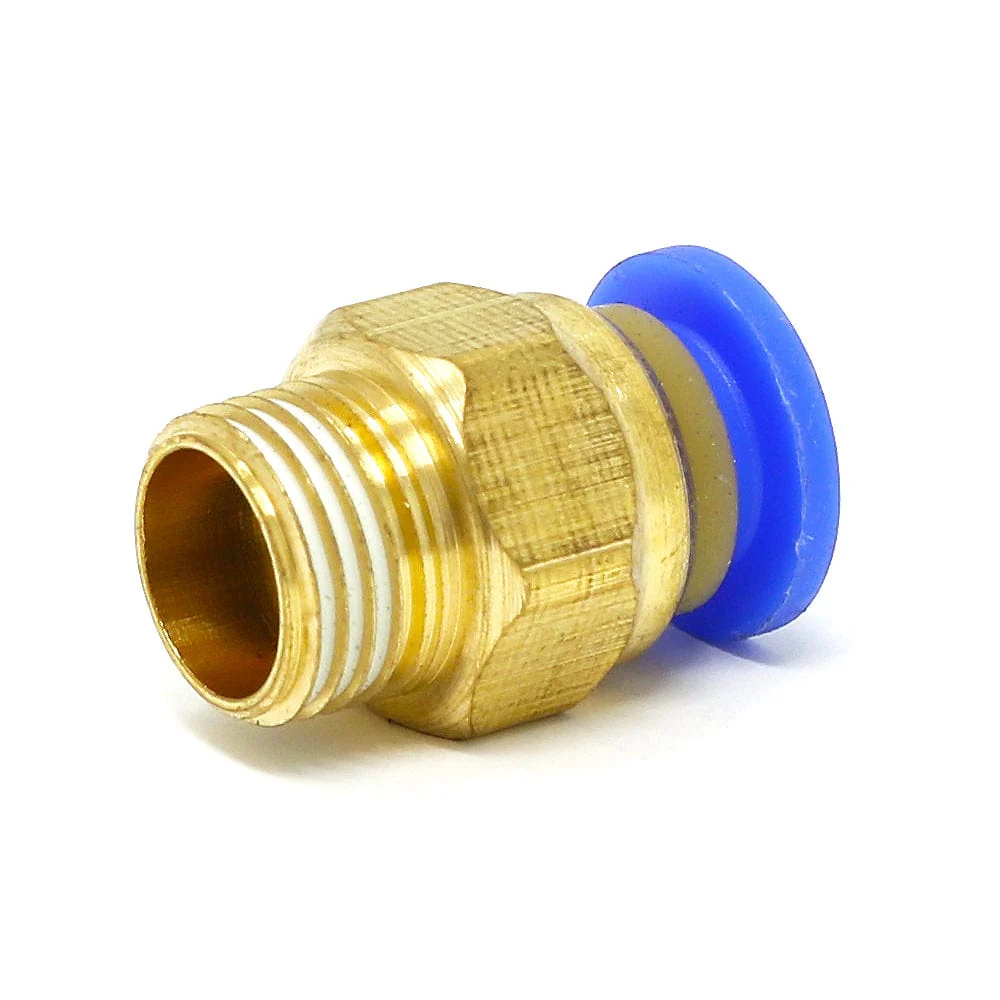

PC6-01 Pneumatic Connectors (5-pack)

Pneumatic connectors are commonly used with 3D printers to connect Bowden tubes to extruders and hot ends, providing a reliable, strong fitting with little to no movement of the tube once fitted.

This is a pack of five PC6-01 pneumatic connectors which accept non-traditional larger Bowden tubes with a 6mm outer dimension (6mm OD) and 4mm inner dimension (4mm ID).

We sell a number of other styles of pneumatic connectors - take a look in our 3D printing section for more!

Specifications

• Type: PC6-01
• Thread OD: 9.6mm
• Height: 18.5mm
• Nut OD: 12mm
• Thread length: ~5.6mm
• Input diameter (thread end): 7.3mm
• Compatible PTFE: 6mm OD / 4mm ID
• Weight (per connector): 5.7g

Package Contents

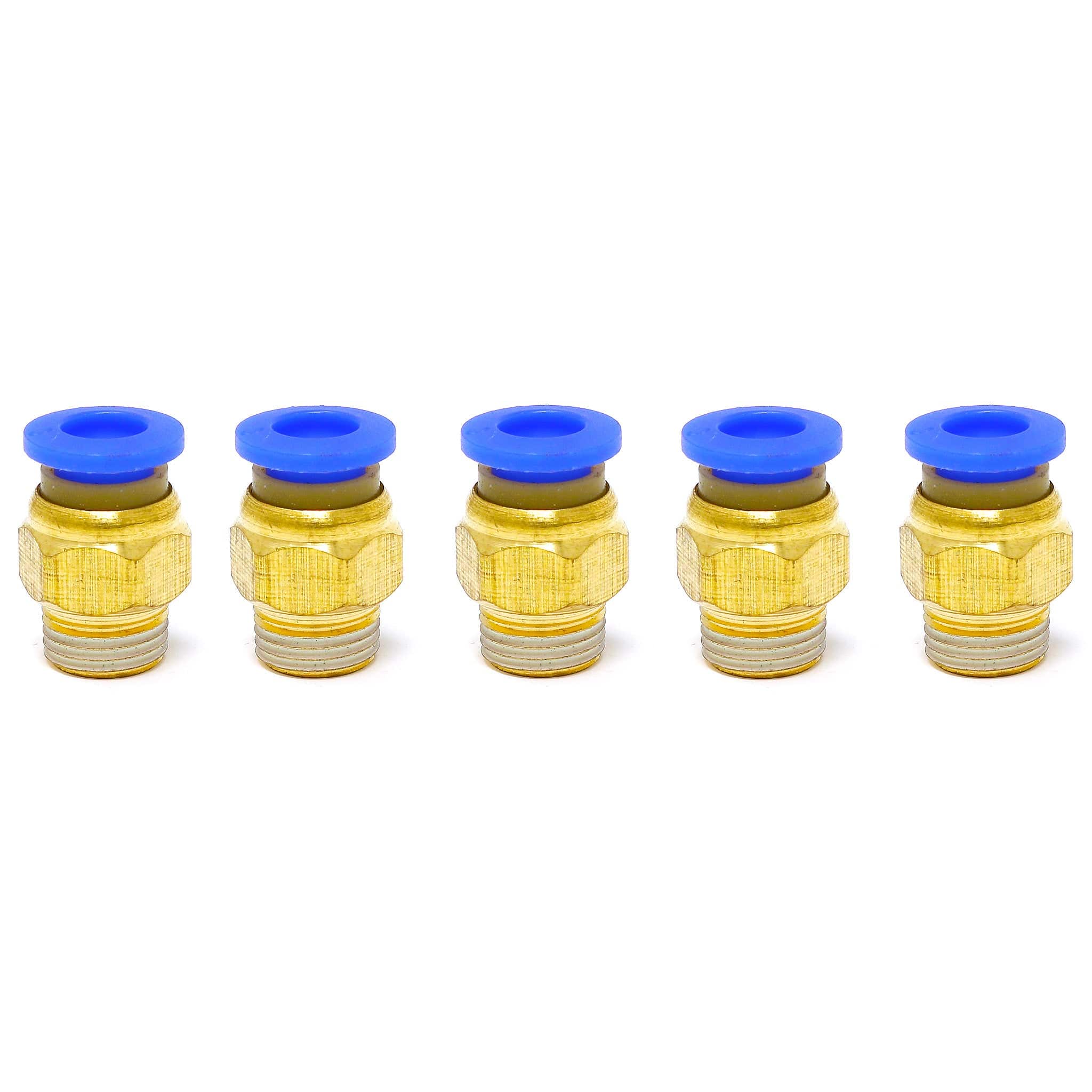

• 5x PC6-01 pneumatic connectors
