Panel Mount Extension USB Cable - Micro-USB Male to Female

This panel mount Micro-USB cable will allow you to enclose a Micro-USB device into an enclosure with a secure, robust and clean finish.

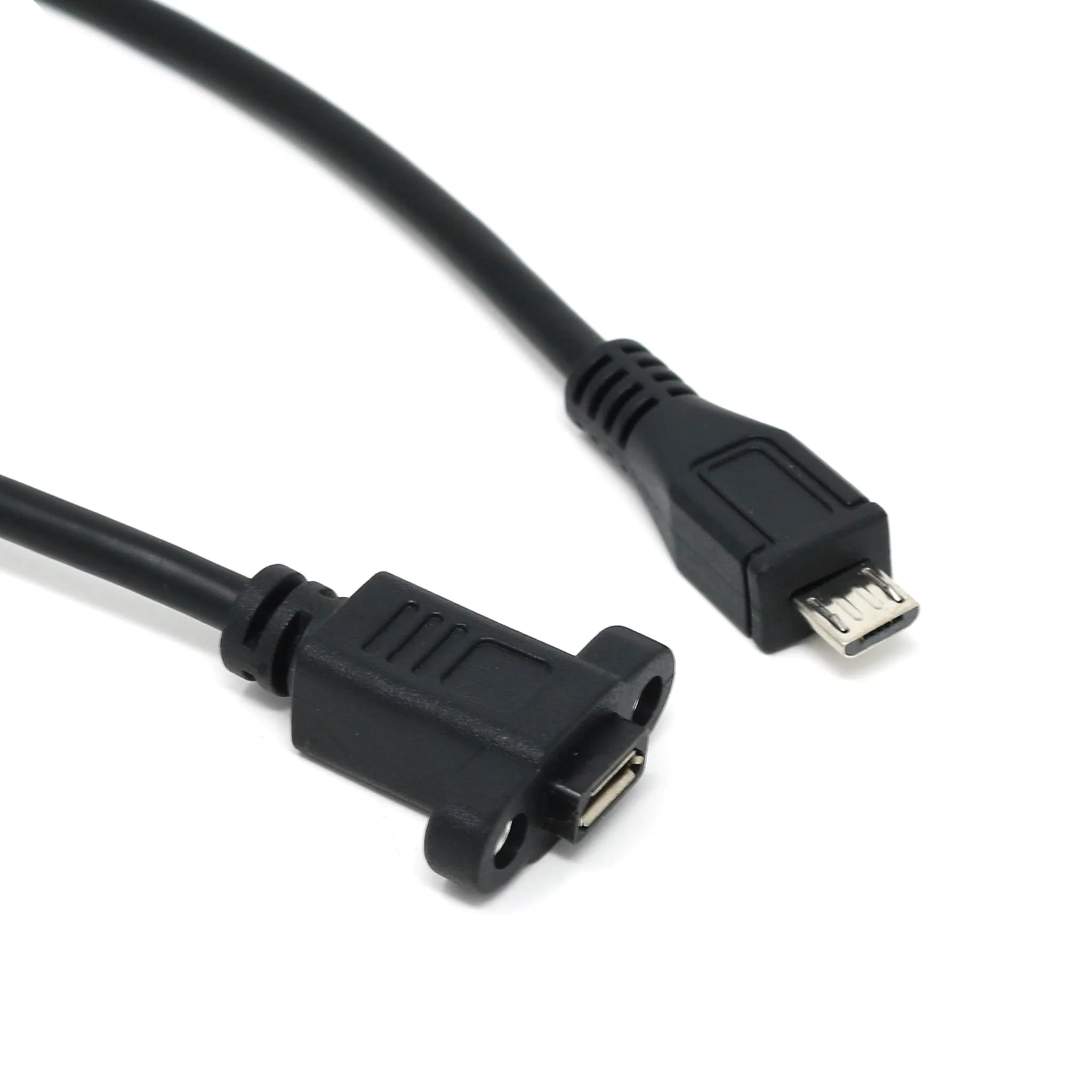

The cable features a female panel mount section with two mounting holes (18mm apart) and a male Micro-USB plug on the other end. The cable comes with two ~15mm M3 screws ready to mount the cable to your enclosure.

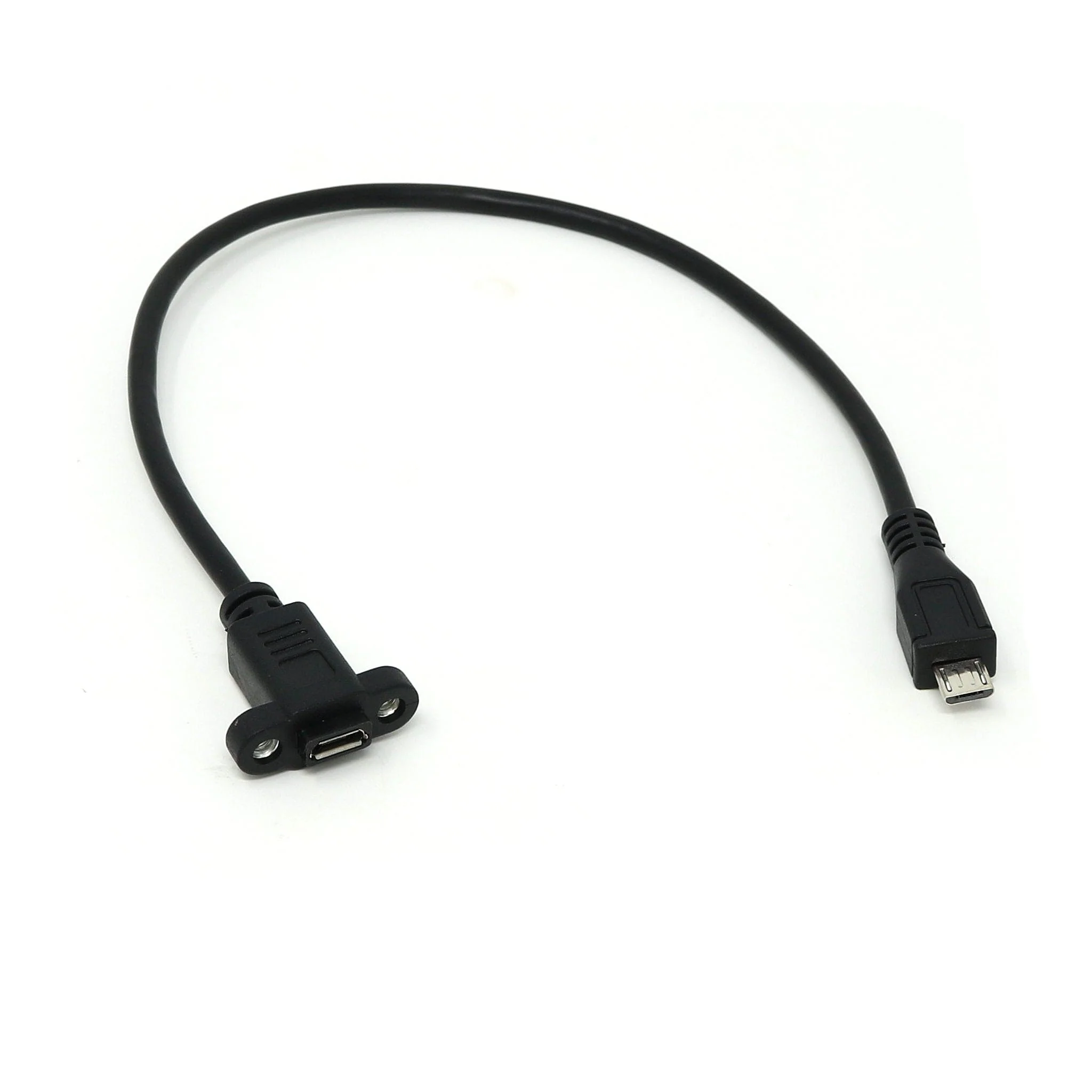

The entire cable is ~30cm long.

Specifications

• USD version: USB 2.0
• Approximate dimensions: 300mm x 25mm x 10mm

• Weight: 16.2g

Resources

• Datasheet
