On-Off-On-Off Alternating Power/Push Button 3-Way Toggle Switch
This toggle switch isn't the standard ON/OFF type - oh no my friend, this one has THREE ways! Click once to turn one side on, click again to turn it off, then click again to turn the other side on.
Each click connects/disconnects the central pin from each side, making it superb for a more advanced power switch or a mode toggler for your projects.
It's breadboard-friendly (almost -Â you may need to bend the legs slightly as they aren't a perfect 2.54mm pitch) and can handle up to ~500mA at 12V. It's also ideal for use on your own PCB projects.

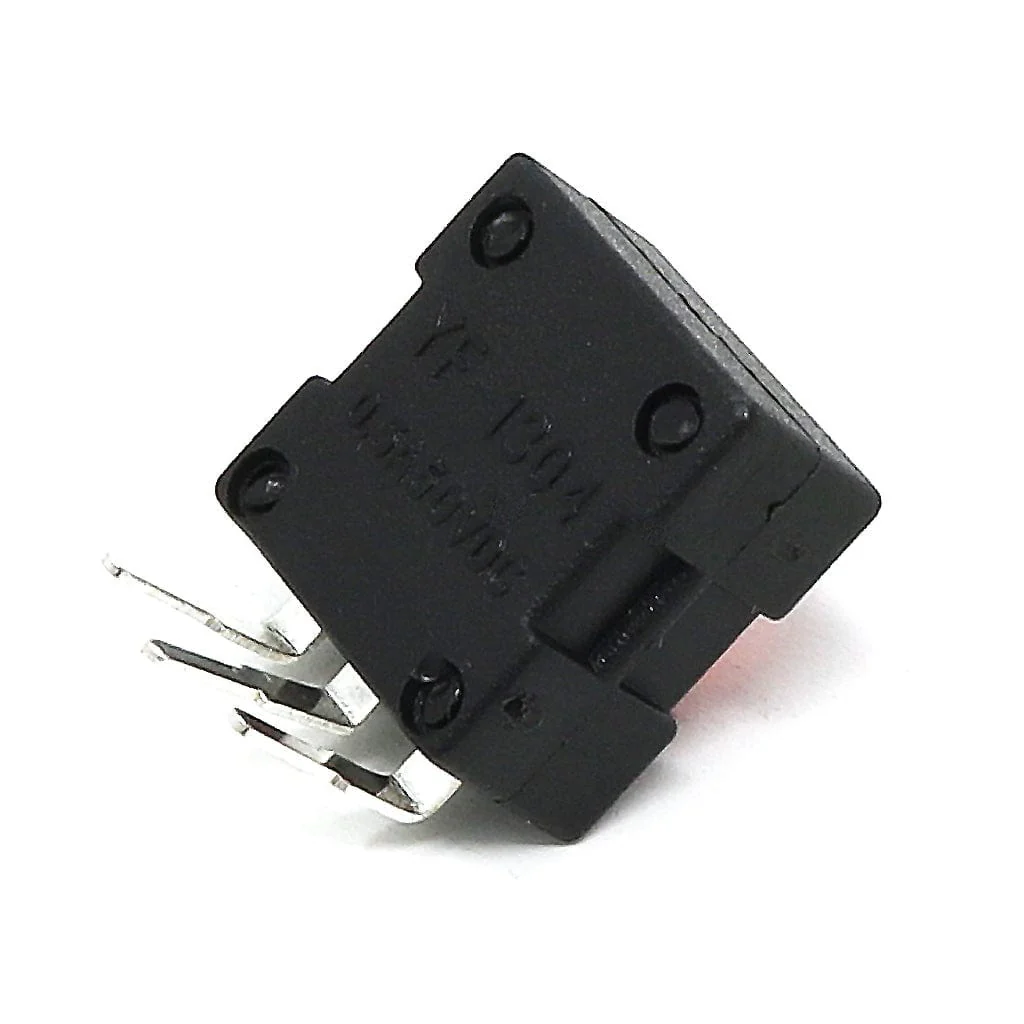

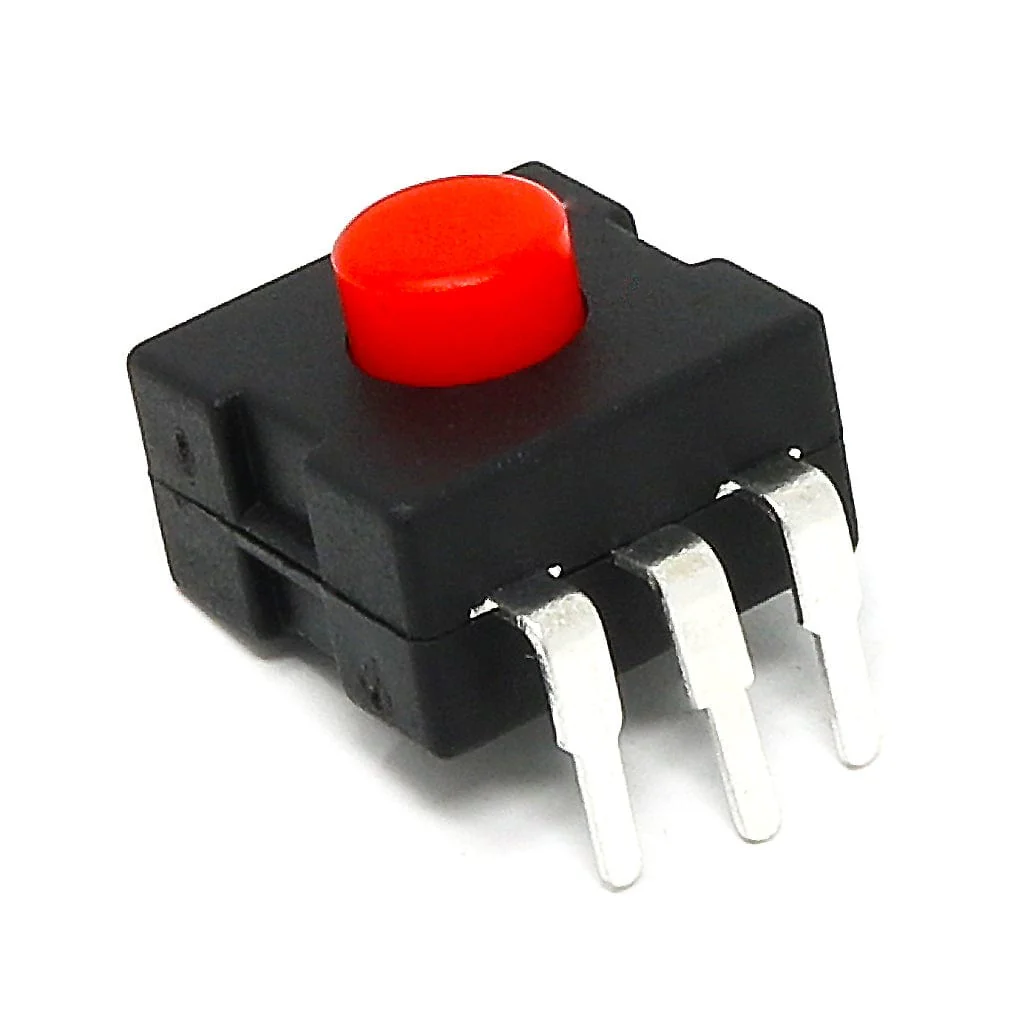

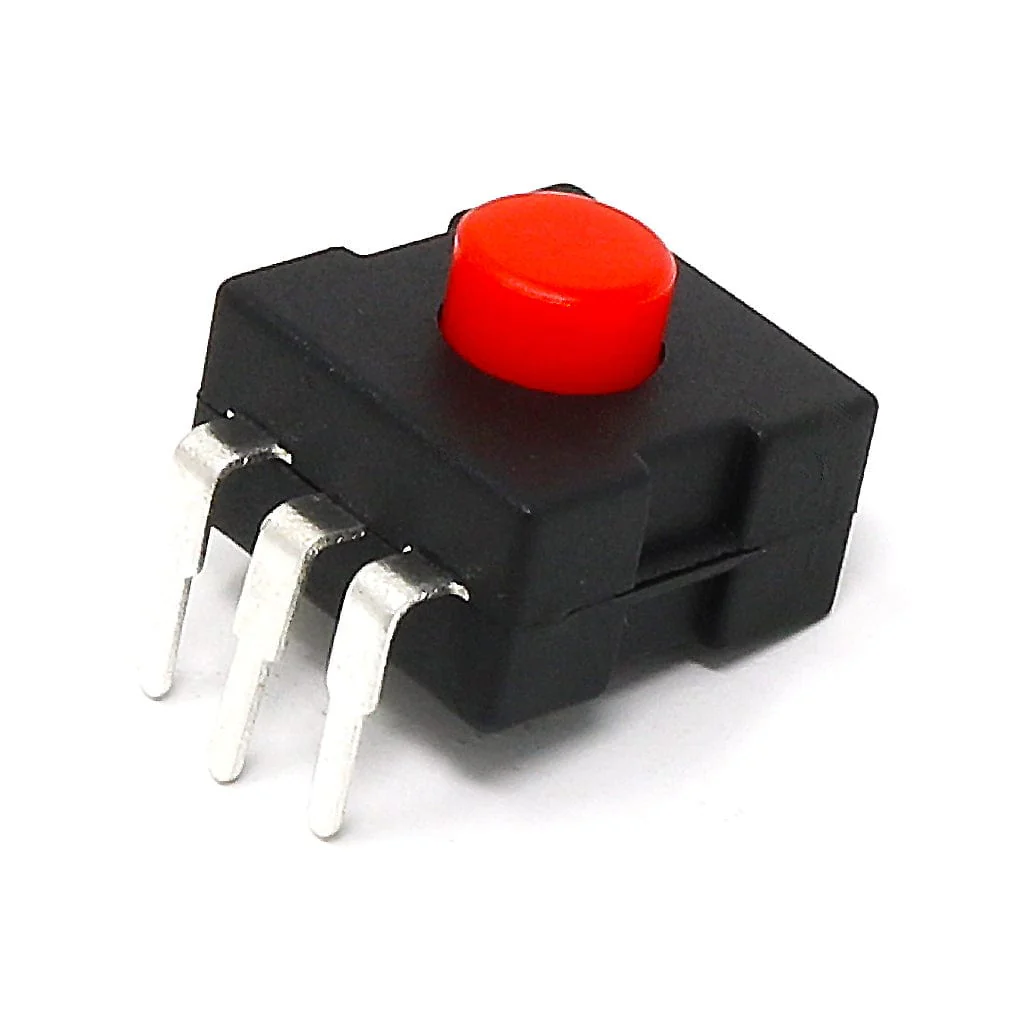

The switch has a black body and a bright red button. "Click click click" - so satisfying!
Specifications
- Ambient Temperature: -25ÂșC ~ 70ÂșC
- Rated Load: 12V @ 0.5A
- Contact Resistance: â€50mΩ
- Operating force: 5N ~ 12N
- 12mm x 12mm x 7mm
- Weight: 1.2gÂ
