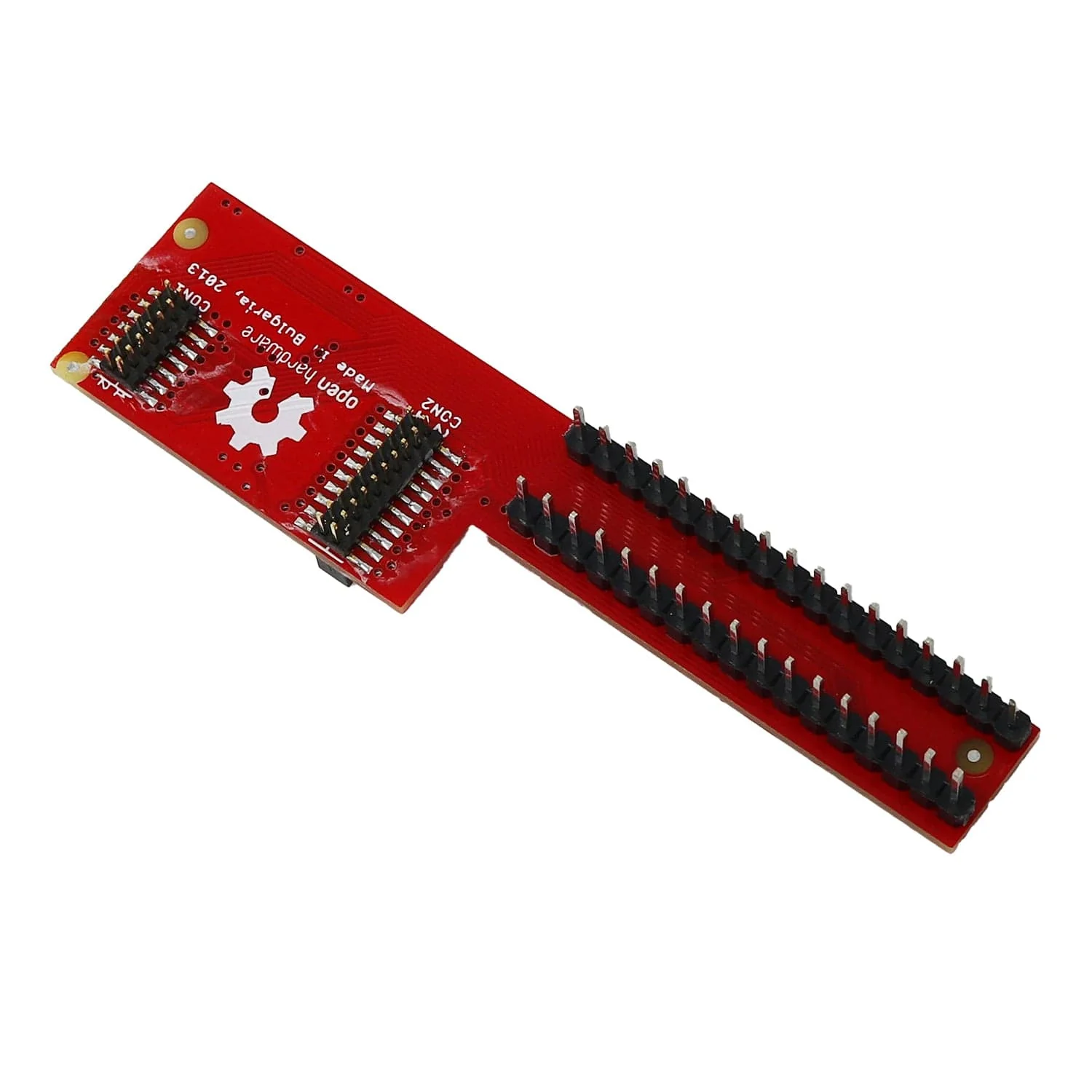

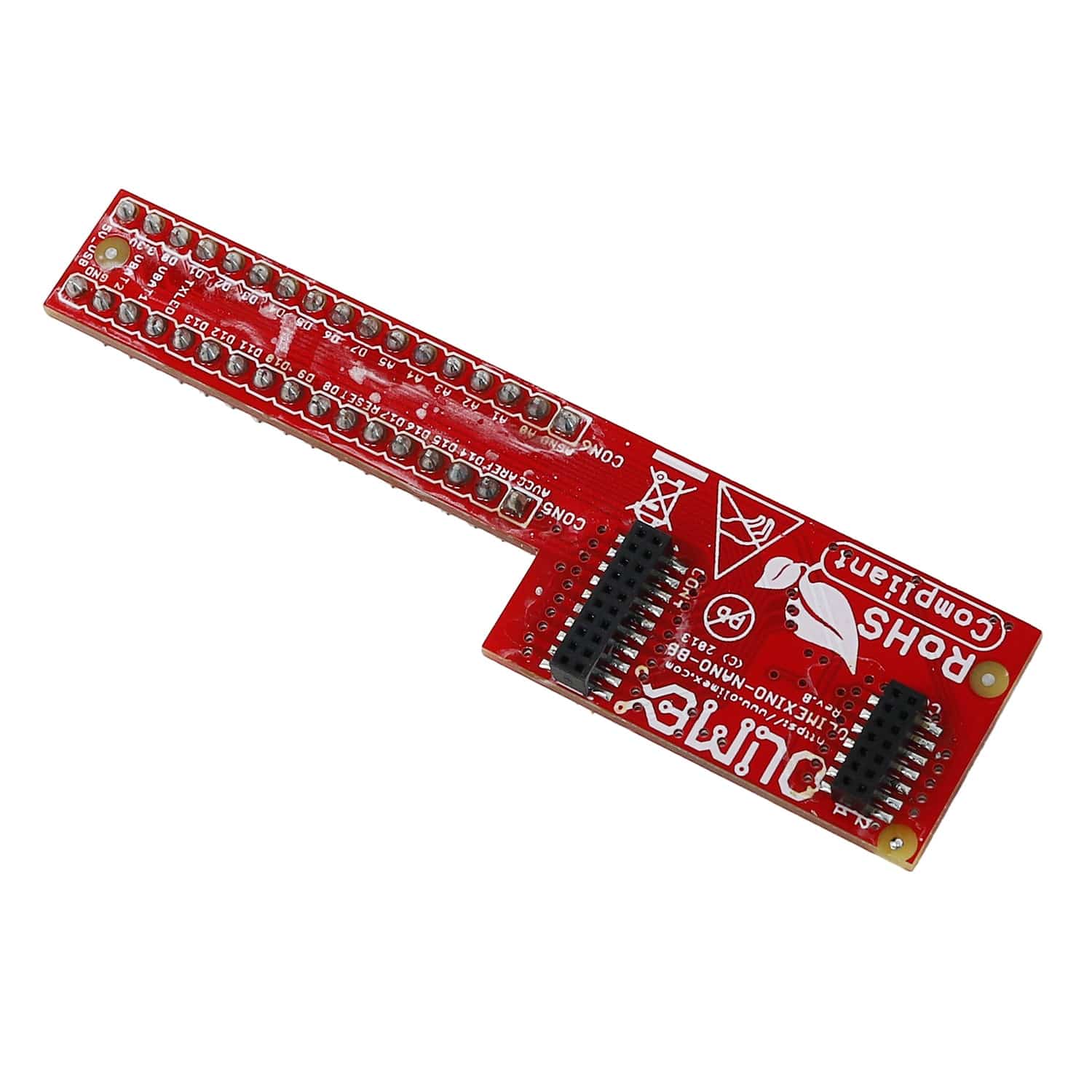

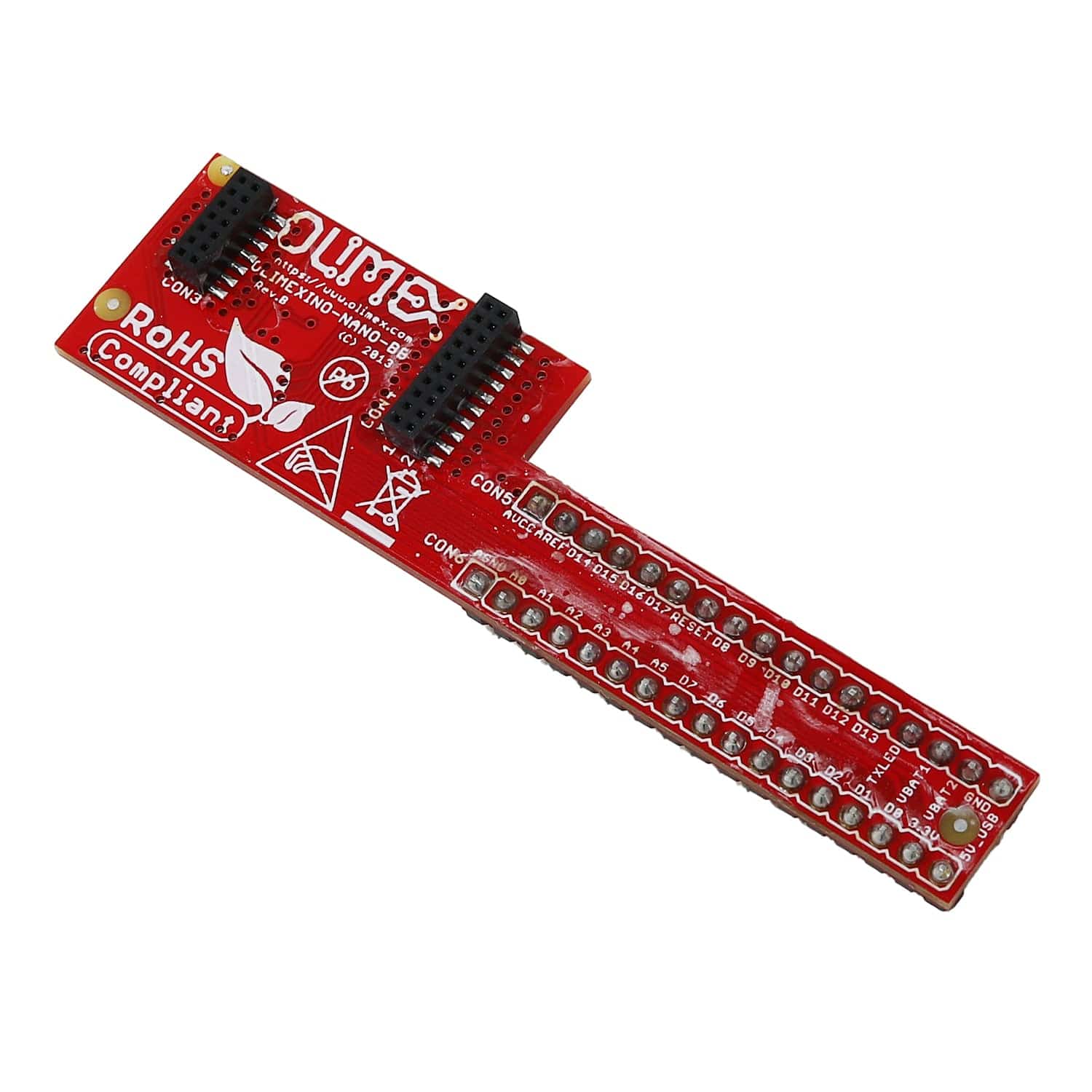

Olimexino Nano BB - Breadboard Connector Module

This module stacks onto the Olimexino Nano development board, providing a pin breakout to a standard solderless breadboard, allowing you to prototype projects with external components, sensors and other devices.

The module can be stacked onto the Olimexino Nano alongside the Olimexino Nano BAT module.

The Olimexino nano development board is not included.

Features

• Connects to a standard breadboard
• Stacks on top of OLIMEXINO-NANO/OLIMEXINO-BAT
• Makes all Arduino signals available for breadboard experiments

Resources

Documents

• European Declaration of Conformity

Hardware

• Schematic
• Revision B source files

Package Contents

• 1x OLIMEXINO-NANO-BB Breadboard Connector

The Olimexino nano development board is not included.
