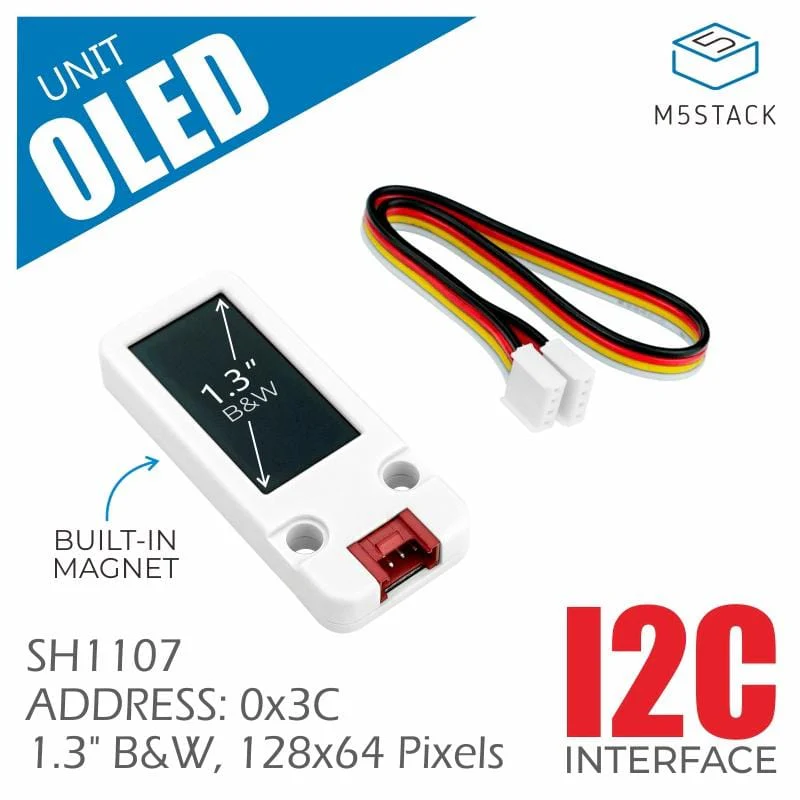

M5Stack OLED Unit 1.3" 128 × 64 Display

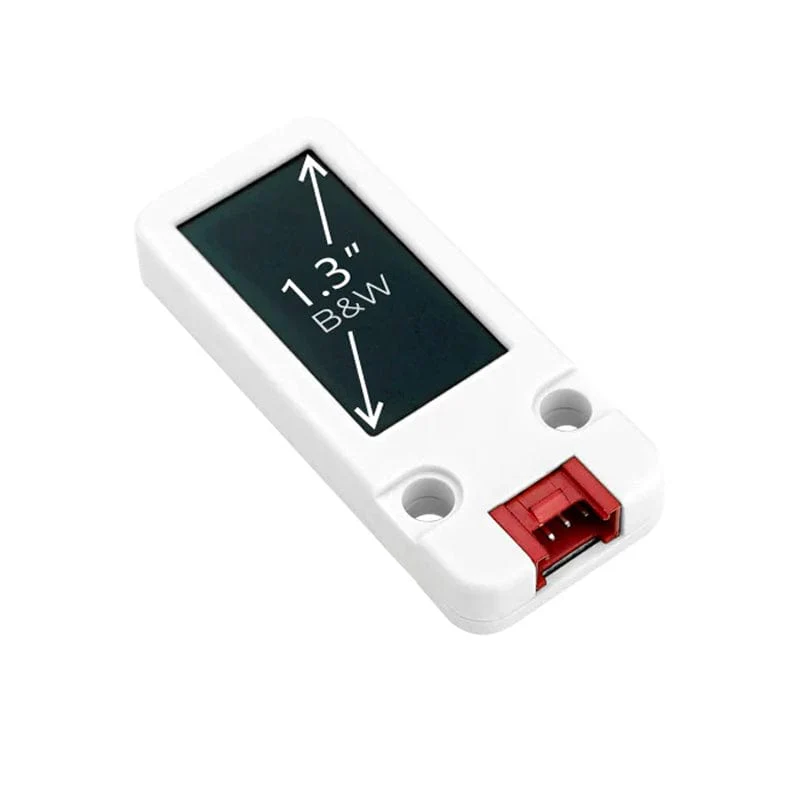

OLED Unit is a 1.3-inch OLED expansion screen unit. It has an SH1107 drive scheme, supports black/white display, and the resolution is 128 x 64. The driver chip uses the I2C communication interface, and the user can mount it to the I2C bus of the existing device when in use, which saves IO. The back of the screen is integrated with a magnetic design, which can easily be fixed on a metal surface.

Features

• OLED display panel
• SH1107 drive scheme
• Display color: black/white
• I2C communication interface
• 128*64 resolution
• Viewing angle: full viewing angle
• Magnetic back design

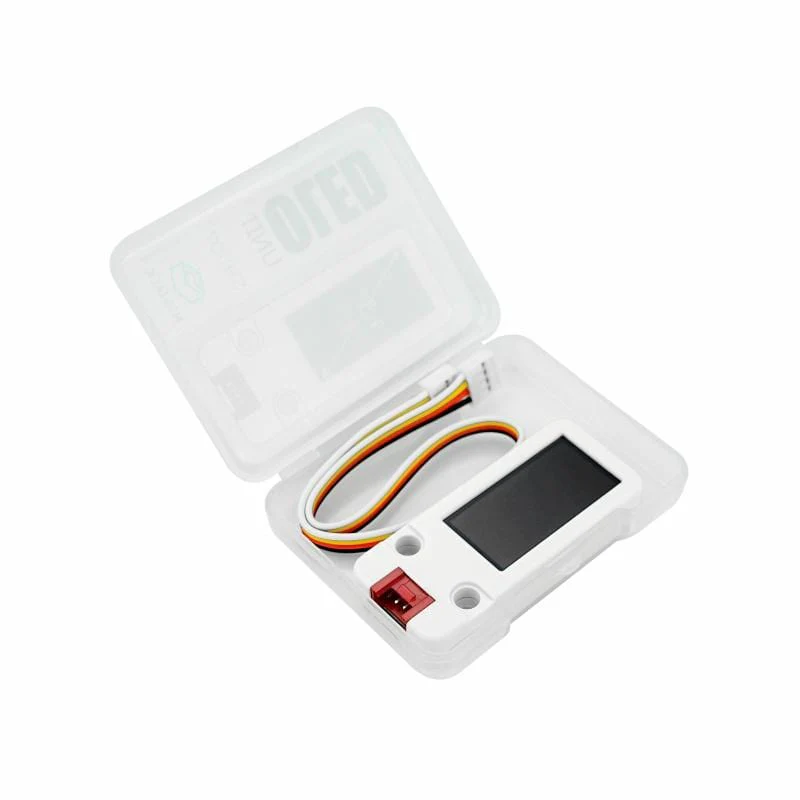

Package Contents

• 1x Unit OLED
• 1x HY2.0-4P Cable

Specifications

Specification	Parameter
Working Current	58mA

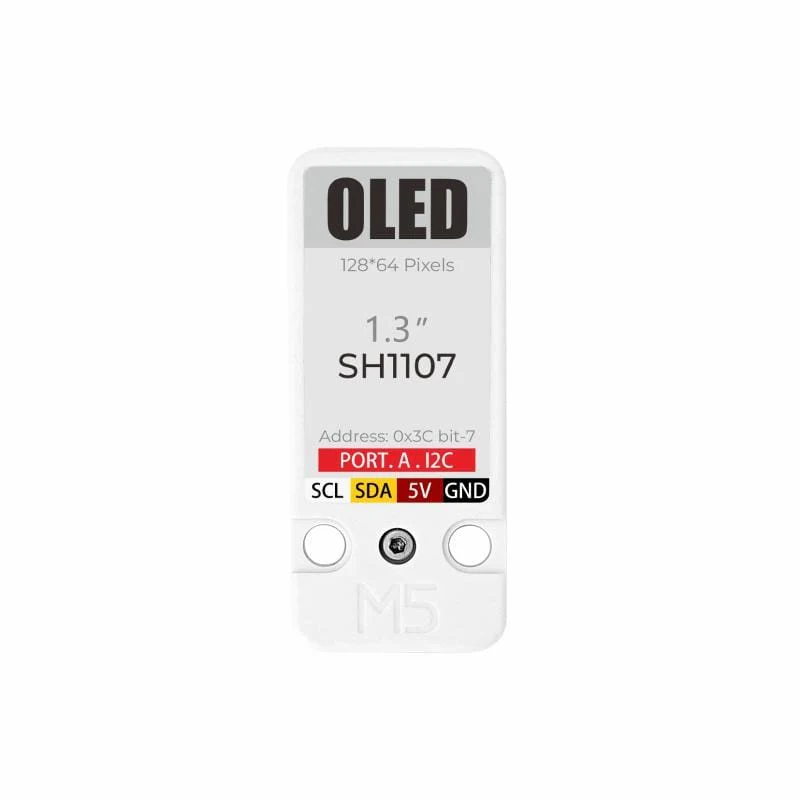

Communication Protocol	I2C address: 0x3C
Display Size	14.7 x 29.42 (mm）
Pixel Pitch	0.17 x 0.17 (mm）
Pixel Size	0.15 x 0.15 (mm）
Viewable	Full view
Operating Temperature	0°C to 60°C
Net Weight	9.3g
Gross Weight	20g

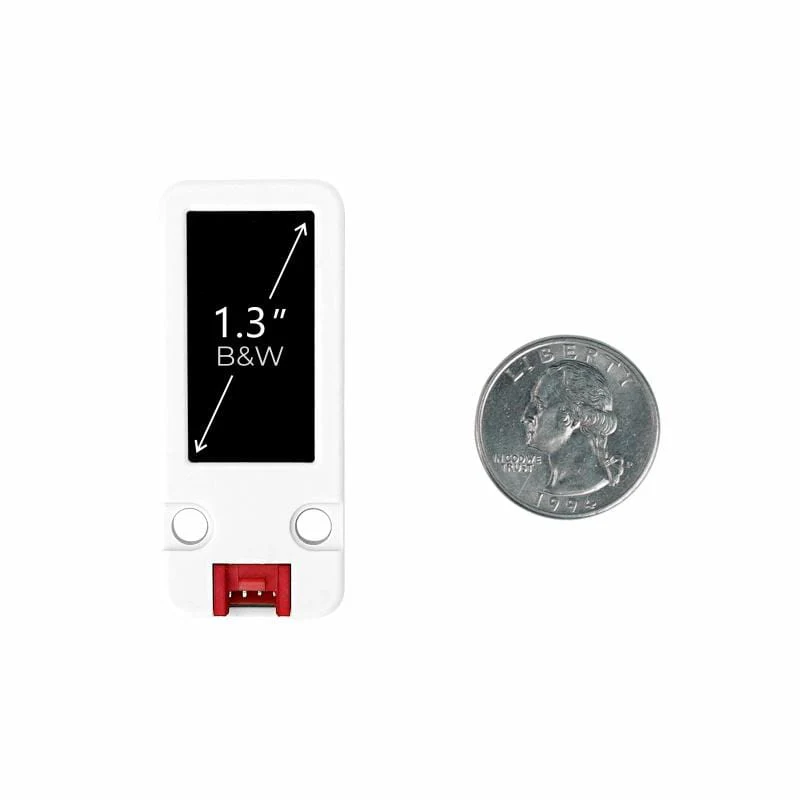

Product Size	24 x 56 x 8mm
Package Size	67 x 53 x 12mm
Case Material	Plastic (PC)
