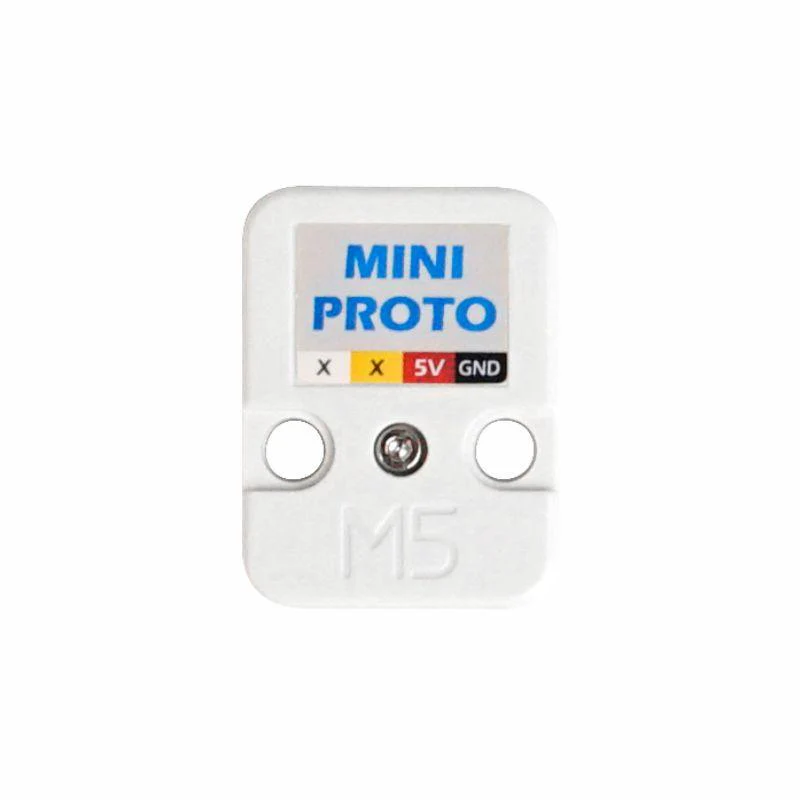

M5Stack New Mini Proto Unit 40 Holes

The Mini Proto is an M5Unit size universal prototyping board. Smaller than the PROTO unit, the size is exactly the same as the regular M5unit. You can have the total freedom to make your own project as you want it, with prototyping boards that allow laying out the customised circuit to interact with the M5 core CONNEXT Port A, B or C.

For different CONNEXT ports, you will be able to interact with different pins that ported out from ESP32.

• PORTA: GPIO 21, 22
• PORTB: GPIO 36, 26
• PORTC: GPIO 16, 17

Features

• Hole Size: 0.039" 1mm (CNC Drilled)
• Hole Pitch: 0.1 in - (2.54 mm)

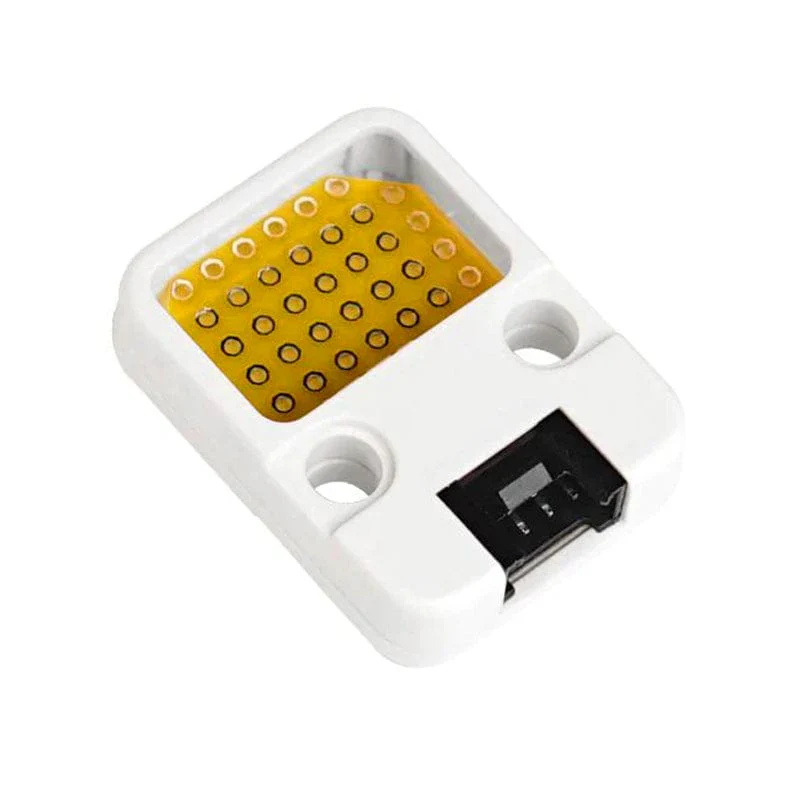

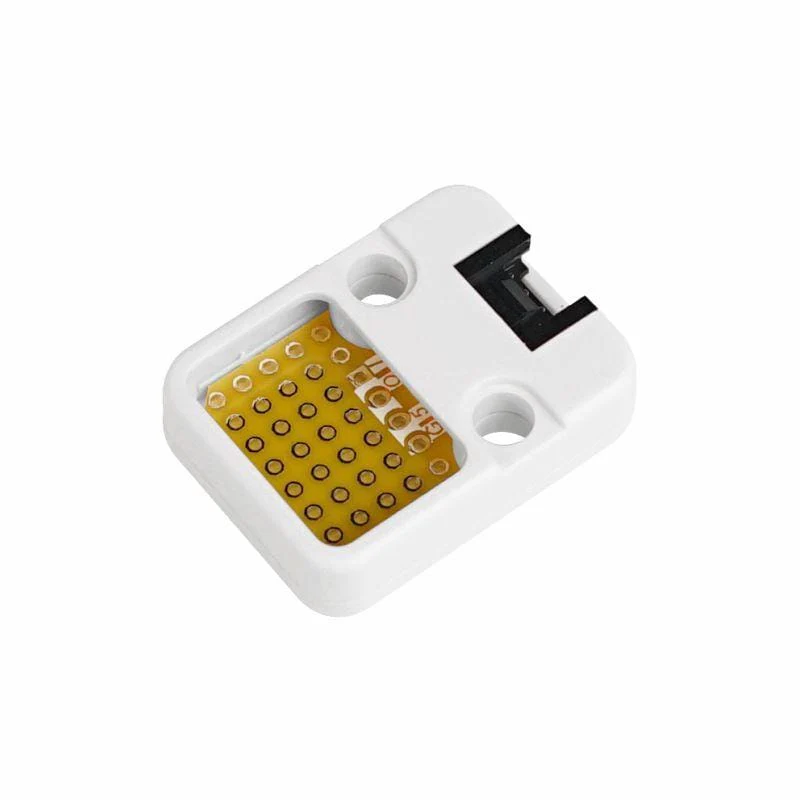

• Entire Hole Quantity: 40 Holes
• Two Lego-compatible holes

Package Contents

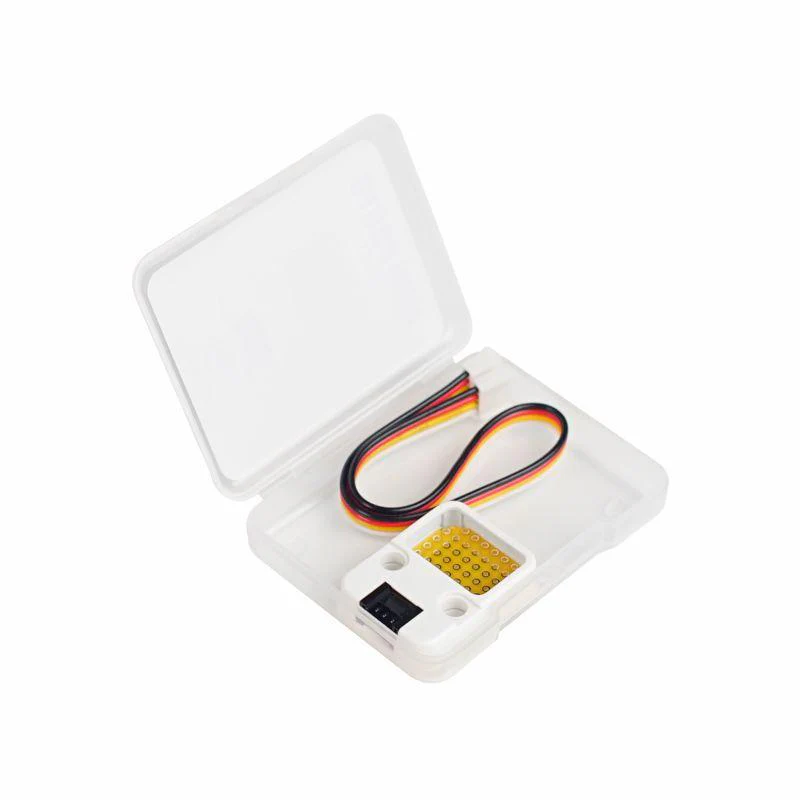

• 1x Mini Proto unit
• 1x GROVE cable

Specifications

Resources	Parameter
Net weight	3g
Gross weight	15g

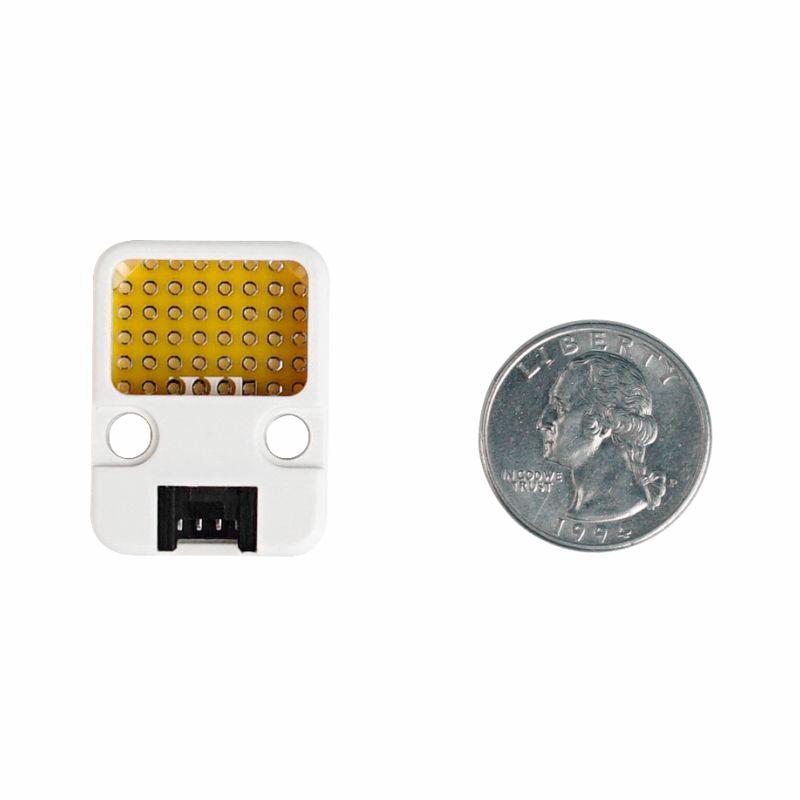

Product Size	32 x 24 x 8mm
Package Size	68 x 52 x 12mm
