NeoPixel Mini 3535 RGB LEDs w/ Integrated Driver Chip - Black (Pack of 10)
NeoPixel Mini RGB LEDs pack bright colour into a tiny 3.5mm Ă— 3.5mm footprint. This pack of 10 (black casing) is chainable on one data line, needs an 8MHz+ real-time microcontroller, and is best for careful hand soldering only.

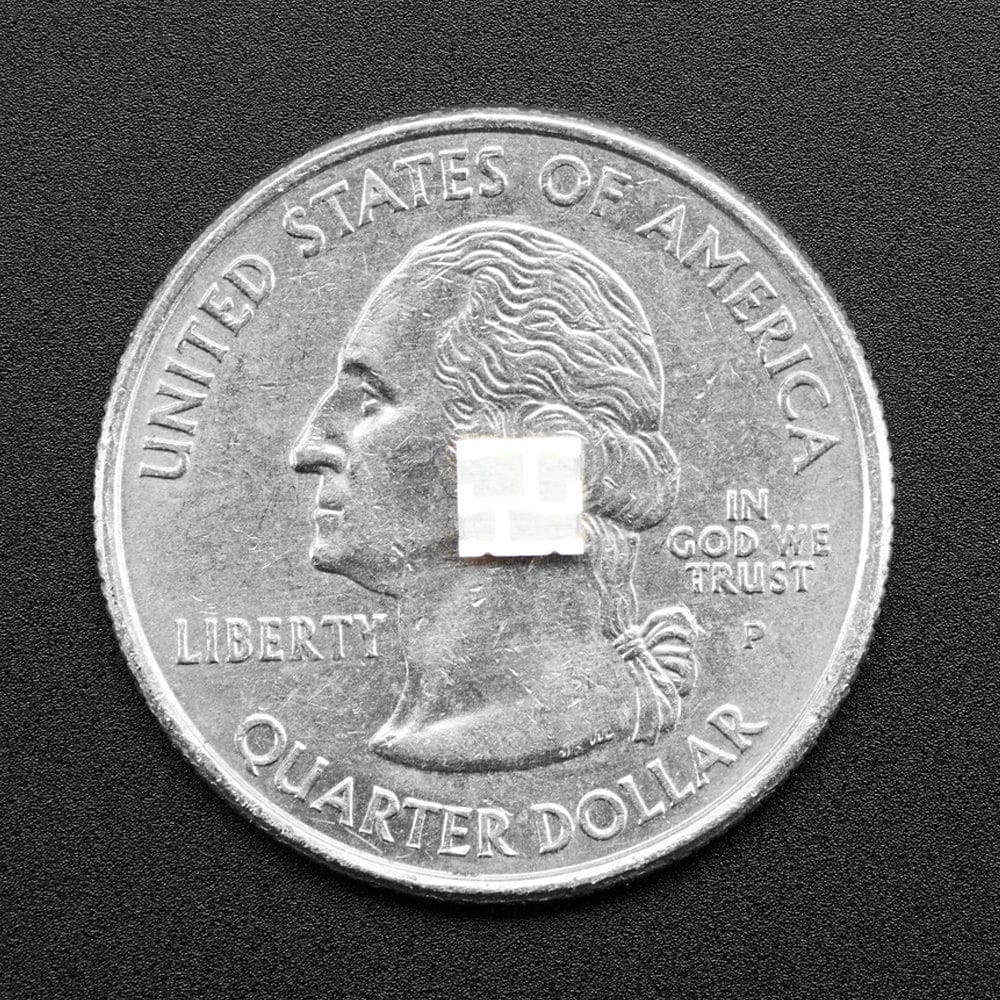

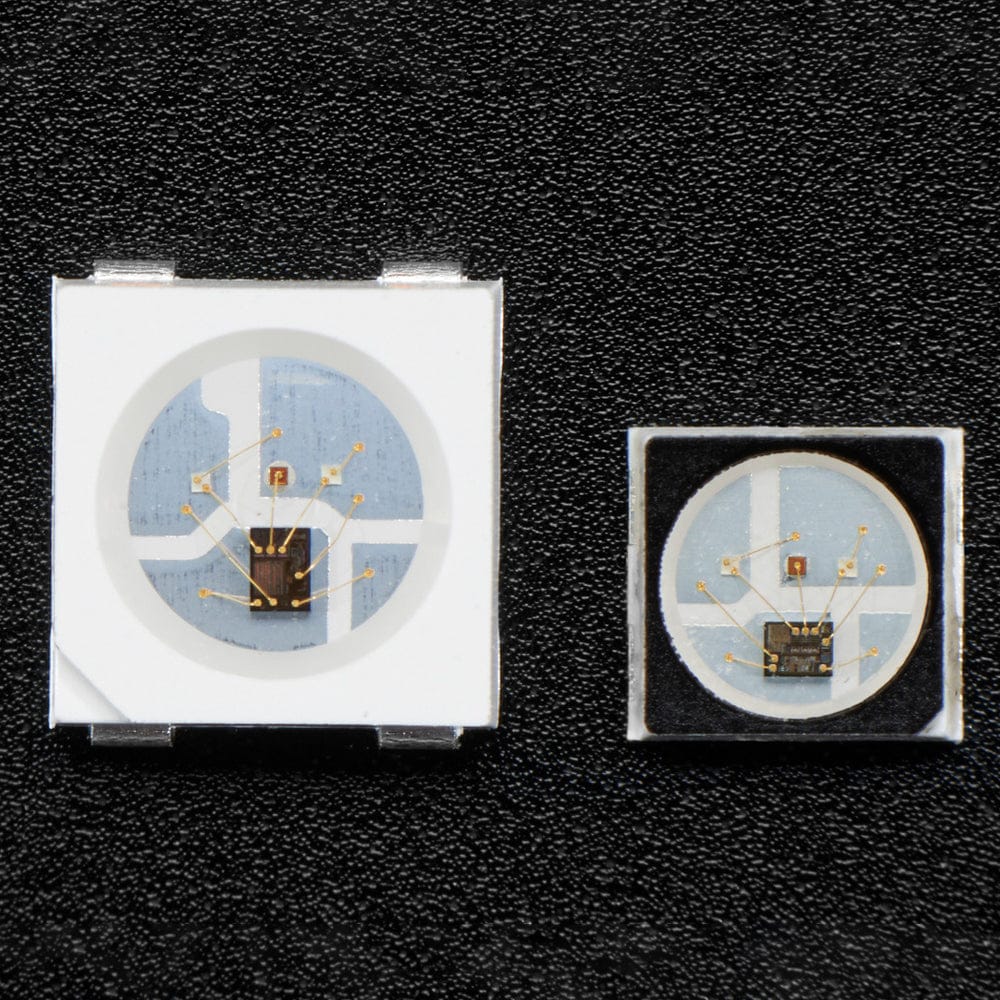

These NeoPixel Mini RGB LEDs are a brilliant way to build your own compact, smart lighting designs using the same integrated LED tech found in NeoPixel strips and pixels. Each LED measures just 3.5mm Ă— 3.5mm, making them around half the size of the standard 5mm Ă— 5mm NeoPixels, while still being fairly easy to solder.

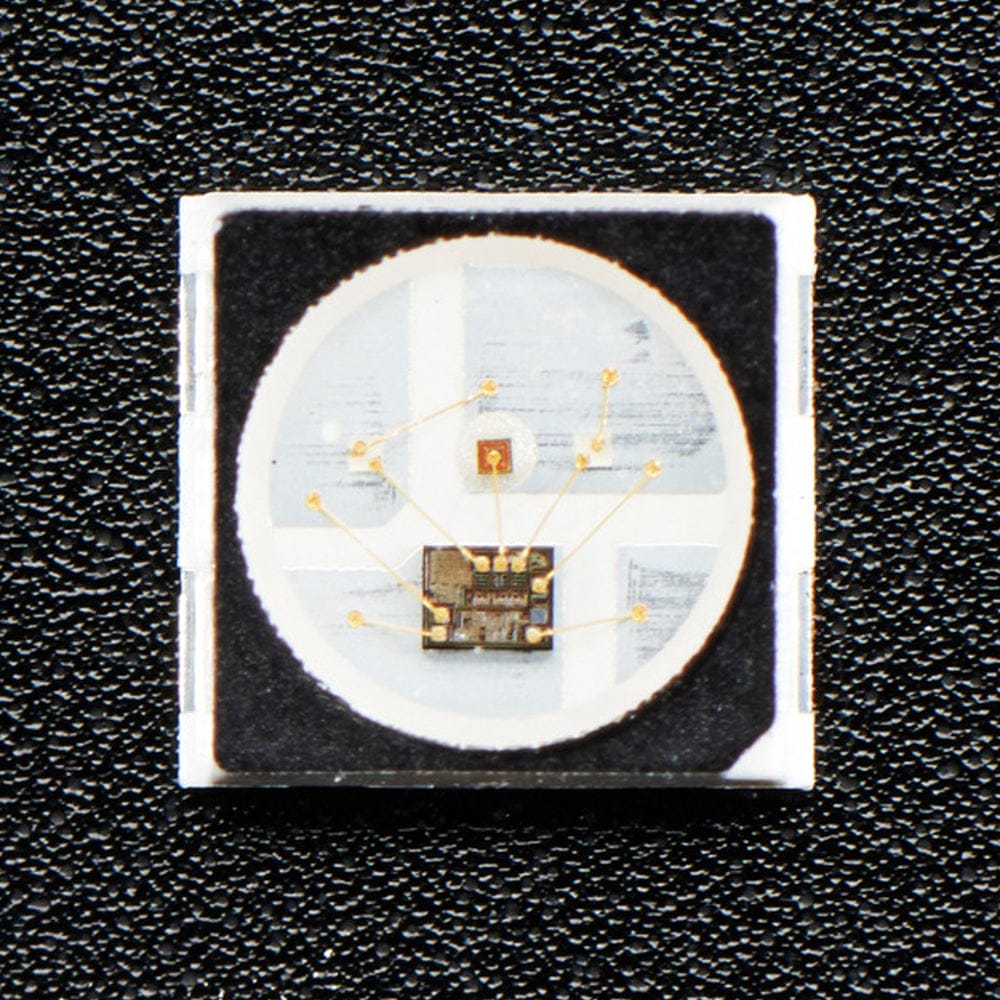

The driver chip is built into each LED and uses constant-current drive, so colours stay consistent even if the supply voltage varies — and you don’t need any external choke resistors, keeping your design clean and minimal.
This is the pack of 10 NeoPixel Mini RGB LEDs with a black casing. Minis are also available in a white casing.
These LEDs are chainable, meaning you can connect the output of one to the input of the next (see the datasheet for pinouts and wiring diagrams). They use a single data line with a timing-sensitive protocol, so they must be driven by a real-time microcontroller such as an AVR, Arduino, PIC, or mbed. They cannot be used with Linux-based microcomputers or interpreted microcontrollers like the Netduino or Basic Stamp. Internally they’re essentially a WS2811, fixed at the 800kHz high-speed setting. Adafruit’s Arduino NeoPixel library supports these LEDs, but because it relies on hand-tuned assembly it’s AVR-focused — other platforms may have ports available. An 8MHz or faster processor is required.

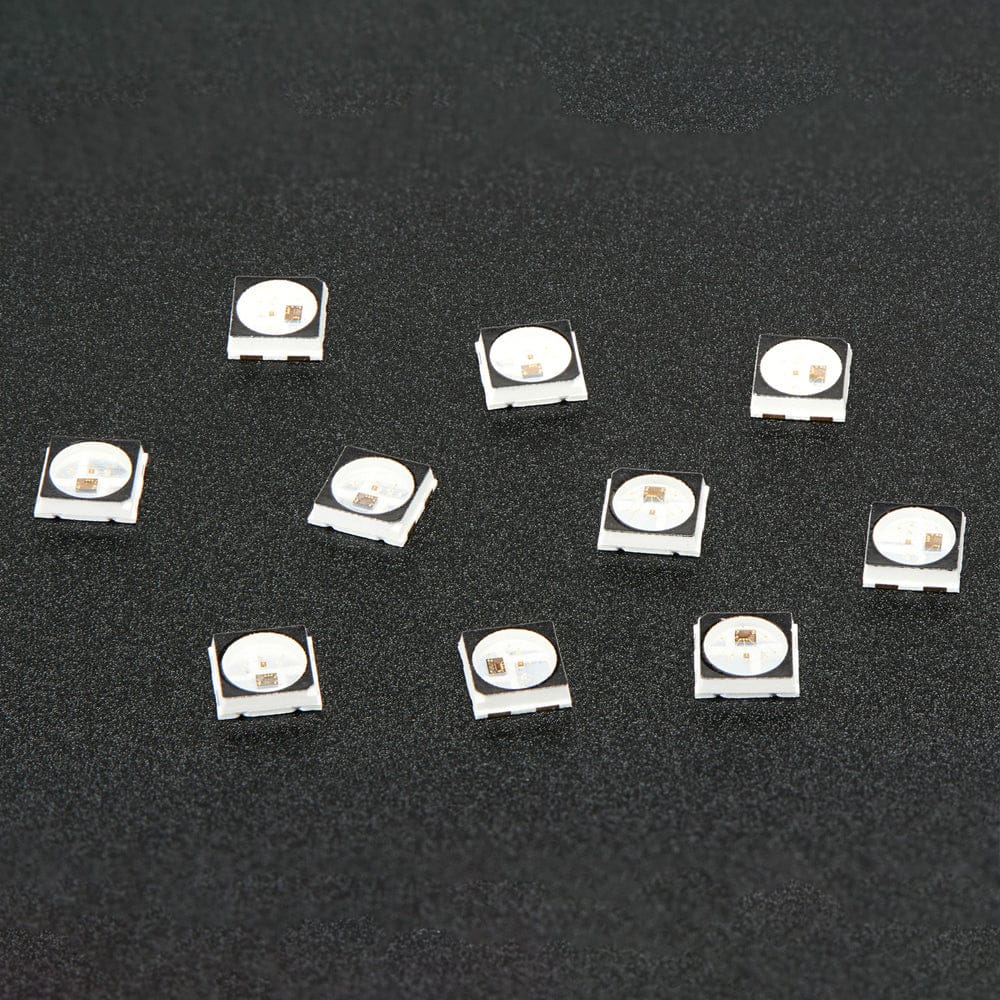

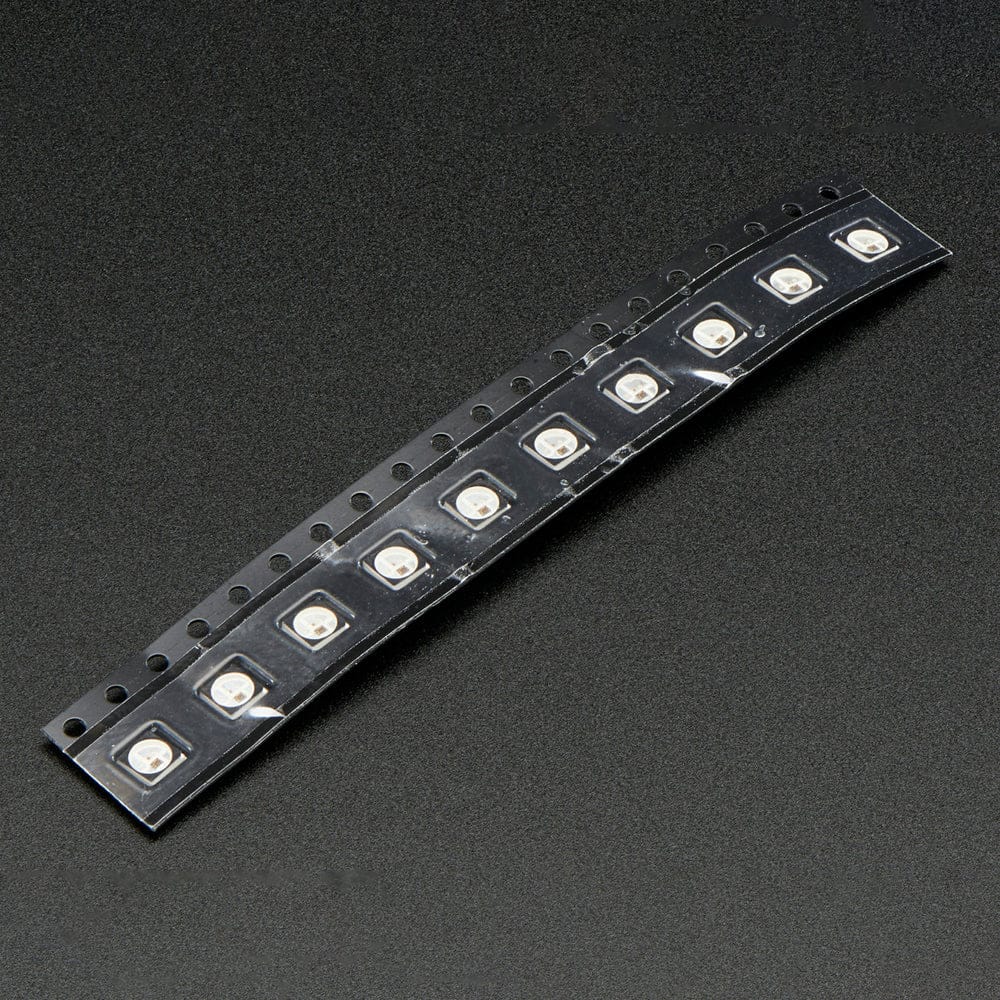

These are supplied as raw parts cut from a reel and may be loose. They may not be suitable for pick-and-place or reflow, as LEDs are sensitive to moisture and temperature. They’re recommended for careful hand soldering only. Each pack includes 10 individual LEDs, and there’s also a ready-to-go part available in the Adafruit EAGLE library.
Specifications
- 3.5mm x 3.7mm x 0.95mm
Resources
- Datasheet
- Adafruit Neopixel Guide
Package Contents
- 1x Pack of 10 - NeoPixel Mini 3535 RGB LEDs w/ Integrated Driver Chip - Black
