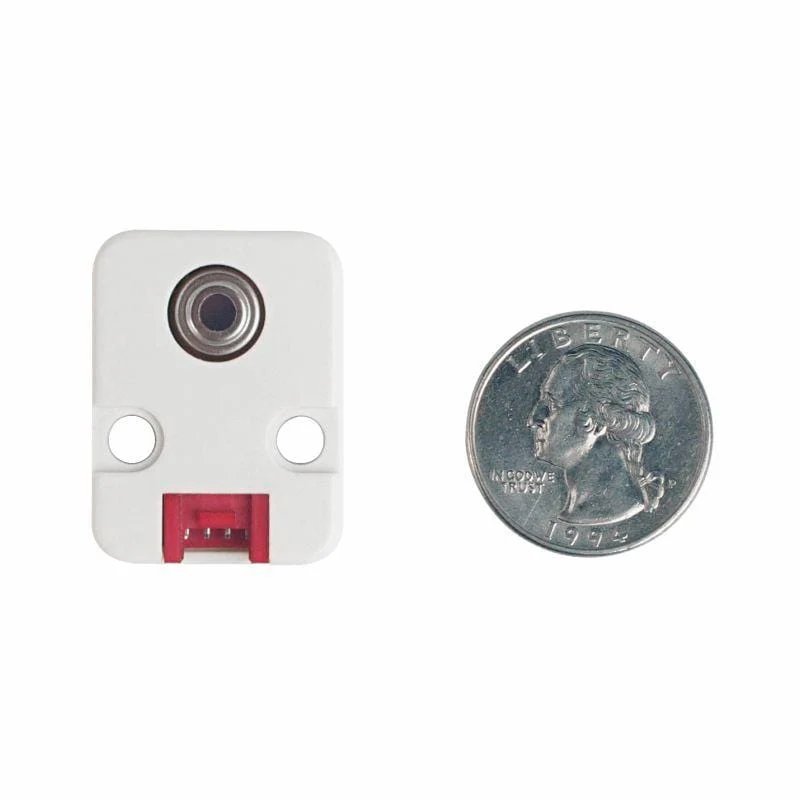

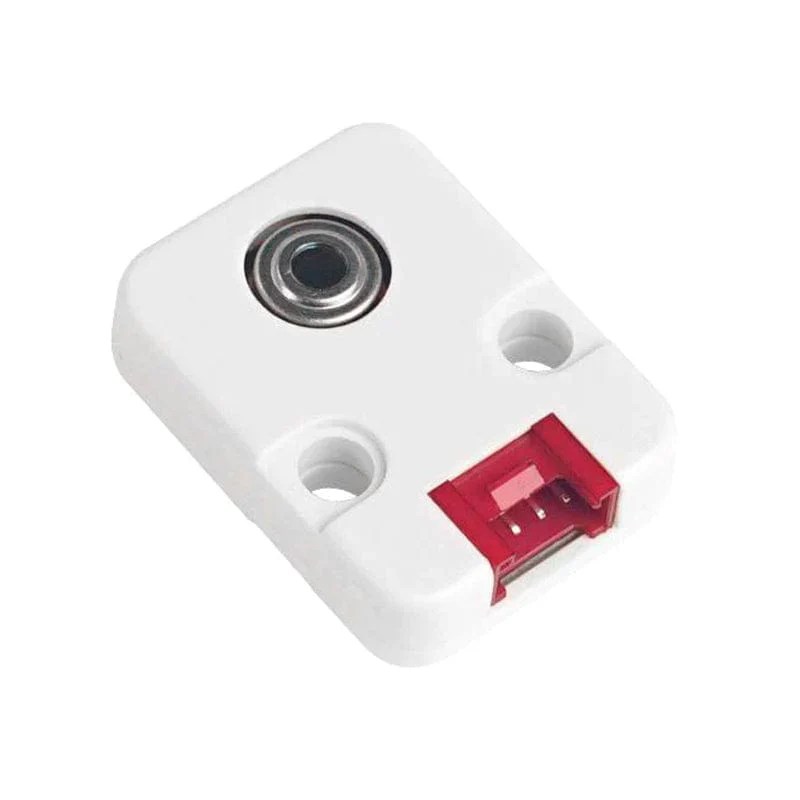

M5Stack NCIR Non-Contact Infrared Thermometer Sensor Unit (MLX90614)

This NCIR featured has a built-in infrared MLX90614 sensor, It can be used to measure the surface temperature of a human body or other objects.

Unlike most temperature sensors, this sensor measures infrared light bouncing off of remote objects so it can sense temperature without having to touch them physically.

Simply point the sensor towards what you want to measure and it will detect the temperature by absorbing IR waves emitted. Because it doesn't have to touch the object it's measuring, it can sense a wider range of temperatures than most digital sensors! It takes the measurement over a 90-degree field of view so it can be handy for determining the average temperature of an area. The MLX90614 is factory calibrated in a wide temperature ranges: -40 to 125 ˚C for the ambient temperature and -70 to 380 ˚C for the object temperature.

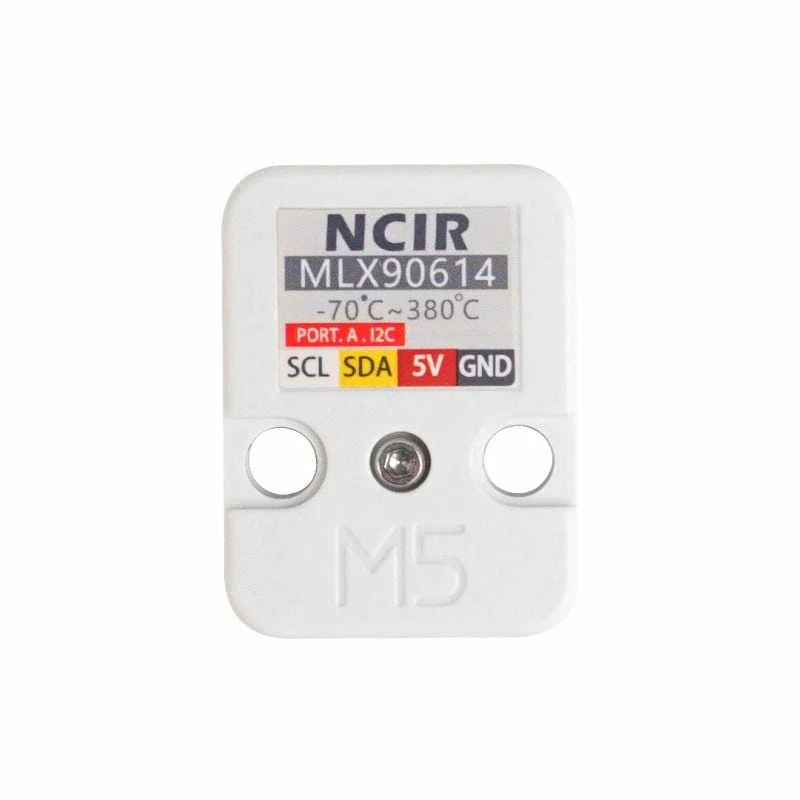

Connect with M5Core via GROVE A I2C (0x5A).

Features

• Operating voltage: 4.5 to 5.5V
• Measuring object temperature range: -70°C ~ 380°C
• Measuring ambient temperature range: -40 to 125 ˚C
• Measurement accuracy at room temperature: ±0.5°C
• Field of view: 90°
• Software Development Platform: Arduino, UIFlow (Blockly, Python)
• Two Lego-compatible holes

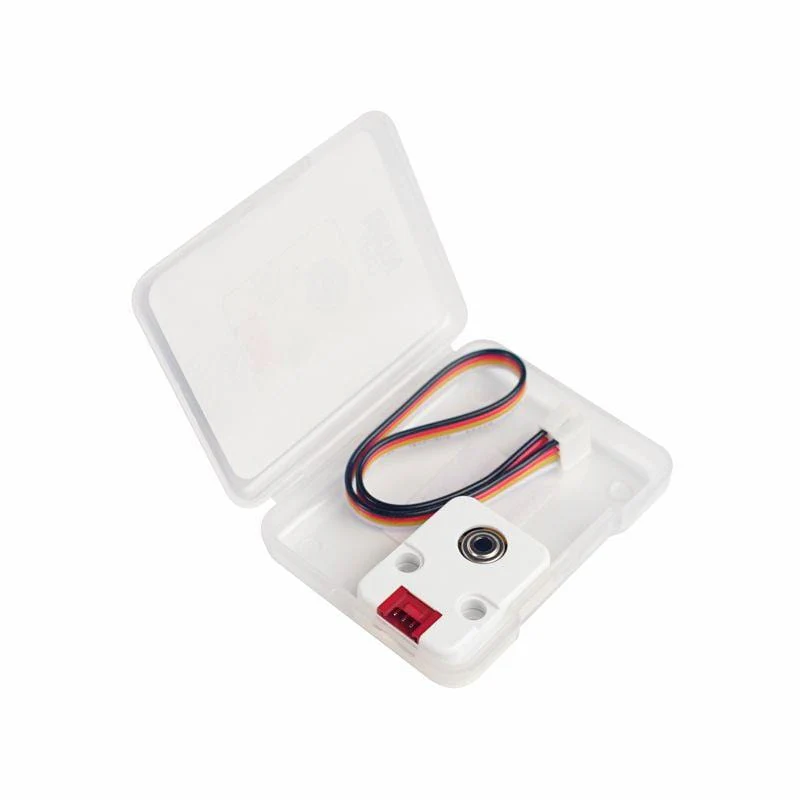

Package Contents

• 1x NCIR Unit
• 1x Grove Cable

Specifications

Resources	Parameter
Communication protocol	I2C: 0x5A
Net weight	4g
Gross weight	16g
Product Size	32 x 24 x 8mm
Package Size	67 x 53 x 12mm
