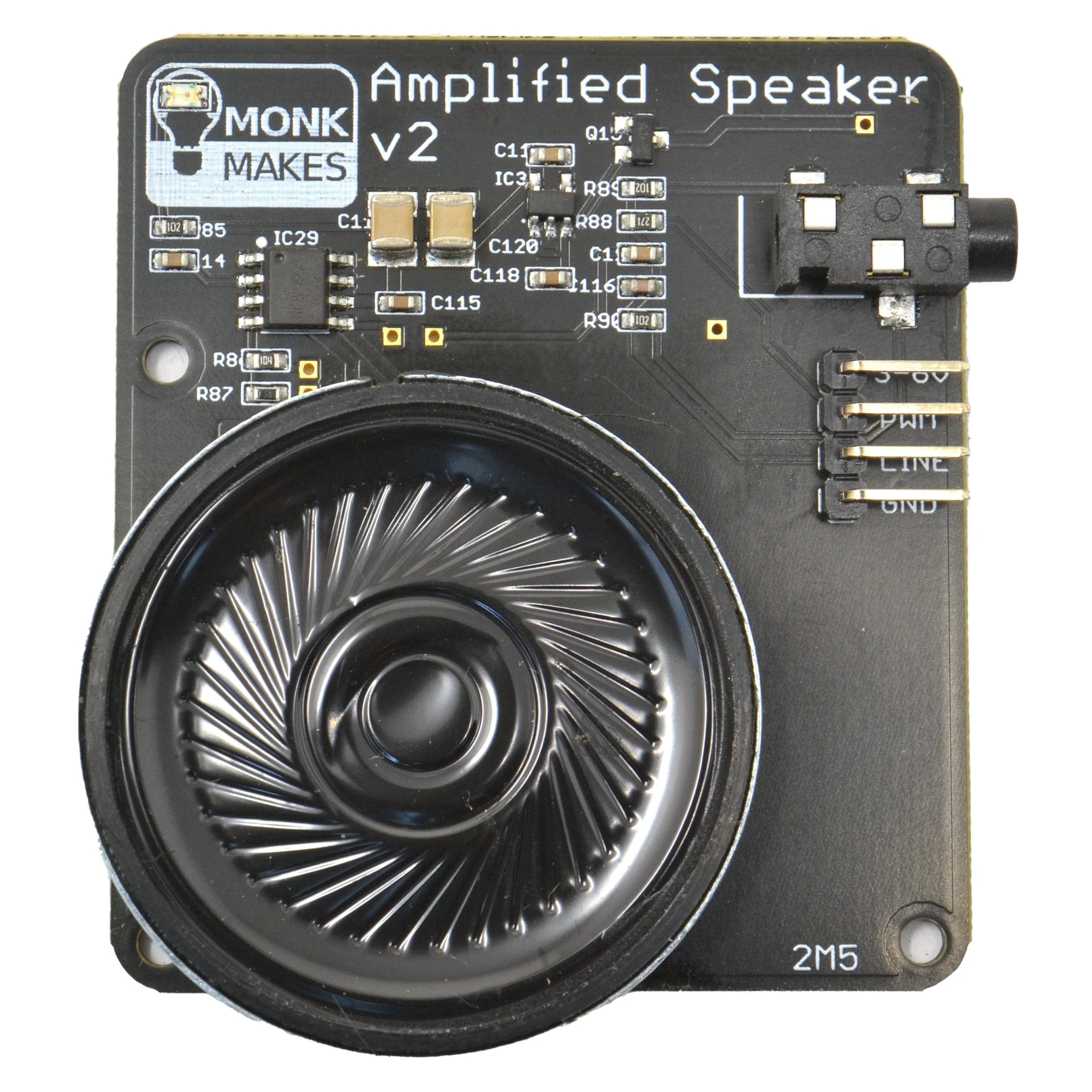

Monk Makes Amplified Speaker 2

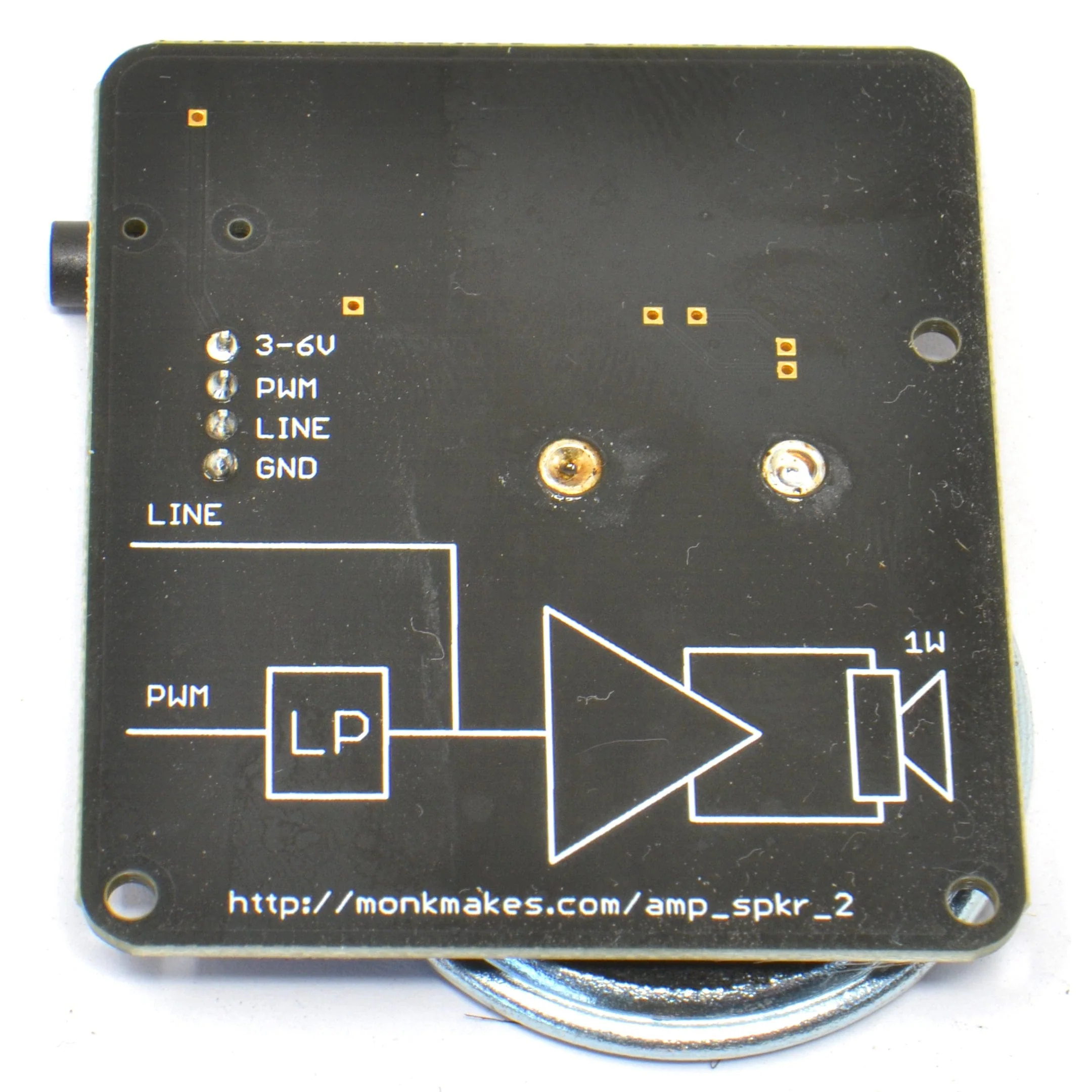

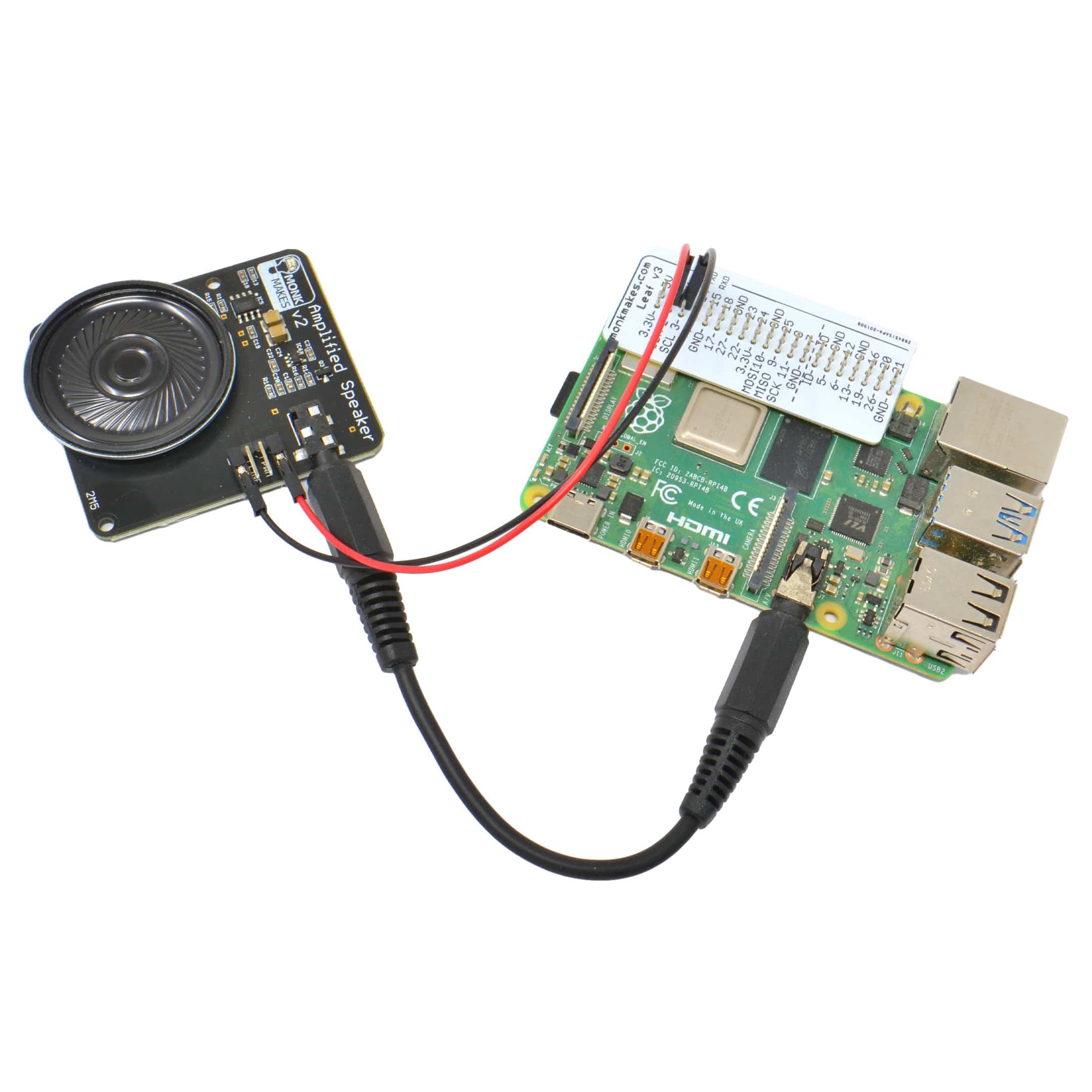

Crank up the volume with the Monk Makes Amplified Speaker! This compact, easy-to-use speaker is mounted on a circuit board and requires a 3.3 to 6V power supply, which can be provided by a Raspberry Pi or Arduino Board. It features a 3.5mm stereo audio jack socket for audio input, which is converted to a mono signal. Additionally, it includes a separate input with a low-pass filter for use with PWM/PCM audio.

Note: Raspberry Pi and Arduino boards are NOT included

Specifications

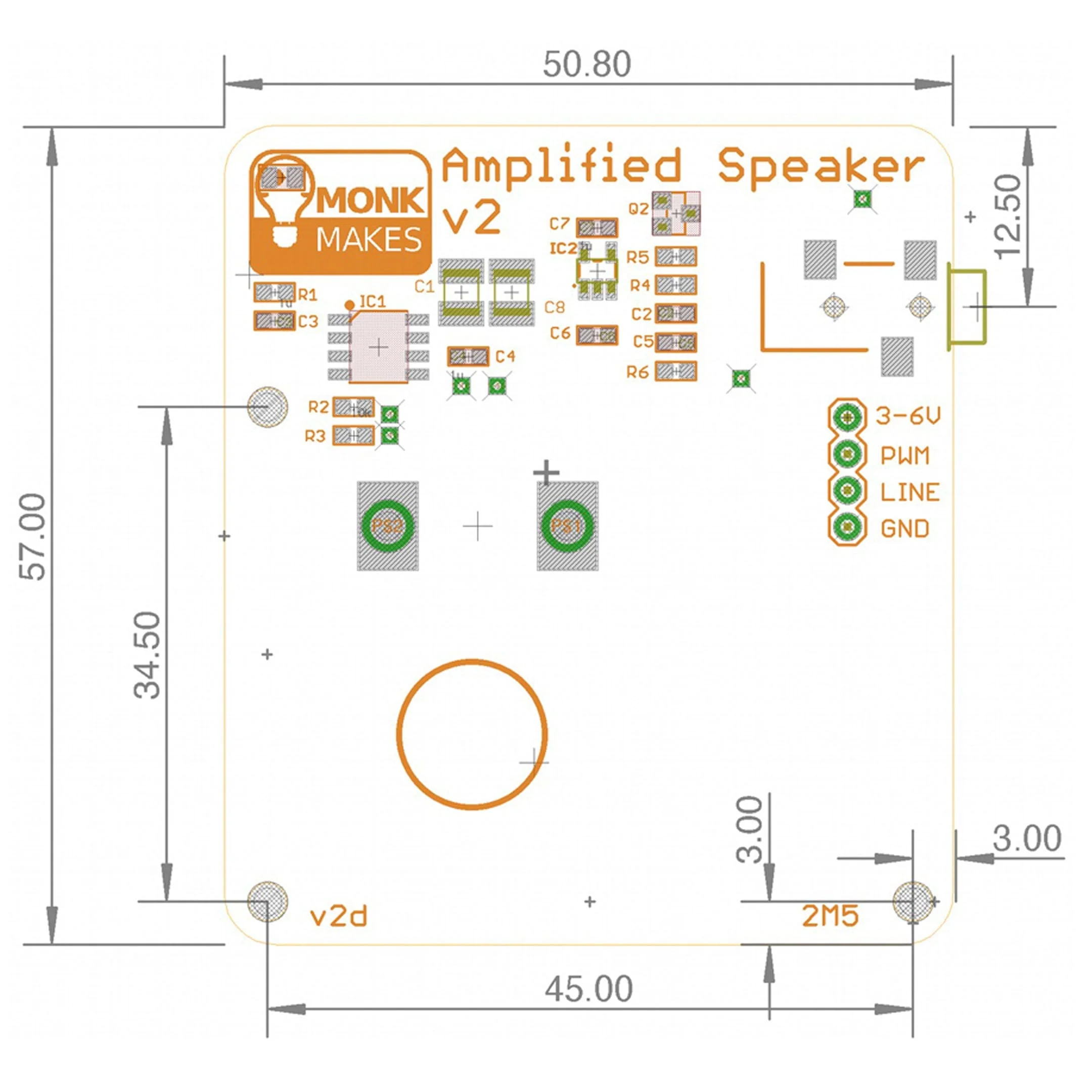

• Dimensions: (L x W x H) 50.80 x 57 x 60 mm
• Supply Voltage Range: 3.3 to 6 V
• Speaker Impedance: 8 Ω
• Speaker Nominal Max Power: 500 mW
• LP Filter F0: 23.6 kHz
• Maximum Current Consumption: 300 mA

Resources

• Datasheet
• Instructions
• Schematics

Package Contents

• 1x MonkMakes Amplified Speaker 2
