Mini Push Button Switch (5 PCS)

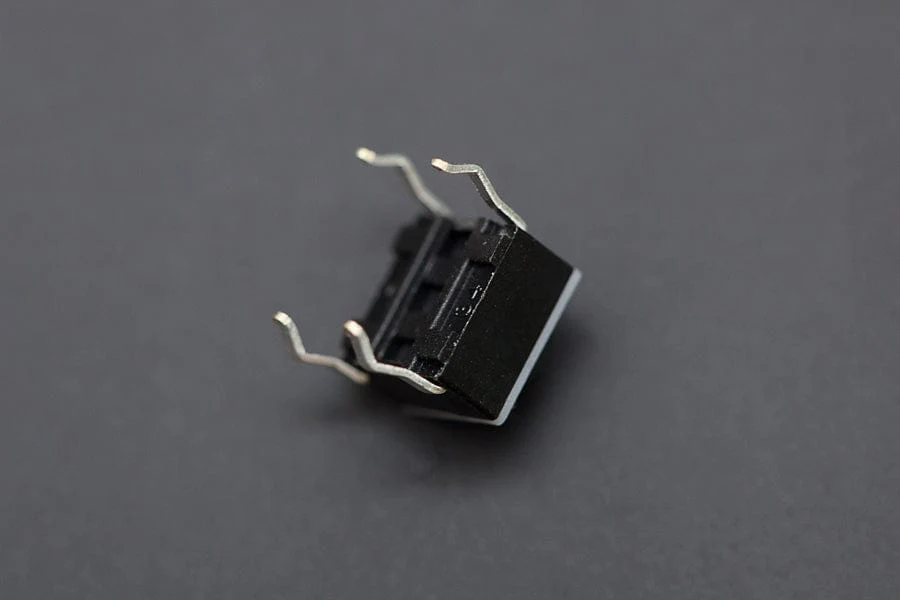

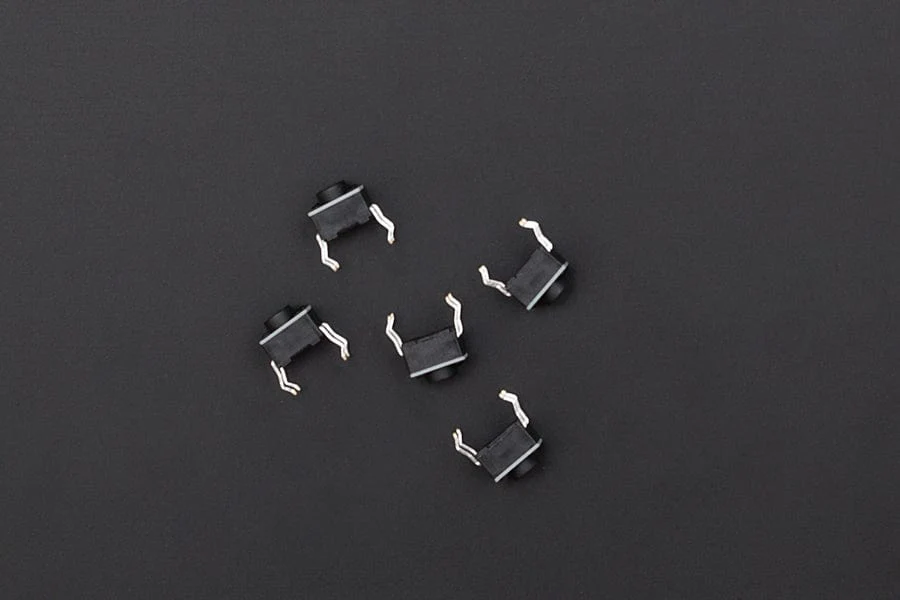

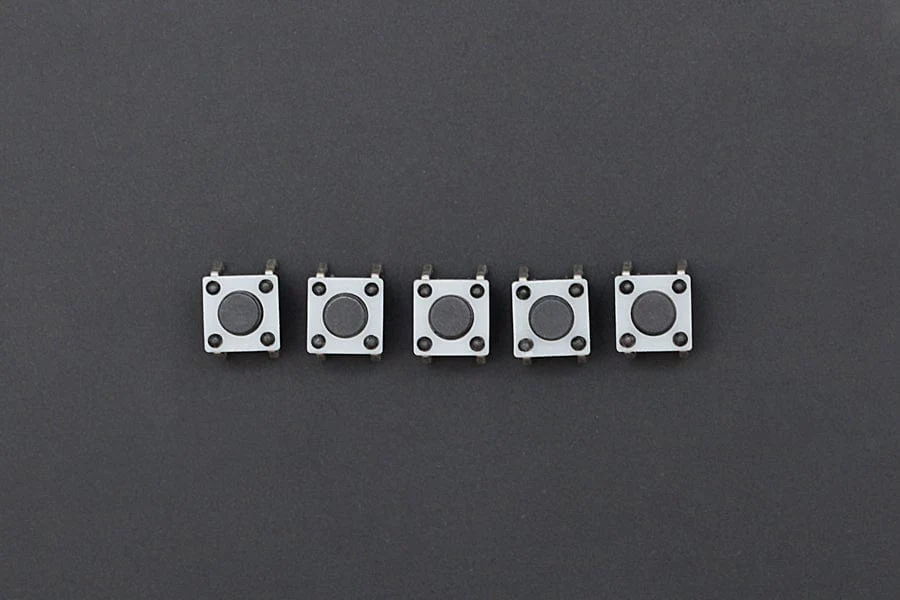

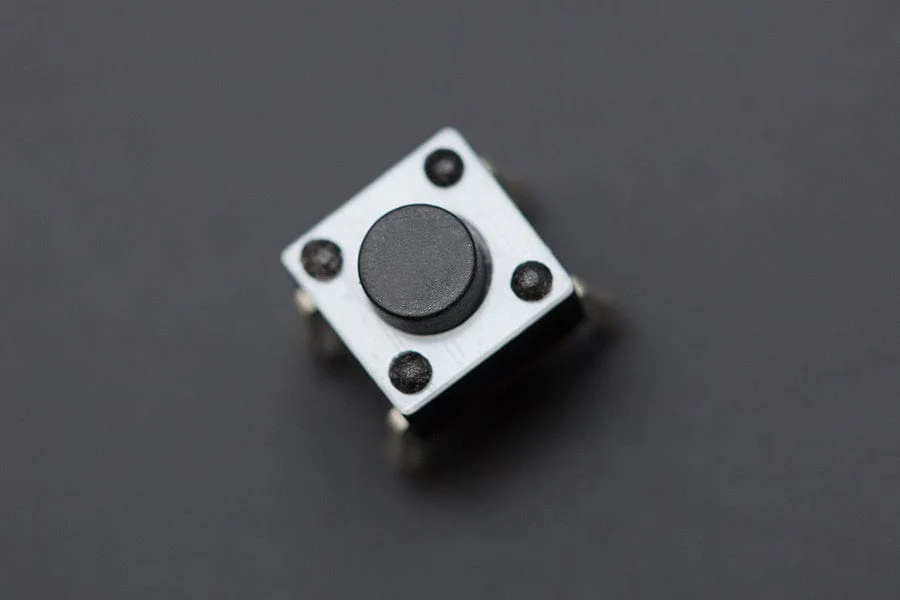

Miniature Single Pole Single Throw switches. These are high quality Omron type B3F momentary on switches. Perfect as a tactile reset switch. Mounts directly into standard bread boards also prototype shield. Rated up to 50mA.

Specification

  • Maximum ratings: DC 12V 50mA
  • Operation temperature range: -25~70ā„ƒ (normal humidity, normal press)
  • Storage temperature range: -30~80ā„ƒ (normal humidity, normal press)
  • Dimension: 6*6.5*7mm(0.24"x0.26"x0.28") (Details in datasheet)

Documents

  • Datasheet

Shipping List

  • Mini Push Button Switch x1
$1.77
Mini Push Button Switch (5 PCS)ā€”
$1.77

Product Information

Shipping & Returns

Description

Miniature Single Pole Single Throw switches. These are high quality Omron type B3F momentary on switches. Perfect as a tactile reset switch. Mounts directly into standard bread boards also prototype shield. Rated up to 50mA.

Specification

  • Maximum ratings: DC 12V 50mA
  • Operation temperature range: -25~70ā„ƒ (normal humidity, normal press)
  • Storage temperature range: -30~80ā„ƒ (normal humidity, normal press)
  • Dimension: 6*6.5*7mm(0.24"x0.26"x0.28") (Details in datasheet)

Documents

  • Datasheet

Shipping List

  • Mini Push Button Switch x1
