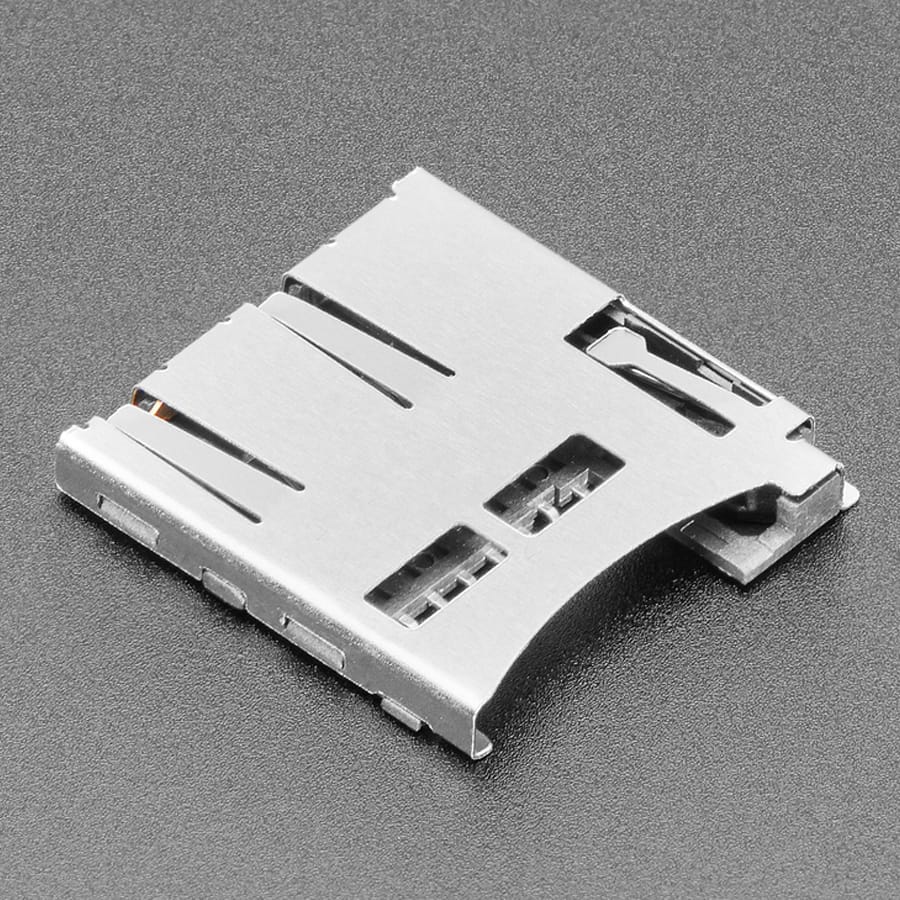

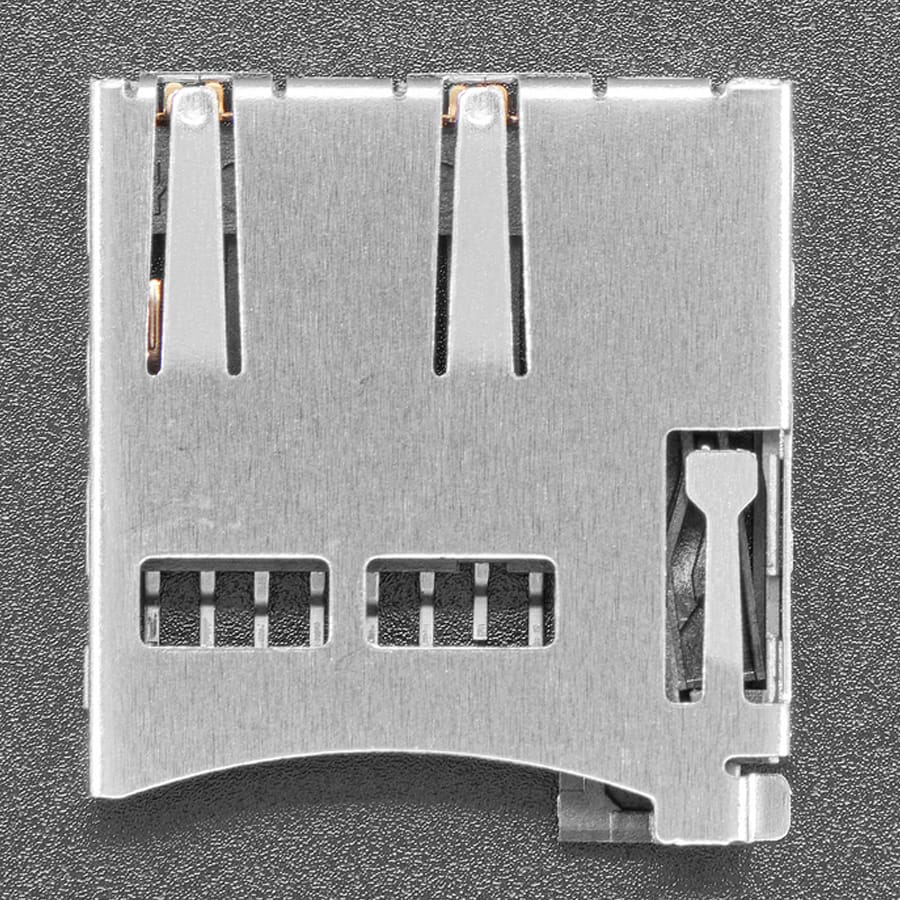

MicroSD Socket

The Micro SD Card Socket adds compact storage to your project with a reliable push-push mechanism, supporting any microSD card, though its fine-pitch surface-mount design is best suited to more experienced soldering.

---

Add tons of storage to your next project with this micro SD card socket. We use this part in all our designs and it works great with any microSD ('transflash') of any storage size.

It's a surface-mount part and the pins are underneath so it needs a fine tip and paste or thin solder to get in there and solder, not for beginners! It is a push-push type: push the card in to insert, push again to spring it out.

Features

• Micro SD card socket for expanded storage
• Compatible with all microSD and TransFlash cards
• Surface-mount component with underside pins
• Push-push insertion and ejection mechanism
• Requires soldering expertise and fine-tip equipment

Specifications

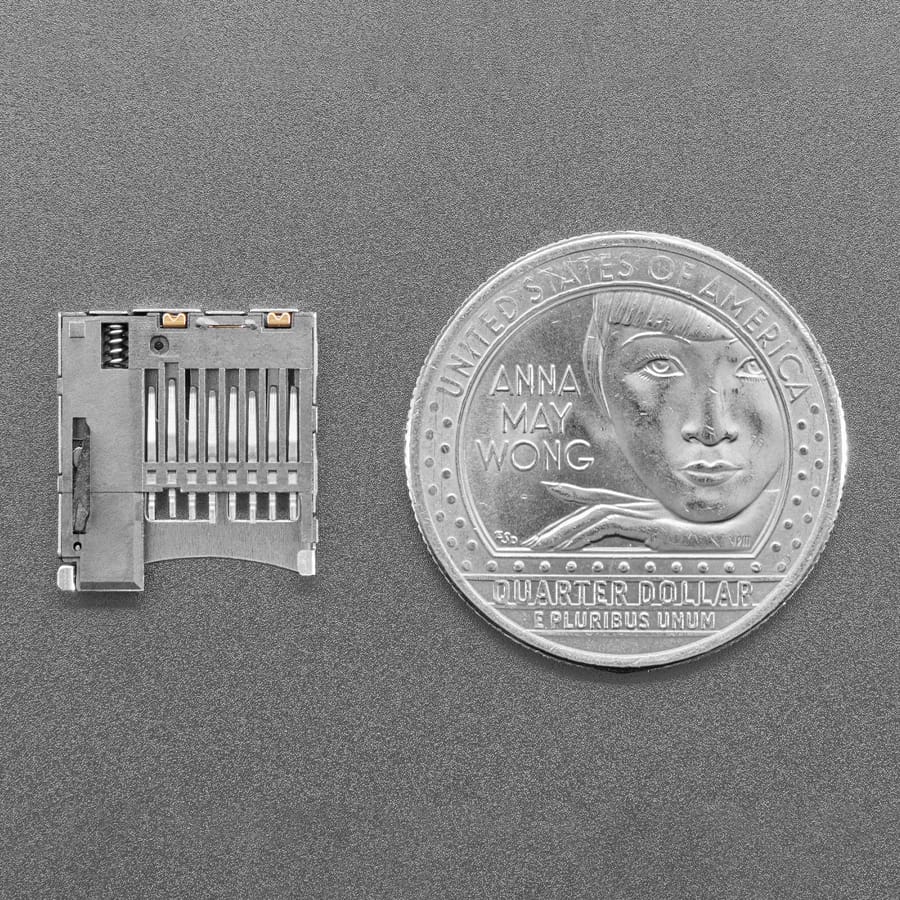

• Product Dimensions: 14mm x 13mm
• Weight: 0.4g

Resources

• Datasheet

Package Contents

• 1x MicroSD Socket
