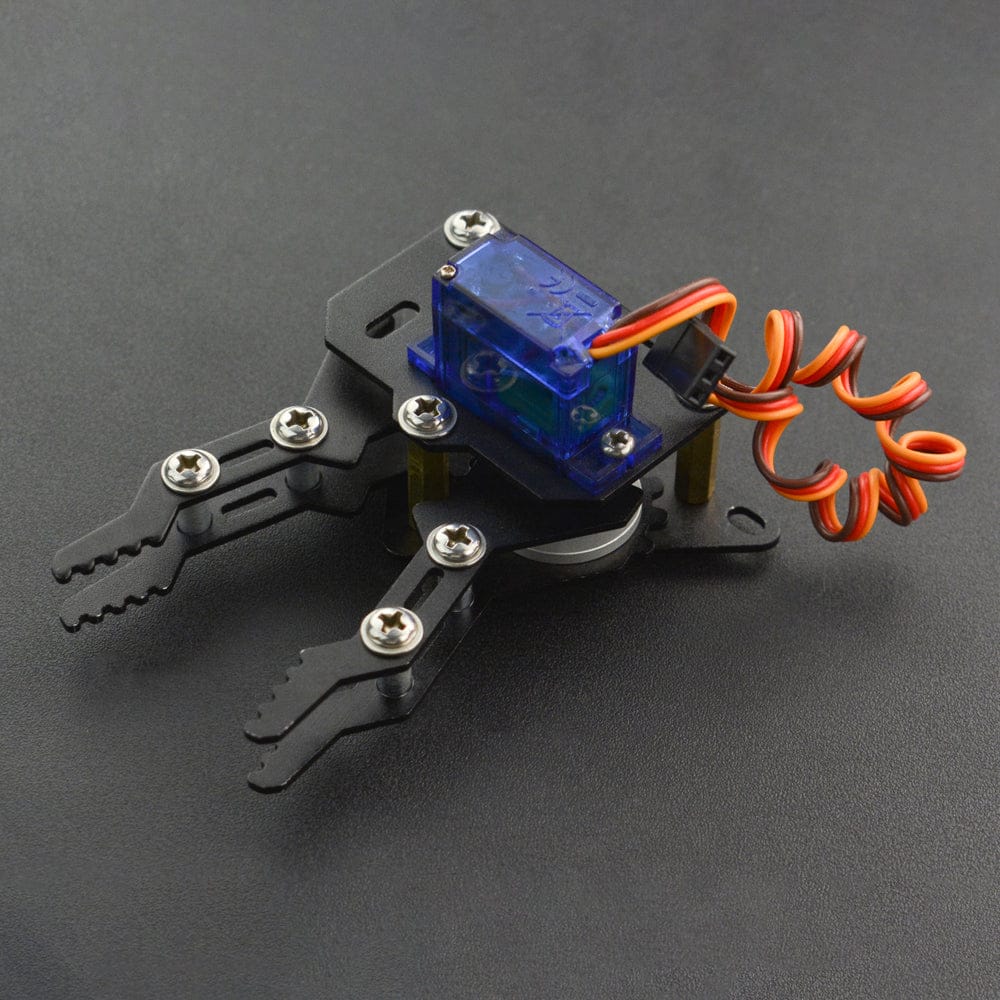

micro:Maqueen Mechanic - Beetle

Transform your Maqueen Lite or Plus into a Mechanic Beetle with this fun, educational kit! It includes a metal servo, mechanical components, and screws for quick assembly — no complex setup needed. Perfect for STEM learning, it introduces students to mechanical principles through engaging, hands-on play.

---

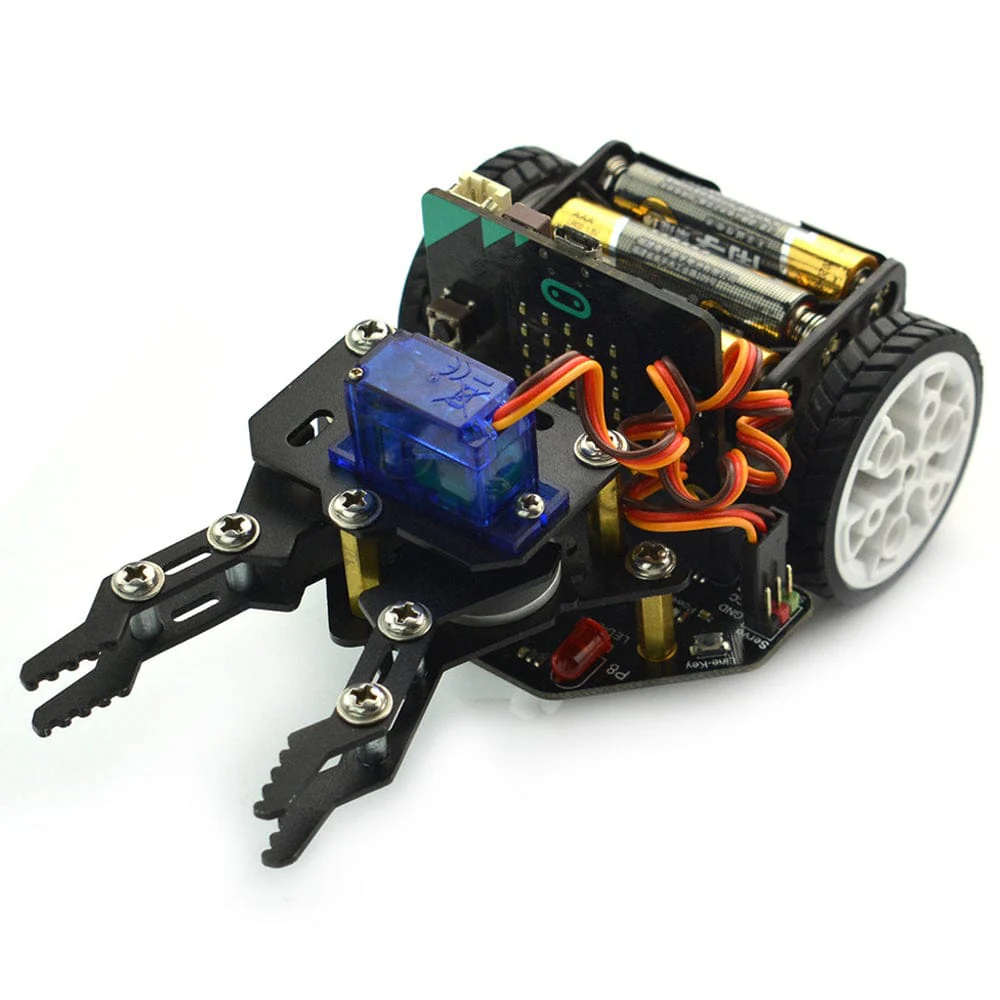

Use this kit to change your Maqueen Lite and Maqueen Plus into a Mechanic Beetle! The Maqueen Mechanic-Beetle kit includes a metal servo, mechanical parts, screws, etc. Just a simple installation, your Maqueen car (Lite or Plus) is ready to go.

This play-and-learn kit comes with rich mechanical knowledge, which could allow students to benefit a lot from hands-on practices! Come and find more fun and interesting ways to play with Maqueen in this kit.

Please note, micro: Maqueen Lite, micro:bit board and battery are not included.

Features

• Support for Maqueen 4.0 and later
• Support for Maqueen Plus
• Metal gear servo, reliable quality
• Metal servo connection plate for easy installation
• 0 ~ 180 deg control angle
• Aluminium alloy material, sandblasting oxidation process, excellent quality

Specifications

• Servo Weight: 12g ± 1g
• Control Angle: 0 ~ 180 deg
• Metal gear servo, metal servo connection plate
• Control Ports: S1, S2, S3 (Maqueen Plus)
• Standby Current: <45mA

Resources

• Wiki
• Tutorial

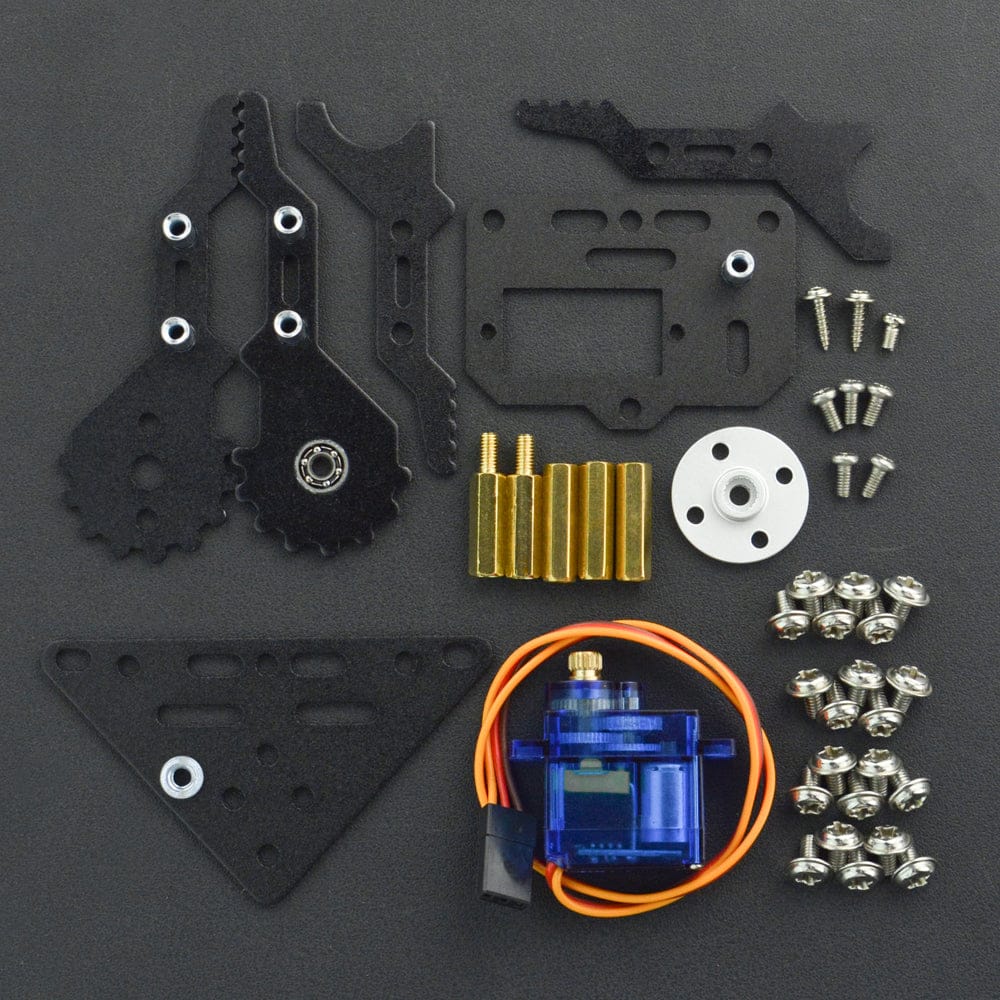

Package Contents

• 1x 9g Metal Gear Servo
• 2x Metal Gripper Upper Arm
• 1x Metal Gripper Driven Forearm
• 1x Metal Gripper Servo Forearm
• 1x Metal Gripper Panel
• 1x Metal Gripper Bottom Panel
• 2x M3*15mm Copper Pillar
• 3x M3*17mm Copper Pillar
• 5x M2.5*5mm Screws
• 20x M3*5mm Screws

Micro: Maqueen Lite, micro:bit board and battery are not included.
