Makeblock XY-Plotter Robot Kit (No Electronics) [Discontinued]

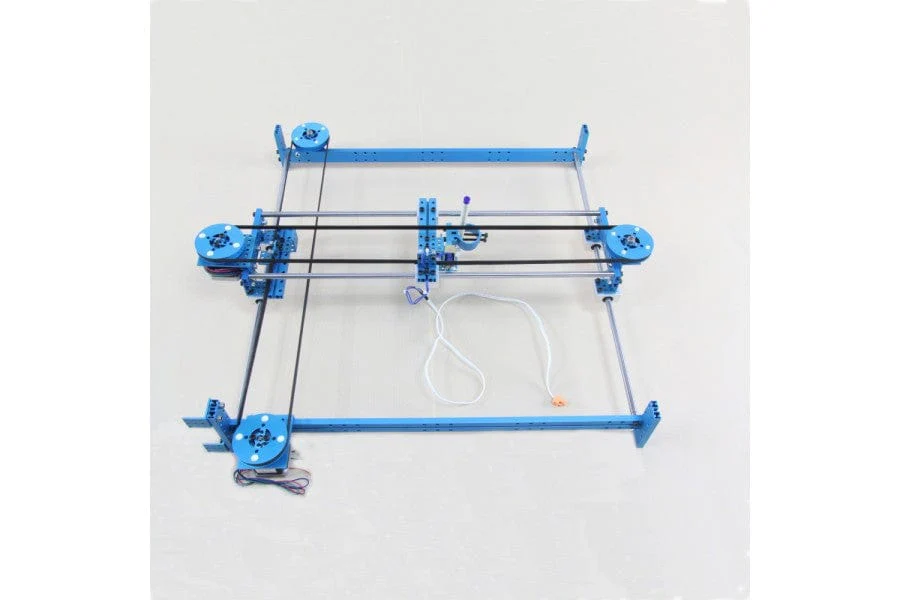

This kit can be used to build a XY-Plotter. You can use the XY-Plotter to build a lot of interesting applications such as a drawing robot. It works very well, precise and stable.
Features
- Strong aluminum extrusion parts, anodizing surface
- Two Metal stepper motor with back shaft
- 12V Solenoid include
- Closed type bushing block and ball bushing insert for use in linear motion applications
- Four-bolt aluminum alloy bushing block for a lightweight ready-to-mount installation
- Synthetic resin retainer plate for accurate ball guidance and low noise
- Four rows of recirculating balls inside the ball bushing for smooth running
- Integral lip seals to retain lubricant and protect against contamination
- Round steel shaft for use with slide units in linear motion applications.
- Chrome plated for corrosion resistance
- Case hardened for wear resistance
- Precision ground for consistent ball bushing radial clearance
Note:
With this kit, you can only build a XY-Plotter without controller. You can use your own electronic parts to drive this. We also offer a kit with electronic parts here, you may save about 30$ of the electronic parts with this kit.

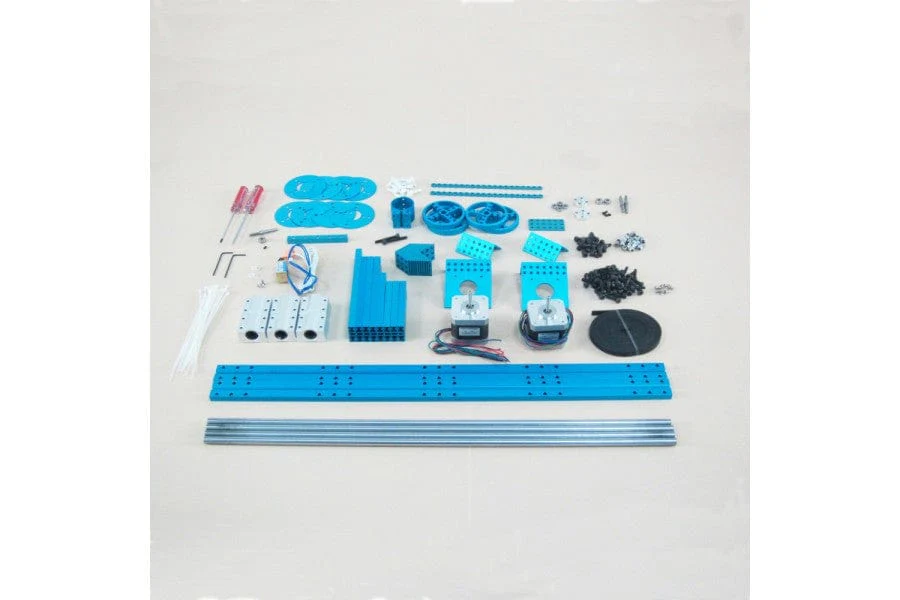

Kit Includes:
| 4 Ă— Linear Motion Shaft D8Ă—480 | 2 x Stepper Motor | 30 Ă— Plastic Rivet 4120 |
| 6 Ă— Linear Motion Slide Unit 8mm | 2 Ă— Stepper Motor Bracket | 25 Ă— Plastic Ring 4x7x2mm |
| 1 Ă— Solenoid-12V | 4 Ă— Timing Pulley 90T | 10 Ă— Plastic Ring 4x8x1mm |
| 2 Ă— Beam 0824-496 | 8 Ă— Timing Pulley Slice 90T | 35 Ă— Screw M4Ă—8 |
| 1 Ă— Beam 0824-144 | 1 Ă— Open-end Timing Belt (3m) | 60 Ă— Screw M4Ă—14 |
| 3 Ă— Beam 0824-128 | 3 Ă— Link Rod | 2 Ă— Srew M4Ă—30 |
| 1 Ă— Beam 0824-96 | 2 Ă— Shaft Connector-4 | 40 Ă— Nylong Lock Nut M4 |
| 3 Ă— Beam 0824-80 | 3 Ă— Threaded Shaft 4Ă—31mm | 20 Ă— Nut M4 |
| 1 Ă— Beam 0808-80 | 3 Ă— Shaft Collar 4mm | 15 ?Nylon Cable Ties |
| 1 ?General Bracket | 4 Ă— Flange Bearing 4x8x3mm | 1 Ă— Cross Screwdriver |
| 2 Ă— Bracket 3x6 | 8 Ă— Headless Set Screw M3x5 | 1 Ă— Screwdriver 3mm |
| 14 Ă— Bracket 3Ă—3 | 15 Ă— Countersunk Screw M3x8 | 2 Ă— Screwdriver 1.5mm |
| 2 Ă— Plate 3Ă—6 |
