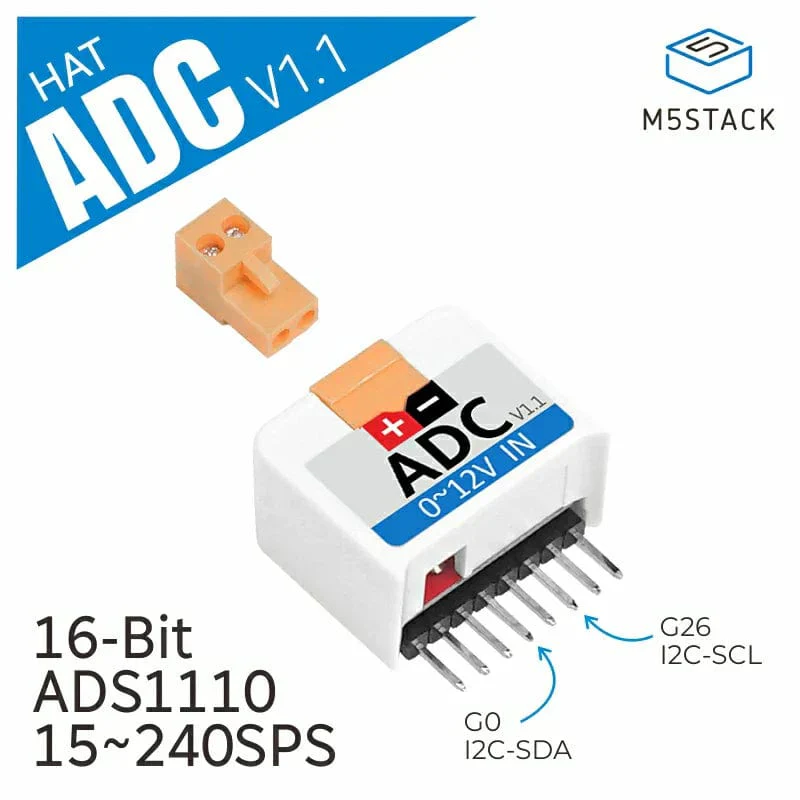

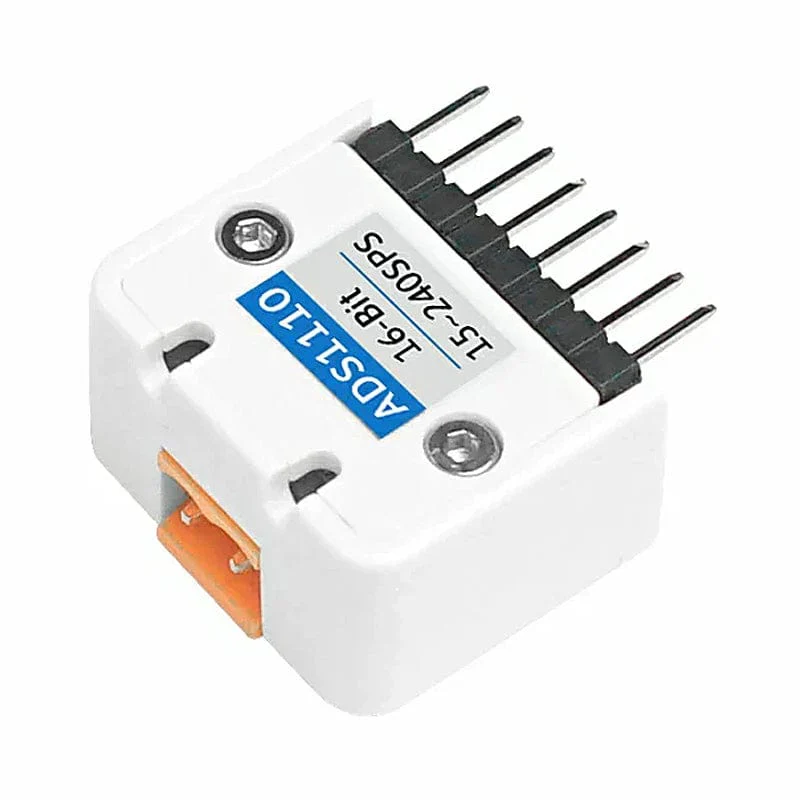

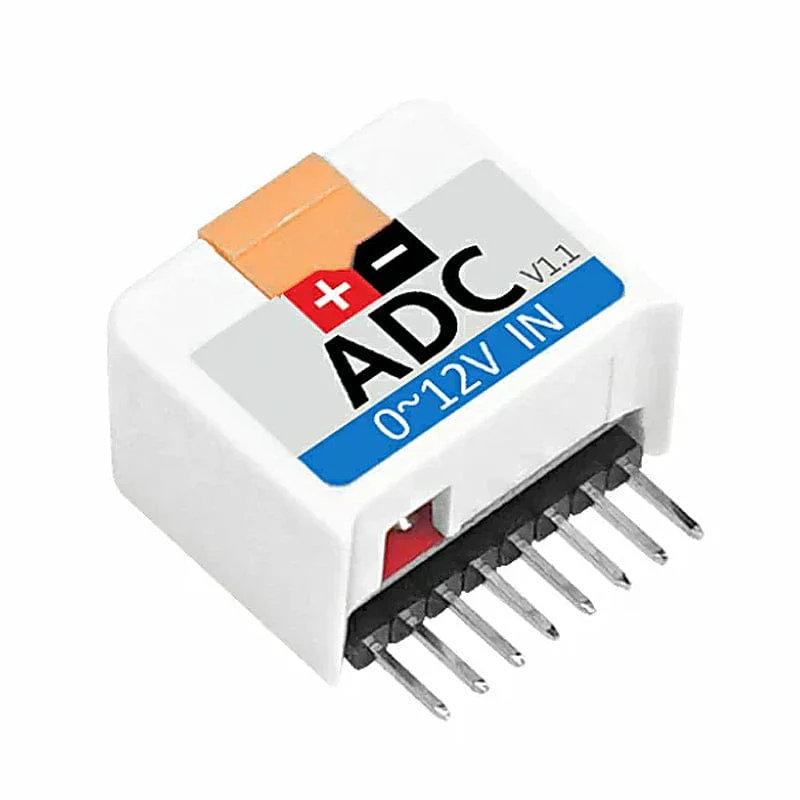

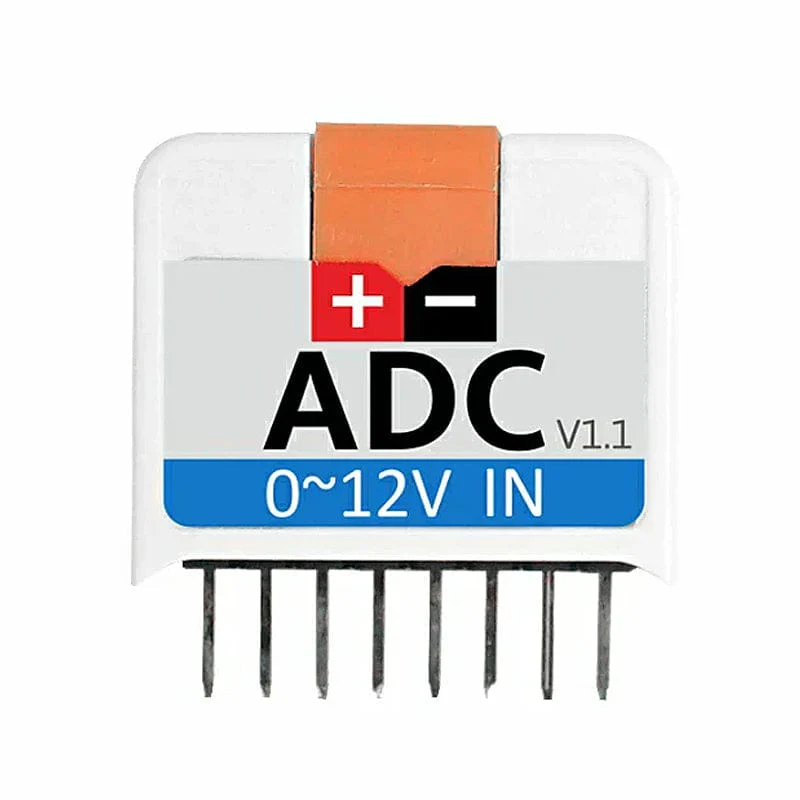

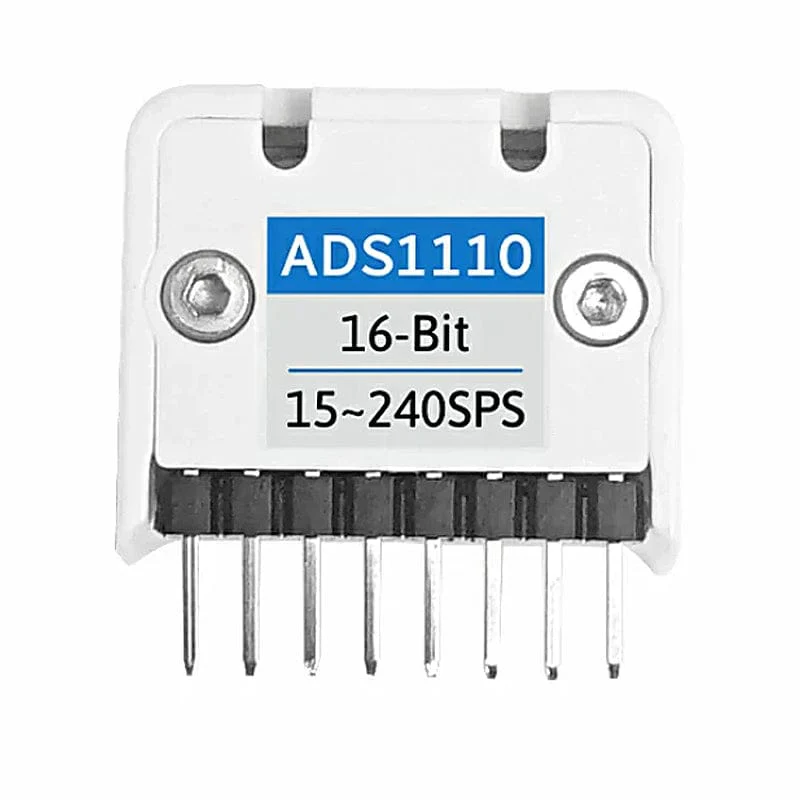

M5StickC ADC HAT ADS1110 v1.1

The M5Stack M5StickC ADC HAT V1.1 is another type of C-HAT specifically designed for the M5StickC controller.

Same as the ADC unit, this is an ADC converter for M5StickC. Packed with an ADC converter chip ADS1110, which is a fully differential, 16-bit, self-calibrating, delta-sigma A/D converter. Extremely easy to design with and configure, the ADS1110 allows you to obtain precise measurements with a minimum of effort.

The ADS1100 consists of a delta-sigma A/D converter core with adjustable gain, a clock generator, and an I2C interface. The ADS1110 itself is able to accept a differential input from -5 ~ +5 V, but we have limited the input to 0 to 12V by adding the peripheral circuit design of this IC.

Features

• Programmable gain amplifier (PGA = 1, 2, 4 or 8 continuous self-calibration)
• Low noise (10uVP-P)
• I2C Communication
• Built-in reference (accuracy: 2.048V ± 0.05%)

Specifications

Programmable Gain Amplifier	PGA=1, 2, 4, or 8
Built-in Reference Voltage	2.048V ± 0.05%
I2C Communication	0x48
Temperature Drift	5ppm/℃
INL	0.01% of full scale (maximum)
Programmable Rate	15SPS TO 240SPS
ADS1110 Resolution	16-bit
Operating Temperature	0 ~ 40°C

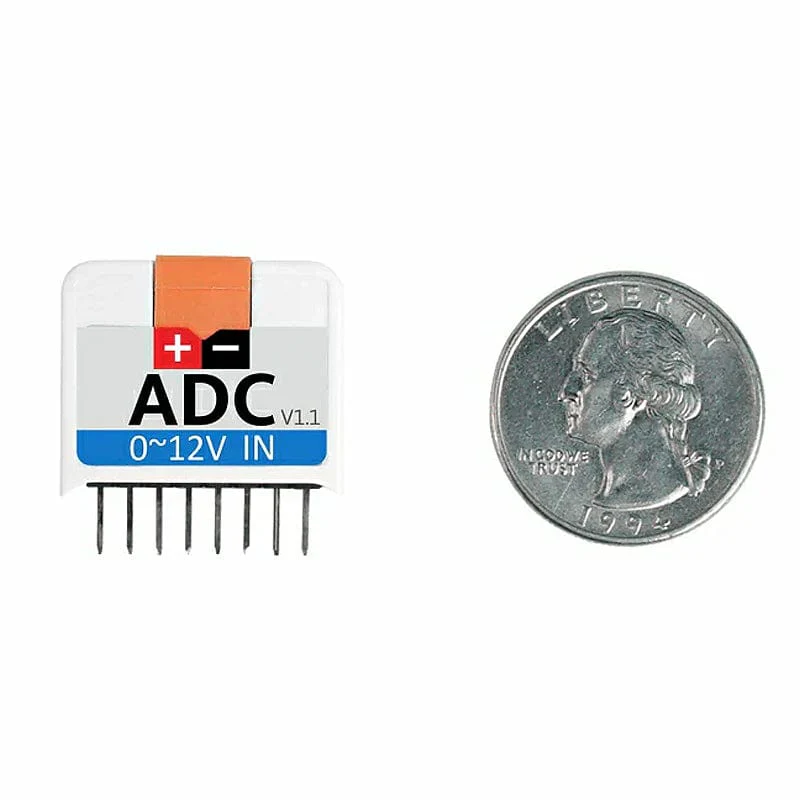

Product Size	32.0 x 24.0 x 10.2mm
Product Weight	4.5g

Resources

• Product Wiki
• Schematics
• ADS1110 Datasheet
• Dimension diagram

Arduino

• Unit ADC v1.1 with M5Core
• Unit ADC v1.1 with M5Core2
• Unit ADC v1.1 with M5Atom
• Unit ADC v1.1 with M5StickC
• Unit ADC v1.1 with M5StickCPlus

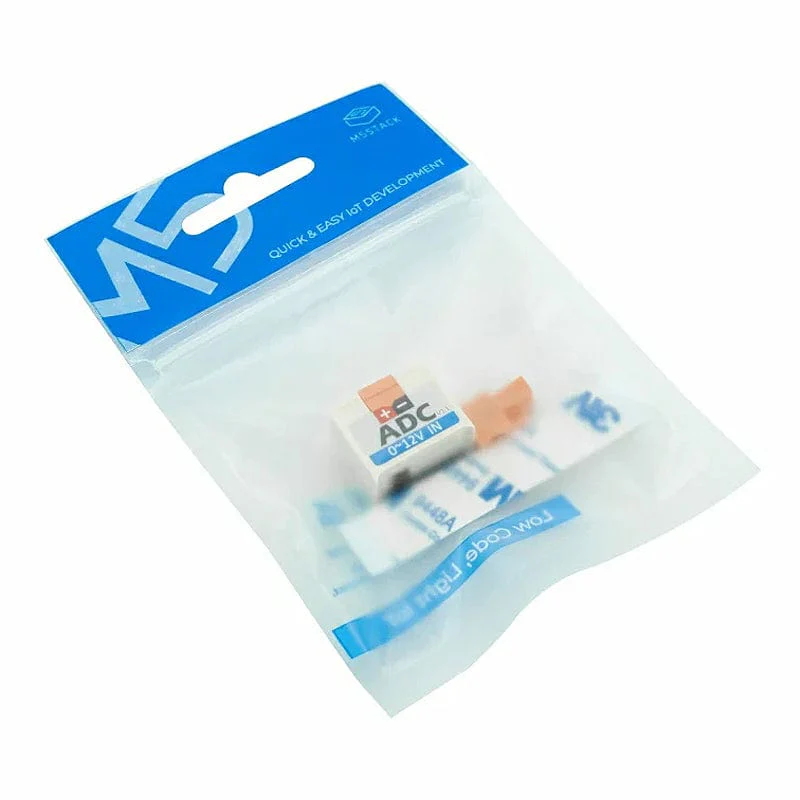

Package Contents

• 1x ADC V1.1 Unit
• 1x Grove Wire (20cm)
• 1x HT3.96 Male Socket (2 pins)
