M5Stack USB TypeC2Grove Unit

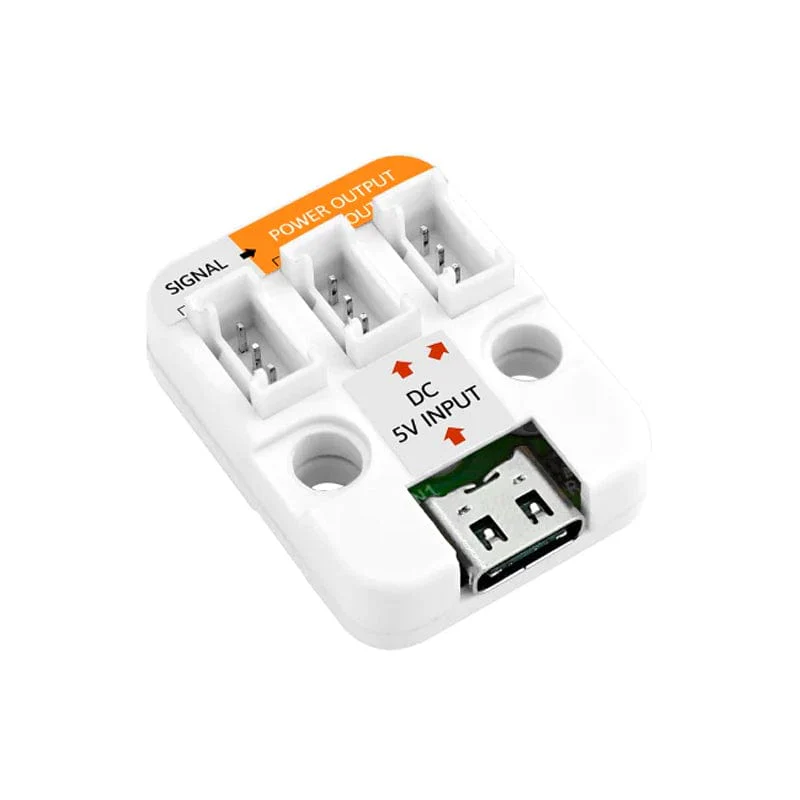

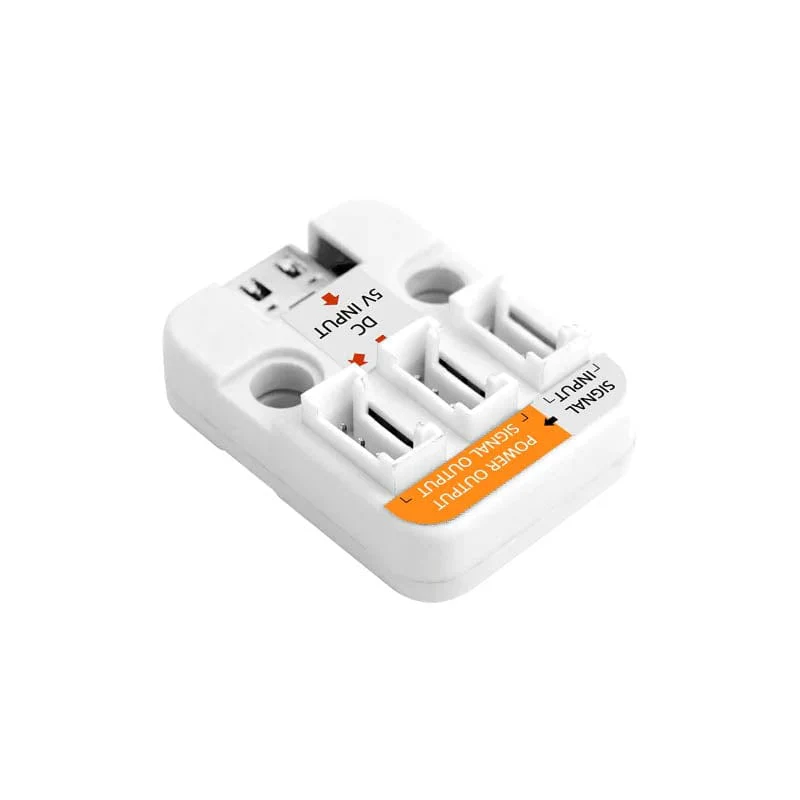

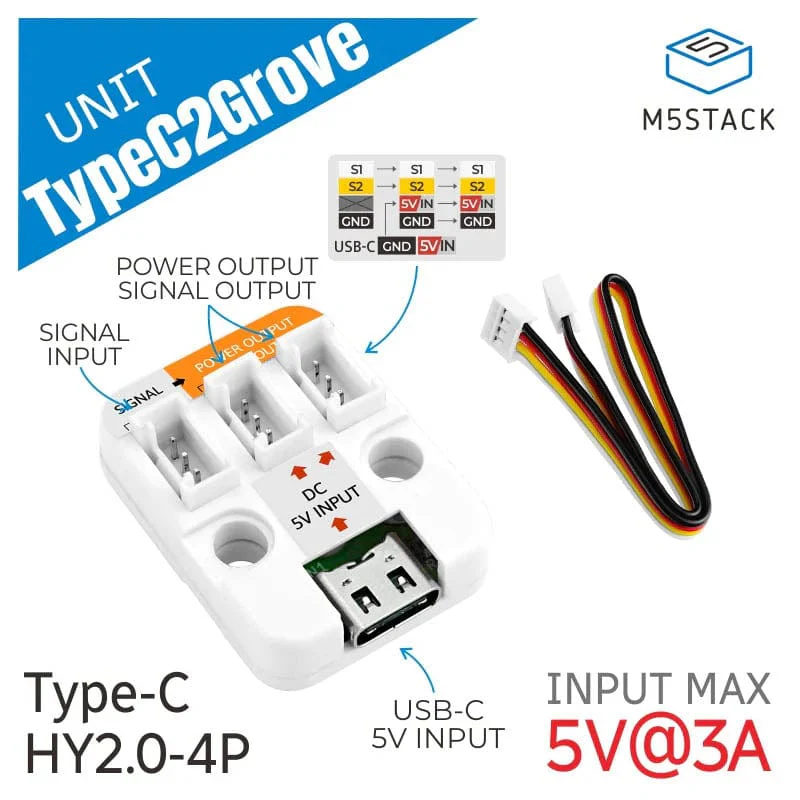

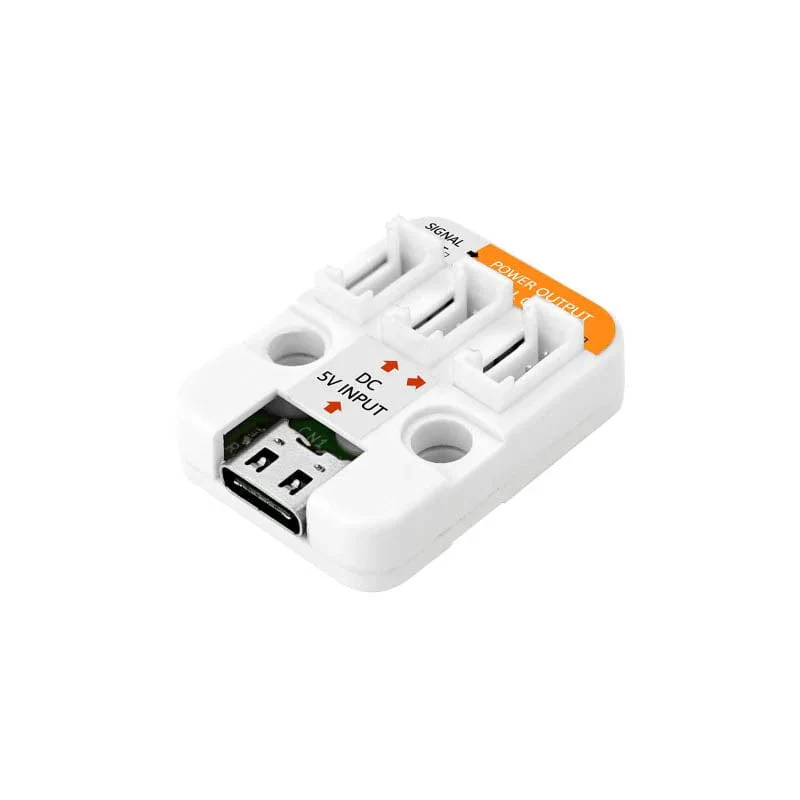

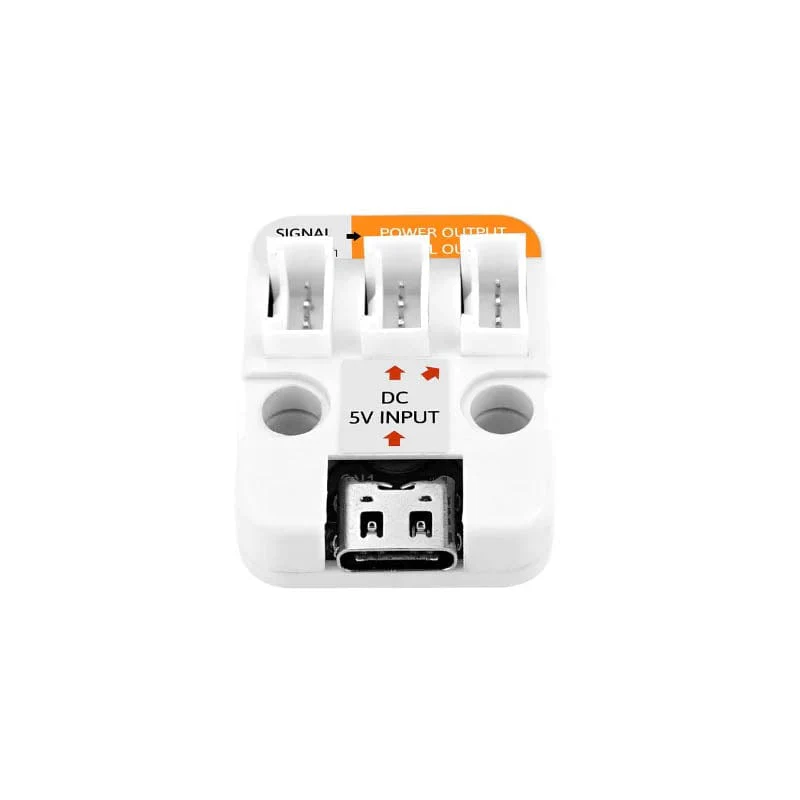

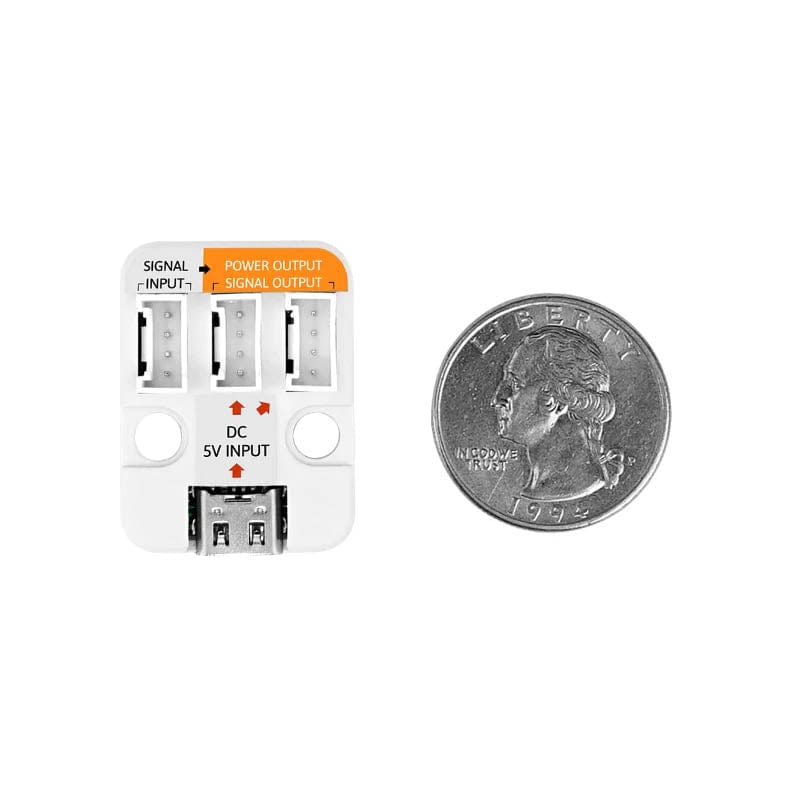

The USB TypeC2Grove Unit from M5Stack is a Grove hub Unit with a USB-C 5V DC input.

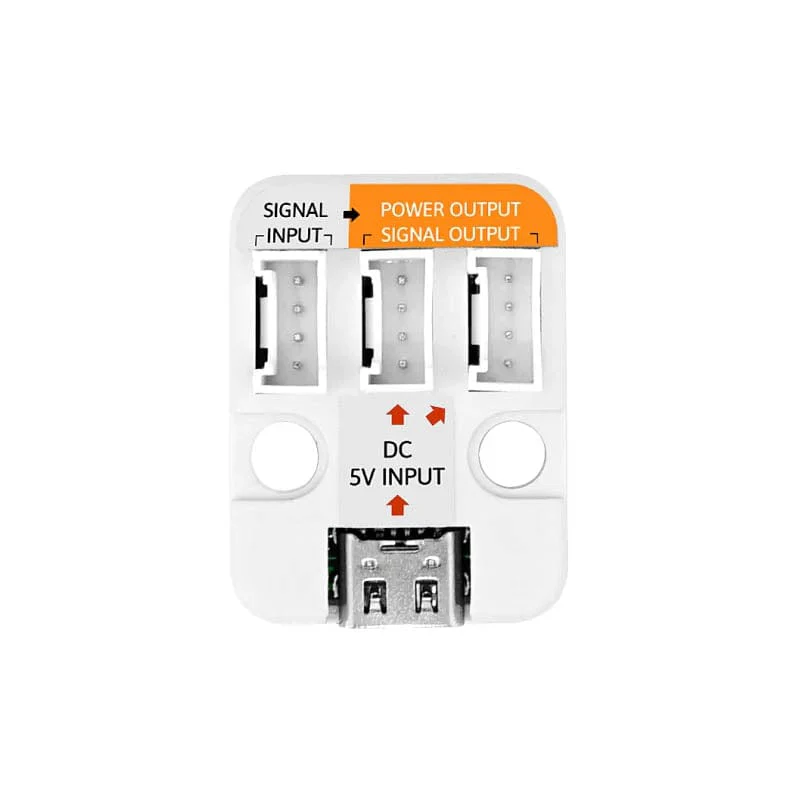

Powered through a USB-C port, the first channel is Singal Input, and the second and third channels are Power and Singal Output. Applied for the Units which need external 5V DC power.

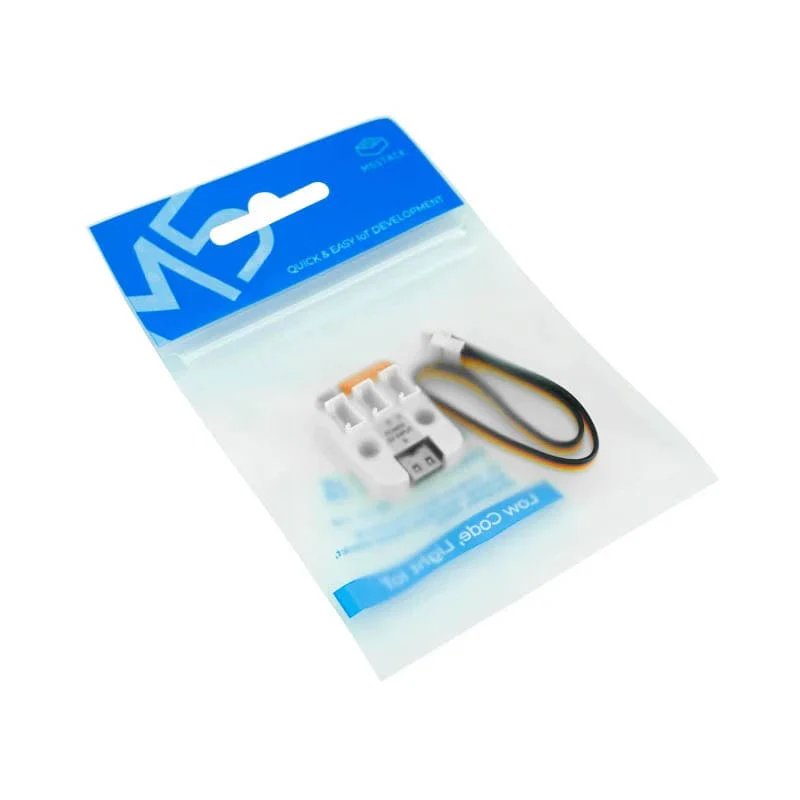

Package Contents
- 1x TypeC2Grove Unit
- 1x HY2.0 4-pin Cable (20cm)
Specifications
| Power Supply | MAX 5V@3A |
| Net Weight | 4.9g |
| Gross Weight | 10.7g |
| Product Size | 32*24*12mm |
| Package Size | 136*92*13mm |
Resources
- Product Documentation
- Schematic

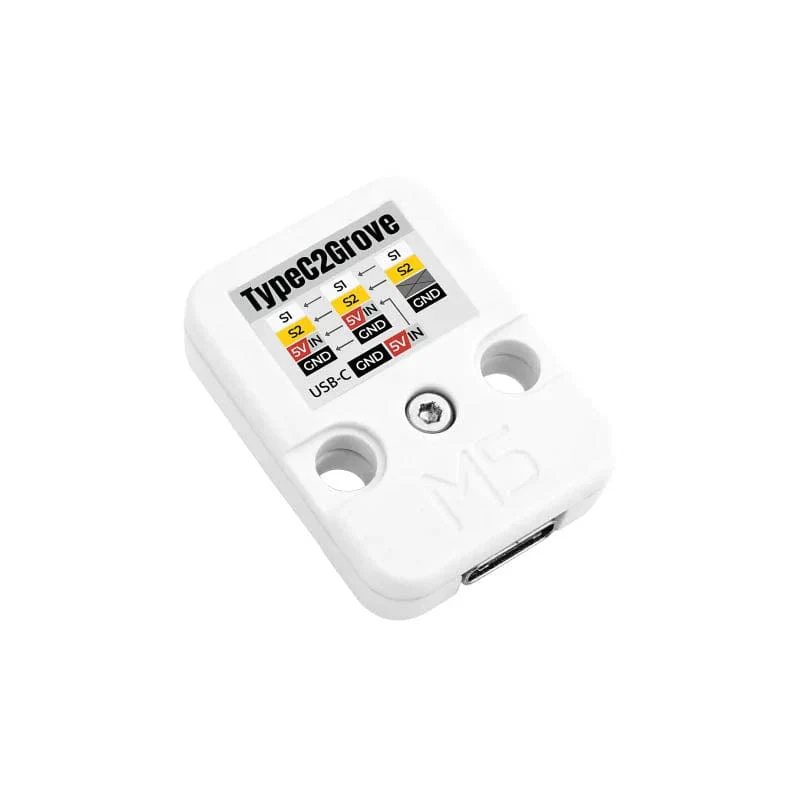

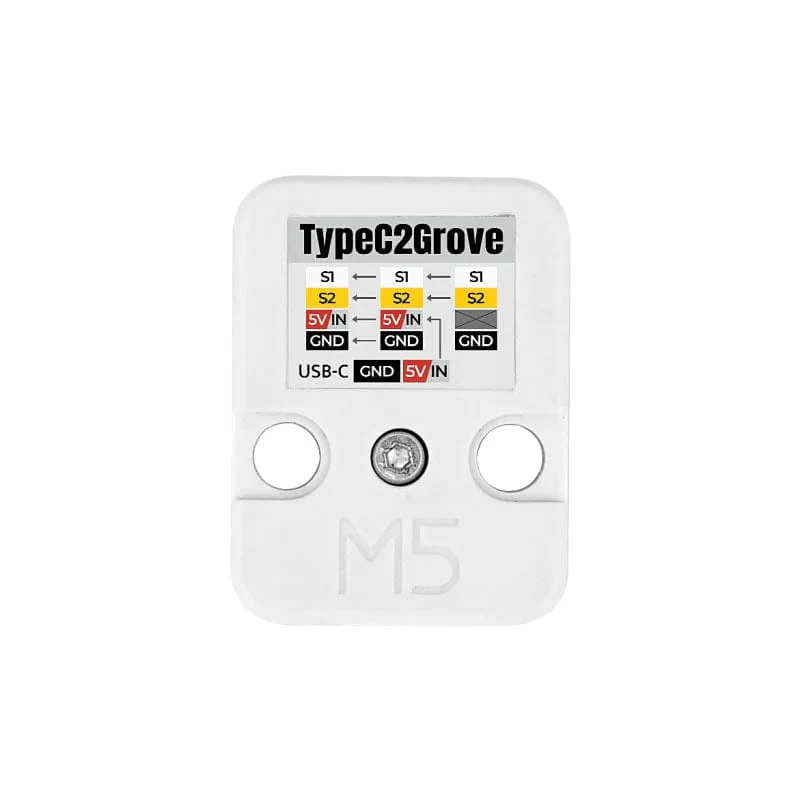

Pinout
| PORT | WHITE | YELLOW | RED | BLACK |
| CN2 | SCL/RX | SDA/TX | NULL | GND |
| CN3 | SCL/RX | SDA/TX | +5V | GND |
| CN4 | SCL/RX | SDA/TX | +5V | GND |
