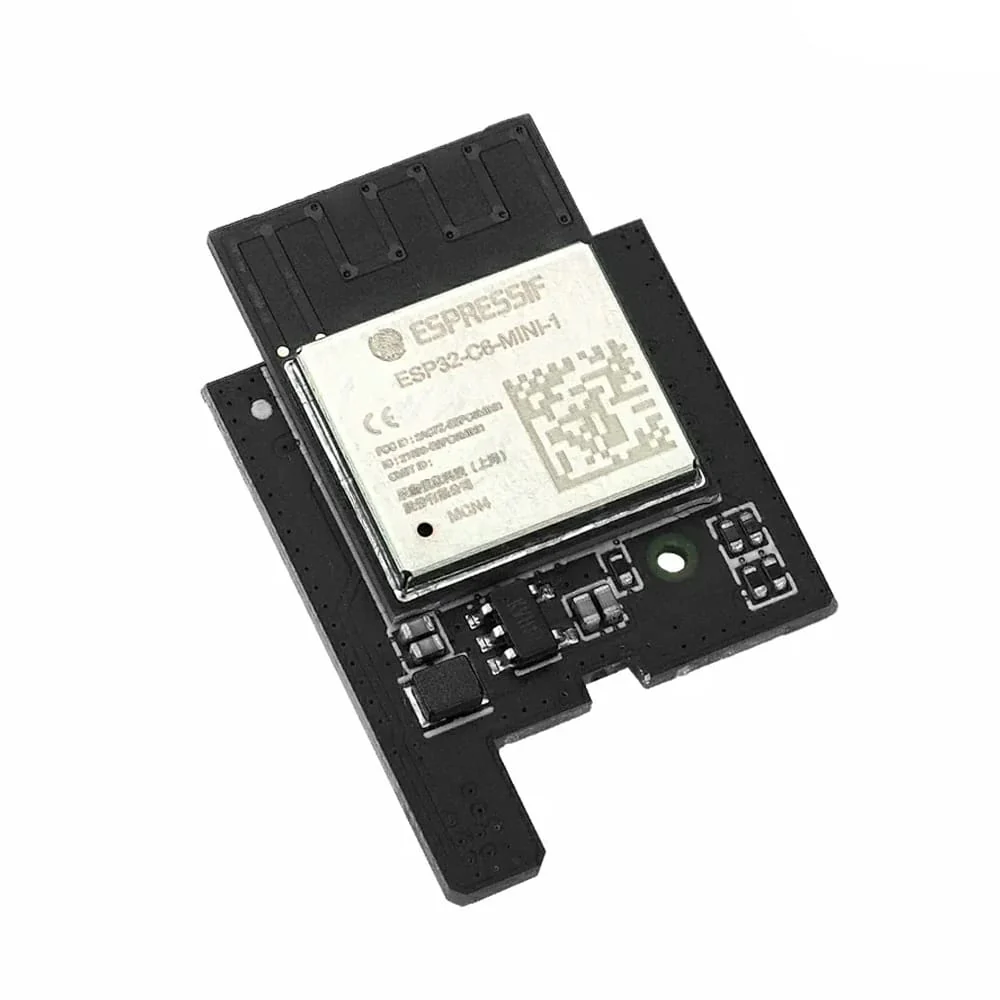

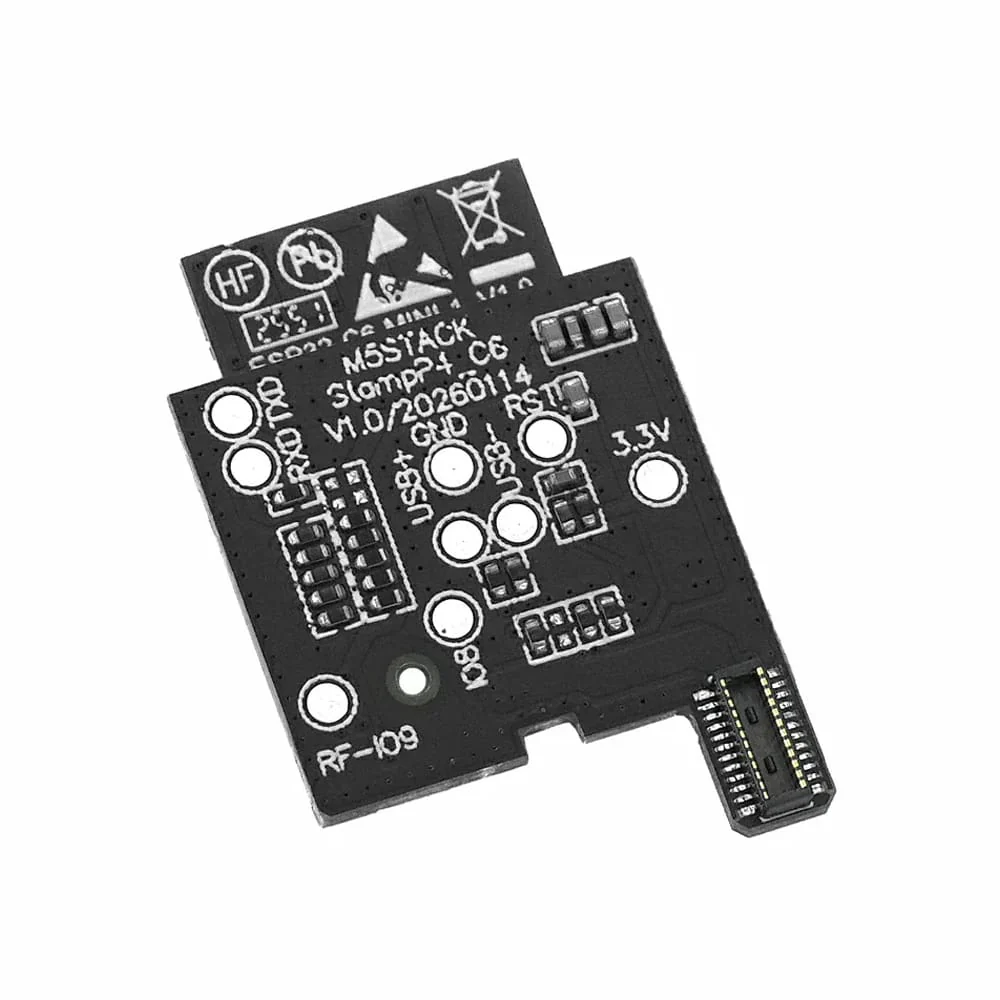

M5Stack Stamp-AddOn C6 for P4 Module

The M5Stack Stamp-Add-on C6 for P4 is a wireless expansion module designed to add Wi-Fi connectivity to ESP32-P4 based systems.

Built around the ESP32-C6-MINI-1-N4, it provides 2.4GHz Wi-Fi 6 support, extending the communication capabilities of Stamp-P4 modules. It connects via the onboard SDIO interface, enabling high-speed data transfer between the modules and allowing for efficient integration without complex wiring.

This add-on is suited to applications that require reliable wireless connectivity alongside higher-performance processing, such as smart security gateways, industrial HMI systems, and edge AI devices. It allows developers to quickly add networking functionality to embedded designs built around the ESP32-P4 platform.

Features

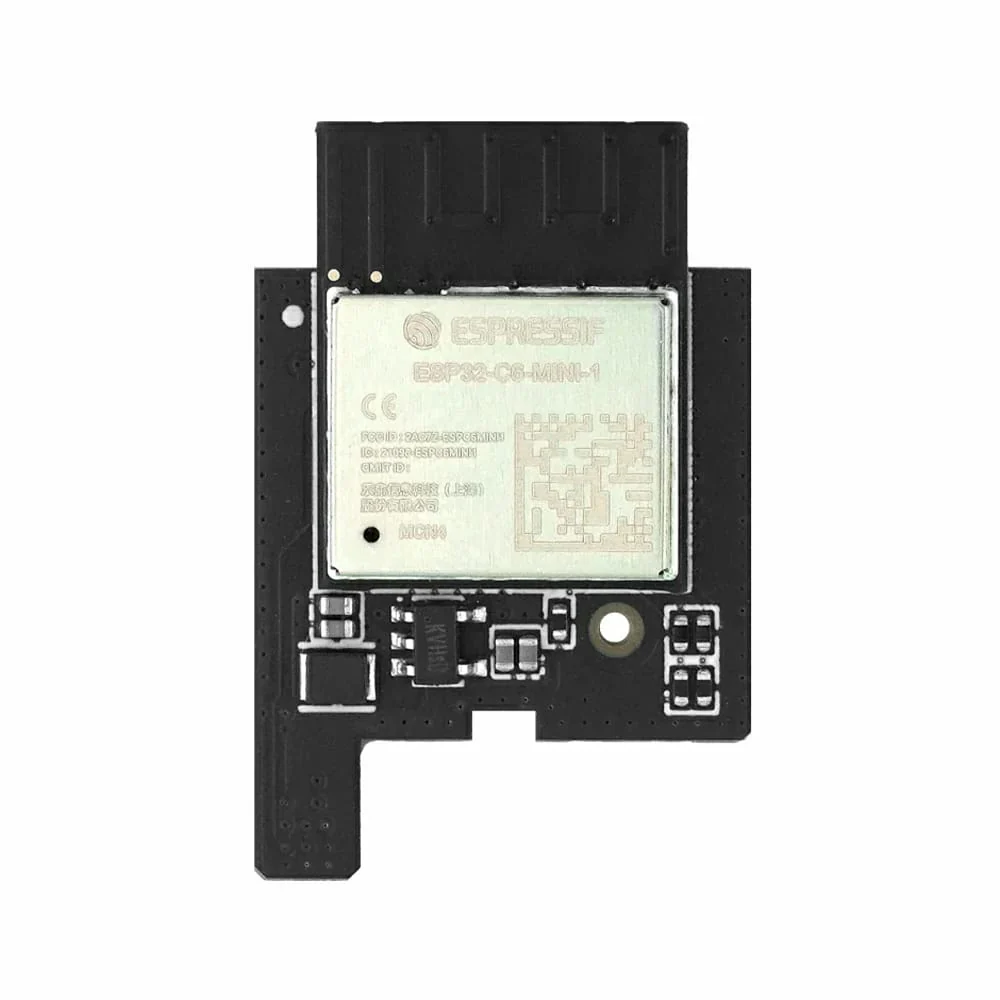

• ESP32-C6-MINI-1-N4 core controller
  • 4MB Flash
  • 2.4GHz Wi-Fi 6

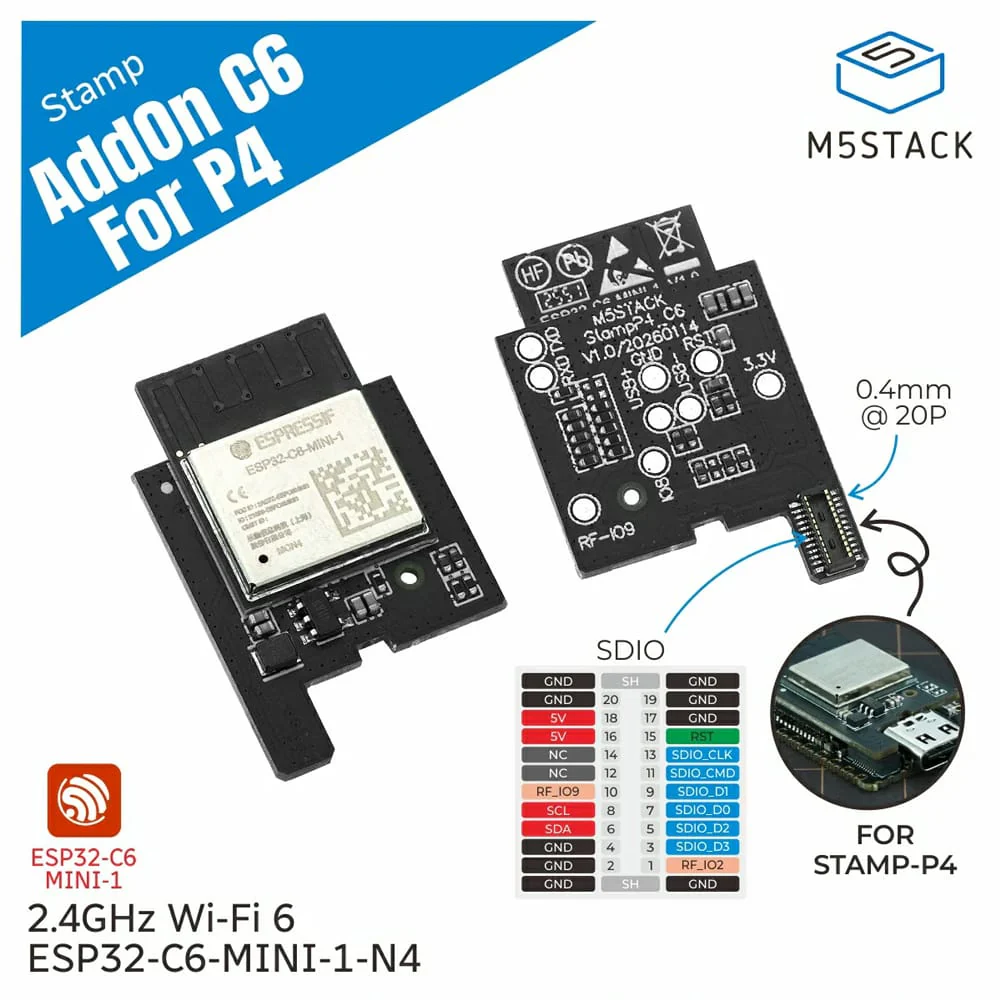

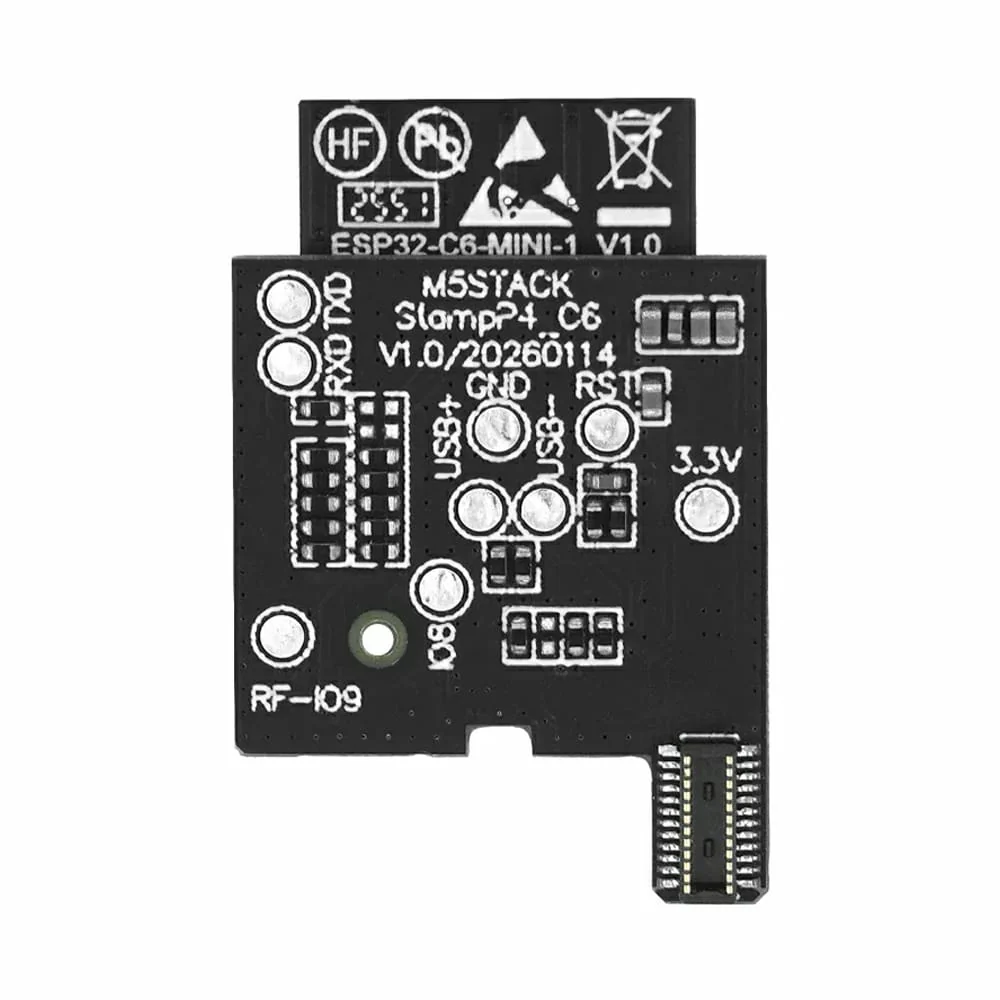

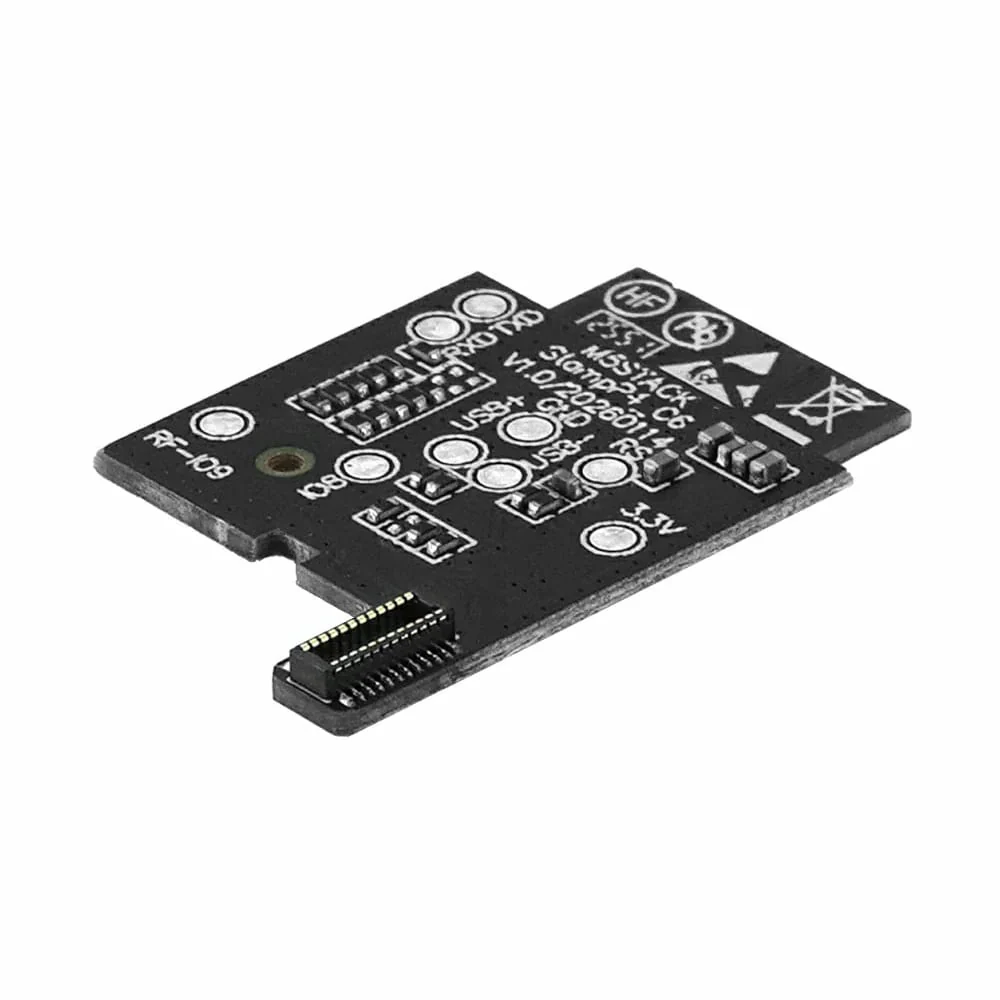

• 0.4mm@20P SDIO onboard interface, adapted for Stamp-P4
• Development Platform
  • UiFlow2
  • Arduino IDE

Specifications

SoC	ESP32-C6FH4 (RISC-V 32-bit single-core processor 160 MHz + RISC-V 32-bit single-core low-power co-processor 20 MHz)
Flash	4MB
DC-DC	SY8089AAAC
Input Voltage	DC 5V
Module Resource Interface	SDIO
SDIO Interface Specification	HC-PBB40C-20DP-0.4V-02
Adapted Device	Stamp-P4
Wireless Protocol	2.4GHz Wi-Fi 6
Operating Temperature	0 ~ 40°C

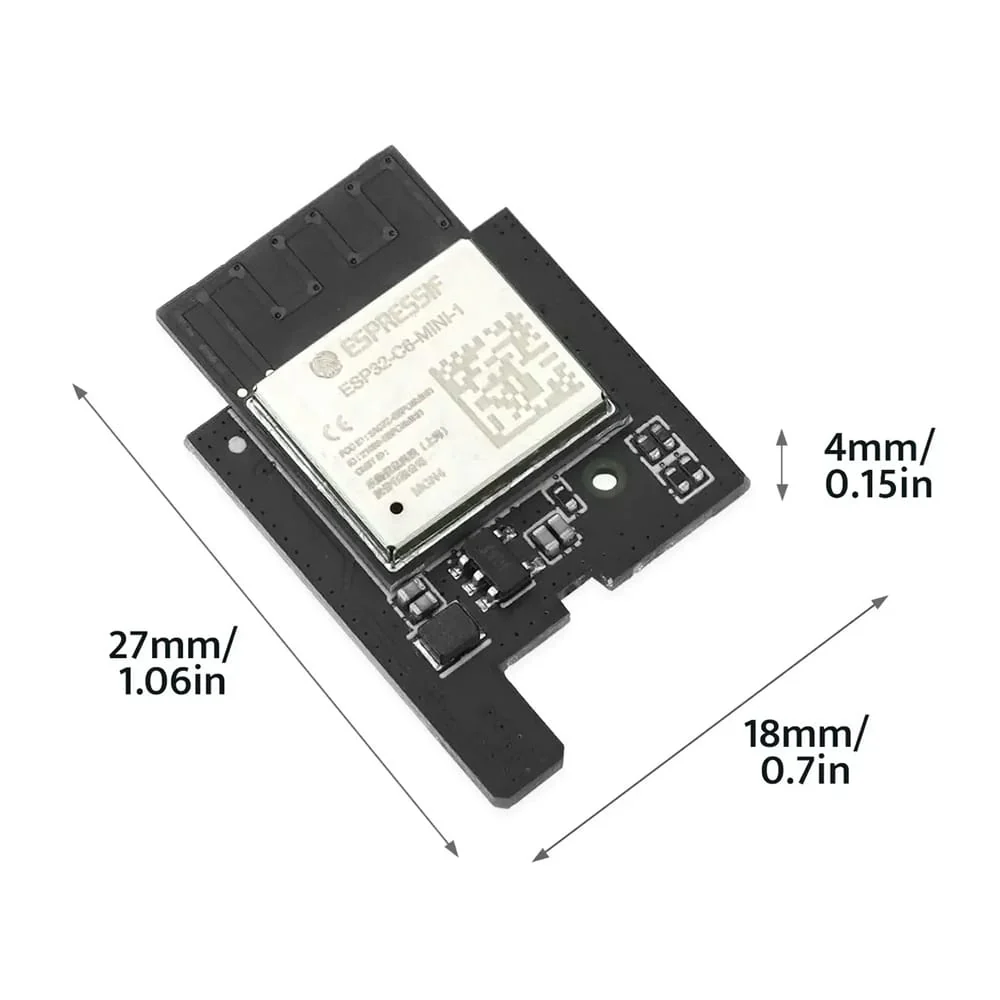

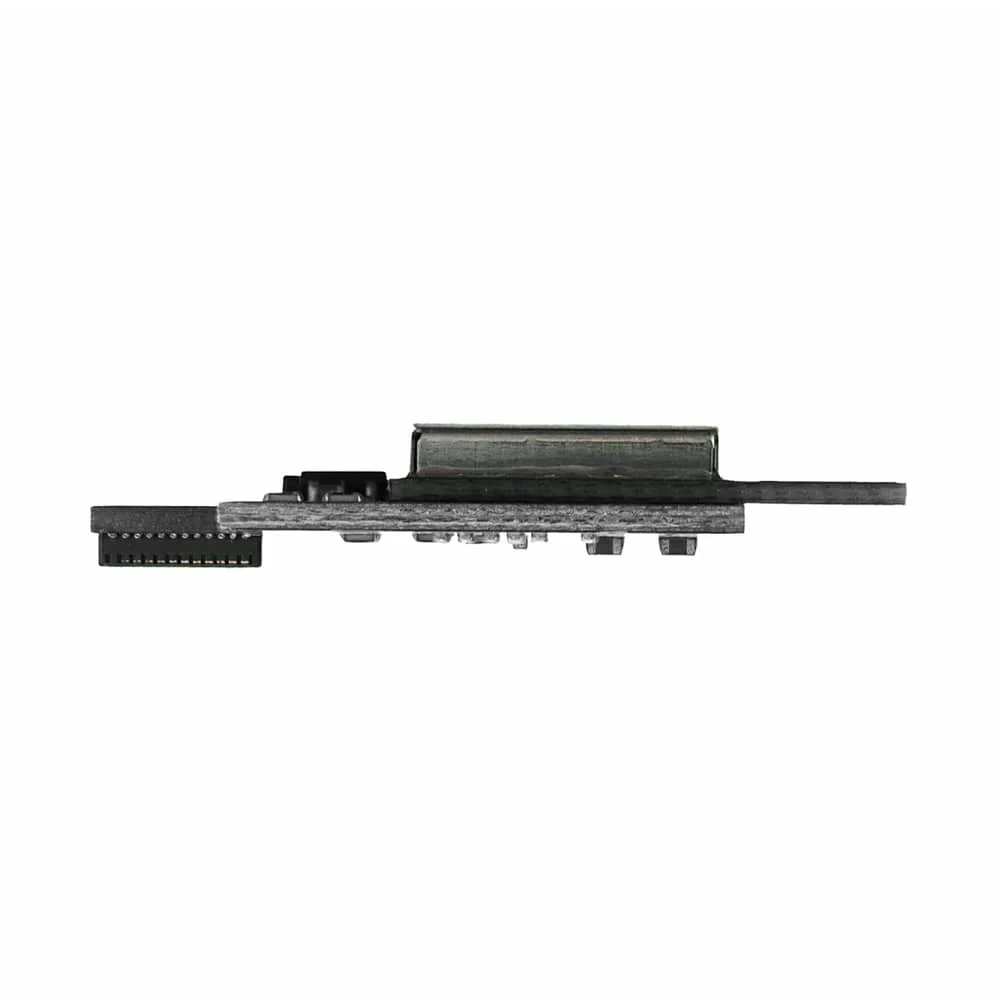

Product Size	27.0 x 18.0 x 4.0mm
Product Weight	1.6g

Resources

• Product Documents

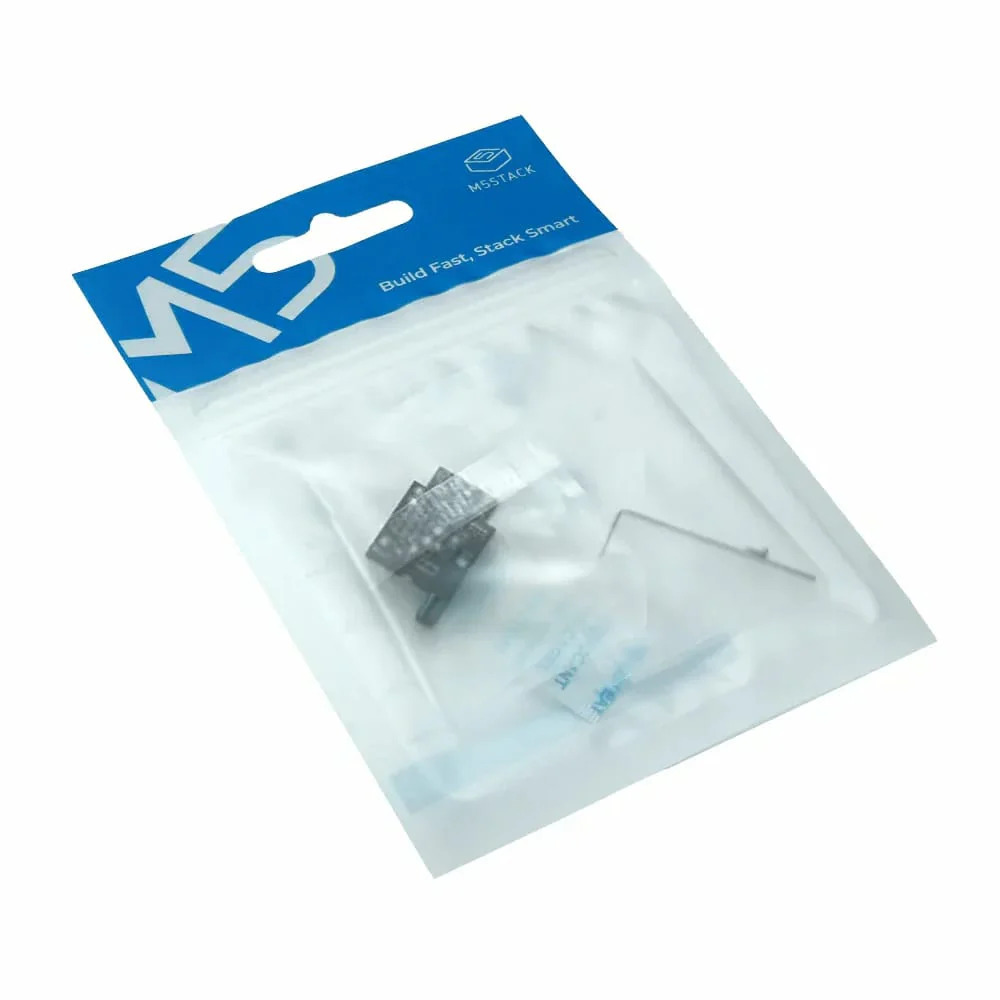

Package Contents

• 1x Stamp-Add-on C6 for P4 Module
• 1 x M1.2 3mm cap head machine screw
• 1 x Hex Key L-Shape 0.9mm (For M1.2 Screw)
